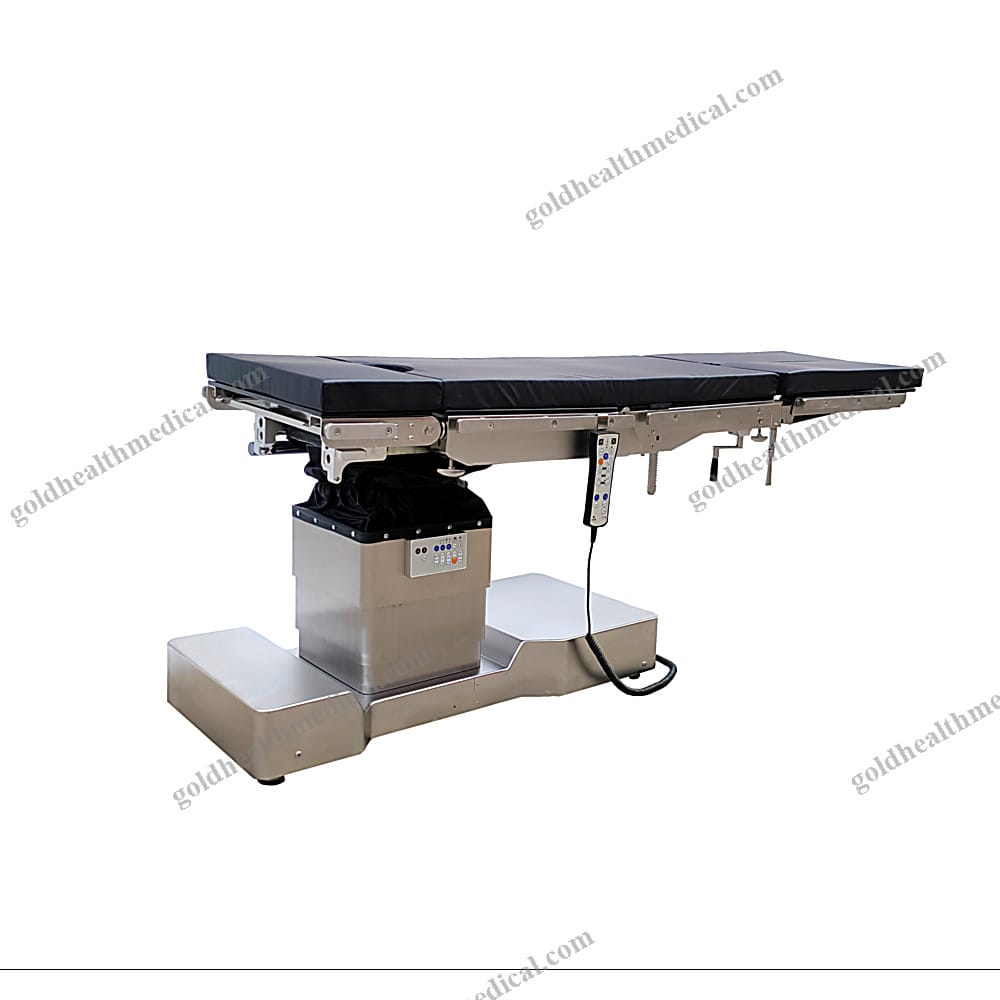

CArm Radiolucent ElectroHydraulic Orthopedic Surgery Table
Reference: 1600905038640Operating Table
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical - Multi-Functional Electric Hydraulic Operating Table
Experience the pinnacle of surgical precision and versatility with GoldHealth Medical's advanced operating table. Designed for seamless integration with any brand of C-Arm radiolucent equipment, this state-of-the-art table redefines orthopedic surgery capabilities.
Key Features and Technical Specifications
- Platform Dimensions: 2100mm x 540mm
- Lifting Range: 580mm to 1040mm

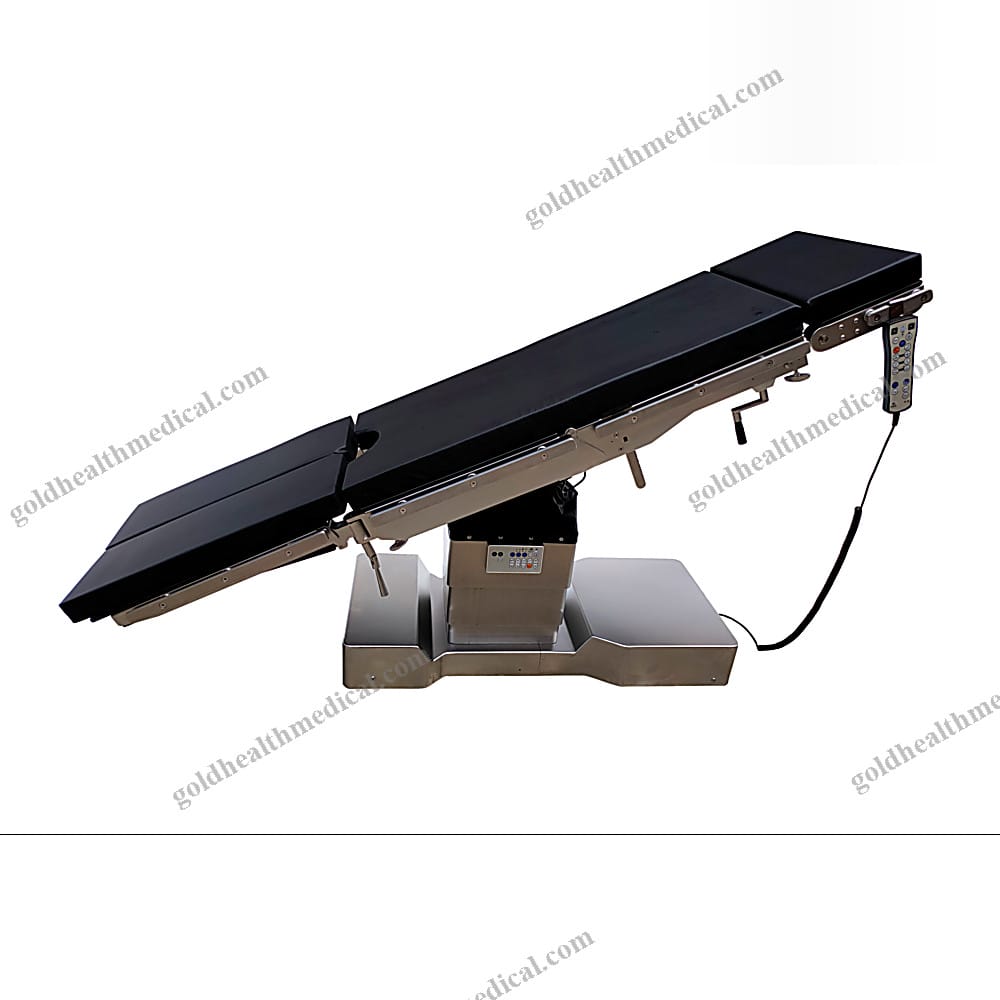

- Trendelenburg/Reverse Trendelenburg: ±30°
- Lateral Tilt: ±20°
- Leg Plate Adjustment: 15°/90°/180°
- Back Section Angle: +80°/-40°
- Head Section Angle: +60°/-90°
- Horizontal Sliding Capability: 300mm
- Waist Bridge Lifting Distance: 120mm
- One-Touch Zero Position: Available

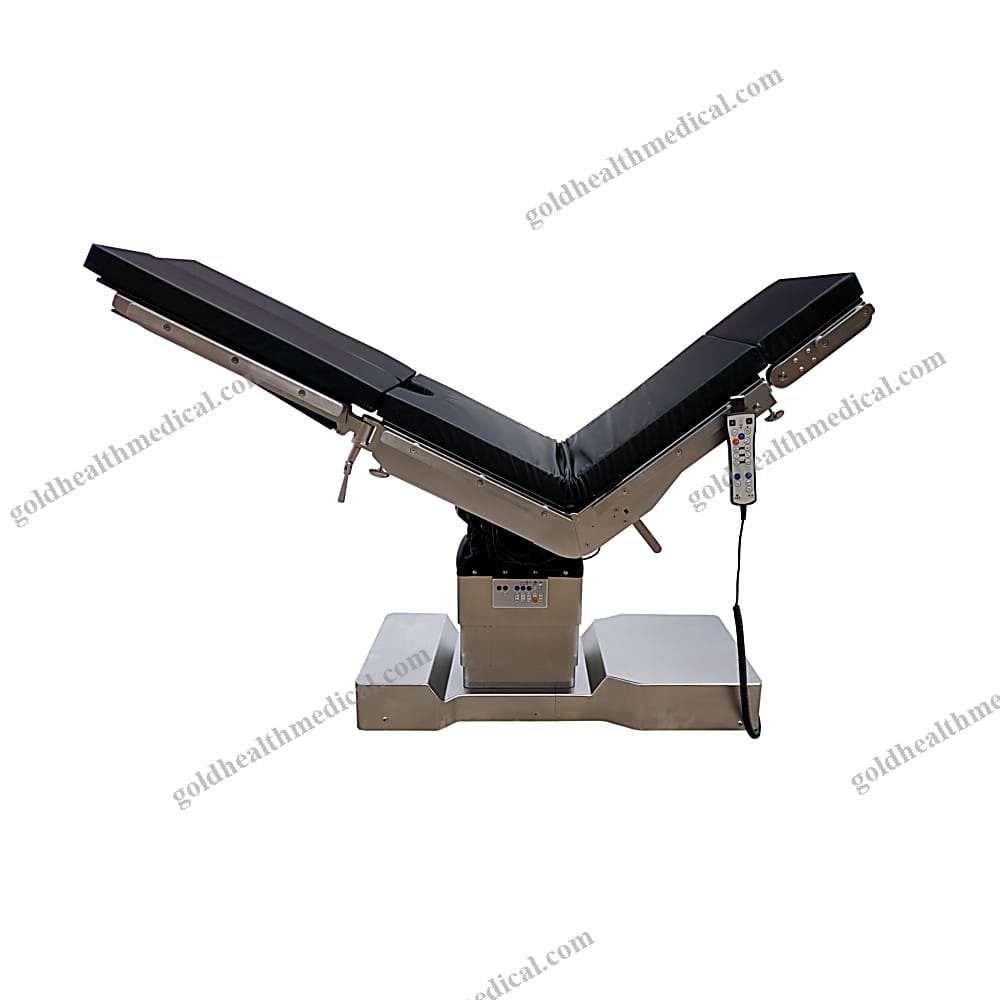

- One-Touch V-Type/Anti-V-Type Function: Available
- Dual Controller System: Integrated
- Battery Backup: Included
- Reverse Positioning: Supported
- Power Supply: 220V 50HZ
- Lifting Stroke: 460mm
- Rated Load Capacity: 250kg
Unparalleled Advantages
- Premium Material Construction: The base, lifting column shell, bed body, and side rails are crafted from high-grade 304 stainless steel, offering exceptional resistance to acids, alkalis, and corrosion. This ensures effortless cleaning and maintenance.
- Advanced Microcomputer Control: Features one-touch reset, memory functions, and fault reminders for enhanced operational efficiency.
- Electric Hydraulic System: Employs a dual-system design (oil and circuit) for smooth bed operations, including lift, tilt, lateral movement, backrest adjustment, horizontal translation, and reset functions.
- Versatile Surgical Applications: Ideal for orthopedic, urological, and obstetric/gynecological procedures.
Why Choose GoldHealth Medical?
GoldHealth Medical stands at the forefront of medical innovation, specializing in the research, development, and manufacturing of premium medical equipment. Our product range includes carbon fiber operating tables, spinal frame systems, joint traction frames, and various surgical fixation devices.
Our commitment to quality is demonstrated through rigorous production standards and comprehensive inspection protocols. We offer customizable solutions, including OEM services, to meet your specific requirements.
Additional Highlights
- Mechanical Backup System: Ensures functionality even in the absence of electrical power.
- Precision Engineering: Every movement, from lifting to tilting, is meticulously adjustable for optimal positioning.
- Comprehensive Safety Features: Equipped with two brake oil pressure cylinders for secure operation.
Choose GoldHealth Medical for a transformative approach to surgical table technology, where precision meets reliability in every procedure.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Electro Hydraulic Operating Table for Orthopedic Surgery
Brand Name: GoldHealth Medical
Product Overview
The Electro Hydraulic Operating Table from GoldHealth Medical is a cutting-edge solution designed for precision, versatility, and reliability in orthopedic surgeries. Engineered with advanced electro-hydraulic technology, this operating table ensures seamless adjustments and exceptional stability, empowering medical professionals to deliver optimal patient care.
Key Features
- Material: Constructed from premium 304 stainless steel, ensuring durability, corrosion resistance, and easy sterilization.
- Adjustability:
- Lifting height range: 580mm - 1040mm for optimal positioning.
- Left and right tilt: ±20° for precise lateral adjustments.
- Front and back tilt: ±30° to support various surgical angles.
- Horizontal sliding: 300mm for enhanced flexibility during procedures.
- Power Source: Electrically powered for smooth and quiet operation.
- Instrument Classification: Class I medical device, ensuring safety and reliability.
- Radiolucent Design: Compatible with C-Arm imaging systems for uninterrupted surgical workflows.
Certifications and Compliance
- Quality Certifications: CE, ISO 13485
- Meets stringent international safety and performance standards.
Customization Options
- OEM and ODM services available to meet specific branding and functional requirements.
Packaging and Delivery
- Packaging: Export-grade wooden case to ensure safe transportation.
- Package Dimensions: 130 x 170 x 90 cm
- Gross Weight: 68.00 kg
- Port of Origin: Shanghai Port
Supply and Warranty
- Minimum Order Quantity (MOQ): 1 set
- Supply Ability: Up to 200 pieces per month
- Warranty: Comprehensive 1-year warranty for peace of mind.
- After-Sales Service: Dedicated online technical support to address any operational or technical queries.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-quality medical equipment that meets the evolving needs of modern healthcare. Our Electro Hydraulic Operating Table combines precision engineering with user-centric design, making it an indispensable asset for hospitals, clinics, research institutions, and rehabilitation centers worldwide.
Transform your surgical environment with GoldHealth Medical’s state-of-the-art operating table, where precision meets performance.
