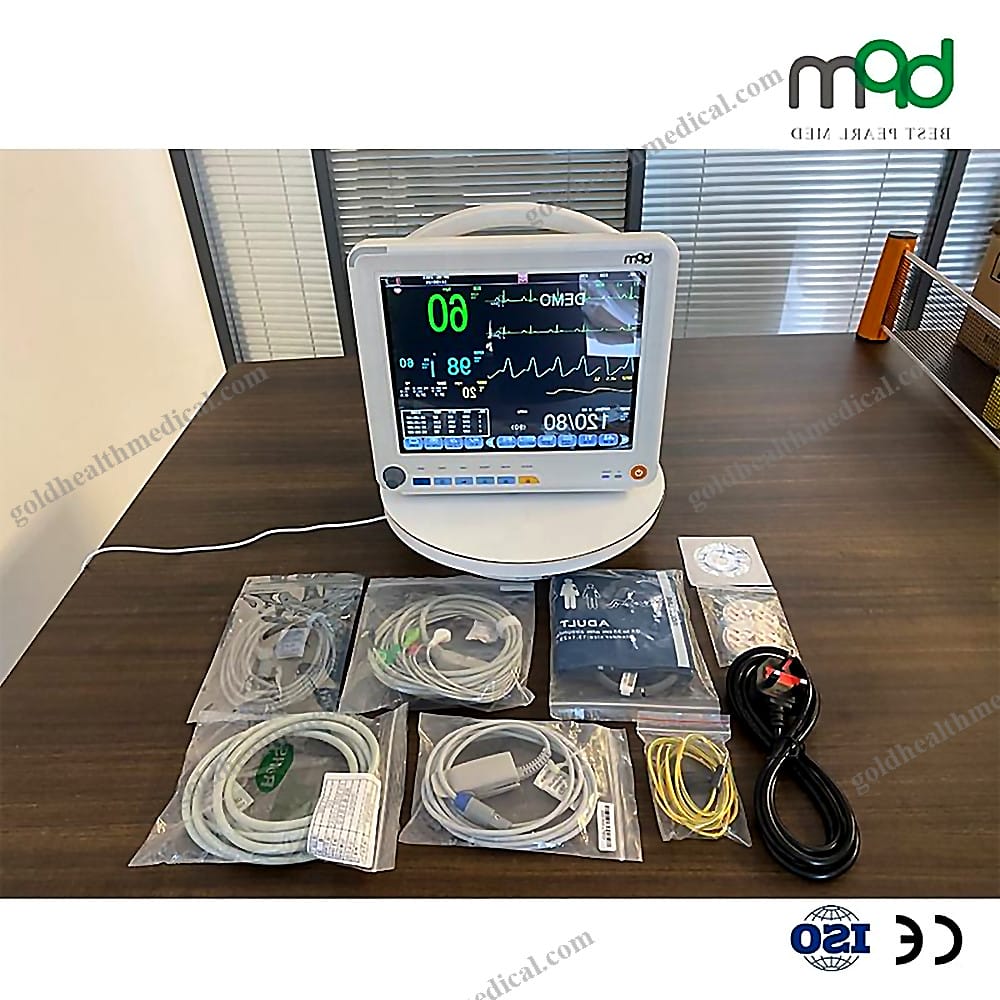

BPMM1214 Portable Veterinary Monitor
Reference: 1600913109291Veterinary Monitoring Devices
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

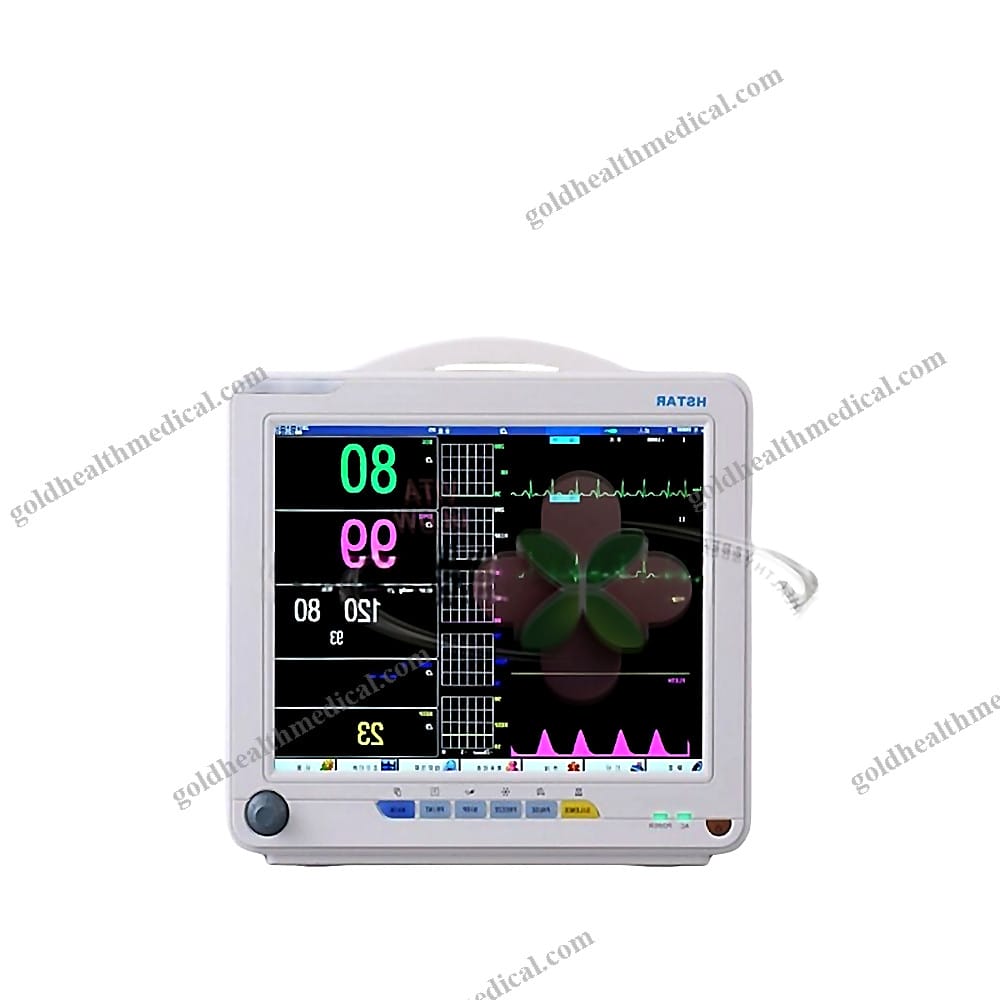

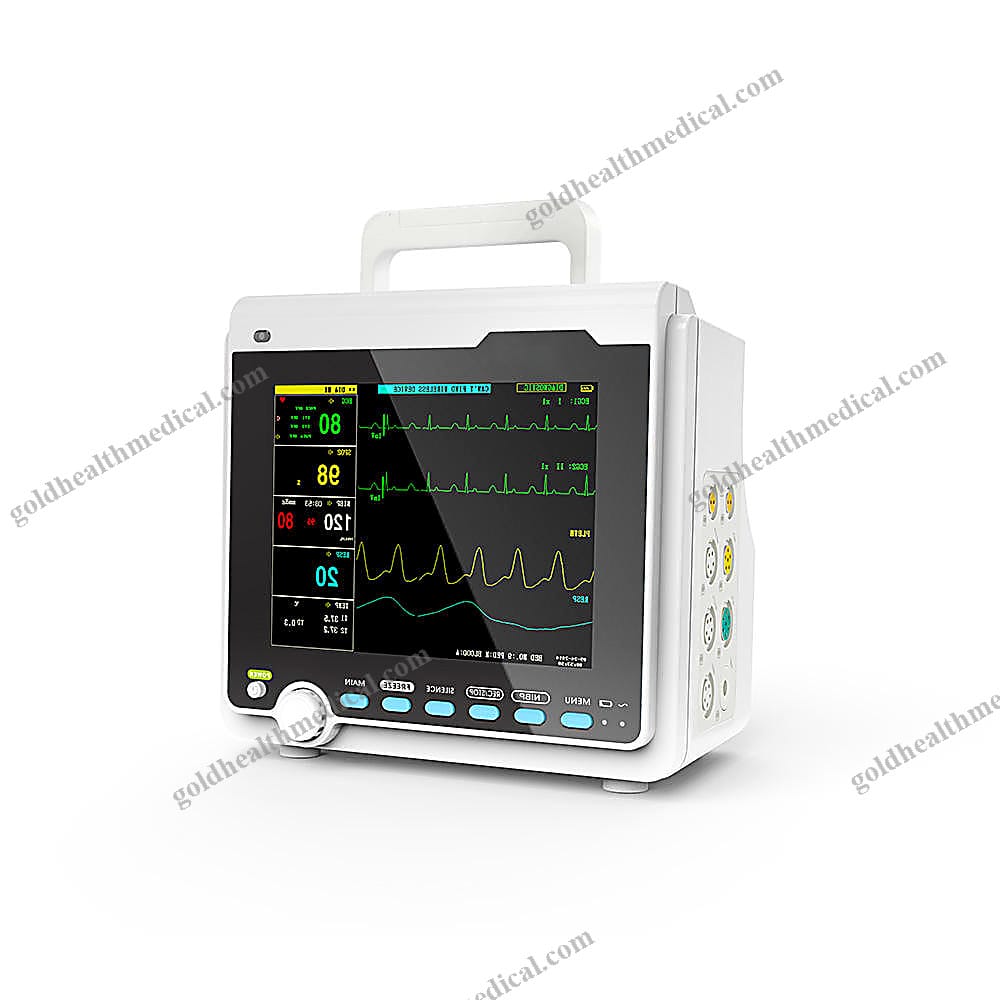

Introducing the GoldHealth Medical Portable Multi-Parameter Veterinary Monitor, a cutting-edge handheld solution designed for versatile clinical use. This advanced device is engineered to deliver precision, reliability, and ease of use, making it an indispensable tool for veterinary professionals.
Key Features

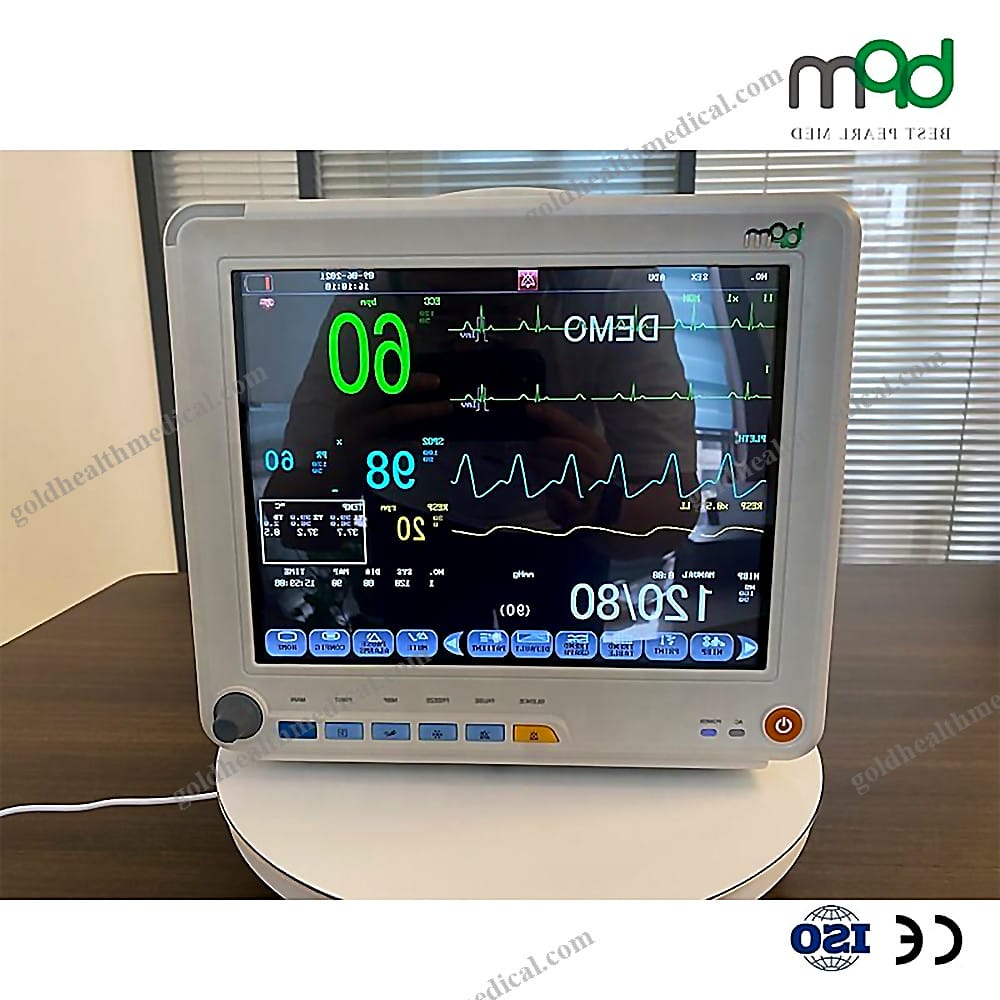

- 12.1-inch High-Resolution Color Display: A vibrant 800x600 resolution screen ensures clear visualization of critical data.
- Three Intelligent Working Modes: Tailored for Monitoring, Surgery, and Diagnosis, providing flexibility for diverse clinical scenarios.
- Intuitive User Interface: Simplified and user-friendly design ensures seamless operation even in high-pressure environments.
- Customizable Display Options: Choose from multiple display modes, including Standard Interface, Large Font, ECG Full Display, OXY, Trend Table, and BP Trend, to suit specific application needs.
- Extended Battery Life: Equipped with a built-in rechargeable lithium battery, offering up to 2 hours of uninterrupted performance.

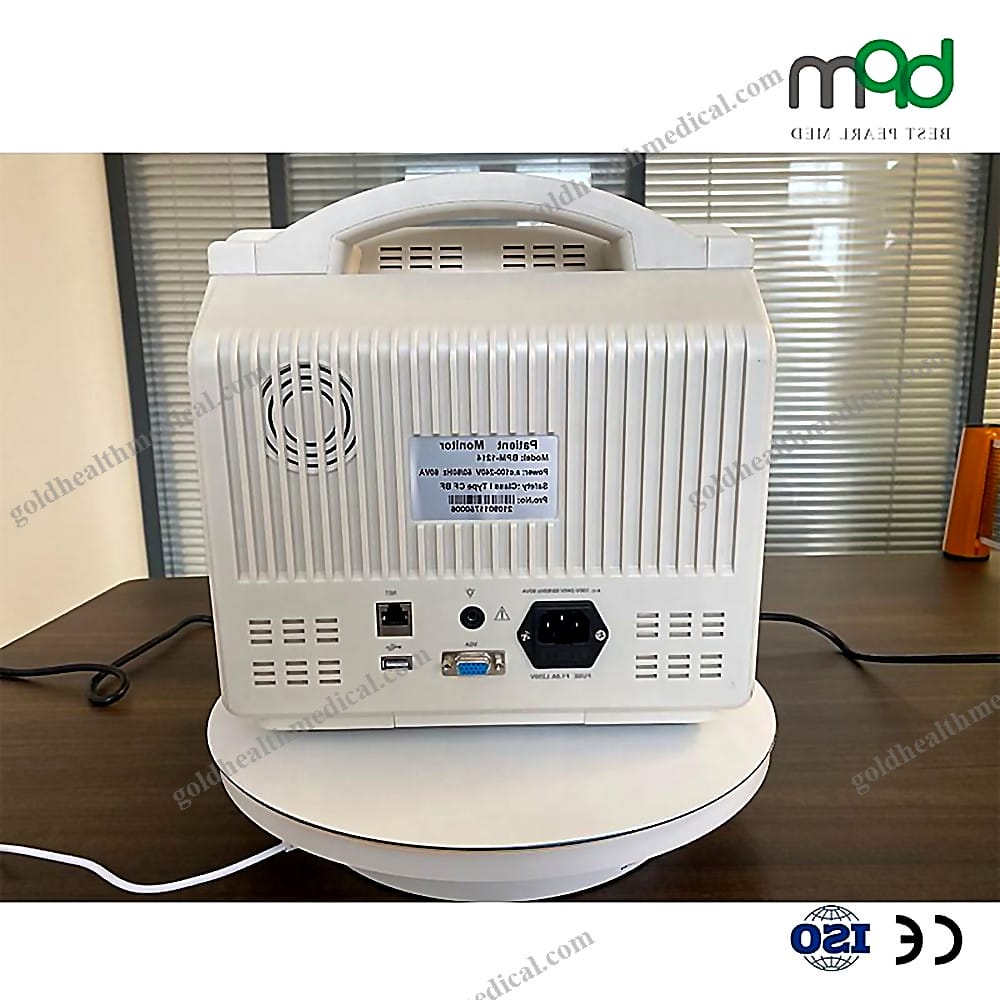

- External Display Compatibility: Features VGA output for enhanced visibility on larger monitors.
Technical Specifications
ECG
- Lead Mode: 5 Leads (I, II, III, AVR, AVL, AVF, V)
- Gain Settings: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV
- Heart Rate Range:
- Adult: 15-300 BPM
- Neonatal: 15-350 BPM
- Resolution: 1 BPM
- Accuracy: ±1%
- Sensitivity: >200 µV (Peak to Peak)
- ST Measurement Range: -2.0 ~ +2.0 mV
- Accuracy:
- -0.8mV~+0.8mV: ±0.02mV or ±10%, whichever is greater
- Other Ranges: Unspecified
- Sweep Speed: 12.5 mm/s, 25 mm/s, 50 mm/s
- Bandwidth:
- Diagnostic: 0.05~130 Hz
- Monitor: 0.5~40 Hz
- Surgery: 1~20 Hz
SPO2
- Measuring Range: 0 ~ 100%
- Resolution: 1%
- Accuracy: 70% ~ 100% (±2%)
- Pulse Rate: 20-250 BPM
- Resolution: 1 BPM
- Accuracy: ±3 BPM
NIBP
- Method: Oscillometry
- Measurement Modes: Manual, Auto, STAT
- Units: mmHg, kPa
- Measurement and Alarm Ranges:
- Adult Mode:
- SYS: 40 ~ 280 mmHg
- DIA: 10 ~ 225 mmHg
- MEAN: 20 ~ 240 mmHg
- Pediatric Mode:
- SYS: 40 ~ 220 mmHg
- DIA: 10 ~ 160 mmHg
- MEAN: 20 ~ 170 mmHg
- Neonatal Mode:
- SYS: 40 ~ 135 mmHg
- DIA: 10 ~ 100 mmHg
- MEAN: 20 ~ 110 mmHg
- Resolution: 1 mmHg
- Accuracy: ±5 mmHg
RESP
- Method: Impedance between RA-LL or RA-LA
- Measurement Range:
- Adult: 10 ~ 120 BrPM
- Neonatal/Pediatric: 7 ~ 150 BrPM
- Resolution: 1 BrPM
- Accuracy: ±2 BrPM
TEMP
- Measurement and Alarm Range: 0 ~ 50°C
- Resolution: 0.1°C
- Accuracy: ±0.1°C
Why Choose GoldHealth Medical?
The GoldHealth Medical Portable Multi-Parameter Veterinary Monitor stands out with its precision engineering, adaptable functionality, and sleek design. Whether in a clinic, research lab, or field setting, this monitor empowers veterinary professionals to deliver exceptional care with confidence. Its advanced features and reliable performance make it the ultimate choice for modern veterinary practices.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Name: Advanced Medical Monitor PC
Key Features:
- 12.1-inch High-Resolution Color Display: Crisp visuals for precise monitoring and enhanced diagnostics.
- Versatile Working Modes: Seamlessly switch between Monitoring, Surgery, and Diagnosis modes to meet diverse clinical needs.
- 5-Lead ECG System: Reliable and accurate cardiac signal acquisition for comprehensive patient assessment.
- External VGA Output: Expand your workspace by connecting to external displays for enhanced visibility and convenience.
Technical Specifications:
- Measuring Range: 0 ~ 100% for accurate physiological data tracking.
- NIBP Method: Advanced oscillometric technology for reliable blood pressure readings.
- RESP Method: Impedance measurement between RA-LL or RA-LA for precise respiratory monitoring.
- TEMP Resolution: 0.1°C for highly sensitive and accurate temperature readings.
Packaging and Delivery:
- Packaging: Export-standard carton designed for maximum protection during transit.
- Ports: Shipped from major hubs including Guangzhou, Shanghai, Beijing, Qingdao, and Tianjin for faster delivery.
- Supply Ability: Consistent availability with a production capacity of 2000 units per month.
Why Choose GoldHealth Medical?
GoldHealth Medical’s Advanced Medical Monitor PC combines cutting-edge technology with user-centric design, empowering healthcare professionals with accurate, real-time patient data. Whether in hospitals, clinics, or home care settings, this device ensures precision, reliability, and ease of use, making it an indispensable tool for modern healthcare environments.
