Biobase PCR Thermal Cycler System for Labs
Reference: 1601193620865Clinical Analytical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

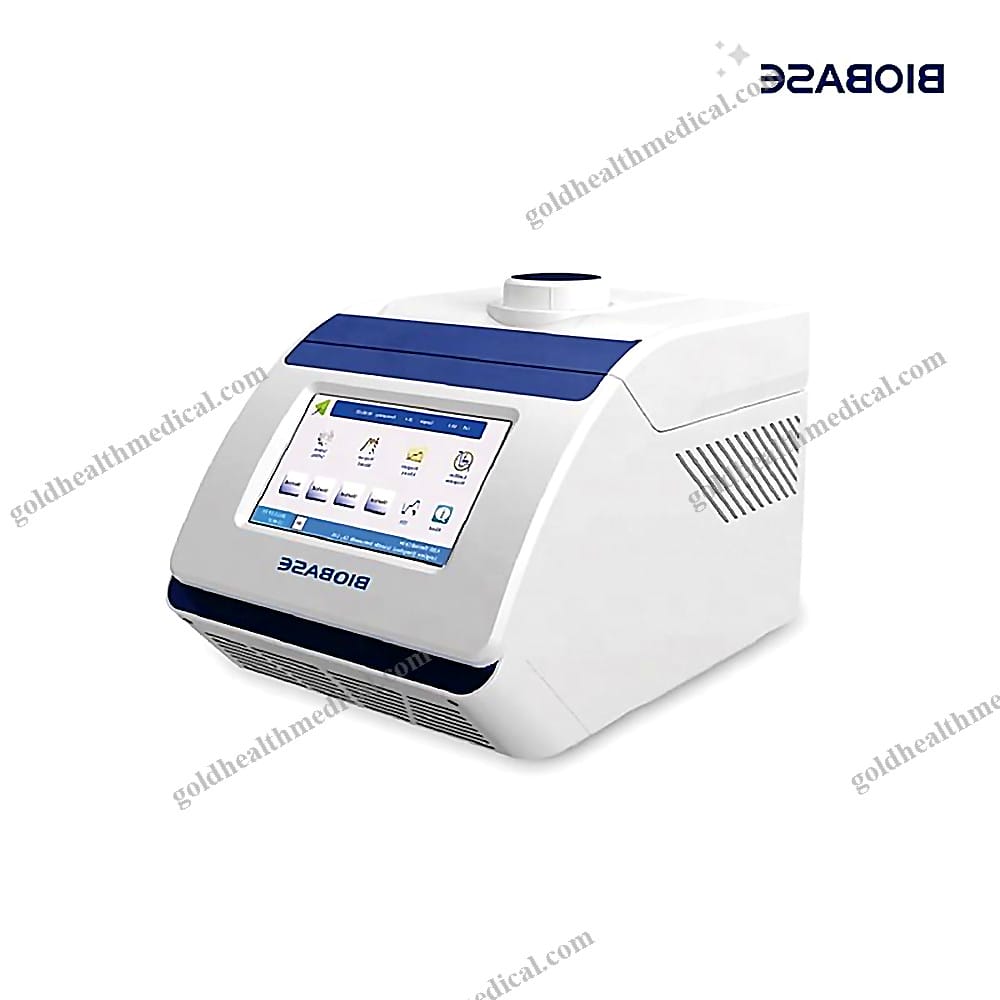

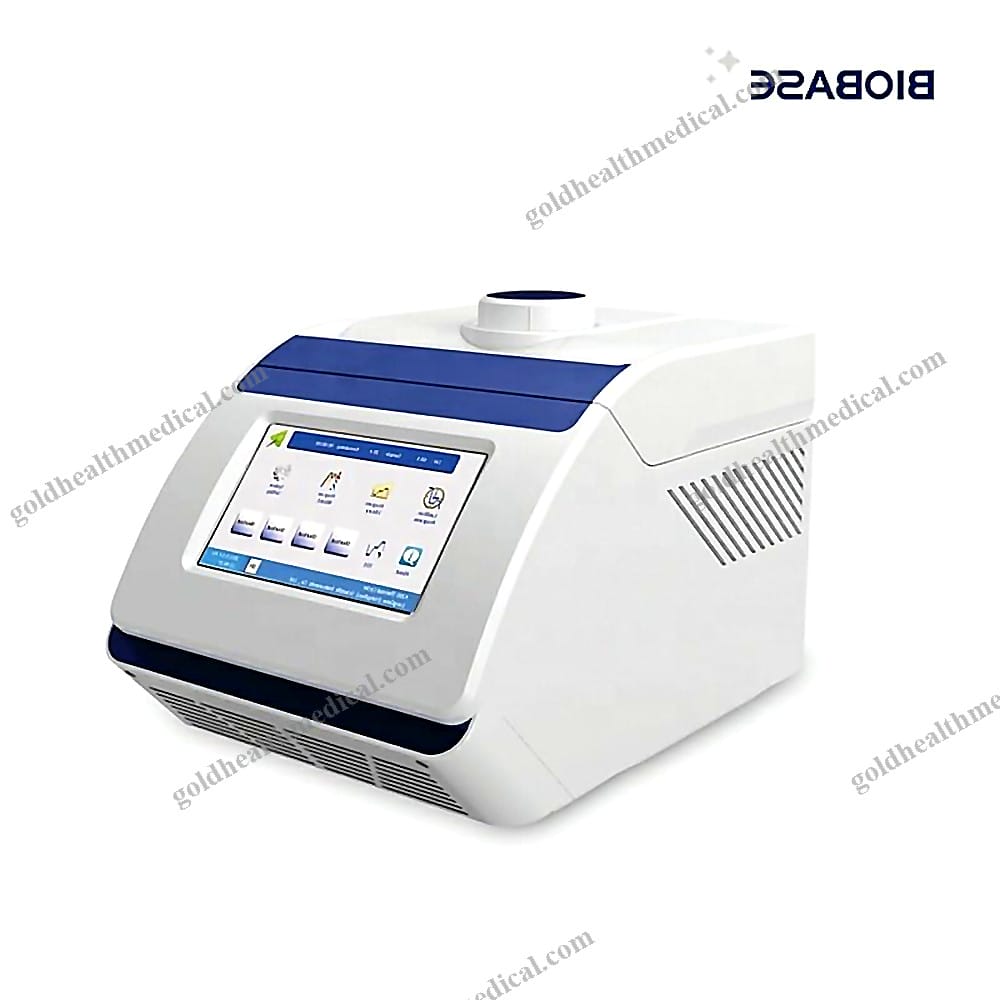

GoldHealth Medical Thermal Cycler
Experience precision and innovation with the GoldHealth Medical Thermal Cycler, designed to elevate your PCR processes. This state-of-the-art thermal cycler combines advanced technology with user-friendly features, ensuring reliable and consistent results every time.
Key Features
- 7-inch Color Touch Screen: Intuitive graphical display for easy protocol management and real-time status updates.
- Interchangeable Modules: Effortlessly swap modules in seconds without tools, offering unmatched flexibility.
- Extensive Protocol Storage: Store up to 10,000 protocols onboard, with unlimited storage via USB flash drive.
- Durable Peltier Elements: Premium components ensure a long lifespan and high-quality performance.
- Software Updates via USB: Keep your system up-to-date effortlessly.
- Superior Uniformity: Achieve the best PCR results with outstanding temperature consistency.
- Universal Power Supply: Operates safely and reliably across a global voltage range (85V-265V).
Technical Specifications
Standard and Gradient Models
- Standard Module Options:
- 96 wells * 0.2ml
- 96 wells * 0.2ml + 77 wells * 0.5ml
- Optional Modules:
- 48 wells * 0.2ml + 48 wells * 0.5ml
- 384 wells
- Multi-purpose Module with In-situ Adapter
- Heating and Cooling: Advanced Peltier-based technology with a lifespan of up to 1,000,000 cycles.
- Display: 7-inch color touch screen with graphical protocol and status display.
- Languages: English interface.
- Communication Ports: 2 USB 2.0 ports and LAN connectivity.
Temperature Control
- Block Temperature Range: 0°C to 100°C.
- Max Heating Rate: 5°C/s.
- Max Cooling Rate: 4°C/s.
- Temperature Uniformity: ≤ ±0.2°C at 95°C.
- Temperature Accuracy: ≤ ±0.2°C between 35°C and 100°C.
- Temperature Control Modes: Sim-tube & Block mode.
- Ramping Rate Adjustable: Yes.
Gradient Capabilities (Gradient Model Only)
- Gradient Accuracy: ≤ ±0.3°C between 35°C and 100°C.
- Column Uniformity: ≤ ±0.3°C at 95°C.
- Gradient Range: 35°C to 99.9°C.
- Temperature Differential Range: 1°C to 30°C.
- Gradient Capability: 12 columns.
Heated Lid Features
- Height Adjustment: Steplessly adjustable to accommodate various PCR tubes, strips, and plates.
- Opening Mechanism: Innovative TOP-OPEN technology for one-step lid opening.
- Temperature Range: 30°C to 99.9°C.
- Auto Shut-off: Yes.
Software Features
- Max Number of Programs: 10,000 onboard, unlimited via USB.
- Max Steps & Cycles: 30 steps, 100 typical cycles, max 60,000 nesting cycles.
- Increment/Decrement: Available for long PCR and Touchdown PCR.
- Auto Pause/Restart: Yes.
- Multi-user Login: Password-based authentication for secure protocol management.
- Tm Calculator: Automatically calculates melting and annealing temperatures.
- Hold at 4°C: Infinite incubation time for overnight operations.
- Program Wizard: Create PCR protocols with just a few clicks.
- Running Report: Provides precise information for the entire process.
- PC Connection: Remote control for managing over 100 units across a network.
Additional Features
- Power Supply: Global switch power supply: 85V~265V, 50-60Hz, Max 600W.
- Approvals: Compliant with international standards.
GoldHealth Medical is dedicated to delivering top-tier medical and laboratory solutions. Our team of experts and scholars ensures innovative products with strict quality control, excellent service, and unbeatable value. Choose GoldHealth Medical for a partnership that prioritizes your success.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Thermal Cycler by GoldHealth Medical
Key Features and Benefits:
- Precision Temperature Control: Achieve unparalleled accuracy with a temperature range of 0℃ to 100℃, ensuring reliable results for every application.
- Exceptional Uniformity: Temperature uniformity of ≤ ±0.2℃ at 95℃ guarantees consistent performance across all samples.
- Rapid Heating Capability: Max heating rate of 5℃/s reduces processing time, enhancing workflow efficiency in demanding environments.
- Intuitive Interface: A vibrant 7-inch color touch screen provides effortless navigation and real-time monitoring, simplifying complex operations.
- Advanced Connectivity: Equipped with 2 USB 2.0 ports and LAN connectivity, enabling seamless data transfer and integration into modern laboratory systems.
Technical Specifications:
- Temperature Accuracy: ≤ ±0.1℃ within the range of 35℃ to 100℃.
- Display Resolution: 0.1℃ for precise monitoring and adjustments.
- Power Supply: Global switch power supply (85V~265V, 50-60Hz, Max. 600W) ensures compatibility worldwide.
- Communications Ports: 2 USB 2.0 and LAN for enhanced data management.
- Block Temperature Range: 0℃ to 100℃, accommodating a wide variety of thermal cycling applications.
Packaging Details:
- Package Dimensions: 43 x 34.4 x 34.5 cm
- Gross Weight: 9.800 kg
Instrument Classification: Class II
Industry Applications:
Designed for use in hospitals, clinics, research institutions, laboratories, and rehabilitation centers, this thermal cycler is ideal for gene analysis, life science research, and diagnostic applications.
After-Sale Support:
- Warranty: 1 year of comprehensive coverage.
- Technical Assistance: Access to online technical support ensures uninterrupted operation and quick resolution of queries.
GoldHealth Medical’s Thermal Cycler combines cutting-edge technology with user-centric design, empowering professionals to achieve accurate, efficient, and reliable results in their critical work.
