Product summary

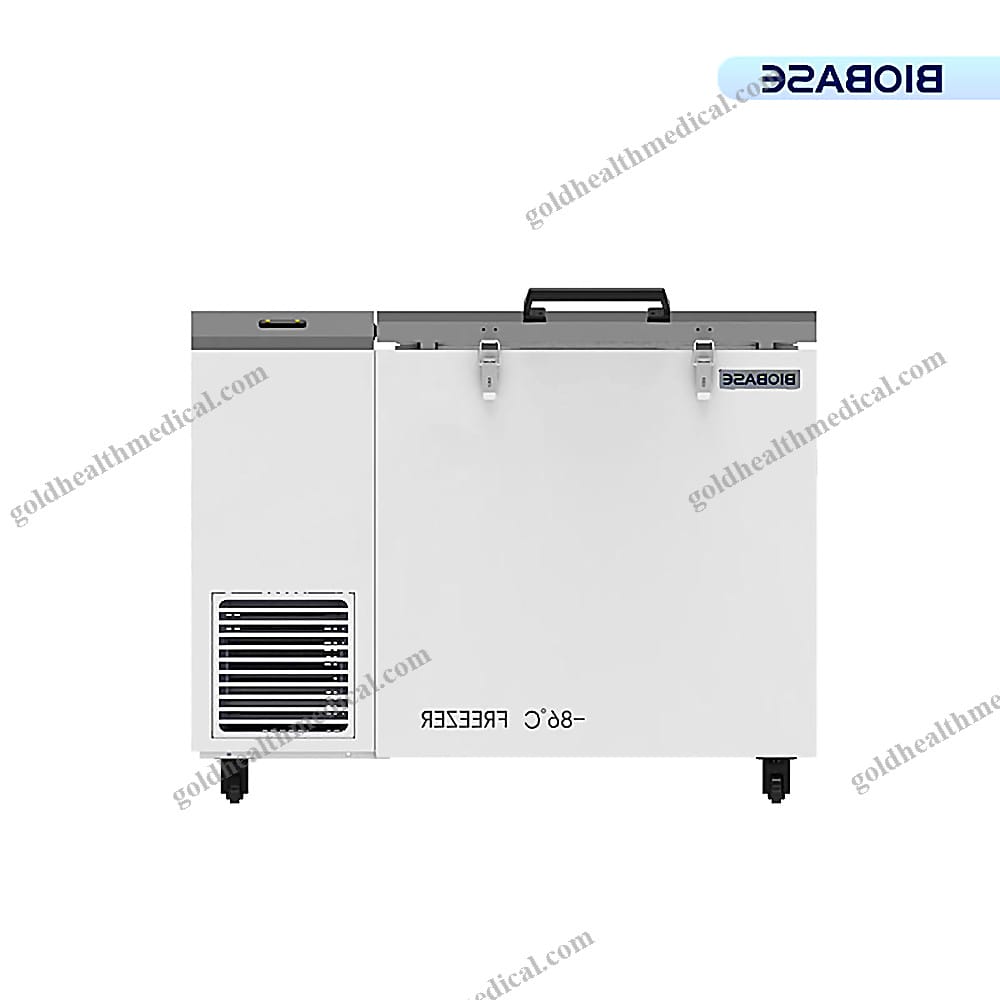

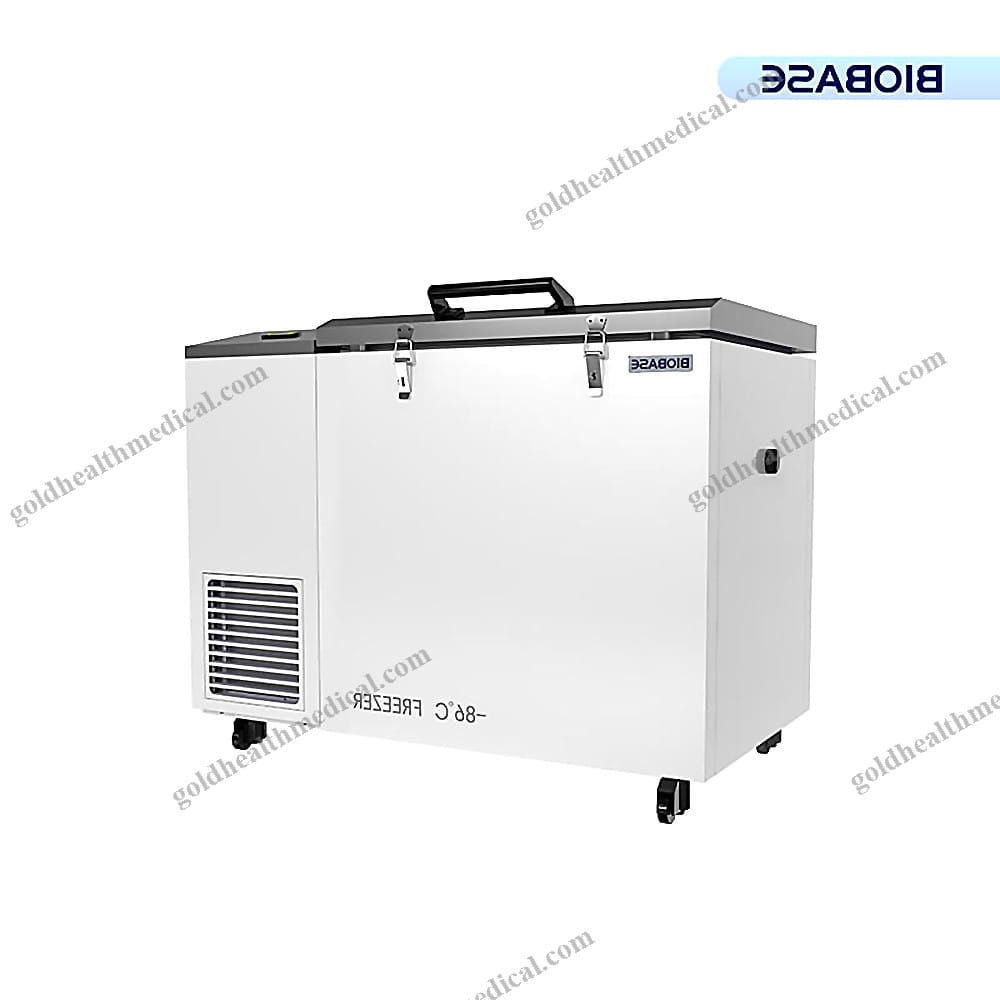

GoldHealth Medical -86℃ Ultra-Low Temperature Freezer
The GoldHealth Medical -86℃ Ultra-Low Temperature Freezer is a state-of-the-art ultra-low temperature refrigeration solution designed for critical applications in scientific research, advanced medical treatment, biological engineering, and beyond. This cutting-edge freezer provides an exceptionally stable and precise environment to preserve temperature-sensitive samples, ensuring their integrity over extended periods.
Key Features and Benefits
- Advanced Temperature Control: Achieve unparalleled precision with a temperature range of -40℃ to -86℃, safeguarding the most delicate biological materials.
- Eco-Friendly Refrigeration: Utilizes a mixed refrigerant that is CFC-free, ensuring environmental responsibility without compromising performance.
- Durable Construction: Built with premium-grade materials, including a corrosion-resistant stainless steel (S.S. 304) interior and a robust cold-rolled steel exterior.
- Intelligent Monitoring: Equipped with a PT1000 sensor and electronic thermostat, offering real-time monitoring and precise control via an intuitive LED display.
- Comprehensive Safety Alarms: Audible and visual alerts for high/low temperature deviations, power failures, thermostat malfunctions, and door openings ensure maximum sample protection.
- Quiet Operation: Engineered for minimal noise output at 60dB(A), making it ideal for sensitive environments like laboratories and clinics.
Technical Specifications
- Capacity Options:
- 50L: Internal Dimensions (WDH): 430400350mm
118L: Internal Dimensions (WDH): 540400580mm
Refrigeration Type: Direct refrigeration
- Defrosting Type: Manual
- Refrigerant: Mixed refrigerant, CFC-free
- Noise Level: 60dB(A)
- Ambient Temperature Range: 10~32℃
- Temperature Range: -40℃ to -86℃
- Evaporator: Built-in coil, copper pipe
- Condenser: Copper tube and aluminum fin
- Thermostat: Electronic thermostat
- Display: LED
- Power Supply: 110~220V/50~60Hz
- Power Consumption:
- 540W/550VA (50L model)
- 510W/528VA (118L model)
- Current:
- 2.5A (50L model)
- 2.4A (118L model)
- Internal Material: Stainless Steel 304
- External Material: Spray-coated cold-rolled steel plate
- Insulation: Foamed polyurethane cyclopentane
- Safety Alarms: High/low temperature, power failure, thermostat fault, door switch alerts
- Net Weight:
- 83kg (50L model)
- 103kg (118L model)
- Gross Weight:
- 125kg (50L model)
- 150kg (118L model)
- External Dimensions (WDH):
- 695740985mm (50L model)
- 1140730930mm (118L model)
- Packaging Dimensions (WDH):
- 8108301180mm (50L model)
- 12408001065mm (118L model)
Why Choose GoldHealth Medical?
- Unmatched Reliability: Designed with precision engineering and rigorous quality control to deliver consistent performance.
- Global Support: Comprehensive after-sales service, including a 1-year warranty, installation training, usage guidance, and access to overseas technical support.
- Customization Options: Tailor the product to your needs with branding and logo customization services.
- Efficient Delivery: Timely shipping ensures your operations remain uninterrupted.
GoldHealth Medical’s -86℃ Ultra-Low Temperature Freezer is the ultimate solution for preserving the integrity of critical samples. Elevate your research, medical, or laboratory capabilities with a product that combines innovation, durability, and precision.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical -86℃ Ultra-Low Temperature Freezer
- Precision Temperature Control: Achieve unparalleled accuracy with a temperature precision of 0.1°C, ensuring consistent and reliable storage conditions for sensitive materials.
- High-Performance Compressor: Equipped with a Danfoss compressor, delivering efficient and durable refrigeration performance.
- Spacious Capacity: Offers a generous 118L storage volume, ideal for laboratories, research facilities, and medical institutions requiring secure cold storage.
- Wide Temperature Range: Operates within an impressive range of -40°C to -86°C, accommodating a variety of critical applications.
- Advanced Refrigeration System: Utilizes direct refrigeration with a CFC-free mixed refrigerant, promoting environmental sustainability.
- Durable Construction: Features a built-in copper pipe evaporator and a copper tube with aluminum fin condenser for superior heat exchange and longevity.
- Quiet Operation: Engineered to minimize noise at 60dB(A), maintaining a peaceful environment in any setting.
- Manual Defrosting: Provides control over the defrosting process, ensuring optimal performance without unnecessary interruptions.
- Ambient Temperature Tolerance: Designed to function reliably in ambient temperatures ranging from 10°C to 32°C.
- Instrument Classification: Class II medical device, meeting stringent industry standards for safety and performance.
Packaging Details:
- Single item per package
- Package dimensions: 124 x 80 x 107 cm
- Gross weight: 150.000 kg
Warranty & Support:
- Comprehensive 1-year warranty for peace of mind
- Access to online technical support for seamless after-sales assistance
GoldHealth Medical’s -86℃ Ultra-Low Temperature Freezer is meticulously engineered to deliver precision, reliability, and sustainability, making it the ultimate choice for critical cold storage needs across healthcare, research, and industrial applications.
