Amain Medical YAG Laser Urology System Flexible Fiber for Stone Treatment
Reference: 1601076324965Anorectal,Urology Surgery Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

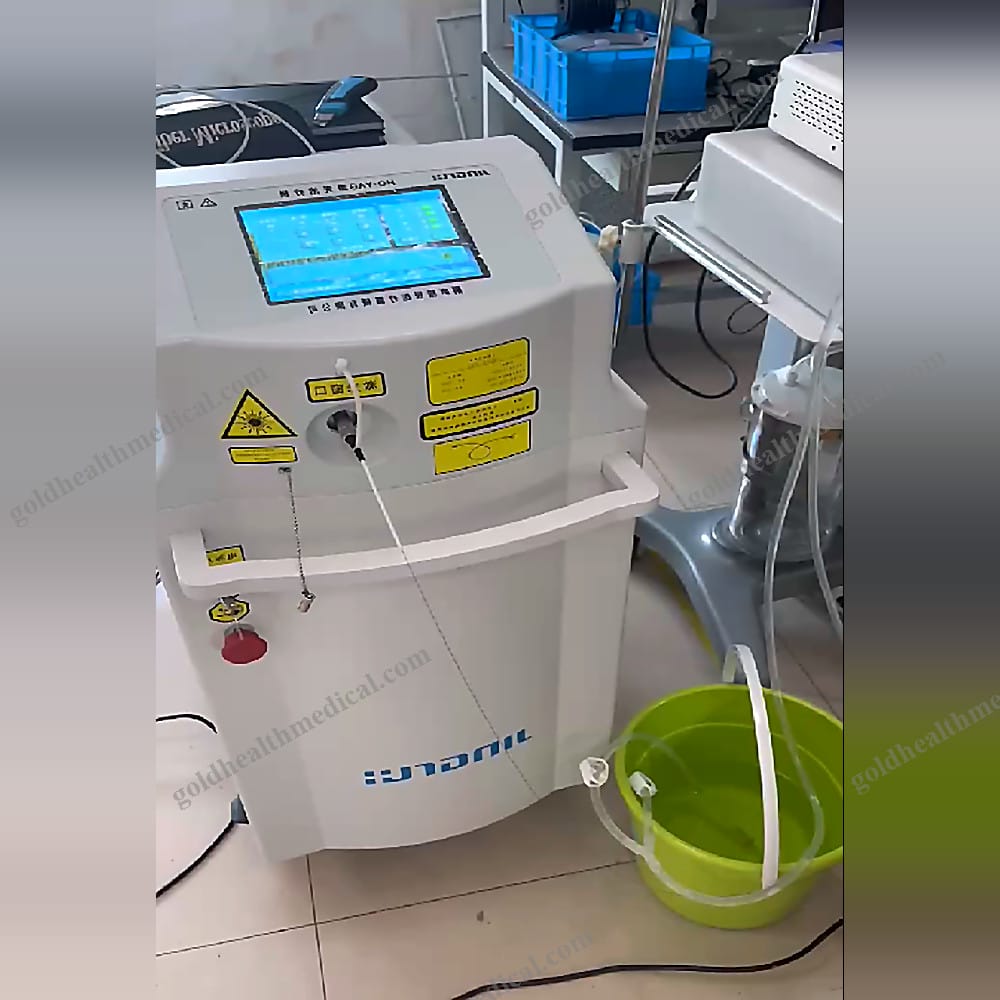

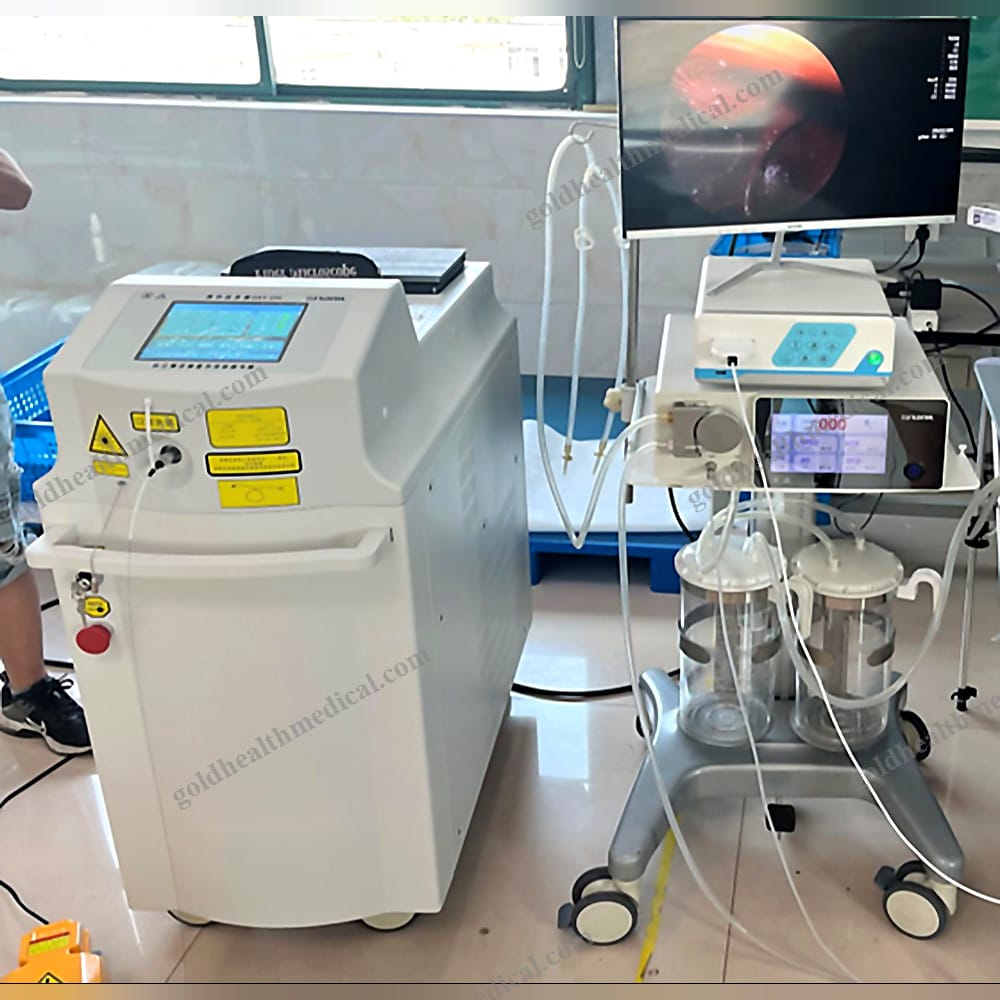

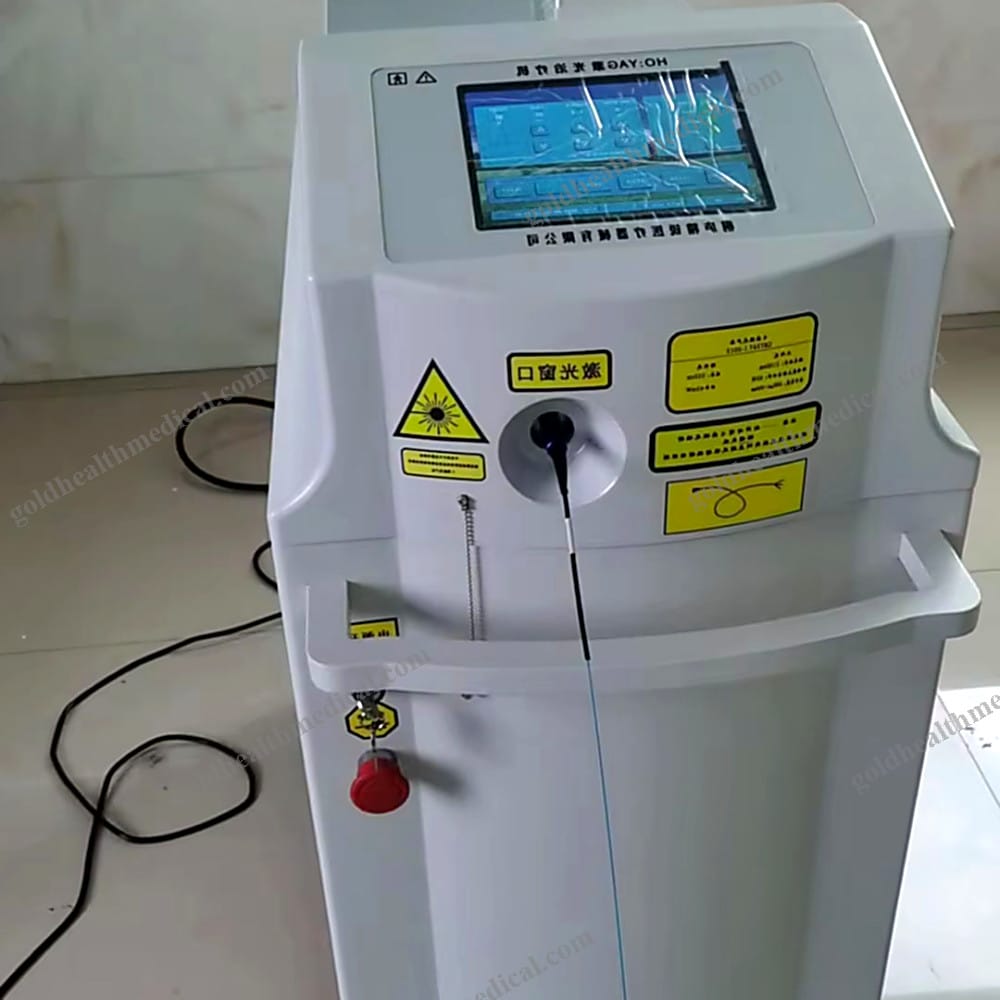

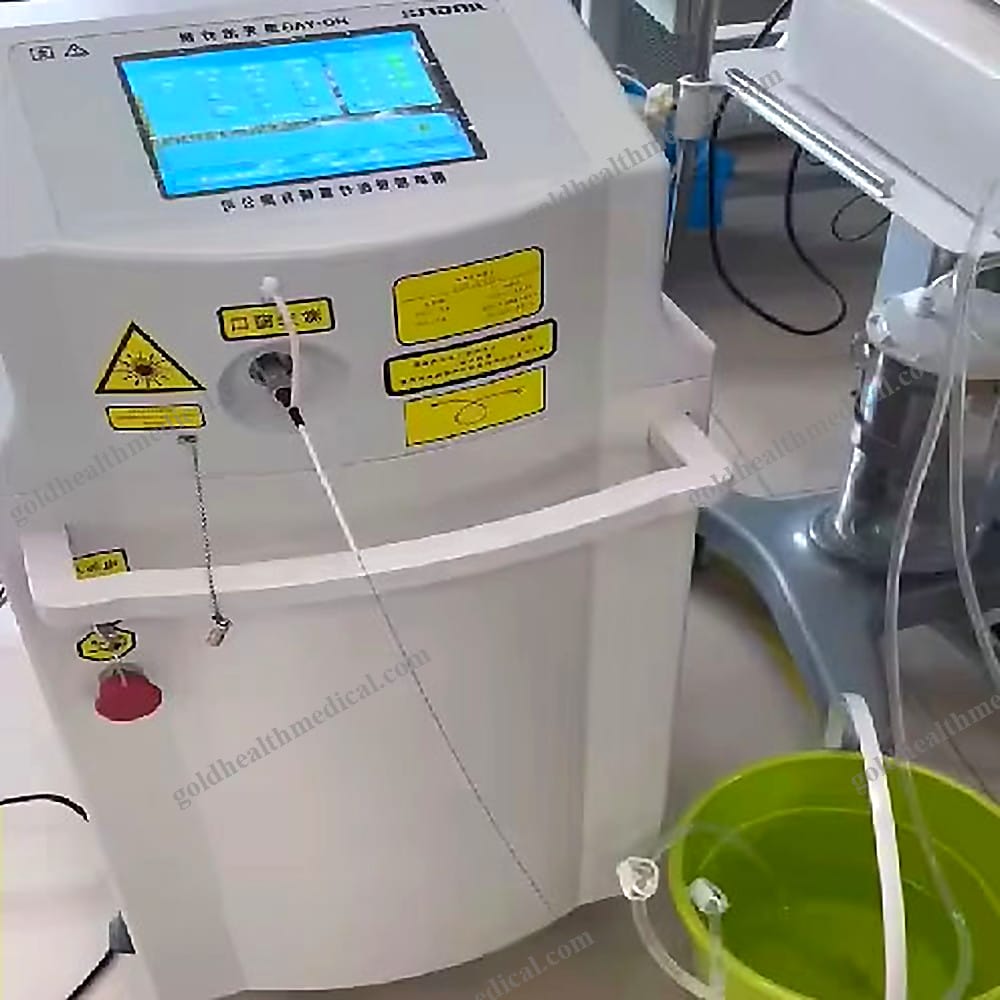

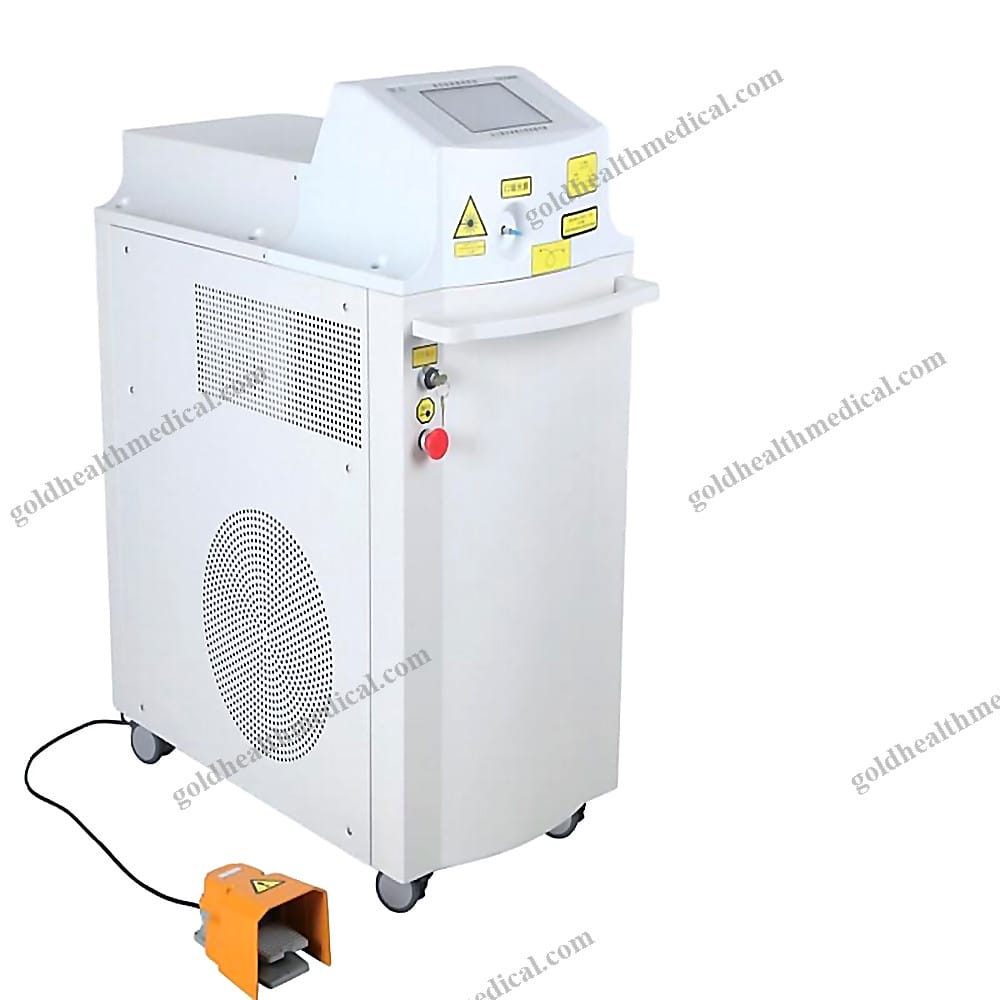

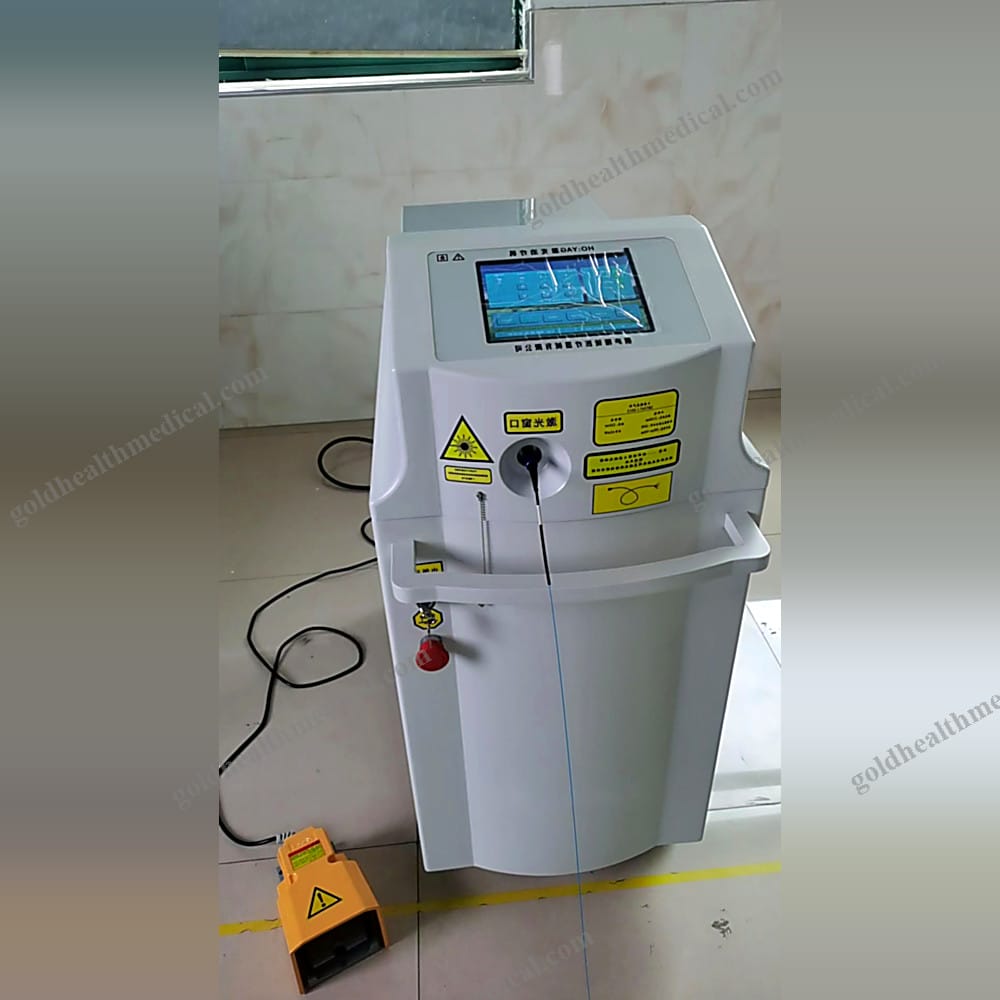

GoldHealth Medical YAG Laser Therapeutic Machine for Urology
Product Overview
The GoldHealth Medical YAG Laser Therapeutic Machine is a cutting-edge solution designed for urological treatments, particularly the removal of urinary tract stones. Engineered with precision and versatility, this device combines advanced laser technology with user-friendly features to deliver exceptional performance in clinical settings.
Key Features and Technical Specifications
- Laser Wavelength: 2.1μm ± 0.1μm
- Beam Pattern: Multi-mode for enhanced flexibility
- Maximum Output Power: Up to 60W (customizable up to 80W)
- Output Power Range: 5W–60W ± 10%
- Maximum Pulse Energy: 4.0J ± 20%
- Pulse Energy Range: 0.5J–4.0J (adjustable in 0.5J increments, ±20% tolerance)
- Peak Pulse Power: 13.4kW ± 20%
- Output Power Stability: ≤ ±5%
- Reproducibility of Output Power: ≤ ±5%
- Divergence Angle: 0.16rad ± 20%
- Output Mode: Repetitive pulse output
- Pulse Width:
- Wide pulses: 300μs–650μs
- Narrow pulses: 200μs–300μs (non-adjustable, ±20% tolerance)
- Pulse Repetition Frequency: 10Hz–30Hz (adjustable in 5Hz increments, ±10% tolerance)
- Aiming Beam: Semiconductor green laser, 532nm ± 5%, max output power ≤ 5mW
- Laser Protective Glasses: Optical density ≥ 4, visible light transmittance ≥ 70%
- Fiber Compatibility: Supports ultra-flexible fibers with a core diameter of 200μm for superior surgical outcomes
- Fiber Transmission Efficiency: ≥ 85% when straight
- Cooling System: Sealed circulating water cooling for consistent performance
- Foot Switch: Tested for durability, with a lifespan of ≥ 25,000 cycles; splash-proof and waterproof design
- Control Interface: 12-inch large touch control screen for intuitive operation
Unique Selling Points
- Dual Pulse Modes: Wide pulses (≥ 650μs) and narrow pulses (≤ 200μs) provide unmatched versatility, with narrow pulses offering superior explosiveness for breaking high-hardness stones.
- Customizable Power Settings: Adjustable output power (up to 80W) and pulse energy (up to 4.0J) ensure tailored treatment for diverse clinical needs.
- High Precision and Stability: Output power stability and reproducibility of ≤ ±5% guarantee consistent and reliable performance.
- Advanced Fiber Technology: Compatible with ultra-flexible fibers for enhanced maneuverability during endoscopic procedures.
- Durability and Safety: A robust foot switch and sealed cooling system ensure long-lasting reliability, even in demanding environments.
- Comprehensive Warranty: Backed by a 3-year warranty for complete peace of mind.
Applications
- Primarily used for urological surgeries, including the treatment of urinary tract stones.
- Suitable for use in hospitals, clinics, research institutions, and rehabilitation centers.
Operational Modes
- SOFT FIBER Mode: Maximum power ≤ 36W, compatible with 200μm, 272μm, and 365μm fibers.
- HARD FIBER Mode: Maximum power ≥ 60W, compatible with 365μm and 550μm fibers.
Additional Features
- Modular Design: Enhances product stability and simplifies maintenance.
- Imported Laser Source: Ensures efficient stone fragmentation with minimal residue for easy discharge.
- Touchscreen Interface: A 12-inch high-resolution display provides intuitive control and sensitivity.
- Suction and Irrigation Pump: Integrated for seamless operation during procedures.
Dimensions and Weight
- Pack Size: 116 x 60 x 143mm
- Weight: 150kg
GoldHealth Medical is committed to delivering innovative and reliable medical solutions that empower healthcare professionals to achieve optimal patient outcomes.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents a cutting-edge Class III medical laser device designed for urological applications. Engineered with precision and reliability, this device delivers unparalleled performance for medical professionals and institutions seeking advanced solutions in minimally invasive procedures.
Key Features and Specifications
- Laser Wavelength: 2.1μm ± 0.1μm, optimized for precision in urological treatments.
- Beam Pattern: Multimode, ensuring versatility and adaptability for various clinical needs.
- Maximum Output Power: Not less than 60W, providing robust performance for demanding procedures.
- Output Power Range: 5W–60W ± 10%, offering adjustable power settings for tailored treatments.
- Maximum Pulse Energy: 4.0J ± 20%, enabling efficient energy delivery for targeted therapies.
- Pulse Energy Range: 0.5J–4.0J (in 0.5J increments, ±20% error), ensuring precise control over energy output.
- Maximum Pulse Power: 13.4kW ± 20%, delivering high-intensity pulses for optimal results.
- Output Power Instability: Better than ±5%, guaranteeing consistent and reliable performance.
Quality and Compliance
- Instrument Classification: Class III, meeting stringent safety and performance standards.
- Certifications: CE-certified, ensuring compliance with global regulatory requirements.
- Shelf Life: 2 years, maintaining optimal functionality and reliability over time.
Support and Assurance
- Warranty: 2-year comprehensive warranty, reflecting our confidence in product durability.
- After-Sales Service: Online technical support available to ensure seamless operation and address any concerns.
Packaging and Delivery
- Package Dimensions: 116 x 60 x 143 cm, designed for secure and efficient transportation.
- Gross Weight: 150 kg, ensuring stability and protection during transit.
Why Choose GoldHealth Medical?
Our laser device is meticulously crafted to meet the needs of modern healthcare providers. With its advanced technology, precision engineering, and unwavering reliability, it stands as a trusted partner in delivering exceptional patient outcomes. Whether for hospitals, clinics, or research institutions, this device redefines excellence in urological care.
Place of Origin: Sichuan, China – a hub of innovation and quality manufacturing.
Choose GoldHealth Medical for a device that combines innovation, precision, and reliability to elevate your practice.
