Affordable Portable Color Doppler Cardiac Ultrasound Scanner
Reference: 1601161689150Medical Ultrasound Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

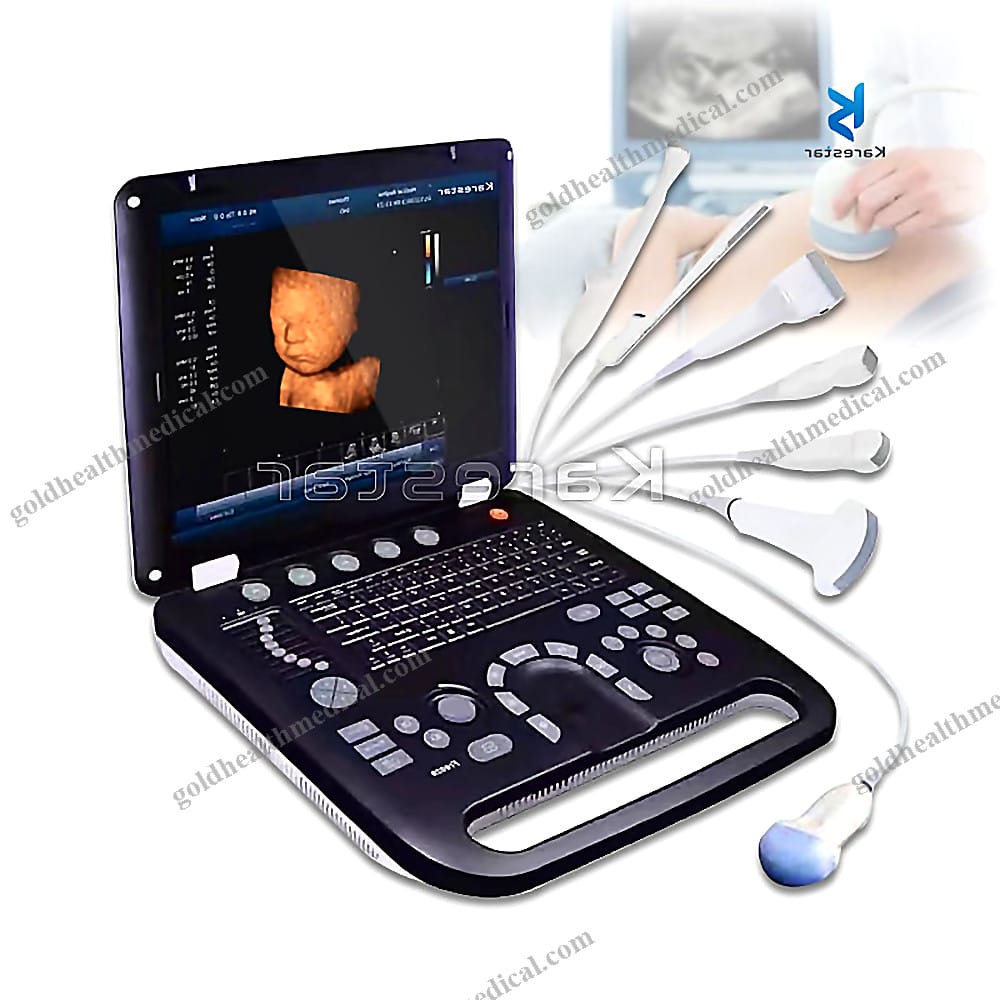

GoldHealth Medical Portable Ultrasound System
Product Overview
GoldHealth Medical presents a state-of-the-art portable ultrasound system designed for unparalleled versatility and precision. This advanced device is engineered to meet the needs of diverse medical environments, from hospitals and clinics to research institutions and home care settings.
Key Features

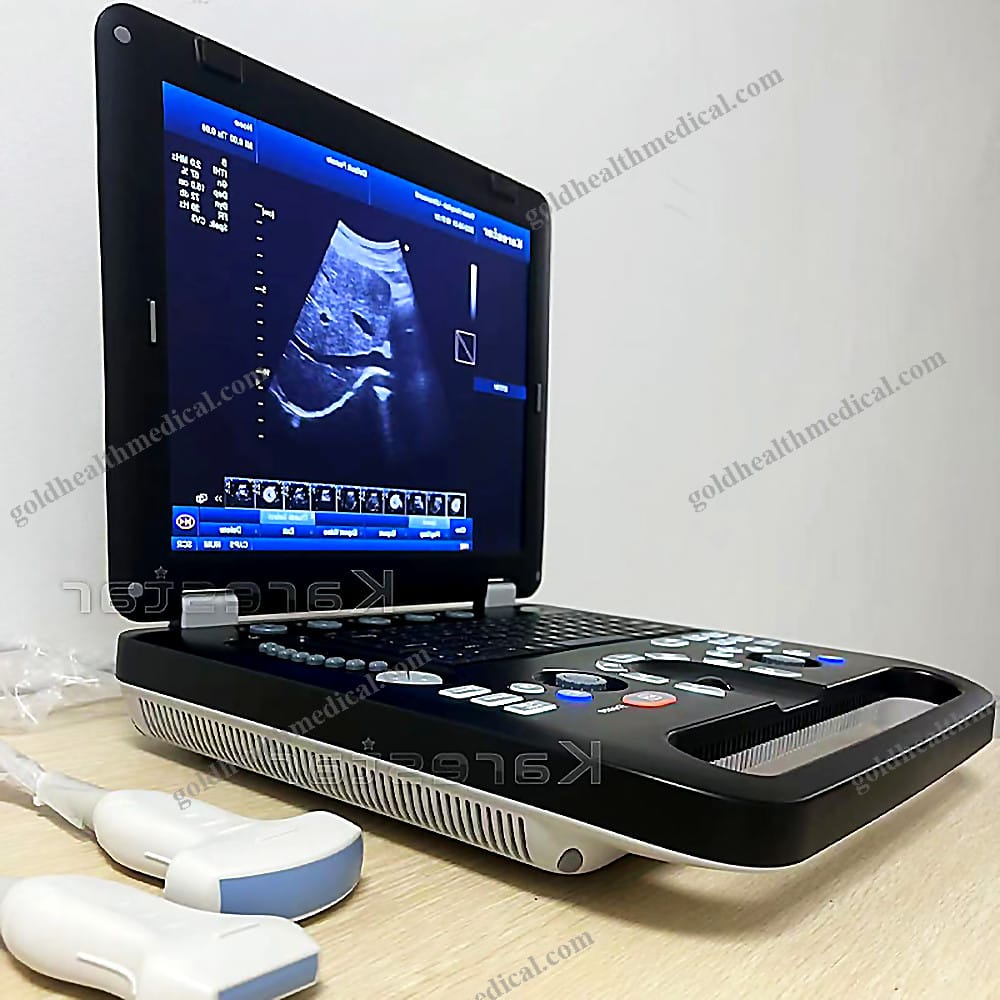

- Large 15-inch LED Display: Ensures clear and detailed imaging for accurate diagnostics.
- Built-in Battery: Offers a minimum of 3 hours of continuous operation without power, ensuring reliability in any setting.

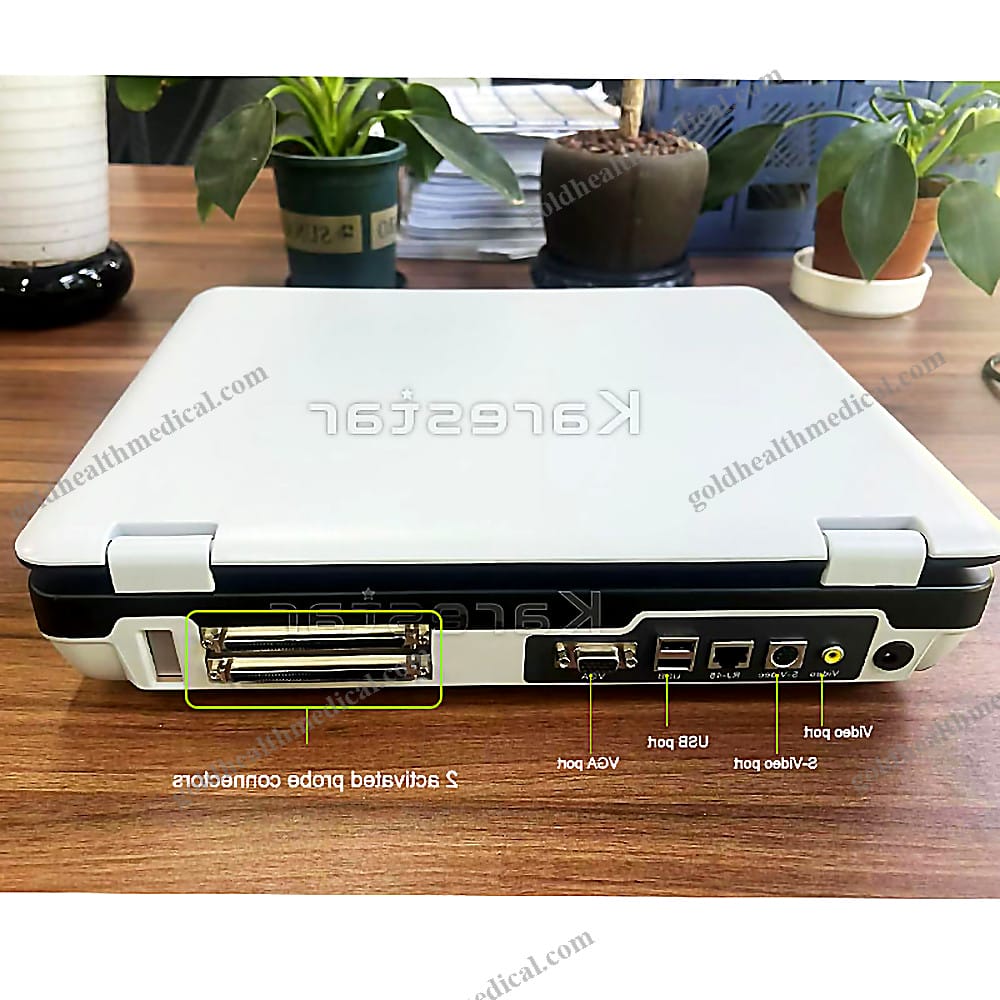

- Multiple Ports: Includes 2 probe sockets with easy one-button switching, 2 USB ports, Video, S-Video, VGA, and DICOM connectivity.
- Comprehensive Imaging Modes:
- B, B|B, 4B, B|M, M

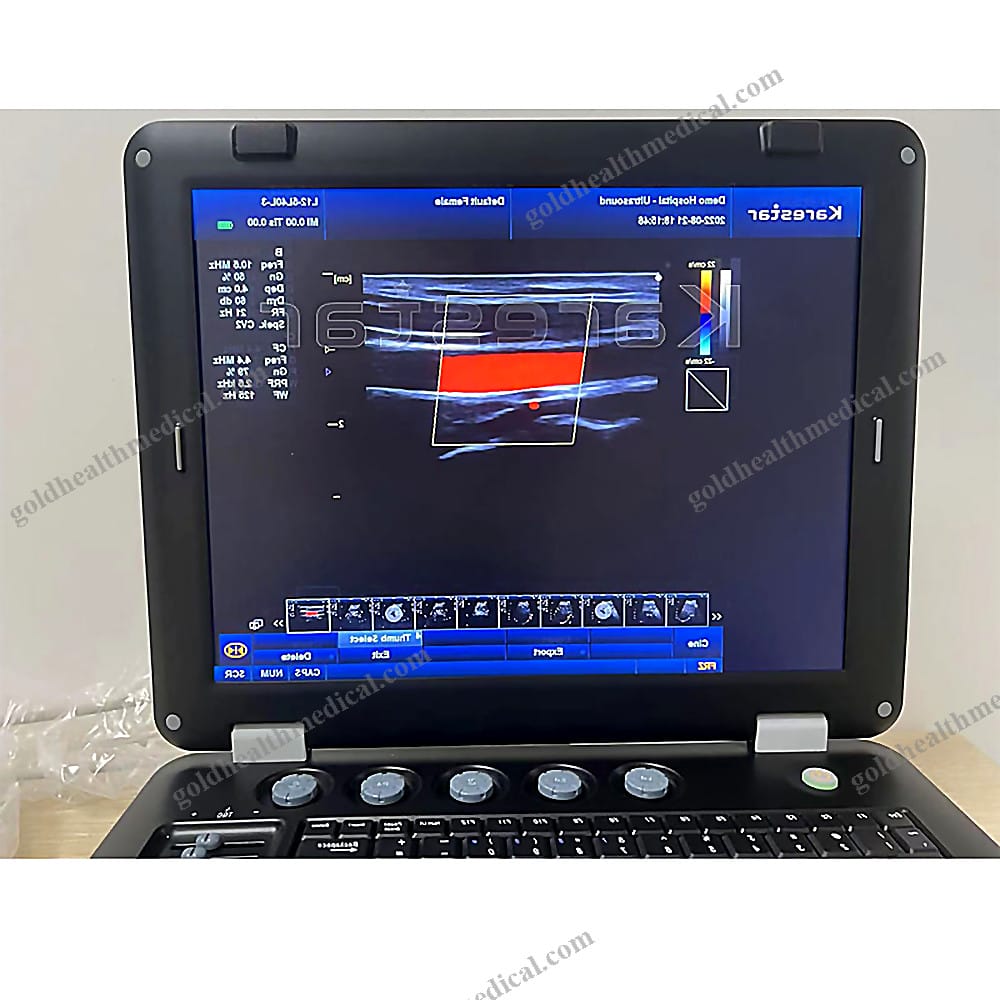

- Color Doppler (CFM), Power Doppler (PDI), Directional Power Doppler (DPDI)
- Pulsed Wave Doppler (PWD), Continuous Wave Doppler (CW)

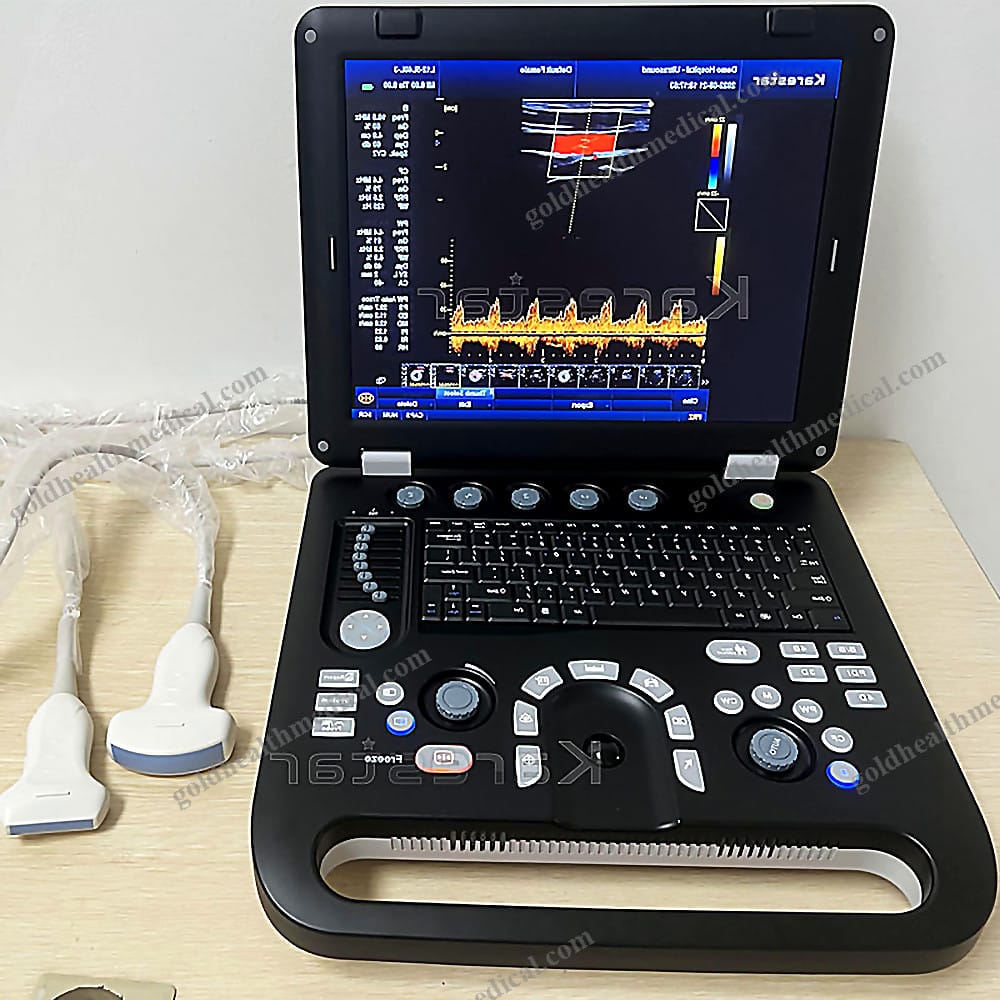

- B+PWD (Duplex), B+CF (Triplex)
- Wide Range of Applications: Abdomen, Cardiac, Obstetrics, Gynecology, Musculoskeletal, Vascular, Pediatrics, Andrology, Small Parts.
- Advanced 3D/4D Imaging: Equipped with built-in 3D software and optional 4D capabilities.
- PC-Based System: Runs on Windows, ensuring compatibility with any printer and supporting multiple languages.
Probes and Specifications
- Convex Array Probe: Central 3.5 MHz (2.0MHz to 10.0MHz), 128 elements, 0.516mm pitch, 60mm radius.
- Linear Array Probe: Central 7.5 MHz (6.0MHz to 12.0MHz), 128 elements, 0.352mm pitch.
- Trans-Vaginal Probe: Central 6.5 MHz (5.0MHz to 9.0MHz), 128 elements, 0.216mm pitch, 10mm radius.
- Micro-convex Probe: Central 4.0 MHz (2.0MHz to 5.5MHz), 128 elements.
- Phased Array Probe: 2.0MHz to 4.0MHz, 128 elements.
- 4D Volume Probe: 2.0MHz to 6.0MHz, 128 elements.
- Human Trans-Rectal Probe: 5.0MHz to 12.0MHz, 128 elements.
- Veterinary Rectal Probe: 128 elements.
Additional Features
- Physical Specifications:
- Equipment Size: 365mm × 300mm × 75mm
- Equipment Weight: Less than 5kg
- Packing Size: 490mm × 270mm × 490mm
- Packing Weight: 10kg
- Storage and Connectivity:
- 128GB SSD (Optional 120GB/200GB)
- 2 Ethernet Ports (100Mb/1000Mb)
- External Display Options: VGA, S-VIDEO, HDMI
- DICOM 3.0 Compliant
- Image Storage Formats: PNG, AVI, BMP, JPEG, DICOM
- Video Format: AVI
- Imaging Enhancements:
- Real-Time Image Zoom (100%~400%)
- Up/Down/Left/Right Inversion
- 256 Grey Levels
- 123 Body Marks
- Advanced Technologies: Panoramic Imaging, All-digital Signal Processing, Multi-beam Formation, Speckle Reduction, Tissue Harmonic Imaging, Dynamic Tissue Optimization, Duplex & Triplex Synchronous Display, Power Doppler (PDI) + Directional Power Doppler (DPDI).
Unique Selling Points
- Portability and Reliability: Lightweight design with a robust battery life ensures mobility and uninterrupted performance.
- Versatile Imaging Capabilities: Comprehensive imaging modes and advanced 3D/4D options provide detailed and accurate diagnostics.

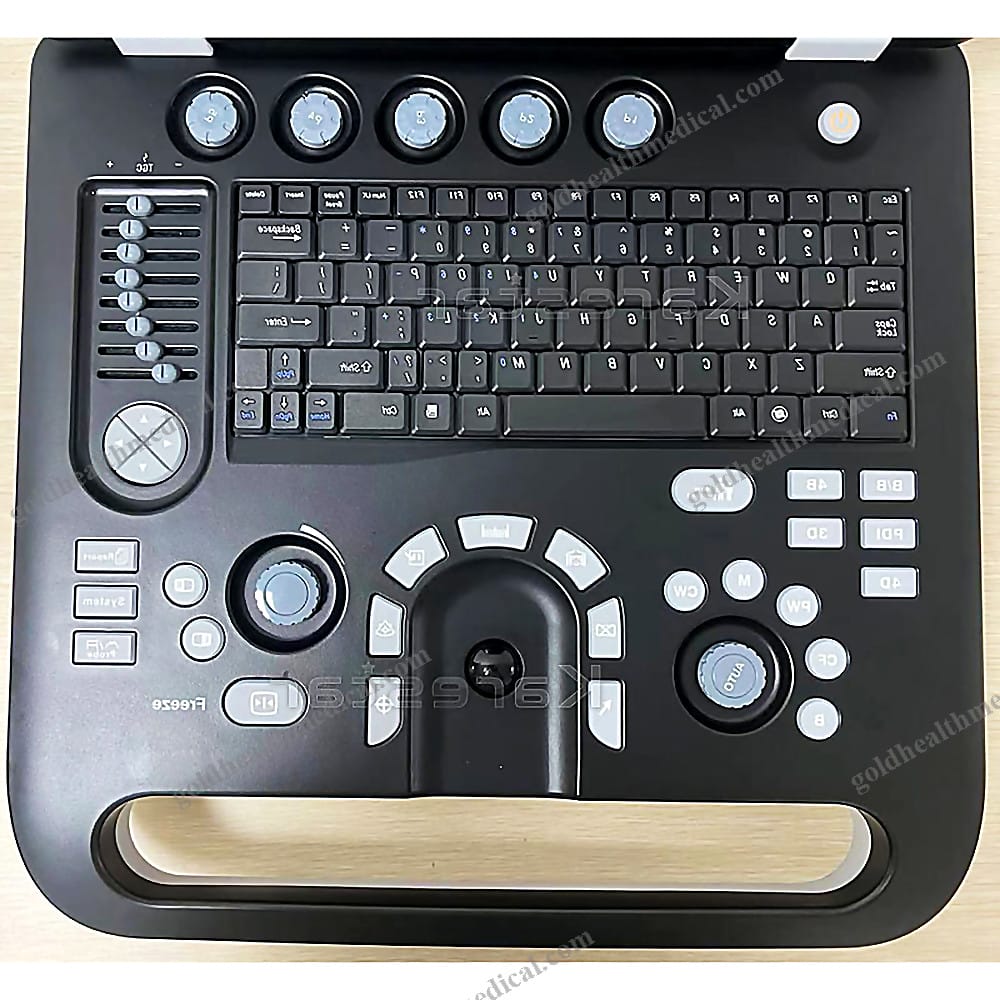

- User-Friendly Interface: Intuitive controls and multiple connectivity options enhance user experience and integration with existing systems.
- High-Quality Probes: Diverse probe options cater to various medical applications, ensuring precision and adaptability.
GoldHealth Medical's portable ultrasound system is designed to deliver exceptional performance and reliability, making it an indispensable tool for modern medical professionals.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents a cutting-edge ultrasound system designed to elevate diagnostic precision and operational efficiency in medical environments. Engineered with advanced technology and user-centric features, this device is tailored for a wide range of applications, from OB/GYN to cardiology and beyond.
Product Highlights
- Large LED Display: Equipped with a 15-inch high-resolution LED screen for exceptional image clarity and ease of use.
- Versatile Scanning Modes: Supports multiple modes including 2D, 3D, B|B, 4B, M, CFM, PDI, THI, PW, CW, and more, ensuring comprehensive diagnostic capabilities.
- Advanced Features: Includes virtual convex array expansion, convex array expansion, and PW auto trace measurements for enhanced accuracy.
- Multi-Language Support: Operates in multiple languages, including Spanish, English, French, Portuguese, and others, catering to global users.
- Dual Probe Sockets: Allows seamless switching between probes for diverse clinical needs.
- Built-in Lithium Battery: Ensures uninterrupted performance during mobile or field operations.
Technical Specifications
- Instrument Classification: Class II
- Safety Standard: Compliant with GB/T18830-2009
- Material: Durable metal and high-quality plastic construction
- Power Source: Electricity
- System Platform: PC-based for reliable performance
- Ports: Video, S-video, 2 USB, VGA
Applications
- OB/GYN
- Urology
- Andrology
- Cardiac
- Peripheral Vascular
- Musculoskeletal (MSK)
Packaging Details
- Single Package Size: 29 x 50 x 50 cm
- Single Gross Weight: 10.000 kg
Quality Assurance
- Shelf Life: 2 years
- Certifications: CE-approved for safety and reliability
After-Sales Commitment
GoldHealth Medical ensures a seamless experience with comprehensive warranty coverage, lifetime technical support, and hassle-free return and replacement policies. Our dedication to quality and customer satisfaction guarantees peace of mind for every user.
Experience the future of medical imaging with GoldHealth Medical’s innovative ultrasound system, designed to meet the demands of modern healthcare professionals.
