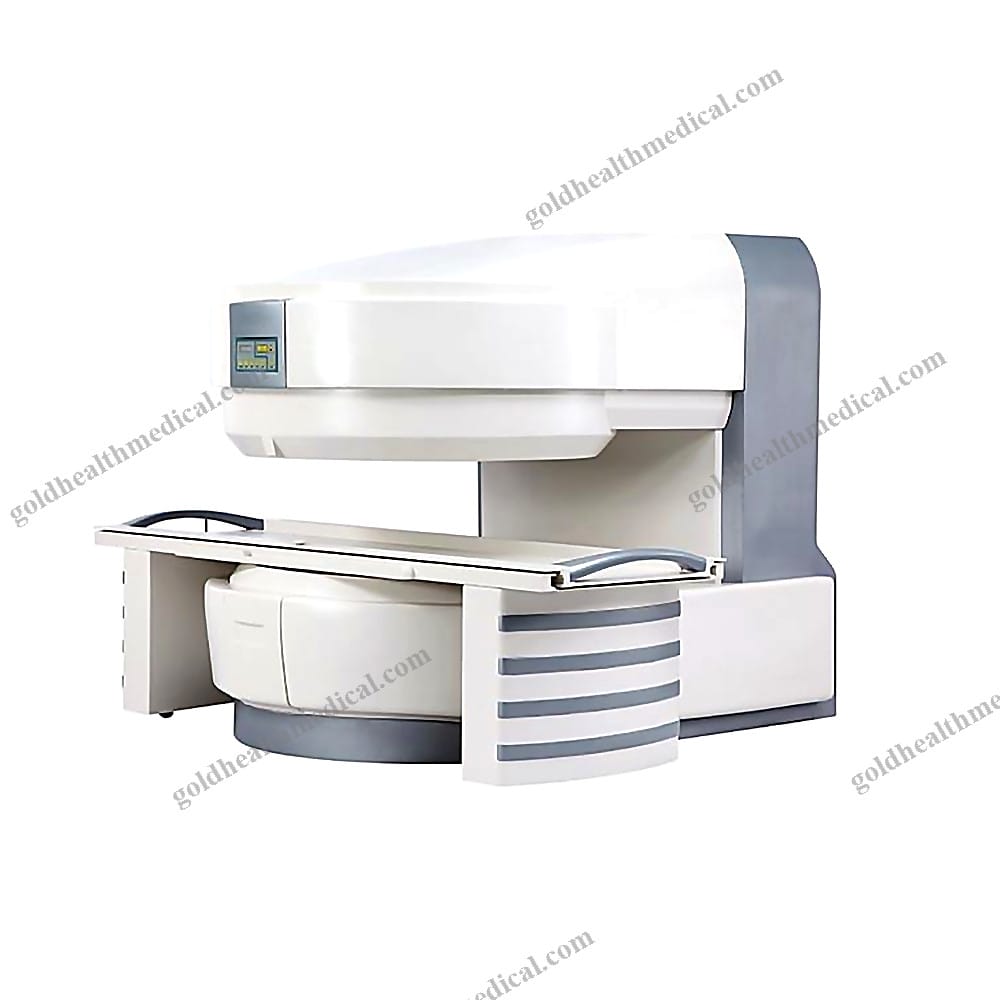

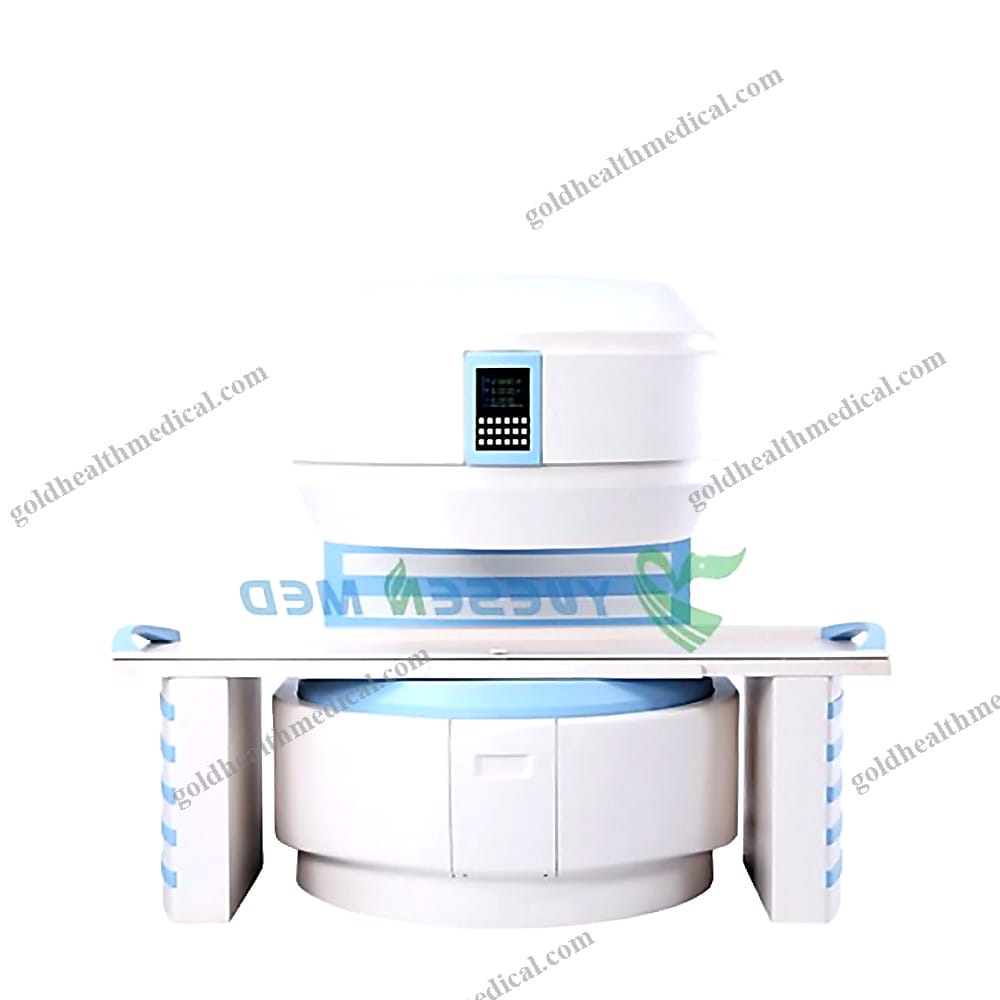

Affordable 042T Permanent Magnet MRI Scanner
Reference: 1600227138410Medical MRI Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical - Revolutionizing MRI Technology
GoldHealth Medical presents an advanced Permanent Magnet Open MRI System, designed to deliver exceptional imaging quality while maintaining affordability. Engineered with cutting-edge innovations, this MRI system is tailored for hospitals, clinics, research institutions, and home healthcare environments.
Key Features and Benefits
- Faster Acquisition Technology: Achieve high-speed scanning through advanced RF and gradient dephasing technologies. Minimize respiratory motion artifacts for clearer, more accurate images.
- Intuitive Software Interface: A user-friendly, intelligent scanning system enables rapid localization of images, empowering users to master full-body scanning techniques in minimal time.
- Open Magnet Design: The high-openness magnet facilitates MRI-guided interventional procedures, enhancing accessibility and patient comfort.
- Real-Time Imaging and Analysis: Featuring a streamlined interface and robust software, this system supports real-time display, imaging browsing, and management. Visual user interaction and 3D positioning technology ensure swift and precise diagnostics.
- Fully Digital RF Amplifier System: Modular design and digital spectrometer technology enable versatile imaging techniques, expanding the range of sequences for diverse applications.
- Superior Magnet Stability: High-performance magnet materials and advanced eddy current-free technology ensure consistent imaging quality. Dynamic 4D active shimming adjusts the magnetic field based on sequences and environments, guaranteeing unparalleled uniformity.
- Precision Temperature Control: A high-precision temperature control system maintains stable magnetic field strength, ensuring long-term imaging consistency while reducing operational costs.
Technical Specifications
Magnet System - Magnet Type: Permanent magnet with automatic constant temperature system - Field Strength: 0.42T - Magnet Shape: C-shape - Homogeneity (40cm DSV, VRMS): 2ppm - Shim Method: Active/Passive/Dynamic - Magnet Vertical Gap: 40cm - Accessibility (Horizontal Opening Angle): 250° - 5 Gauss Fringe Field: 2.5m x 2.5m x 2.5m
Gradient System - Gradient Field Strength (Single Axis): 31mT/m - Gradient Slew Rate (Single Axis): 107mT/m/ms - Rise Time: 0.29ms - Gradient Cooling System: Air-cooled
RF System - Spectrometer: Fully digital - RF System Type: Digital Transmit and Receive - Number of RF Channels: 4 - Transmitter Amplifier Peak Power: 6kW - RF Bandwidth of Receiver: 400KHz per channel - Dynamic Range: 80dB - Noise Factor: 0.3dB - Coil Types: Phase array - Available Coils: Head, Neck, Body (small and large), Knee, Ankle - Optional Coils: Shoulder, Soft
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, reliable, and cost-effective medical imaging solutions. With a legacy of excellence spanning nearly two decades, our products are trusted by healthcare professionals worldwide. This MRI system exemplifies our dedication to precision, accessibility, and patient-centric design.
Experience the future of medical imaging with GoldHealth Medical – where technology meets humanity.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company Name: GoldHealth Medical
Product Introduction:
Experience the future of medical imaging with GoldHealth Medical's advanced MRI technology. Designed for precision, reliability, and patient comfort, this state-of-the-art Magnetic Resonance Imaging (MRI) system is engineered to deliver exceptional diagnostic clarity. Featuring a permanent magnet with an automatic constant temperature system, this MRI machine ensures consistent performance and high-quality imaging for a wide range of medical applications.
Key Features and Specifications:
- Magnet Type: Permanent magnet with automatic constant temperature system for stable and reliable operation
- Field Strength: 0.42T, providing clear and detailed imaging for accurate diagnostics
- Gradient Field Strength (Single Axis): 31mT/m, enabling sharp and precise imaging
- Gradient Slew Rate (Single Axis): 107mT/m/ms, ensuring rapid and efficient scanning
- Rise Time: 0.29ms, minimizing delays and enhancing workflow efficiency
- RF System Type: Digital Transmit and Receive for superior signal processing and image quality
- Transmitter Amplifier Peak Power: 6kW, delivering robust performance for demanding imaging tasks
- Max. Patient Weight: 210kg, accommodating a diverse range of patients with ease
- High-Accuracy Position Assist: Equipped with advanced positioning technology for precise patient alignment
- MRI Software: V30, offering intuitive controls and advanced imaging capabilities
Safety and Compliance:
- Instrument Classification: Class I, ensuring the highest standards of safety and reliability
- Safety Standard: Compliant with GB15979-2002 regulations
- Quality Certification: ISO-certified for consistent quality and performance
Additional Details:
- Material: Constructed with durable metal and steel for long-lasting use
- Power Source: Electric, designed for energy efficiency and operational convenience
- Shelf Life: 1 year, ensuring reliability and performance during its lifespan
Packaging and Delivery:
- Packaging Details: Standard export package, ensuring safe and secure transportation
- Single Package Size: 170x35x25 cm
- Single Gross Weight: 400.000 kg
- Port of Origin: Guangzhou
Supply Ability:
- Monthly Supply Capacity: 50 sets per month, ensuring timely delivery for your needs
After-Sale Service:
- Warranty: 1 year, providing peace of mind and long-term reliability
- Onsite Inspection: Available to ensure proper installation and optimal performance
GoldHealth Medical’s MRI system is the ideal choice for hospitals, clinics, research institutions, and rehabilitation centers seeking cutting-edge imaging technology. With its innovative design, advanced features, and commitment to quality, this MRI machine sets a new standard in medical diagnostics.
