Advanced XRay Flat Panel Detector for Medical Imaging Solutions
Reference: 1600208346323Medical X-ray Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Flat Panel X-ray Detector for Medical Imaging
GoldHealth Medical proudly presents its cutting-edge flat panel X-ray detector, meticulously engineered for superior medical imaging. Designed to deliver unparalleled precision and reliability, this detector is an indispensable tool for modern healthcare facilities.
Key Features and Technical Specifications
- Detector Technology: Advanced a-Si/a-Si technology for exceptional image clarity.
- Scintillator Options: Choose between GOS or CsI for optimal performance in diverse imaging scenarios.
- Image Size: Large 43 x 43 cm field of view ensures comprehensive coverage.
- Pixel Matrix: High-resolution 3072 x 3072 matrix for detailed imaging.
- Pixel Pitch: Precise 140 µm pitch for sharp and clear images.
- A/D Conversion: 16-bit for enhanced digital accuracy.

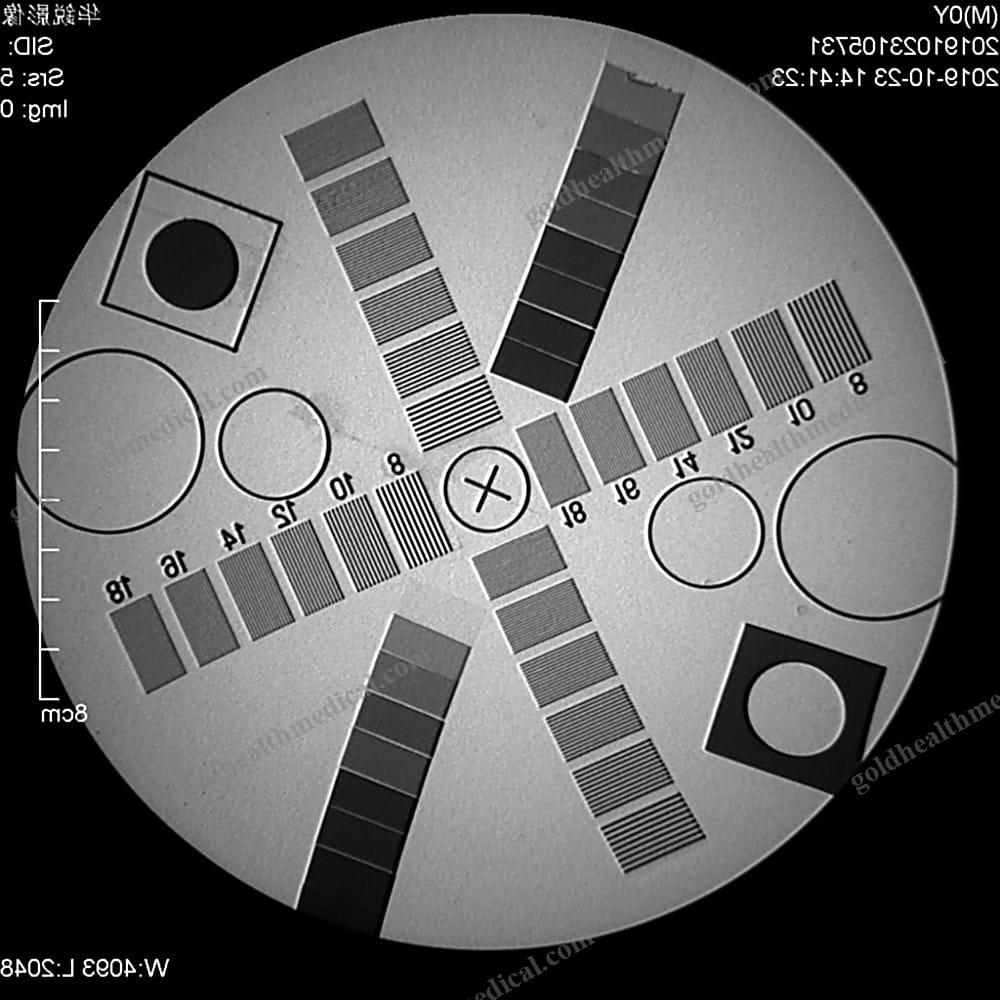

- Spatial Resolution: Outstanding 3.6 LP/mm for superior diagnostic quality.
- Image Acquisition Time: Rapid 1 second (wired) or 2-3 seconds (wireless) capture.
- X-ray Voltage Range: Versatile 40-150 kV compatibility.
- Battery Standby Time: Reliable 8-hour operation on a single charge.
- Data Interface: High-speed GigE and 802.11ac connectivity.
- Power Consumption: Efficient 20W design.
- Adapter Specifications:
- Input: AC 100-240V, 50-60Hz
- Output: DC 24V, 60W
- Dimensions: Compact 46 x 46 x 1.5 cm form factor.
- Weight: Lightweight at 3.9 kg (wireless) or 4.5 kg (wired with battery).
- Housing Material: Durable carbon and alloy construction.
- Waterproof Level: IPX3 rating for added protection.
- Working Environment: Operates effectively in temperatures of 5-35°C and humidity levels of 10-75% RH.

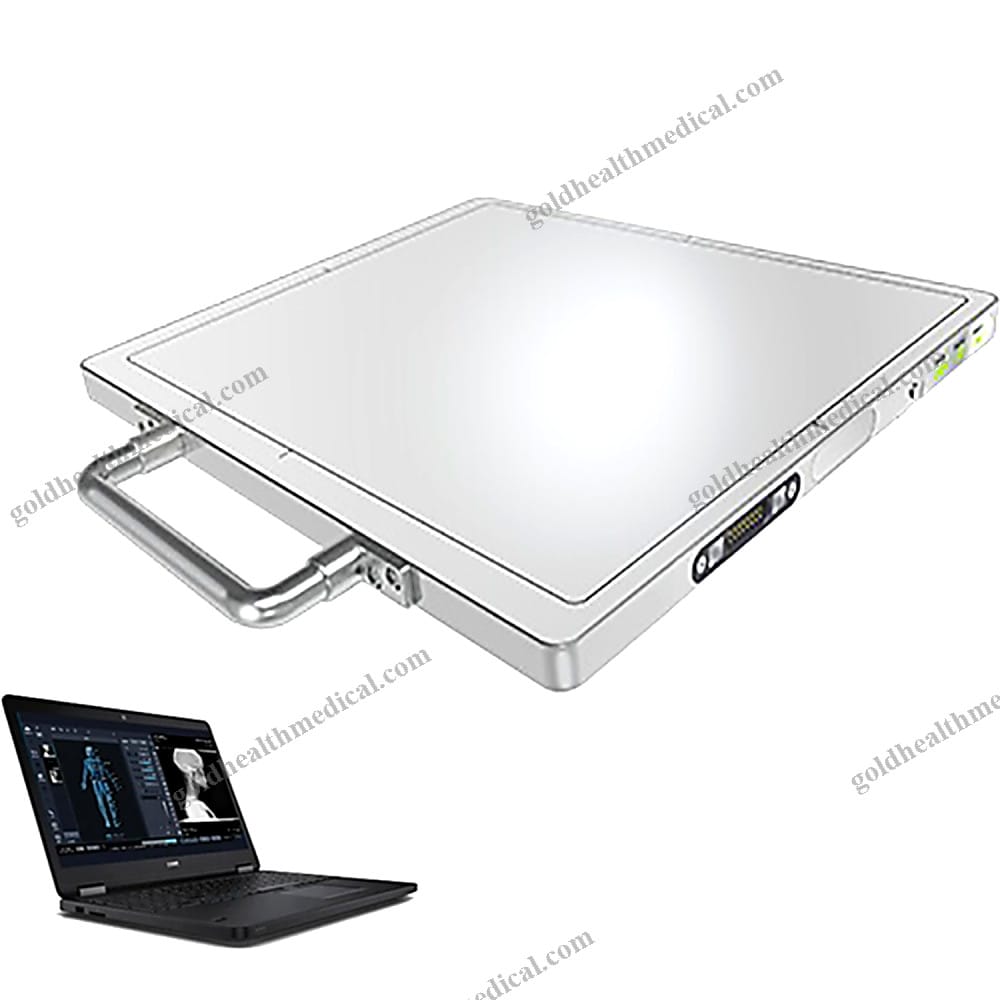

Advanced Medical Imaging Software
Our detector comes equipped with state-of-the-art medical imaging software that enhances operational efficiency:
- Multi-language Support: Pre-configured for global usability.
- Intelligent Interface: Streamlined pages for effortless navigation.
- Patient Management: Comprehensive tools for registration, work lists, and checklists.
- Examination Operations: Customizable settings for patient size, examination types, shooting positions, and photography parameters.
- Image Processing: Advanced presets for viewing, processing, and layout adjustments.
- Medical Record Management: Integrated system for patient information, examination details, and image archiving.
- Real-time Adjustments: Automatic window width and position calibration during image acquisition.
GoldHealth Medical's flat panel X-ray detector stands out with its innovative design, robust build, and intelligent software integration, making it the ideal choice for healthcare professionals seeking excellence in medical imaging.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Flat Panel Detector by GoldHealth Medical
Instrument Classification: Class II
Product Highlights
- Advanced Digital Imaging: Designed for precision and reliability, this flat panel detector delivers exceptional digital imaging performance, making it ideal for a wide range of medical applications.
- Versatile Size Options: Available in multiple active areas: 10x12, 14x17, and 17x17 inches, ensuring compatibility with various X-ray systems.
- Superior Image Quality: Achieve unparalleled clarity with a pixel pitch of 140µm, 16-bit A/D conversion, and a spatial resolution of 3.6 LP/mm.
- Wide Voltage Range: Operates seamlessly within an X-ray voltage range of 40-150 kV, accommodating diverse clinical needs.
Technical Specifications
- Material Composition: Constructed with high-grade metal, plastic, CsI (Cesium Iodide), and amorphous silicon for durability and optimal performance.
- Power Source: Electricity-driven for consistent and reliable operation.
- Shelf Life: 3 years under proper storage conditions.
- Quality Certifications: Compliant with CE standards and safety standard GB2626-2006.
Applications
- Digital radiography systems
- Medical imaging in hospitals, clinics, and diagnostic centers
- Research and laboratory environments
- Rehabilitation and geriatric care facilities
Warranty & Support
- Warranty Period: 1 year, ensuring peace of mind and long-term reliability.
- After-Sales Service: Access to online technical support for seamless integration and troubleshooting.
Packaging Details
- Dimensions: 55cm x 52cm x 25cm
- Gross Weight: 5kg
- Ports: Qingdao, Ningbo, Shanghai
Supply Capacity
- Monthly Supply Ability: 50 sets, ensuring timely delivery for bulk orders.
GoldHealth Medical’s Flat Panel Detector redefines precision and efficiency in digital radiography, empowering healthcare professionals with cutting-edge technology for superior patient care.
