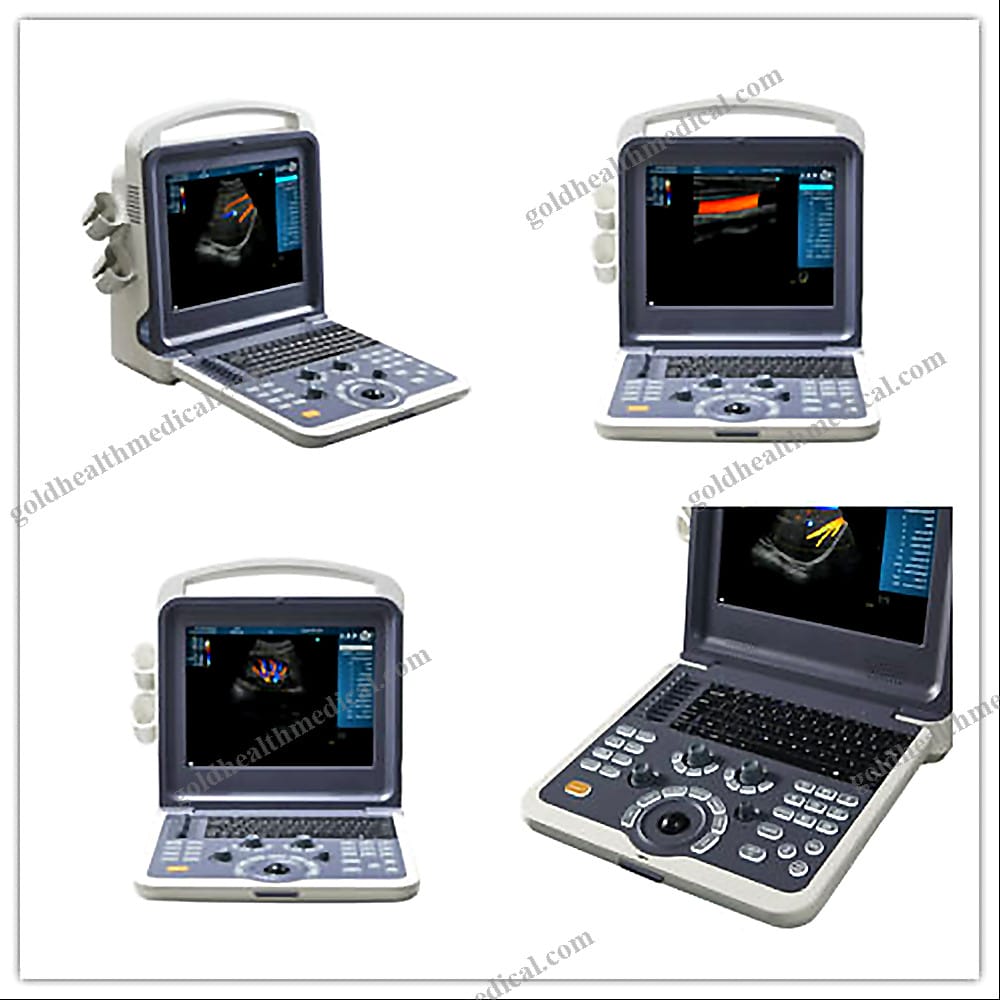

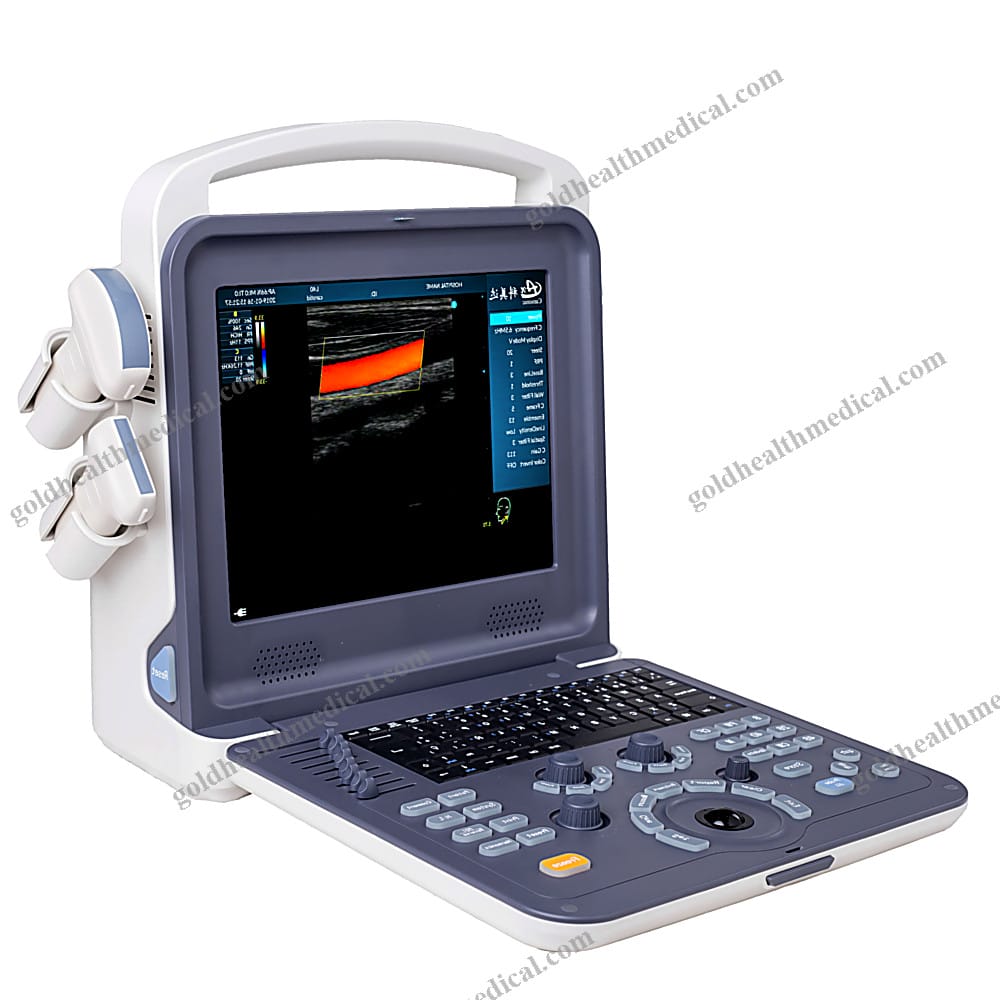

Advanced Portable Color Doppler Ultrasound Scanner with CE ISO Certification for Vascular
Reference: 1601238956208Medical Ultrasound Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical presents the Full Digital Color Doppler Ultrasound Diagnostic System
A cutting-edge solution designed to deliver unparalleled imaging precision and operational ease, this system is tailored for a wide range of medical applications.
Key Features
- High-Resolution Imaging System: Achieve crystal-clear visuals with advanced imaging technology.
- Ergonomic Design: Intuitive controls ensure seamless operation, reducing user fatigue.
- Optimized Image Quality: Smart algorithms enhance image clarity and diagnostic accuracy.

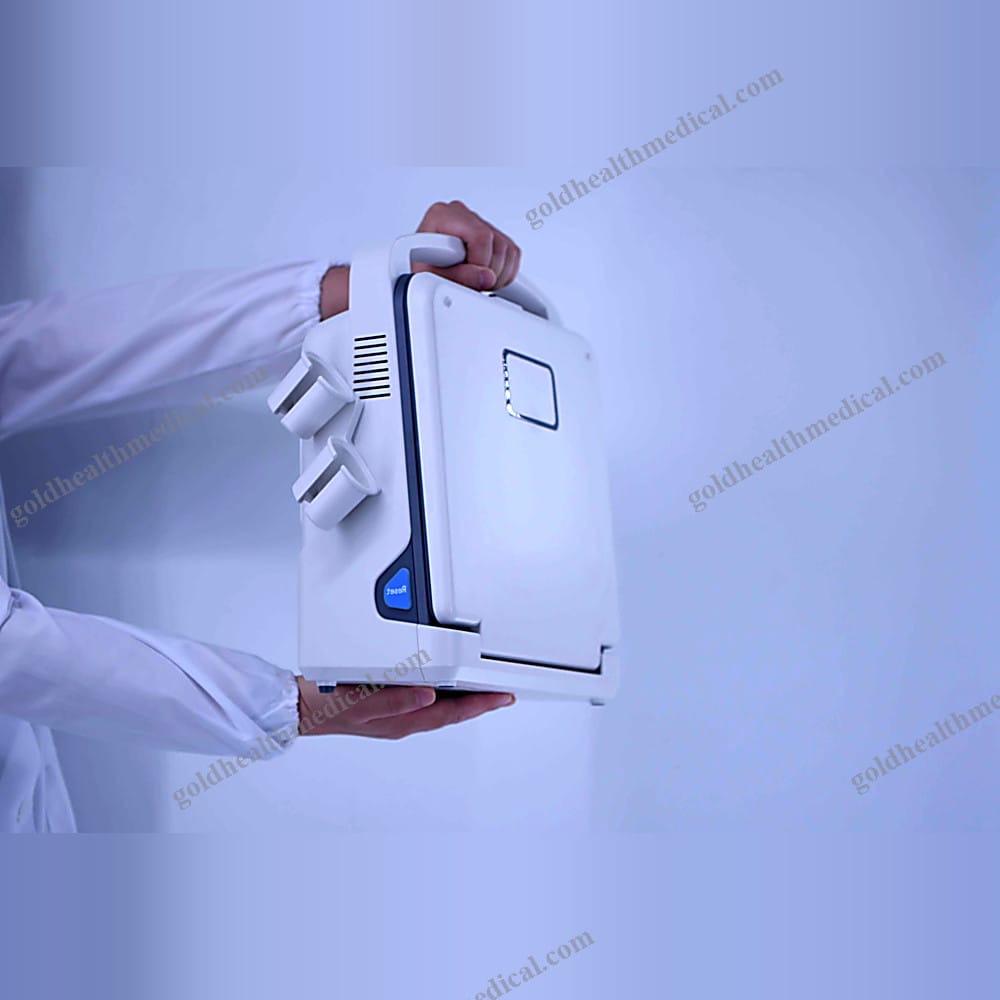

- Lightweight & Portable: Compact design for effortless mobility across medical environments.
Probes Information
- Multi-Frequency Probes: Five-step adjustable frequencies for versatile applications.
- 3.5MHz Abdominal Probe: 2.0, 3.0, 3.5, 4.0, 5.5 MHz
- 7.5MHz Linear Probe: 6.0, 6.5, 7.5, 10.0, 12.0 MHz
- 6.5MHz Transvaginal Probe: 5.0, 6.0, 6.5, 7.5, 9.0 MHz
Technical Specifications
- Display Modes: B, B/B, 4B, B/M, M, B/C, B/C/D, B/D, Duplex, CFM, PW
- Signal Processing:
- Full-digital beam forming
- Dynamic filtering and real-time focusing
- Spectral and CFM processing
- Real-time dynamic focusing and aperture adjustment
- Image Processing:
- THI (Tissue Harmonic Imaging)
- Speckle Noise Reduction (iClear)
- Continuous Dynamic Focusing (CDF)
- Multi-Beam Former (MBF)
- Synthetic Aperture Ultrasonic Imaging (SA)
- Enhancements:
- One-key optimization
- Wall filter and baseline adjustability
- PRF adjustment
- iZoom for instant full-screen imaging
- iImage intelligent optimization
- Storage: 16GB internal storage with support for BMP, JPEG, PNG, and optional DICOM formats.
- Scanning Depth: ≥260mm
- Probe Elements: 80
- Gray Scale: 256 levels
- Cine Loop: Automatic and manual modes
Measurement Packages
- General Measurements: Volume, V3L, STD_S, Area Trace, Mtime, MHR, D Time, DV, D Common, D Auto, Area, Angle, CrossLine, STD D, ParalleLine, Mdist, MV, D HR, DA, D Trace
- Specialized Packages:
- ABD: Aorta, Rt/Lt Kidney, Bladder, Prostate
- OB: Early_OB, Rt/Lt Ovary, Uterus, Fetal Biometry, Long Bones, AFI
- Pelvic: Uterus, Rt/Lt Ovary, Rt/Lt Follicle
- Urology: Rt/Lt Kidney, Bladder, Prostate, Rt/Lt Testicle
- Small Parts: Rt/Lt Thyroid, Rt/Lt Testicle, Vessel, Breast
- Vascular: Stenosis D, Stenosis A, Intima, Arterial, Venous
- MSK: Distance, Area, Hip_Angle
Standard Configuration
- Main unit with 12-inch LED monitor
- 2 probe connectors
- User’s Manual
- SSD hard disk
Optional Accessories
- Additional probes: 3.5MHz convex, 7.5MHz linear, 6.5MHz transvaginal
- Trolley, printers, and aluminum case
- Compatible printers: HP LaserJet P2035, HP LaserJet 1020, SONY UP-D898MD, SONY UP-X898MD, EPSON L130 series
Experience the future of diagnostic imaging with GoldHealth Medical’s advanced ultrasound system, engineered to meet the demands of modern healthcare professionals.
