Advanced MRI Scanner Equipment for Hospitals
Reference: 1600108633490Medical MRI Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical MRI Scanner Machine
Product Description
GoldHealth Medical presents a state-of-the-art MRI Scanner Machine designed to revolutionize medical imaging with its advanced features and cutting-edge technology. This MRI machine is engineered to deliver exceptional performance, ensuring precise diagnostics and patient comfort.
Features
- Magnet:
Helium supplement interval time: ≥48 months with zero consumption technology.
E-alarm Technology:
A proprietary technology to safeguard the magnet:
- Built-in magnet monitoring system for real-time tracking of inner pressure, temperature, and liquid level.
- Integrated SIM card for automatic message alerts to operators in case of abnormal magnet conditions, significantly reducing quench risk.
Spectrum Meter:
Fully digital 8-16 channels spectrometer.
Fiber Technology (Optional):
Signal transfer via fiber to minimize RF signal loss.
RF Amplifier:
18KW RF Amplifier ensuring robust proton excitation power and B1 field homogeneity.
Gradient Amplifier:
- Gradient intensity: 41mT/m
- Slew rate: 187mT/m/ms
Water cooling system.
Gradient Coil:
- Quiet Comfort noise reduction technology, decreasing gradient noise by 33% for a comfortable scanning environment.
- Self-shielding gradient system to prevent eddy currents between metal shielding layers.
Automatic temperature detection to protect hardware from high-temperature damage.
Receiver Coils:
- Head coil (CH8)
- Neck coil (CH8)
- Body coil (CH8)
- Knee coil (CH8)
- Breast coil (CH8 & CH4)
- Shoulder coil (CH4)
- Ankle coil (CH8)
- Full palm coil (CH8)
- Spine coil (CH18 HIGH)
- Soft coil (CH4)
- Head-neck coil (CH16)
AIT coil (CH18)
AIT Technology:
Single positioning for full-field imaging, greatly enhancing efficiency.
Chiller System:
- Intelligent touch-screen water chiller control.
- Auto fault, leaking, and overheating detection.
- One-key reset function.
Built-in backup water pump to prevent system halts.
Patient Table:
- Motor-driven patient table with a maximum load of 200Kg.
- 8” TFT screen @ 800*600 for easy operation.
- Emergency stop key.
- Positioning accuracy ≤ 1mm.
Operable from both sides of the magnet.
Workstation:
- High-performance workstation with MRI software:
- OS: Windows 7
- CPU: Quad-core ≥2.8GHz
- RAM: ≥2GB (expandable)
- HDD: ≥500GB (expandable)
- Monitor: 24” LCD TFT
- All system condition monitor data integrated into the workstation.
Accessories: Intercom system, Resp. gating, CCTV (optional).
Room Size Requirement:
- Standard shielding room size: 7000mm×6000mm×3200mm(H)
- Minimum shielding room size: 6000mm×5000mm×3200mm(H)
- Equipment room: Approximately 15m²
Operator room: Approximately 12m²

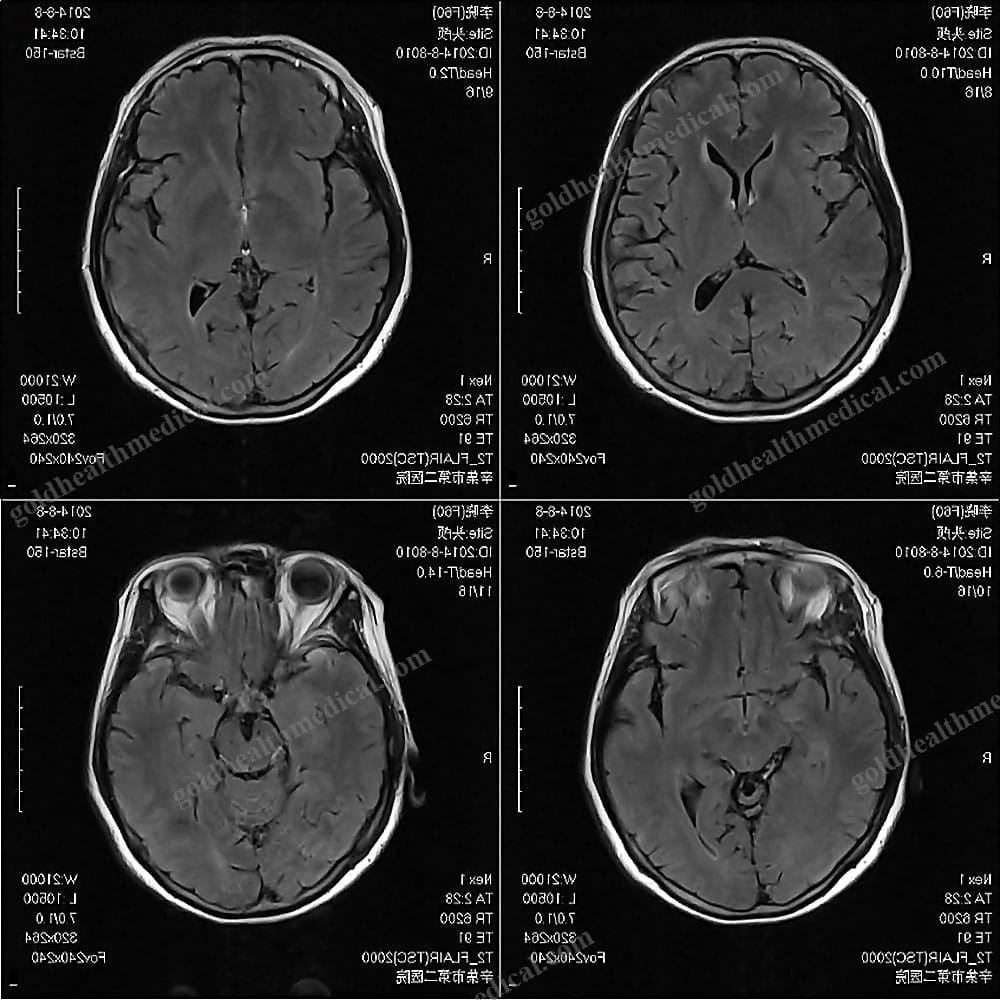

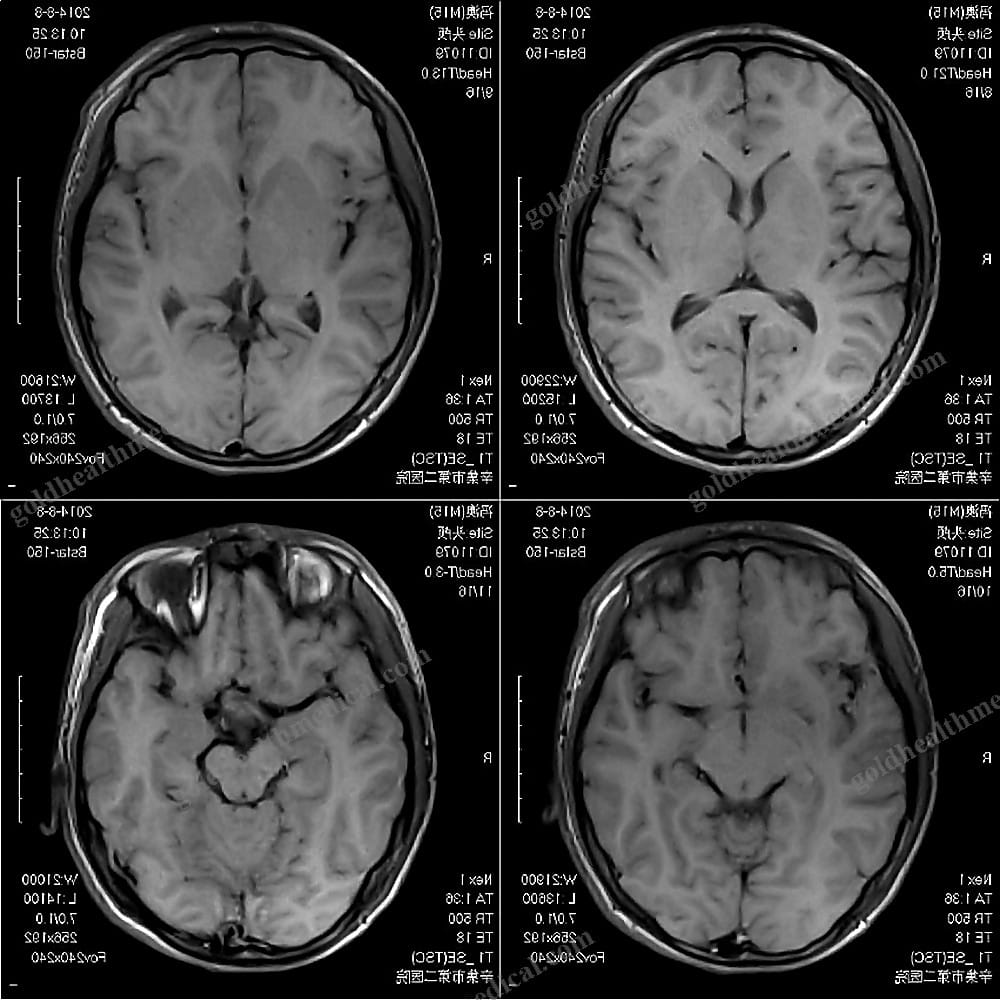

Clinical Images:
- Routine head images powered by the new generation PA coils, software, and parallel acquisition technology, enabling most scanning sequences to be completed in under 2 minutes.
- T1WI and FLAIR sequences with high signal-to-noise ratio, excellent contrast, high spatial resolution, and short acquisition time.
GoldHealth Medical's MRI Scanner Machine stands out with its innovative technologies and patient-centric design, making it an indispensable tool for modern medical facilities.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the Medical Equipment MRI Scanner, a cutting-edge solution designed to deliver unparalleled precision and reliability in medical imaging. Engineered for hospitals, clinics, research institutions, and rehabilitation centers, this MRI scanner is a cornerstone of modern diagnostics, offering advanced imaging capabilities to support healthcare professionals in delivering accurate and timely patient care.
Key Features and Specifications
- Instrument Classification: Class II medical device, ensuring compliance with rigorous safety and performance standards.
- Safety Standard: Meets GB2626-2006 requirements, guaranteeing the highest levels of safety and operational integrity.
- Power Source: Fully electric operation, providing consistent and reliable performance.
- Material: Constructed with premium-grade materials, ensuring durability and long-term use.
- Shelf Life: 1 year from the date of manufacture, maintaining optimal functionality under recommended storage conditions.
Performance Highlights
- Delivers high-resolution imaging for accurate diagnostics.
- Designed for versatility, suitable for a wide range of medical applications.
- Compact and ergonomic design, optimizing space utilization in clinical environments.
Warranty and Support
- Warranty: Comprehensive 1-year warranty, offering peace of mind and assurance of quality.
- After-Sales Service: Access to online technical support, ensuring prompt assistance and minimal downtime.
Packaging and Delivery
- Packaging Details: Securely packaged in durable cartons to ensure safe transit.
- Place of Origin: Guangdong, China, renowned for its advanced manufacturing capabilities.
- Port of Dispatch: Guangzhou, facilitating efficient global delivery.
- Supply Ability: Up to 1000 units per month, ensuring scalability to meet diverse client demands.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to innovation and excellence in medical technology. Our MRI scanner combines state-of-the-art engineering with user-centric design, empowering healthcare providers to achieve superior outcomes. Whether for clinical diagnostics, research, or rehabilitation, this MRI scanner is your trusted partner in advancing patient care.
Applications
- Hospitals and clinics for comprehensive diagnostic imaging.
- Research institutions exploring advanced medical studies.
- Rehabilitation centers and home healthcare settings for specialized imaging needs.
GoldHealth Medical: Redefining precision in medical imaging.
