Advanced Maternal Fetal Monitor CTG Machine
Reference: 1600918169224Ultrasonic, Optical, Electronic Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Fetal Monitor
GoldHealth Medical presents an advanced fetal monitoring solution designed to elevate maternal and fetal care. This state-of-the-art device combines portability, precision, and intelligent features to provide healthcare professionals with reliable data for clinical decision-making.

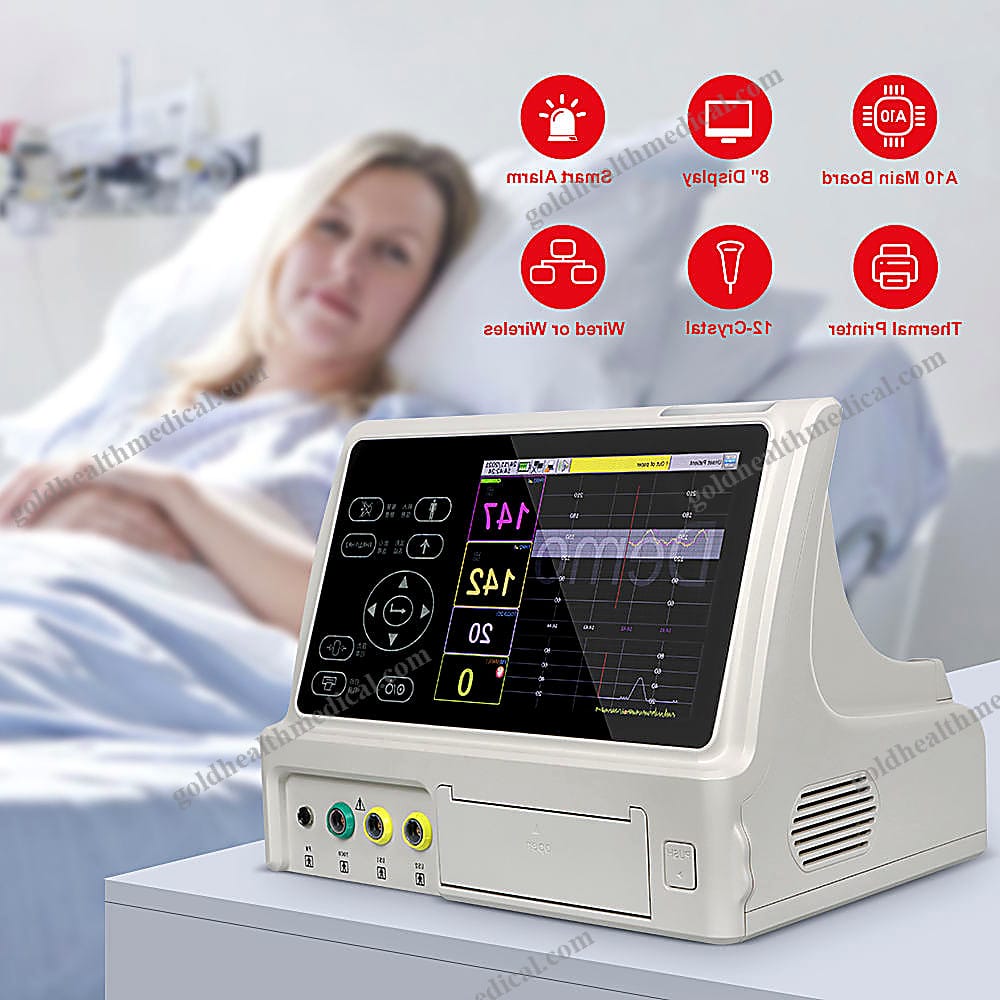

Key Features

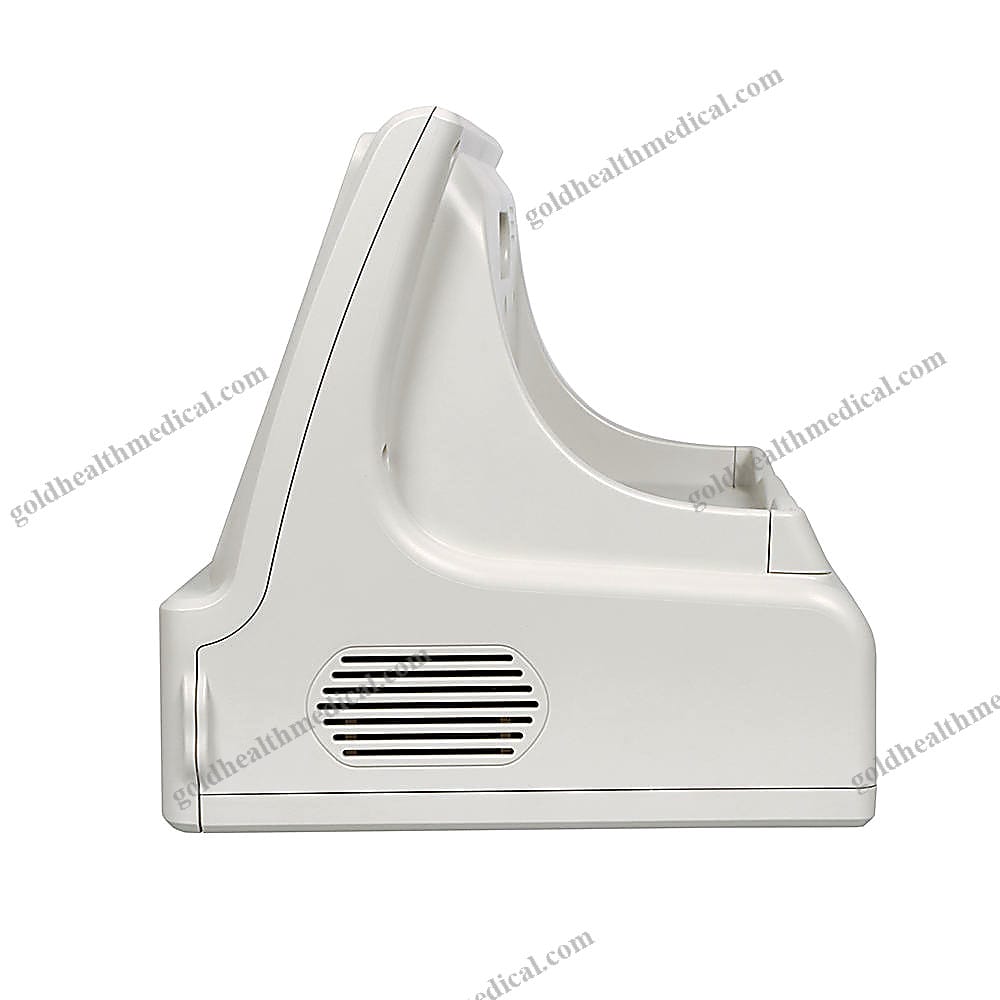

Portable Design
- Compact and ergonomic with an integrated handle for easy transport
- 8-inch high-brightness color TFT LED display for clear visibility

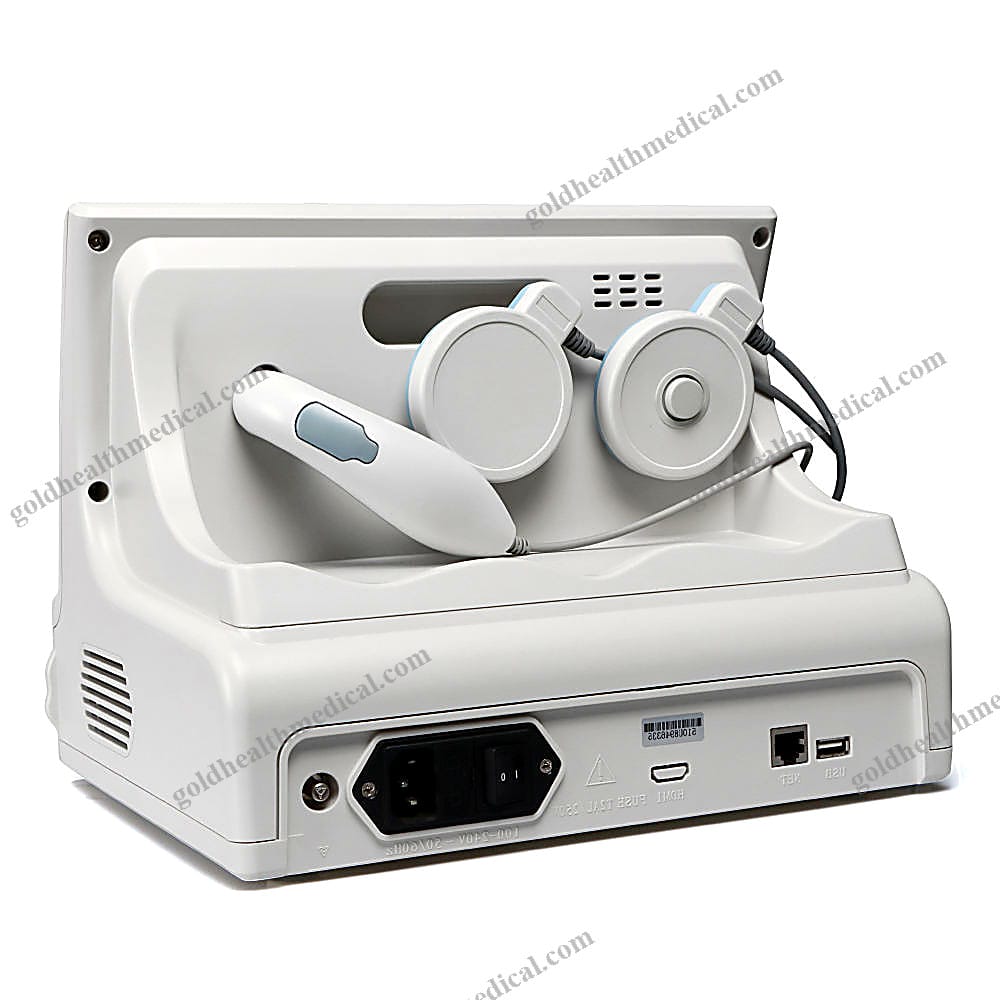

- Integrated probe holder for streamlined organization
Intelligent Operation
- Intuitive functional keys and control knob for efficient operation
- Rapid printing of stored trend data
- Optional external laser printer support
Advanced Monitoring Capabilities
- Three-level acousto-optic alarm system for abnormal FHR detection
- Real-time FHR signal strength indication
- Cross-Channel Verification (CCV) technology
- Comprehensive alarm review functionality
Precision Engineering

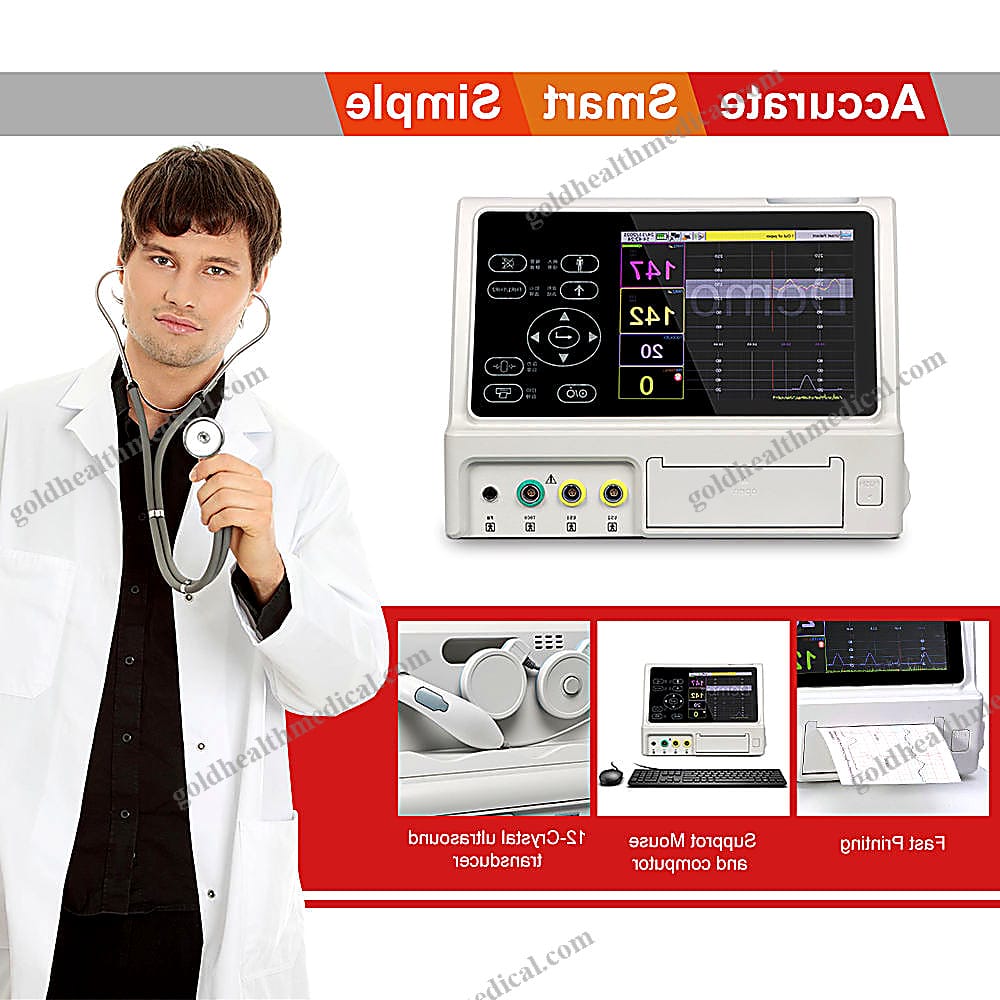

- 12-crystal ultrasound transducer for enhanced accuracy
- Visual signal strength indicator for optimal positioning
- ±1 bpm measurement accuracy
Seamless Connectivity
- Wired and wireless connection options
- Optional HL7 protocol support for integration with hospital systems
- USB ports for data export and external devices
Extensive Data Management
- Storage capacity for 25,000 medical records
- 12,000 hours of trend review capability
- Multiple CTG analysis reports: Advanced Fischer, Fischer, NST, KREBS
- PDF export functionality for EMR compatibility
Technical Specifications
Ultrasound (FHR)
- Measurement Method: Wide beam pulse doppler
- Measurement Range: 30-240 bpm (US Standard), 50-210 bpm (Europe Standard)
- Accuracy: ±1 bpm
- Intensity: <3 mW/cm²
- Frequency: 1MHz±3% (customizable options available)
- Resolution: 1 bpm
TOCO
- Measurement Method: Strain gauge sensor element
- Measurement Range: 0-100 units
- Resolution: 1 unit
- Nonlinear Deviation: ≤±8%
- Baseline Settings: 0, 5, 10, 15, 20 units
- Auto offset correction and zero adjustment
Fetal Movement Recording
- Automatic Fetal Movement (AFM): Pulsed doppler ultrasound
- Manual Fetal Movement Marker (MFM)
- Automatic fetal movement autograph
Alarm System
- Three-level alarm: Low, medium, high
- Auditory and visual indicators
- Delayed FHR alarm functionality
Display
- 8-inch color TFT LED
- Resolution: 800x600 pixels
Power
- Rechargeable lithium battery
- Minimum 500 charge cycles
- Operating time: 2 hours (optional extended battery for 4-5 hours)
Recording
- Built-in thermal printer
- Z-fold thermosensitive paper (112mm width)
- Printing speeds: 1/2/3 cm/min
- Maximum 4-track recording
Safety Compliance
- IEC60601-1 certified
- CE marked according to MDD93/42/EEC
- RoHS Directive 2011/65/EU compliant
GoldHealth Medical's fetal monitor represents a breakthrough in obstetric care, offering healthcare professionals an unparalleled combination of accuracy, reliability, and advanced features. The device's intelligent design and comprehensive monitoring capabilities make it an essential tool for modern medical facilities, ensuring optimal care for both mother and fetus.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical: Fetal/Maternal Monitor
A cutting-edge solution designed for precision and reliability in monitoring fetal and maternal health. Engineered with advanced technology, this device ensures accurate data collection and seamless operation for healthcare professionals and caregivers alike.
Key Features
- Advanced Monitoring Technology: Utilizes pulsed Doppler for automatic fetal movement (AFM) detection, ensuring precise and real-time tracking.
- High-Resolution Display: Equipped with an 8" TFT display for clear, detailed visualization of critical data.
- Dual Standard FHR Measurement:
- European Standard: 50 to 210 bpm
- US Standard: 30 to 240 bpm
- TOCO Measurement: Employs a strain gauge sensor element with a range of 0 to 100 units for accurate uterine activity monitoring.
Technical Specifications
- Power Source: Electricity
- Material: Durable, medical-grade plastic
- Instrument Classification: Class II
- Safety Standard Compliance: EN 149-2001+A1-2009
- Shelf Life: 1 year
Certifications
- CE and ISO certified for safety and quality assurance
Packaging Details
- Package Dimensions: 42 x 37 x 33 cm
- Gross Weight: 4.200 kg
- Packaging: Secure carton packing for safe transportation
After-Sale Support
- Warranty: 1 year comprehensive coverage
- Support: Online technical assistance to ensure uninterrupted performance
Applications
Ideal for hospitals, clinics, research institutions, laboratories, rehabilitation centers, and home care settings. This device is a trusted companion for monitoring fetal and maternal health with accuracy and ease.
GoldHealth Medical is committed to delivering innovative solutions that empower healthcare providers and enhance patient outcomes.
