Advanced ICU Anesthesia Machine for Surgery and Emergency Rooms
Reference: 1601368111483Anesthesia Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

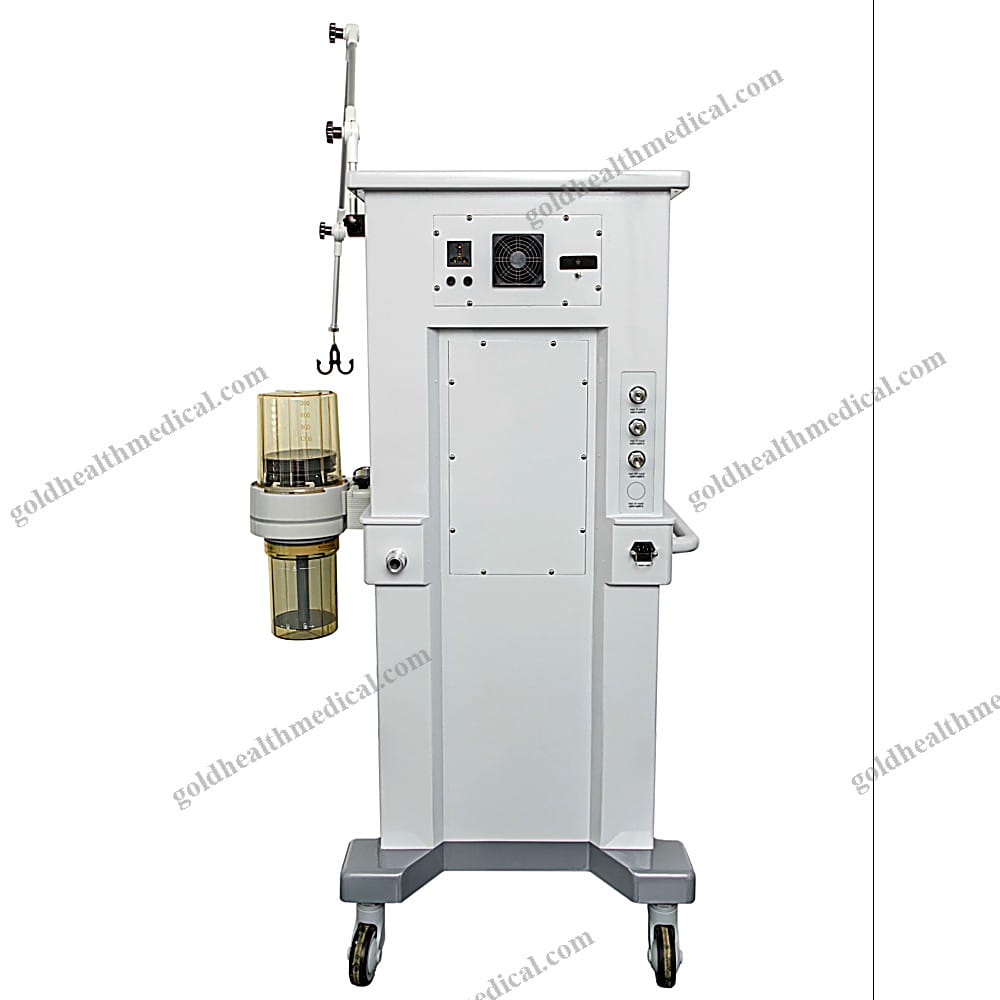

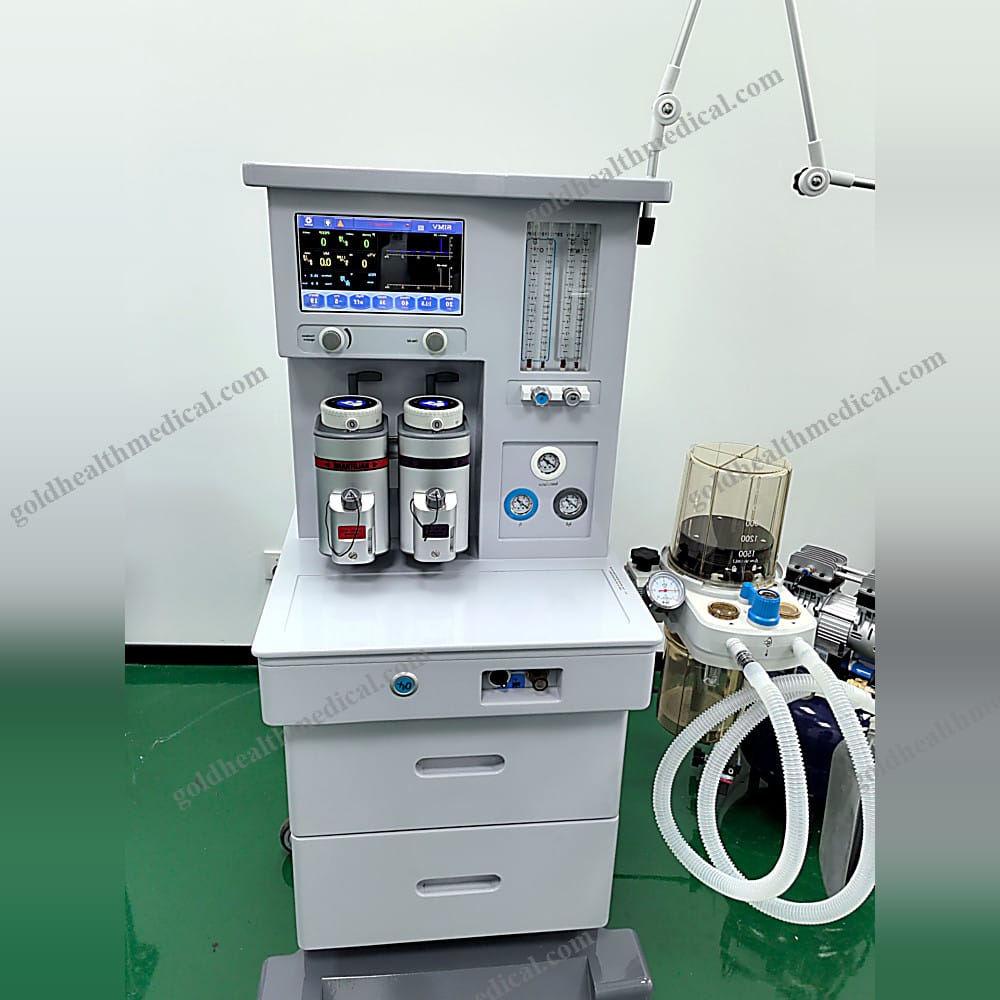

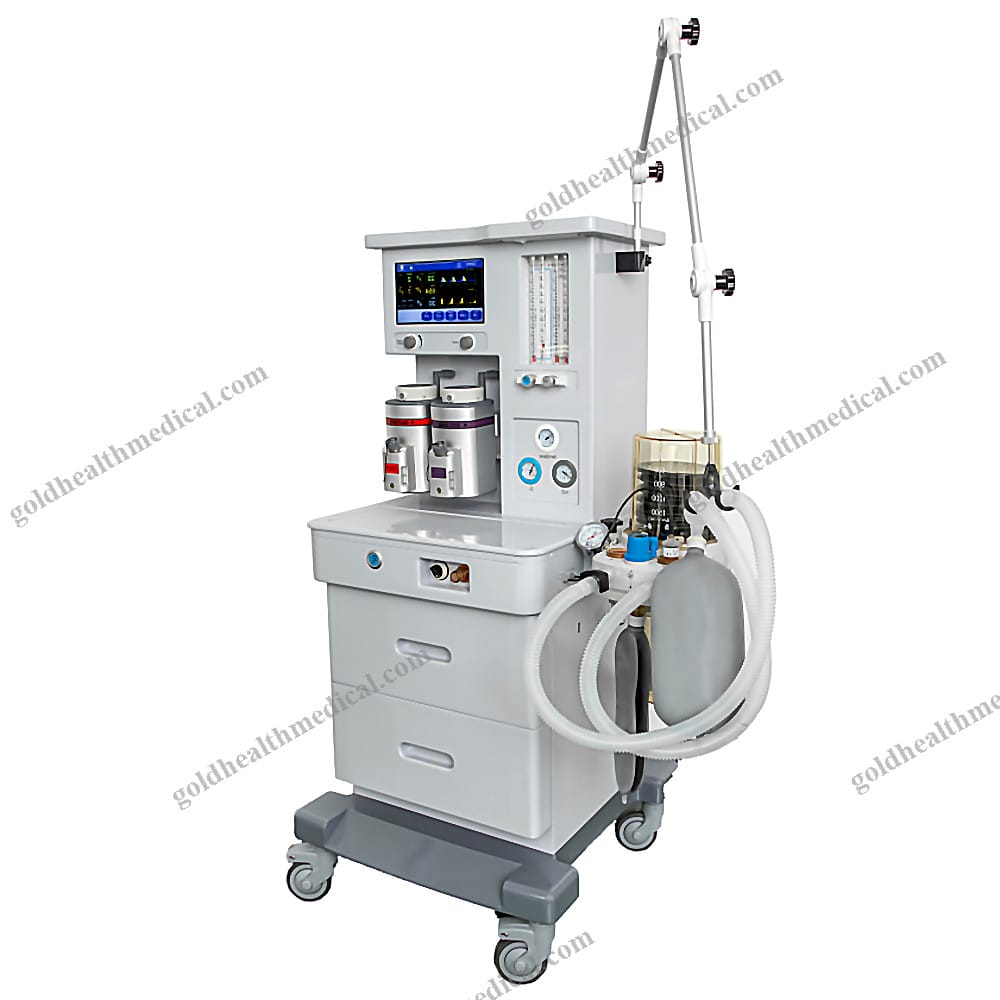

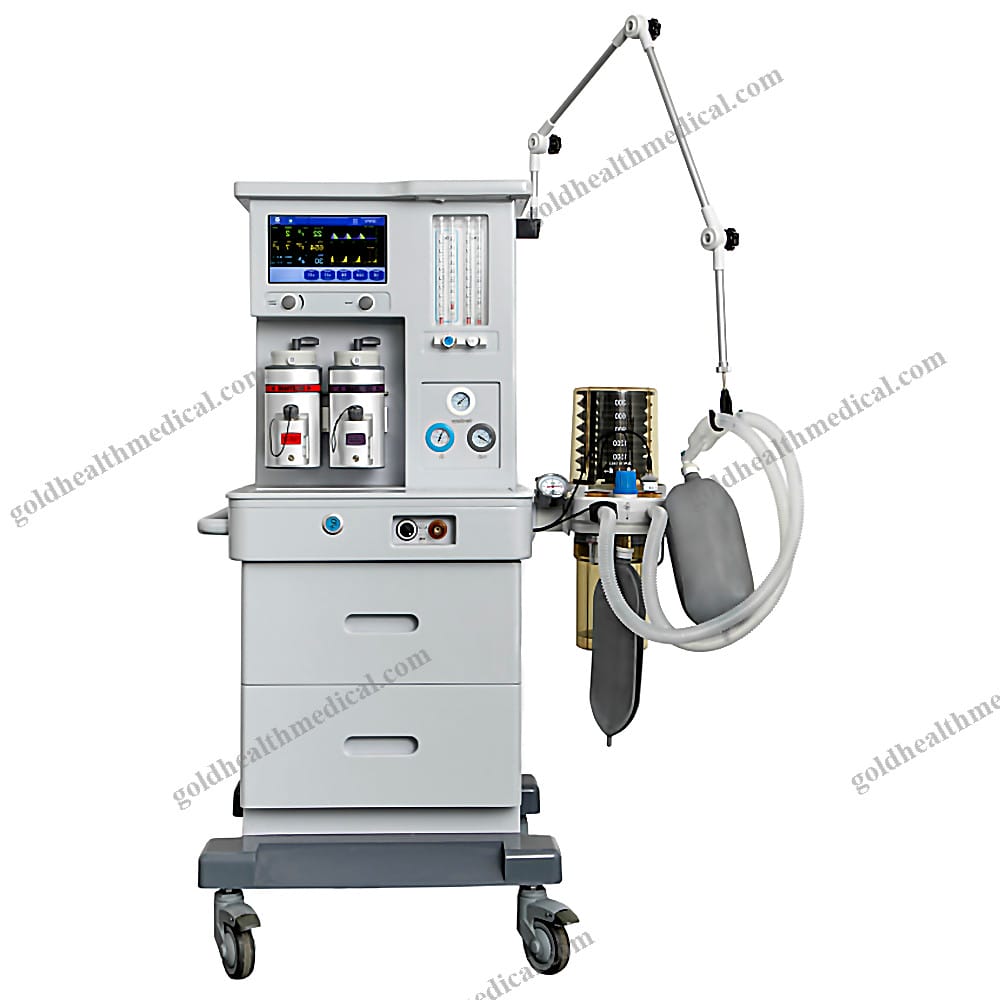

GoldHealth Medical Anesthesia Machine
Product Overview
GoldHealth Medical presents a cutting-edge anesthesia machine designed for precision, safety, and versatility. This advanced system is engineered to meet the demands of modern medical environments, offering unparalleled performance for both adult and pediatric patients. With its innovative design, comprehensive monitoring capabilities, and high-precision components, this anesthesia machine is a cornerstone of reliable respiratory care.
Key Features and Benefits
- Advanced Design & Monitoring
- Large 10.1” high-definition TFT color LCD touch screen with an intuitive interface, optimized layout, and harmonious color scheme.
- Real-time Pressure-Time and Flow-Time waveform displays on a single screen for enhanced visibility.
- Comprehensive respiratory mechanics monitoring ensures full control over patient respiratory status.
Powerful alarm functions provide critical alerts for optimal patient safety.

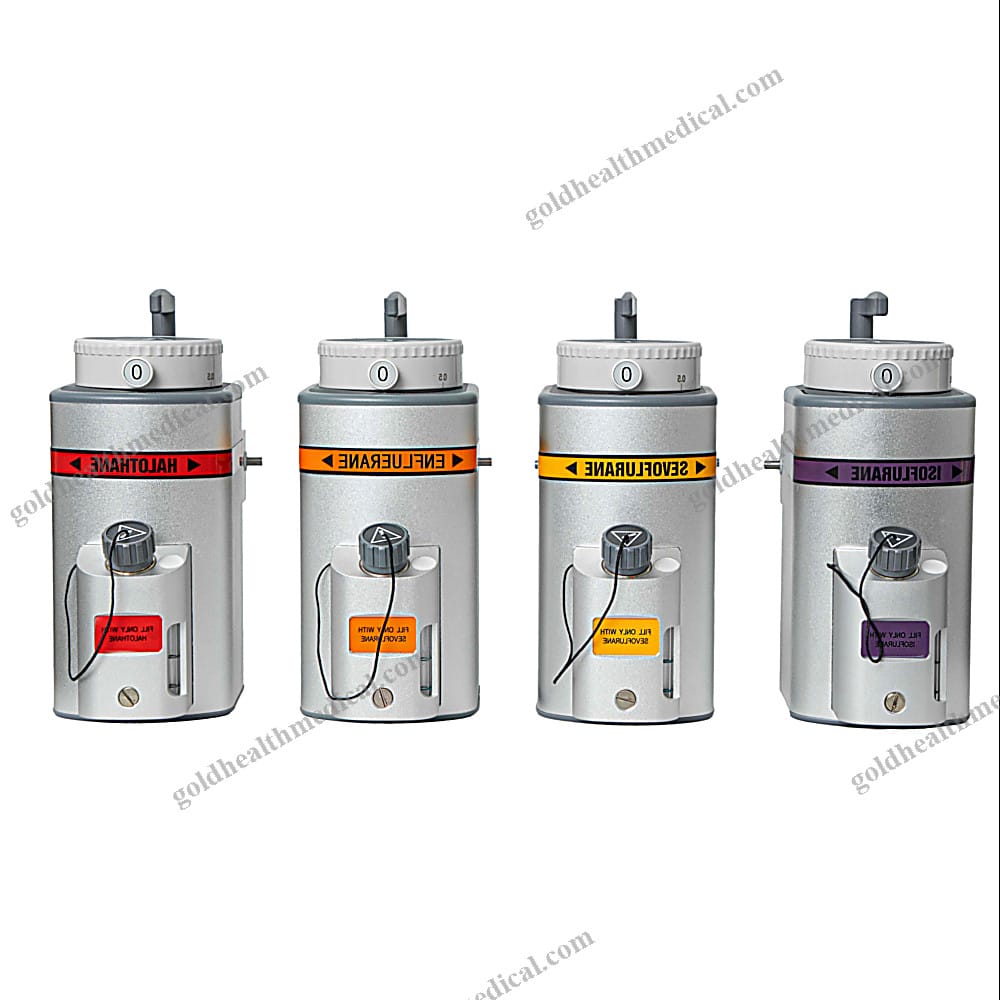

High-Precision Vaporizer
- Supports low-flow anesthesia as low as 0.2L/min and high-flow anesthesia up to 15L/min.
- Delivers accurate concentration outputs under varying conditions of pressure, flow, and temperature.
- Compatible with Selectatec Mounting and Cagemount systems.
Four vaporizer options available: Halo, Enf, Isof, and Sevof.

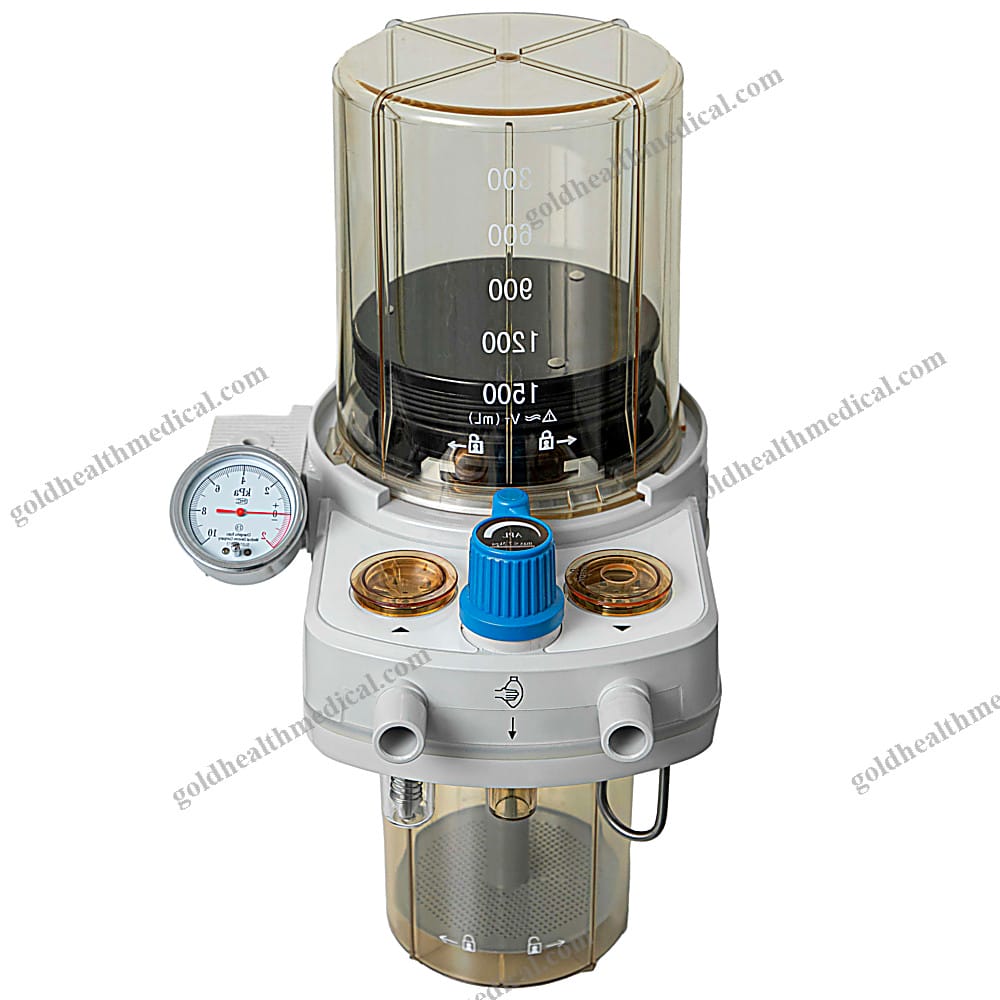

Integrated Breathing Circuit
- Compact and corrosion-resistant design with excellent sealing and safety.
- Made from specialized materials that withstand high temperatures and resist corrosion.
- No external pipelines, ensuring mechanical compliance and ease of use.
- Impeller sampling at the exhalation end prevents inaccurate tidal volume monitoring caused by water vapor condensation.
- Pediatric anesthesia operations do not require bellows replacement.
- Large CO2 canister with a single-tank structure for convenient assembly.
Technical Specifications
- Working Modes: All-close, Semi-close, Semi-open
- APL Valve: ≤12.5 kPa
- Tidal Volume Range: 0–1500 ml
- Ventilation Parameters:
- Tidal Volume: 50–1500 ml
- Rate: 2–99 bpm
- SIMV Rate: 2–20 bpm
- I:E Ratio: 2:1 to 1:8
- Inspiratory Trigger Pressure: -10 to 20 cmH₂O
- PEEP: 2–20 cmH₂O
- Pressure Range: 5–60 cmH₂O
SIGH: 1.5 times the inspiratory time / 100 breaths
O₂-N₂O Linkage and N₂O Stopper
- Ensures oxygen concentration remains above 25% when using nitrous oxide.
Automatically cuts off nitrous oxide flow if oxygen pressure drops below 0.16±0.02 kPa.
Gas Source Requirements:
- Oxygen (O₂): 0.28–0.6 MPa
Nitrous Oxide (N₂O): 0.28–0.6 MPa
Flow Meter Ranges:
- Oxygen (O₂): 0.05–1.0 L/min, 1.1–10 L/min
Nitrous Oxide (N₂O): 0.05–1.0 L/min, 1.1–10 L/min
Main Body Construction:
- High-strength engineering plastic frame, lightweight, corrosion-resistant, and aesthetically pleasing.
Unique Selling Points
- Precision and Reliability: Engineered for consistent performance in diverse clinical settings.
- Enhanced Safety Features: Advanced monitoring and automatic safeguards ensure patient well-being.
- Versatility: Suitable for a wide range of applications, from hospitals to specialized clinics and research labs.
- User-Centric Design: Intuitive controls and ergonomic features reduce operator fatigue and improve workflow efficiency.
GoldHealth Medical’s anesthesia machine is more than just equipment—it’s a trusted partner in delivering exceptional patient care.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the Advanced ICU Anesthesia Machine
A cutting-edge solution designed for precision, reliability, and versatility in modern healthcare environments.
Key Features
- Warranty: Comprehensive 2-year coverage for peace of mind.
- After-Sale Service: Dedicated online technical support to ensure uninterrupted performance.
- Instrument Classification: Class II medical device, engineered to meet the highest safety standards.
- Place of Origin: Proudly crafted in Guangdong, China, with meticulous attention to detail.
Technical Specifications
- Power Source: Electric, ensuring consistent and reliable operation.
- Shelf Life: 2 years, maintaining optimal functionality over time.
- Quality Certification: CE-certified, guaranteeing compliance with global medical standards.
Product Highlights
- Vaporizer Options: Equipped with advanced Halo Enfl, Iso, and Sevo vaporizers for tailored anesthetic delivery.
- Ventilation Modes: Offers multiple modes including IPPV, SIPPV, SIMV, PEEP, SIGH, and MANUAL to suit diverse clinical needs.
- Applications: Specifically designed for use in surgical operation rooms, ensuring precision during critical procedures.
Gas Source Parameters
- Oxygen (O2): Operates within a pressure range of 0.28~0.6MPa.
- Nitrous Oxide (N2O): Operates within a pressure range of 0.28~0.6MPa.
Flow Meter Details
- Oxygen (O2): Adjustable flow rates of 0.05~1.0L/min and 1.1~10L/min.
- Nitrous Oxide (N2O): Adjustable flow rates of 0.05~1.0L/min and 1.1~10L/min.
Display and Interface
- 10.1" Color LCD Touch Screen: Intuitive and user-friendly interface for seamless operation and real-time monitoring.
Scope of Application
- Suitable for both adult and child patients, providing flexibility across various medical scenarios.
Advanced Functionalities
- Flow Rate of Rapid Oxygen Supply: Delivers an impressive 25~75L/min for emergency situations.
- Ventilation Functions: Includes PEEP, SIGH, and IRV to enhance patient outcomes during ventilation therapy.
GoldHealth Medical’s Advanced ICU Anesthesia Machine is engineered to redefine precision and reliability in anesthesia delivery, empowering healthcare professionals with the tools they need to excel.
