Advanced Audiometer AD16A16B for Adult Audi
Reference: 1600833855091Clinical Analytical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

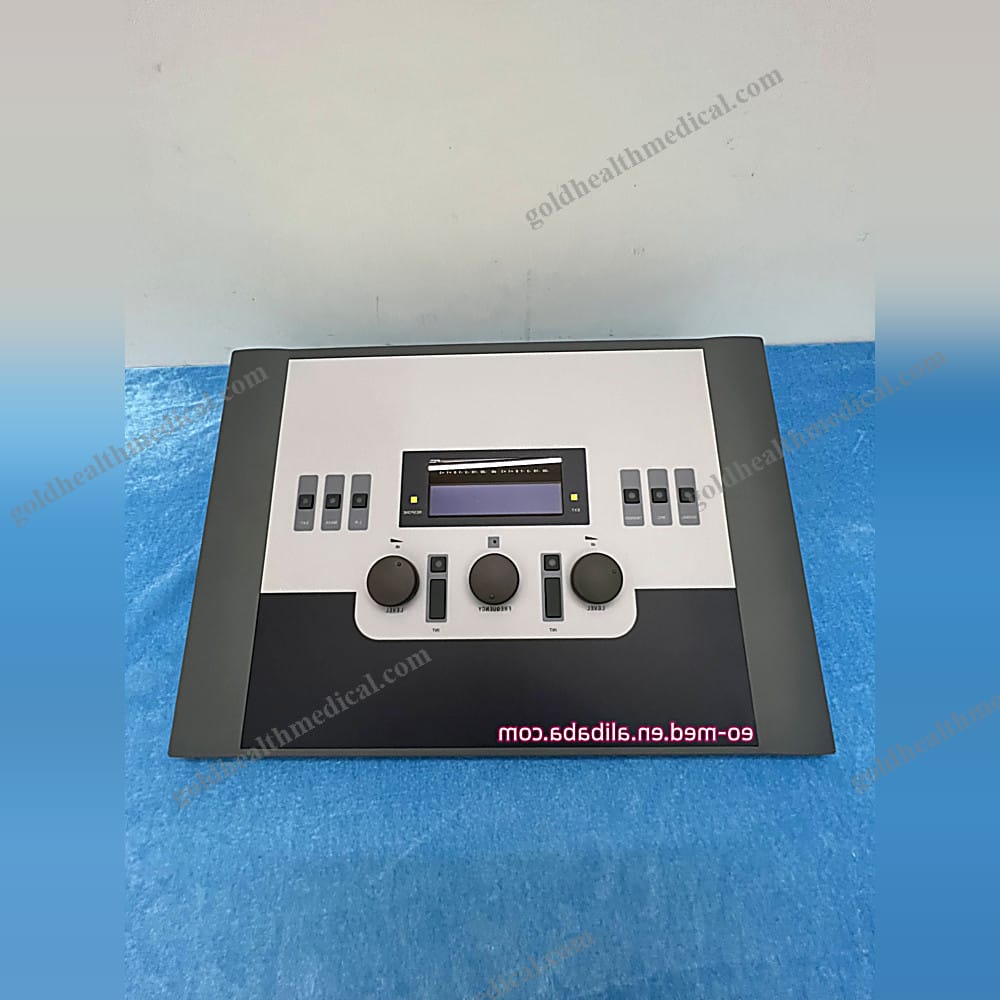

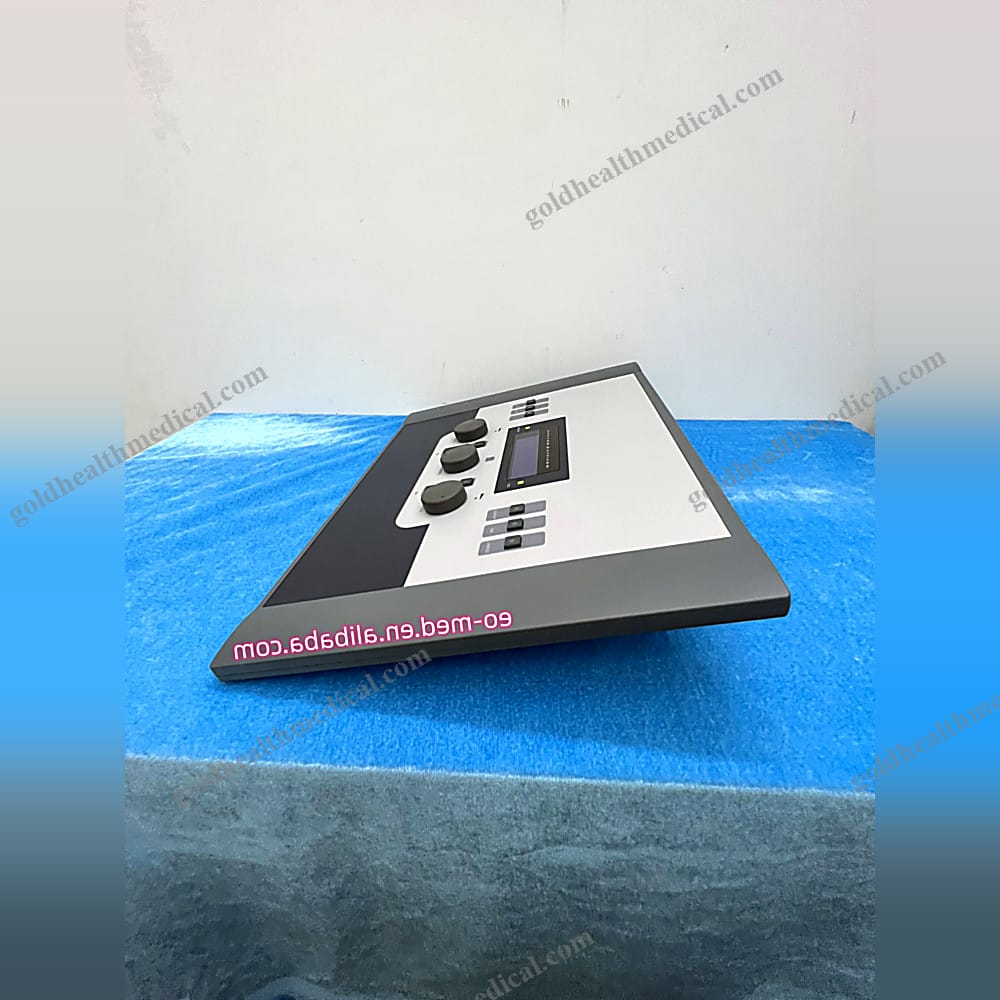

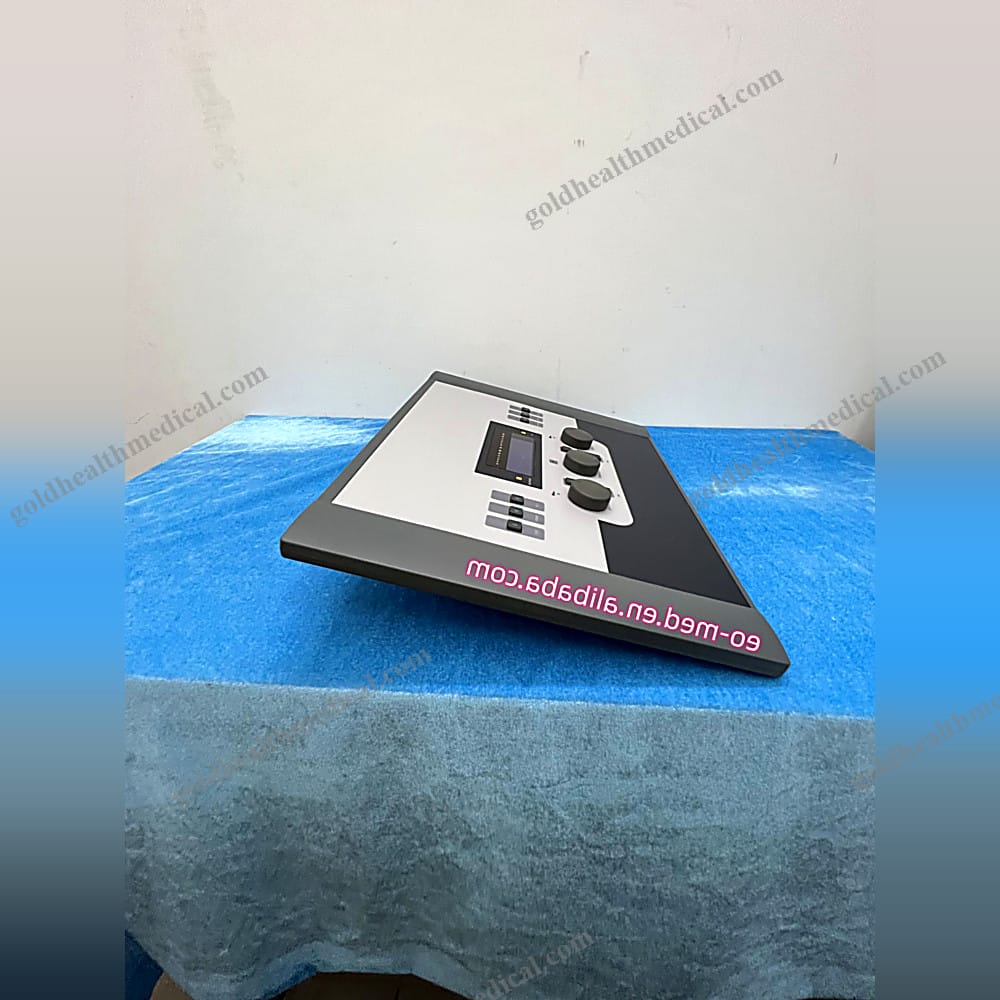

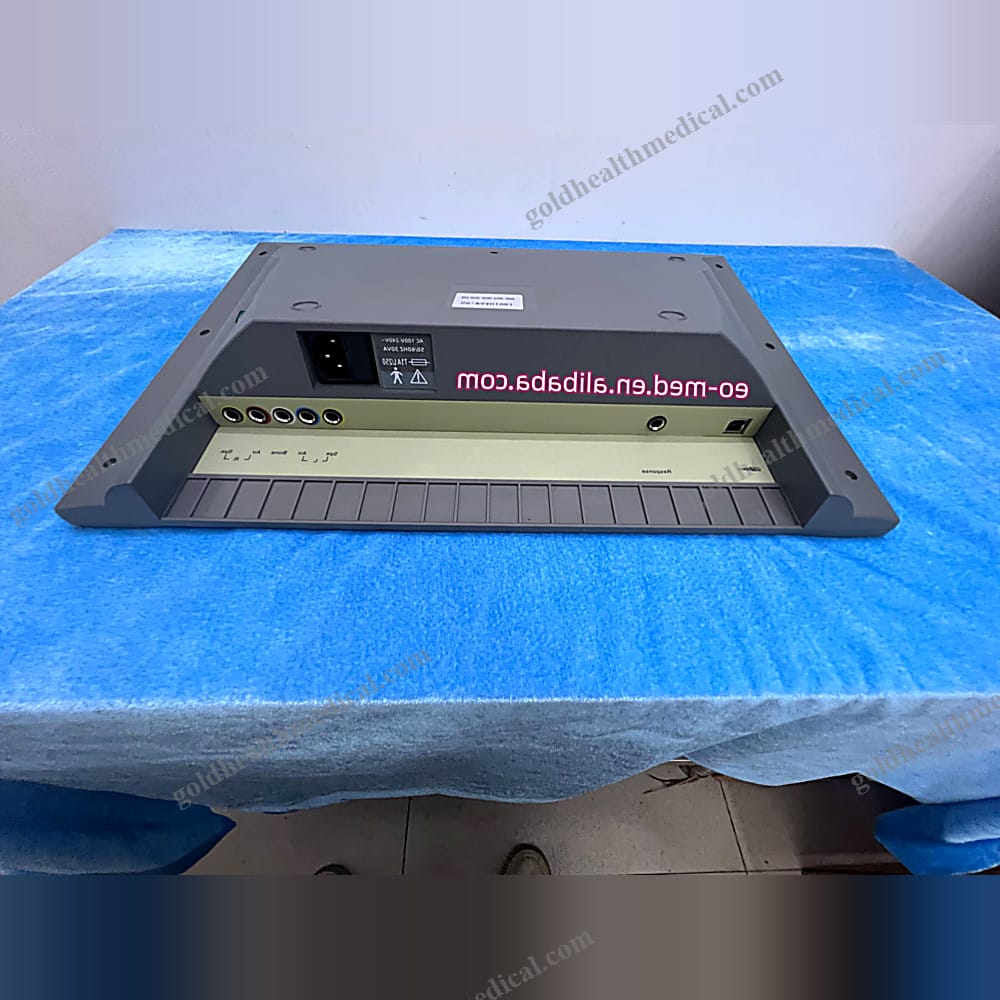

Advanced Audiometer by GoldHealth Medical
Product Overview
GoldHealth Medical presents an advanced audiometer, meticulously designed for hearing screening in schools, medical centers, hospitals, rehabilitation centers, and enterprises. This device combines stylish aesthetics with portability and convenience, making it an essential tool for professionals.
Key Features
- Versatile Testing Functions: Includes air conduction (AC), bone conduction (BC), and free sound field (SPK) testing.
- Built-in Microphone: Facilitates seamless communication with the tester.
- Data Connectivity: Equipped with a standard USB 2.0 interface to save audiometry data and generate professional noise diagnosis reports.
- Customizable Reports: Set your custom report logo and name, with options to generate A4 or B5 format reports.
Technical Specifications
- Frequency and Maximum Output Intensity:
- 125 Hz: AC 60 dB HL
- 250 Hz: AC 100 dB HL, BC 45 dB HL
- 500 Hz: AC 120 dB HL, BC 60 dB HL
- 750 Hz: AC 120 dB HL, BC 60 dB HL
- 1000 Hz: AC 120 dB HL, BC 70 dB HL
- 1500 Hz: AC 120 dB HL, BC 70 dB HL
- 2000 Hz: AC 120 dB HL, BC 70 dB HL
- 3000 Hz: AC 120 dB HL, BC 70 dB HL
- 4000 Hz: AC 120 dB HL, BC 60 dB HL
- 6000 Hz: AC 110 dB HL
8000 Hz: AC 100 dB HL
Channels: Two independent output channels.
- Air Conduction:
- Frequency: 125 Hz to 8000 Hz
- Hearing Level: -10 to 110 dB
- Bone Conduction:
- Frequency: 250 Hz to 6000 Hz
- Hearing Level: -10 to 60 dB
- Frequency Allowable Error: ±2%
- Test Signals: Pure tone, pulse, warble tone, narrow band noise.
- Display: LCD with precise numerical display.
- Distortion Factor: Air conduction < 2.5%, Bone conduction < 5.5%.
- Masking: Air and bone conduction contralateral masking.
- Accuracy: Continuous attenuation/Step 5 dB, error 1 dB.
- Protection Function: Protects tester's hearing.
- Computer Interface: USB 2.0 for data transmission and report printing.
- Online Diagnosis: Self-analysis and generation of occupational noise-induced hearing loss diagnosis reports.
- Operating Environment:
- Temperature: 10°C to 40°C
- Relative Humidity: 30% to 90%
- Pressure: 86 kPa to 106 kPa
- Warm-up Time: 5 to 10 minutes.
- Mean Time Between Failures: ≥1000 hours.
- Dimensions: 43 cm x 30 cm x 11 cm.
- Weight: Host weight 2.44 kg, gross weight 6 kg.
- Power Adapter: Input 100V-240V ~ 50/60Hz 1.5A; Output DC 12V/4A.
- Output: TDH 39 Air Conduction Earphone, B71 Bone Conduction Earphone.
- Safety Standards: Compliant with GB 9706.1-2007 and GB/T 14710-2009.
- Audiometer Reference Standard: GB/T 7341.1-2010, JJG 388-2012.

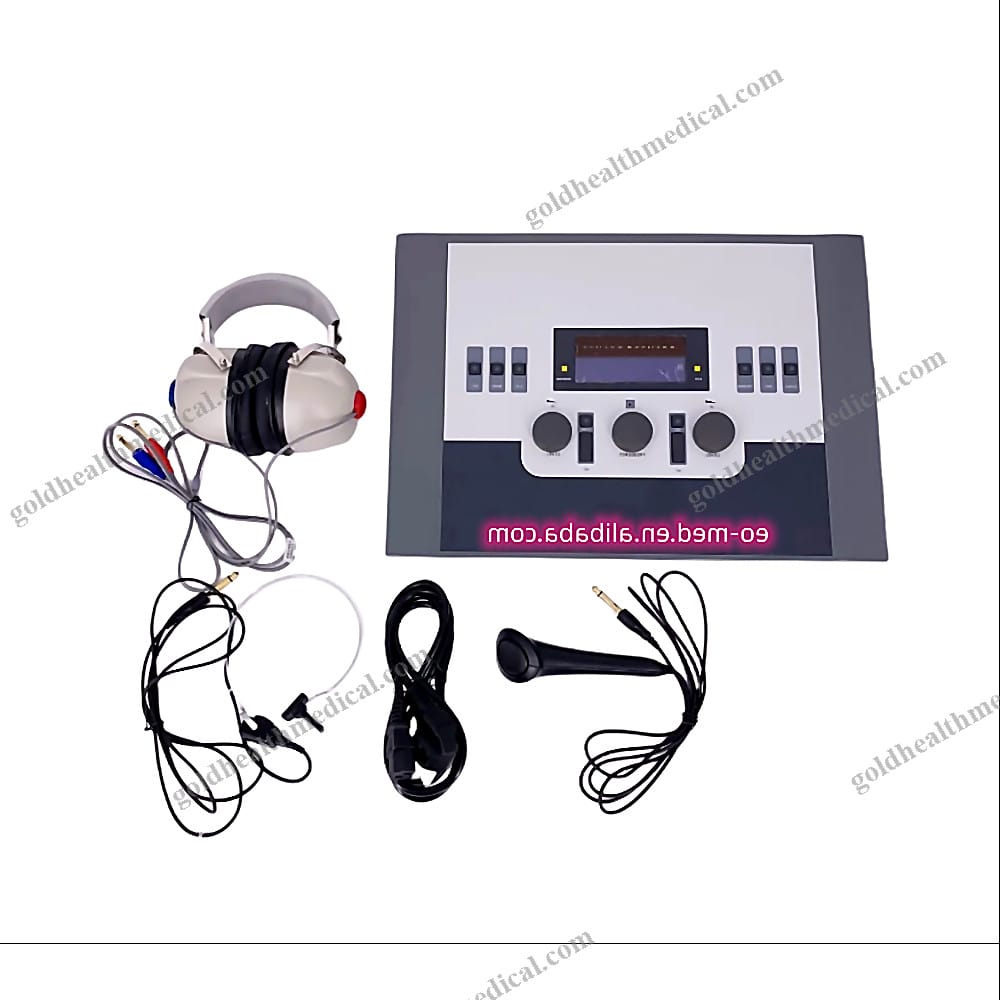

Standard Accessories
- TDH39 Air Conduction Headset
- B71 Bone Conduction Headset
- Transponder
- Power Cable
- USB Data Cable
- PC Software
- Audiogram
Additional Details
GoldHealth Medical is renowned for its commitment to advanced medical equipment. Our state-of-the-art facilities and scientific management system ensure top-quality products. We specialize in a range of medical devices, including ultrasound machines, X-ray machines, and more. Our factory spans 5
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Name: Advanced Audiometer
Product Overview
The Advanced Audiometer by GoldHealth Medical is a state-of-the-art diagnostic tool designed for precision and reliability in hearing assessments. Engineered with cutting-edge technology, this audiometer offers unparalleled accuracy and ease of use, making it an indispensable asset for healthcare professionals, research institutions, and rehabilitation centers.
Key Features
- Two Independent Output Channels: Enables simultaneous testing and ensures flexibility in diagnostic procedures.
- Fast Warm-Up Time: Ready for use in just 5 to 10 minutes, maximizing efficiency in clinical settings.
- Universal Power Compatibility: Input range of 100V-240V ~ 50/60Hz 1.5A, ensuring seamless operation across global power systems.
- Optimized Output: Delivers stable performance with DC 12V/4A output.
- High-Resolution LCD Display: Provides clear, detailed visuals for enhanced usability and accurate readings.
Technical Specifications
- Operating Temperature: 10°C to 40°C
- Relative Humidity: 30% to 90%
- Pressure Range: 86kPa to 106kPa
- Host Dimensions: 43cm x 30cm x 11cm
Instrument Classification
Class II medical device, ensuring compliance with stringent safety and performance standards.
Packaging and Delivery

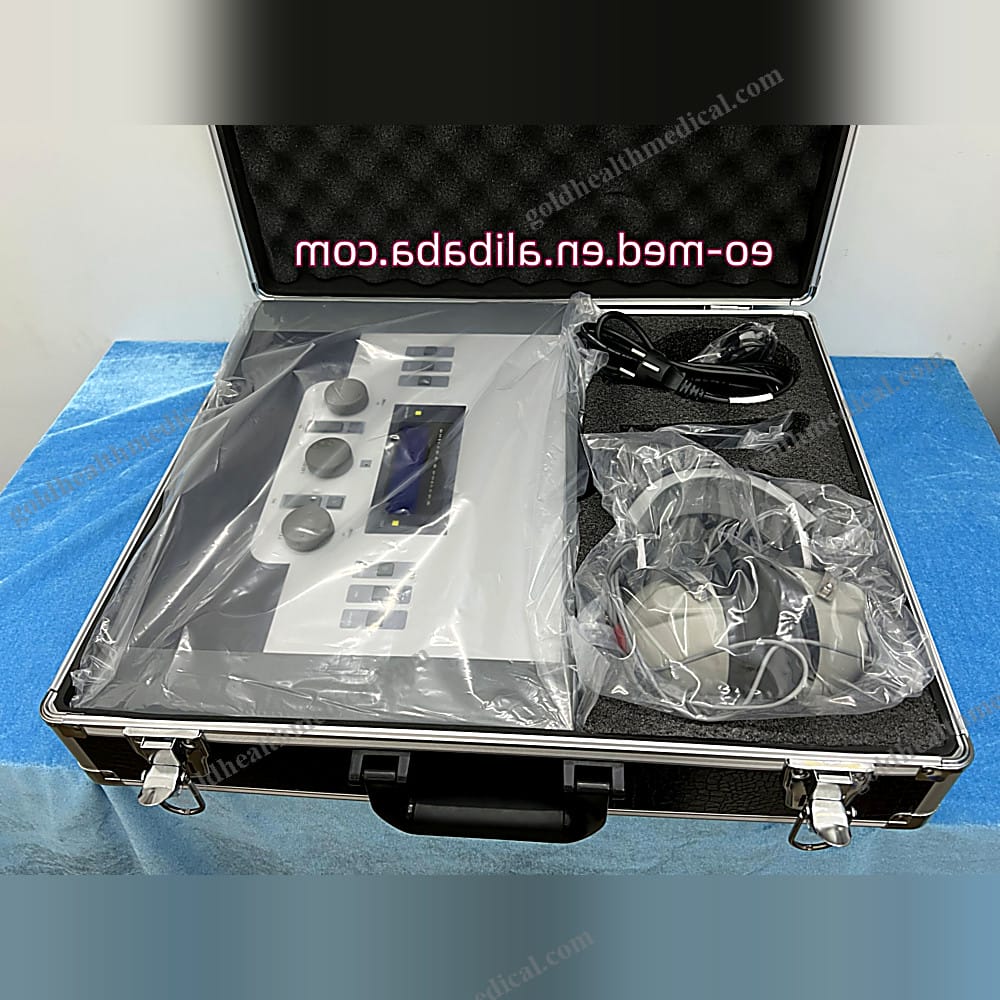

- Packaging: Secure foam carton designed to protect the audiometer during transit.
- Shipping Options: Available via DHL, UPS, TNT, FedEx, or air freight.
- Ports: Guangzhou Port / Shenzhen Port
Warranty and Support
- Warranty: Comprehensive 1-year warranty for peace of mind.
- After-Sale Service: Dedicated online technical support to ensure uninterrupted performance and address any queries.
Supply Capability
GoldHealth Medical boasts a robust production capacity of up to 10,000 units annually, ensuring timely delivery and consistent availability for large-scale orders.
Why Choose GoldHealth Medical?
Our Advanced Audiometer combines precision engineering with user-centric design, delivering exceptional performance in hearing diagnostics. Backed by a commitment to quality and innovation, GoldHealth Medical is your trusted partner in advancing healthcare solutions.
