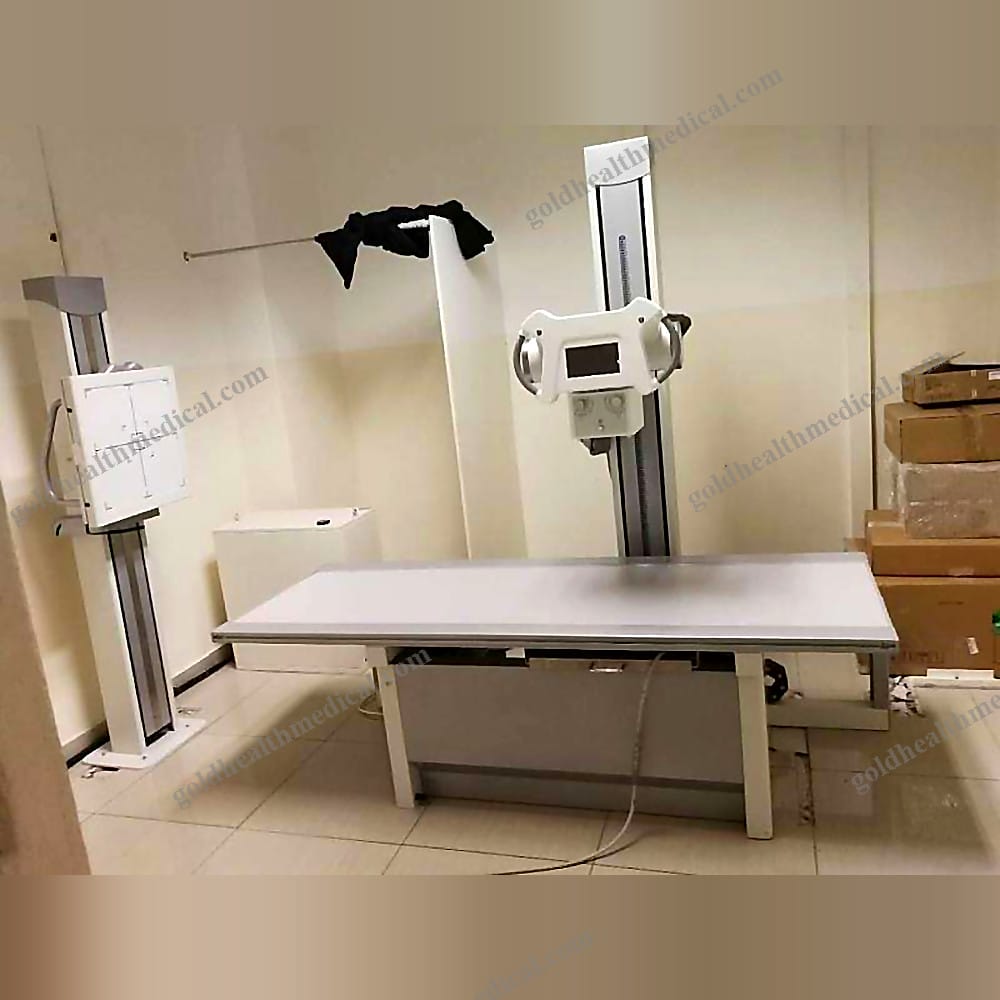

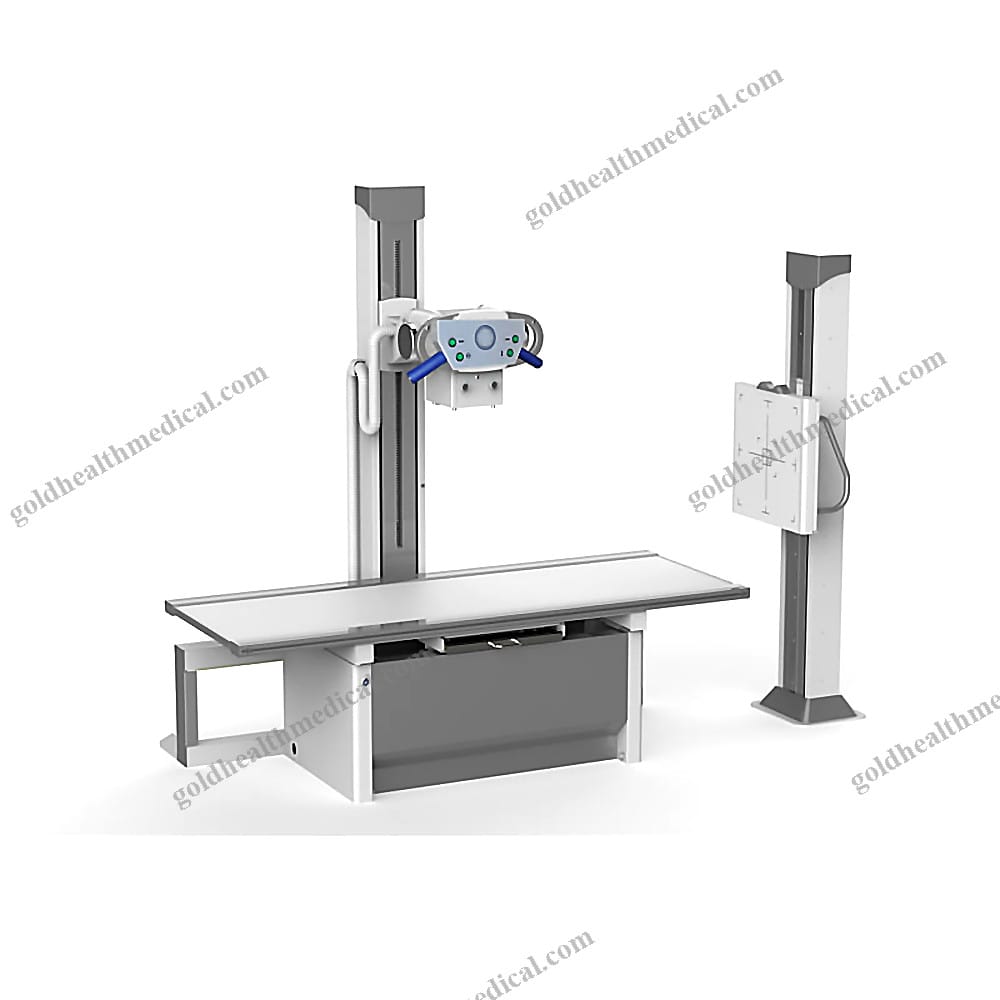

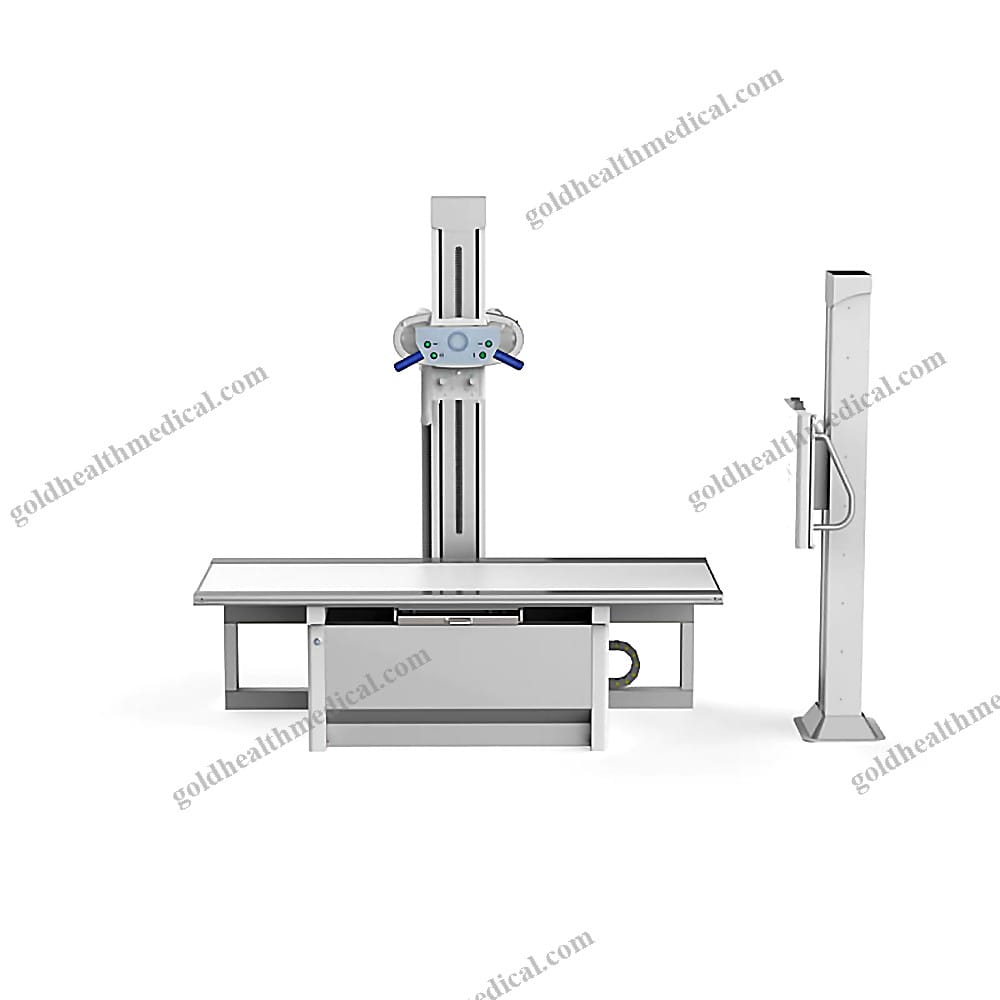

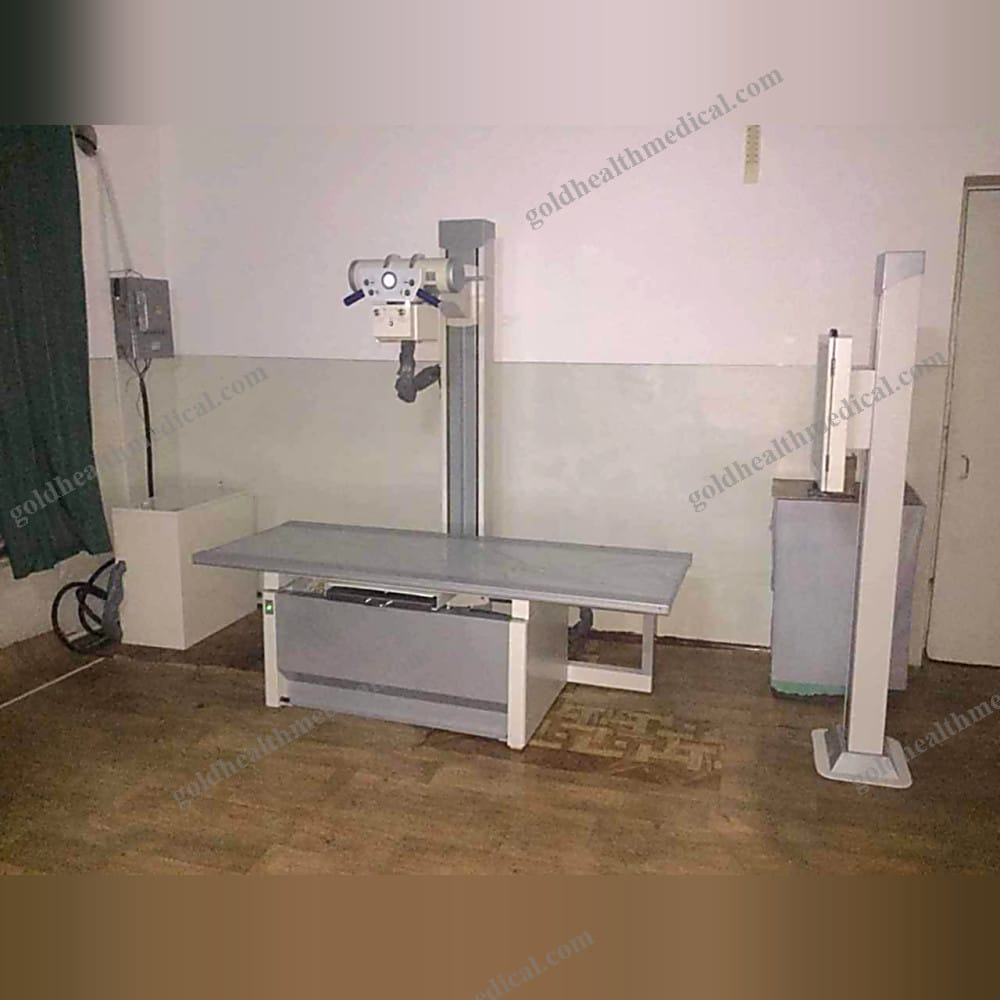

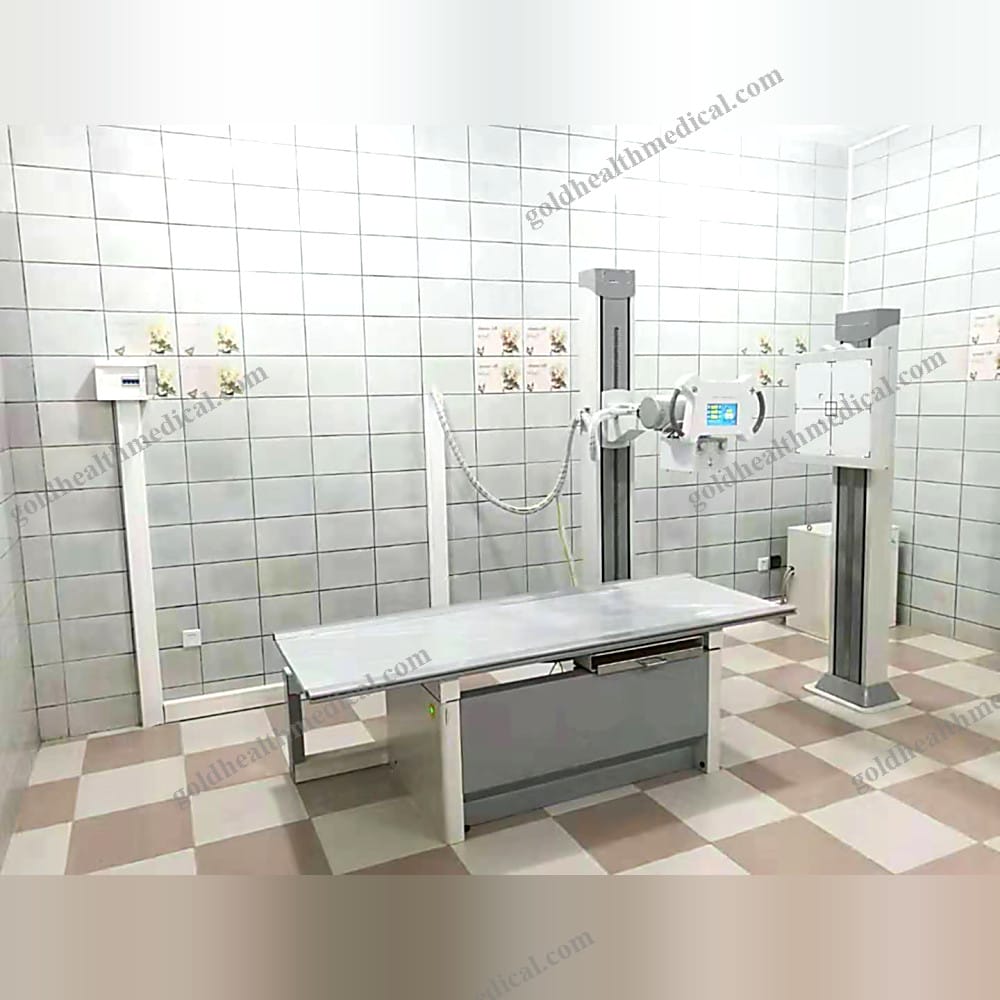

Advanced Analog Xray Machine Accessories for Medical Radiology Equipment
Reference: 1601042869059Medical X-ray Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical presents a cutting-edge X-ray solution designed to redefine precision and reliability in medical imaging.
Product Highlights
- Advanced X-ray Generator with Integrated Console: Engineered for seamless operation and exceptional performance.
- High-Power Output: Delivers up to 32kW for superior imaging clarity.
- Precision Control: Voltage range of 220V±22V ensures consistent performance across diverse environments.
- Versatile Imaging Parameters:
- kV Range: 40~125kV
- mA Range: 32~400mA
- mAs Range: 0.32~400mAs
- Exposure Time: 0.002s~6.3s
- Superior X-ray Tube Design:
- Anode Heat Storage Capacity: 240KHU for extended operational life.
- Dual Focus Options: Small Focus (0.6) and Large Focus (1.2) for detailed and broad imaging.
- Anode Speed: 3000r/min for enhanced efficiency.
- Precision Collimator:
- Inherent Filtration: 1.0mm AI/75kV for optimal beam quality.
- LED Light Source for accurate alignment.
Radiographic Table Specifications
- Table Dimensions: 2100x800x650mm for patient comfort and accessibility.
- Bucky Size: 18x18 inches for versatile imaging applications.
- Table Longitudinal Movement: ≥900mm for precise positioning.
- Cassette Movement Distance: ≥500mm for flexible imaging options.
Vertical Chest Stand
- Vertical Movement Range: ≥1200mm for comprehensive imaging coverage.
- Bucky Size: 18x18 inches for consistent image quality.
- Double Grid Specifications:
- Size: 18x18 inches
- Ratio: 1:1
- F.D. Density: 100cm
- Density: 40 L/cm for enhanced image sharpness.
Why Choose GoldHealth Medical?
- Unmatched Precision: Designed for accuracy and reliability in every scan.
- Durability and Efficiency: Built to withstand demanding medical environments while maintaining peak performance.
- User-Centric Design: Intuitive controls and ergonomic features ensure ease of use for medical professionals.
- Versatility Across Applications: Ideal for hospitals, clinics, research labs, and rehabilitation centers.
Additional Features
- Compact and Portable Design: Perfect for both stationary and mobile imaging needs.
- Customizable Options: Tailor the system to meet specific operational requirements.
- Comprehensive Support: Backed by a dedicated team of experts offering lifetime technical assistance.
GoldHealth Medical is committed to delivering innovative solutions that empower healthcare providers to achieve exceptional patient outcomes. Explore the future of medical imaging with our state-of-the-art X-ray system.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the Advanced Medical Radiography Solution
- Product Name: Advanced Ray Machine
- Application: Specifically designed for the Radiography Department, delivering precision and reliability in medical imaging.
- Function: High-performance Medical Radiography to support accurate diagnostics and patient care.
Key Features and Technical Specifications
- Output Power: 32KW for consistent and robust performance.
- Power Voltage: Operates on 220V±22V, ensuring compatibility with standard medical facility setups.
- kV Range: Adjustable from 40kV to 125kV, offering flexibility for diverse diagnostic needs.
- mA Range: 32mA to 400mA, enabling precise control over imaging parameters.
- mAs Range: 0.32mAs to 400mAs for exceptional image clarity and detail.
- Exposure Time: Ranges from 0.002 seconds to 6.3 seconds, allowing for both rapid and extended imaging sessions.
Quality and Compliance
- Instrument Classification: Class II medical device, ensuring safety and reliability.
- Certifications: CE and ISO approved, meeting international standards for medical equipment.
Additional Information
- Shelf Life: 1 year, ensuring long-term usability and performance.
- Warranty: Backed by a comprehensive 1-year warranty for peace of mind.
- After-Sale Service: Access to online technical support, ensuring uninterrupted operation and assistance whenever needed.
Unique Selling Points
- Engineered for precision and adaptability, this radiography machine is ideal for hospitals, clinics, research labs, and rehabilitation centers.
- Combines advanced technology with user-friendly manual operation, making it accessible for professionals across various healthcare settings.
- Designed to deliver consistent, high-quality imaging results, enhancing diagnostic accuracy and patient outcomes.
GoldHealth Medical is committed to empowering healthcare providers with cutting-edge tools that redefine medical imaging excellence.
