Advanced 3Channel 12Lead ECG Machine
Reference: 60763067230Household Medical Devices
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

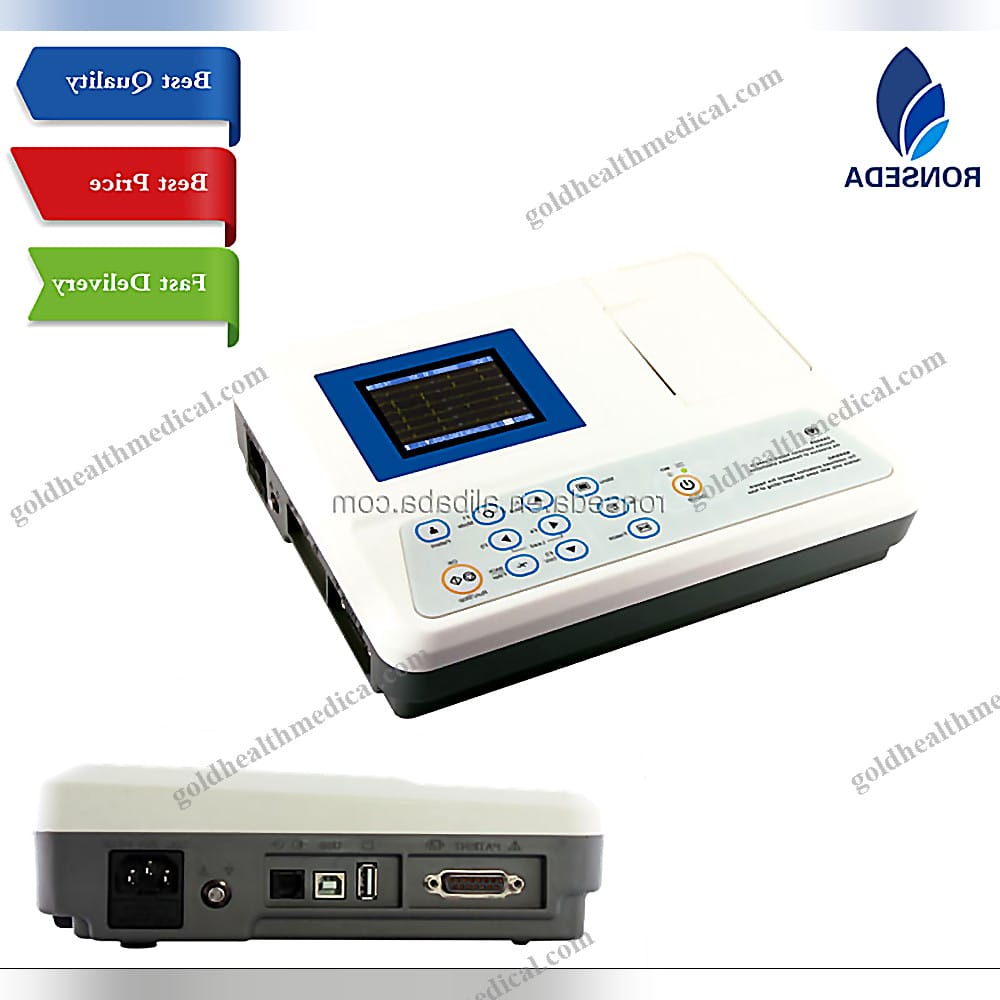

GoldHealth Medical ECG Machine – Precision Redefined
Product Overview
GoldHealth Medical presents a state-of-the-art 3-channel, 12-lead ECG machine designed for unparalleled accuracy and ease of use. Engineered with cutting-edge technology, this professional-grade device is tailored for diverse medical environments, from hospitals and clinics to home healthcare settings.
Key Features
- Compact and Intuitive Design: Lightweight and portable, ensuring effortless operation in any setting.
- Advanced Pulse Detection: Delivers precise pulse pace identification for reliable diagnostics.
- Superior Signal Processing: Equipped with high-accuracy digital filters and automatic baseline adjustment for crystal-clear ECG waveforms.
- Versatile Operating Modes: Supports Manual, Automatic, Arrhythmia Analysis, and Storage modes to meet various clinical needs.
- High-Resolution Display: A 3.5-inch color LCD with 320x240 resolution provides real-time visualization of ECG data.
- Ample Storage Capacity: Stores up to 250 patient cases, with optional SD card expansion for extended capacity.
- Comprehensive Patient Records: Captures detailed patient information for enhanced clinical documentation.
- Waveform Freeze Function: Allows users to pause and analyze ECG waveforms with precision.
- Universal Power Compatibility: Adapts to 110-230V, 50/60Hz power supply with a built-in rechargeable Ni-MH battery offering 3-4 hours of continuous operation.
- Seamless Connectivity: Features USB and RS232 ports for data transfer, laser printing, and integration with optional PC-based ECG software.
Technical Specifications
- Leads: Standard 12-lead configuration.
- Patient Current Leakage: <10μA for enhanced safety.
- Lead Acquisition: 12-bit resolution at 1000Hz for synchronous 12-lead acquisition.
- Calibrating Voltage: 1mV ±2% for consistent accuracy.
- Operating Modes: Manual, Auto, and R-R Analysis.
- Voltage Tolerance: ≥±500mV.
- Time Constant: ≥3.2 seconds.
- Frequency Response: 0.05Hz to 160Hz (-3dB).
- Input Dynamic Range: ±10Vpp.
- Sensitivity Threshold: ≤20μV.
- Sensitivity Settings: Auto, 2.5, 5, 10, 20, 40mm/mV (±3%).
- Inter-Channel Interference: ≤0.5mm for minimal noise.
- Paper Speeds: 6.25, 12.5, 25, 50mm/s (±3%).
- Filter Options:
- AC Filter: 50Hz / 60Hz.
- EMG Filter: 25Hz / 45Hz.
- Anti-Drift Filter: 0.15Hz (Adaptive).
- Common Mode Rejection Ratio (CMRR): ≥100dB (with AC filter).
- Input Impedance: ≥50MΩ.
- Input Circuit Current: ≤0.05μA.
- Noise Level: <15μVp-p for superior signal clarity.
- Input Circuit: Floating design with defibrillator protection.
- Recording Modes: 1-channel, 3-channel, and 3-channel+ formats.
- Default Settings:
- Manual Mode: 3-channel format.
- Auto Mode: 3-channel+ format.
- Display: 3.5-inch color LCD.
- Connectivity: Optional USB/RS232 ports.

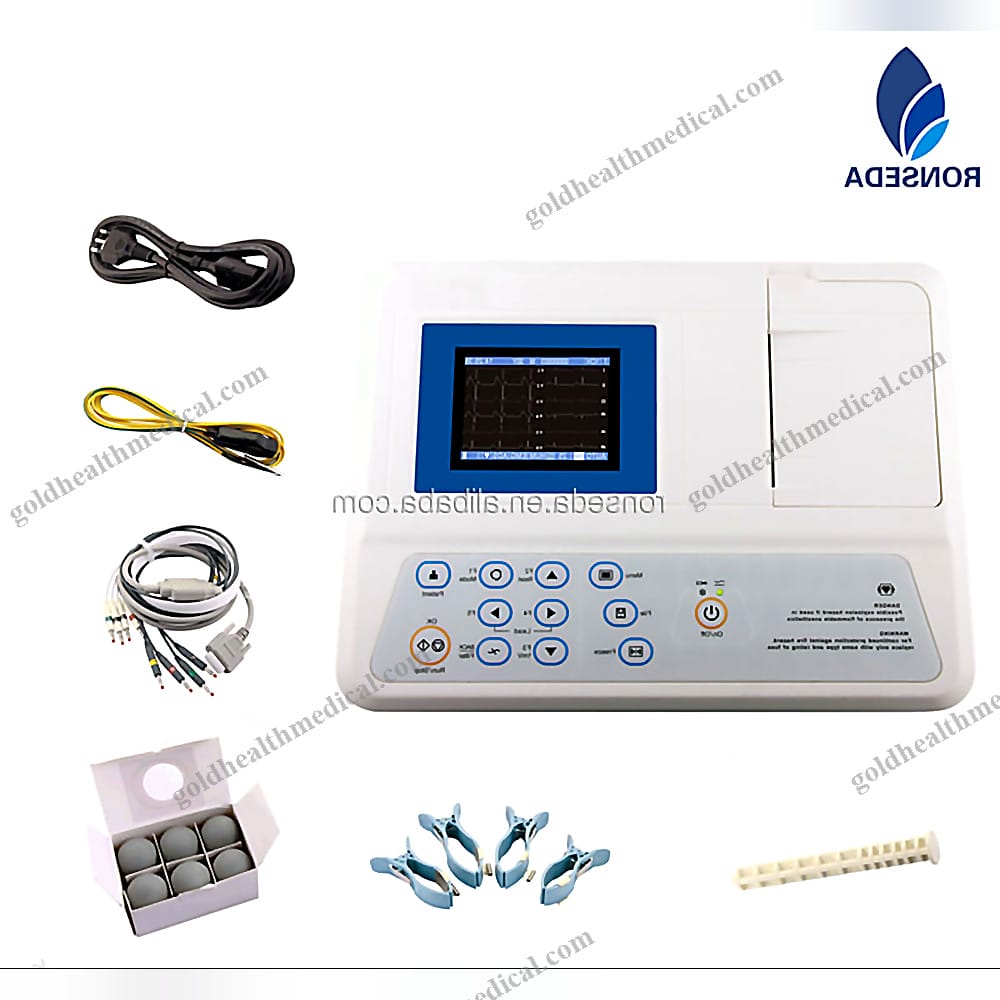

Standard Configuration
- Main Unit: 1 set.
- Patient Cable: 1 set.
- Limb Electrodes: 1 set (4 pieces).
- Chest Electrodes: 1 set (6 pieces).
- Grounding Cable: 1 piece.
- Paper Axis: 1 set.
- Thermal Paper: 1 roll.
- Fuse: 2 pieces.
- 3-Cord Power Cord: 1 piece.
- AC Adaptor: 1 piece.
- User Manual: 1 piece.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, reliable, and user-centric medical solutions. With a legacy of excellence in research, design, and manufacturing, our products are trusted by healthcare professionals worldwide. This ECG machine exemplifies our dedication to precision, durability, and advanced functionality, empowering clinicians to deliver exceptional patient care.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Name: Advanced ECG Machine
Product Overview
The GoldHealth Medical ECG Machine is a state-of-the-art solution designed for precision and reliability in cardiac diagnostics. Engineered to meet the needs of modern healthcare environments, this device combines advanced technology with user-friendly features, making it ideal for hospitals, clinics, research institutions, and home healthcare settings.
Key Features
- Monitor Size: 3.5-inch high-resolution colour LCD display for clear and detailed visualization
- Leads: Standard 12-lead configuration ensures comprehensive ECG analysis
- Work Modes: Versatile operation with Manual, Auto, and R-R analysis modes for tailored diagnostic approaches
- Storage Capacity: Save and replay data for up to 100 patients, ensuring efficient record management
- Power Source: Rechargeable Ni-MH battery for uninterrupted performance and portability
Technical Specifications
- Display: High-quality colour LCD for enhanced clarity and readability
- Patient Data Management: Built-in memory supports saving and reviewing ECG data for 100 patients
- Battery Life: Long-lasting rechargeable battery designed for extended use
- Warranty: Comprehensive 12-month warranty for peace of mind
Applications
- Hospitals and clinics
- Research laboratories
- Rehabilitation centers
- Home healthcare environments
Why Choose GoldHealth Medical?
GoldHealth Medical’s ECG Machine stands out with its precision engineering, intuitive design, and robust functionality. Whether you’re conducting routine check-ups or advanced cardiac analysis, this device delivers consistent and accurate results, empowering healthcare professionals to make informed decisions.
Supply Details
- Monthly Supply Ability: 500 sets per month
- Packaging: Securely packaged in durable boxes for safe transportation
- Port of Origin: Shenzhen, China
Experience the next level of cardiac diagnostics with GoldHealth Medical’s ECG Machine – where innovation meets reliability.
