Advanced 163264 Slice CT Scanner for Human
Reference: 1600990727747Radiology Equipment & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

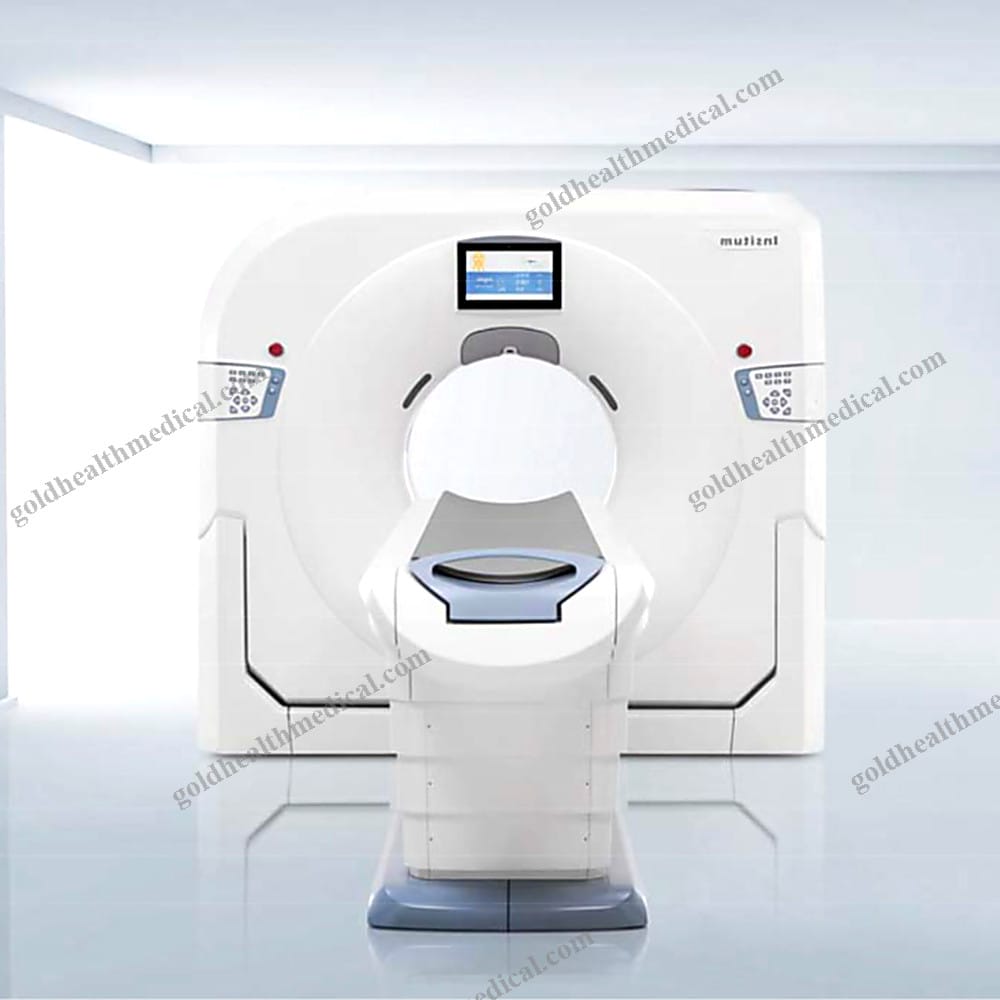

GoldHealth Medical presents a state-of-the-art Computed Tomography System designed to deliver unparalleled precision and versatility in medical imaging. Engineered with advanced hardware and a cutting-edge reconstruction algorithm, this CT scanner ensures exceptional image quality for a wide range of clinical applications. Whether for routine examinations or complex diagnostics, it provides consistent, high-definition imaging tailored to diverse patient needs.
Key Features and Technical Specifications
Gantry System
- Large Aperture: 76cm for enhanced patient comfort and accessibility
- Gantry Tilt: +/-30° (1°/second) for flexible positioning
- Scan Field of View (FOV): 50cm
- Rotation Speeds: Multiple options including 0.39 seconds per 360° rotation for rapid scans
- Focus to Detector Distance: 1015mm
- ISO Center to Focal Spot Distance: 1012mm
- Laser Localization: 3D localizer laser lamp for precise alignment
- Positioning Accuracy: Axial ≤ 1mm, Coronal and Sagittal ≤ 2mm
- Control Interface: Multifunction LCD touch screen for intuitive operation
Patient Table
- Table Width: 42cm
- Load Capacity: Up to 250kg, accommodating a wide range of patients
- Horizontal Movement Range: 1950mm for extensive scan coverage
- Position Accuracy: ±0.25mm for pinpoint precision
- Movement Speeds: Horizontal: 5mm/s to 150mm/s; Vertical: 565mm range
- Minimum Table Height: 425mm for easy patient access
- Control Modes: Remote and operation panel with adjustable speeds
Operation Console
- Processor: Intel Xeon 4 cores, 3.5GHz for seamless performance
- Memory: 32GB DDR4 ECC for reliable data handling
- Storage: 5TB hard disk with capacity for up to 1.6 million images
- Monitor Display: 24” LCD with a resolution of 1024×1024
- Interfaces: DVD-RW and USB drivers for versatile data management
X-Ray Tube
- Anode Heat Capacity: 8.0MHu for extended operational life
- Heat Dissipation Rate: 931kHU/min to ensure consistent performance
- Focal Spot Sizes: 1.0mm x 1.2mm (large) and 0.6mm x 1.2mm (small)
- Dynamic Focal Spot (DFS): Reduces motion artifacts for sharper images
Generator
- Maximum Output: 80kW for high-powered imaging
- mA Range: 10mA to 667mA
- kV Range: 80kV, 100kV, 120kV, 140kV for adaptable scanning protocols
- Continuous Scan Time: Up to 100 seconds
Detector System
- Material: GOS solid state for superior sensitivity
- Detector Rows: 32
- Channels: 27,648 effective channels, expandable to 55,296 with DFS
- Slice Thickness: 0.625mm for high-resolution imaging
- Detector Width: 20mm
- Data Transfer Rate: 4.25 Gbps for rapid image processing
- Sampling Rate: 4,606 views per rotation for detailed data acquisition
Why Choose GoldHealth Medical?
- Precision Redefined: Advanced algorithms and hardware ensure diagnostic accuracy.
- Patient-Centric Design: Large aperture and high load capacity accommodate diverse patient needs.
- Unmatched Versatility: From routine scans to specialized applications, this system delivers consistent performance.
- Durability and Reliability: High heat capacity and robust components ensure long-term usability.
GoldHealth Medical is committed to empowering healthcare professionals with innovative solutions that elevate patient care. Experience the future of medical imaging with our cutting-edge CT technology.
