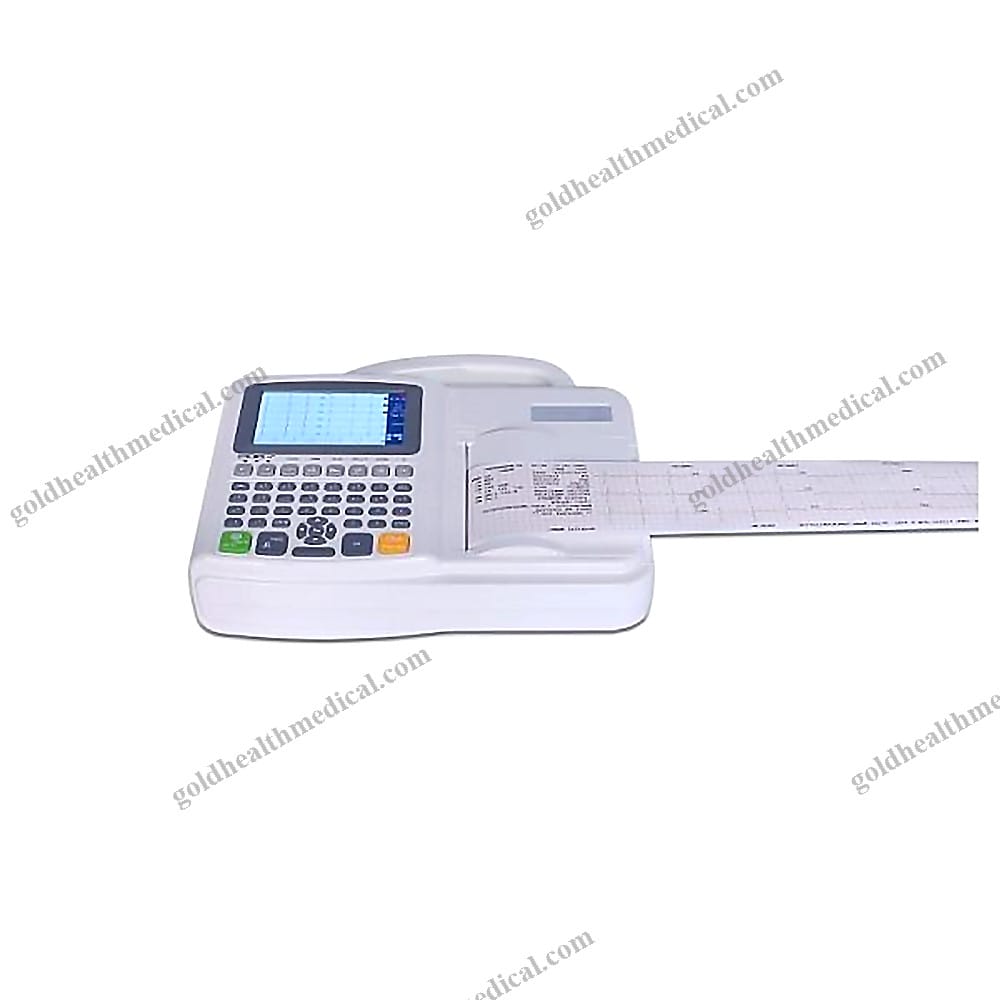

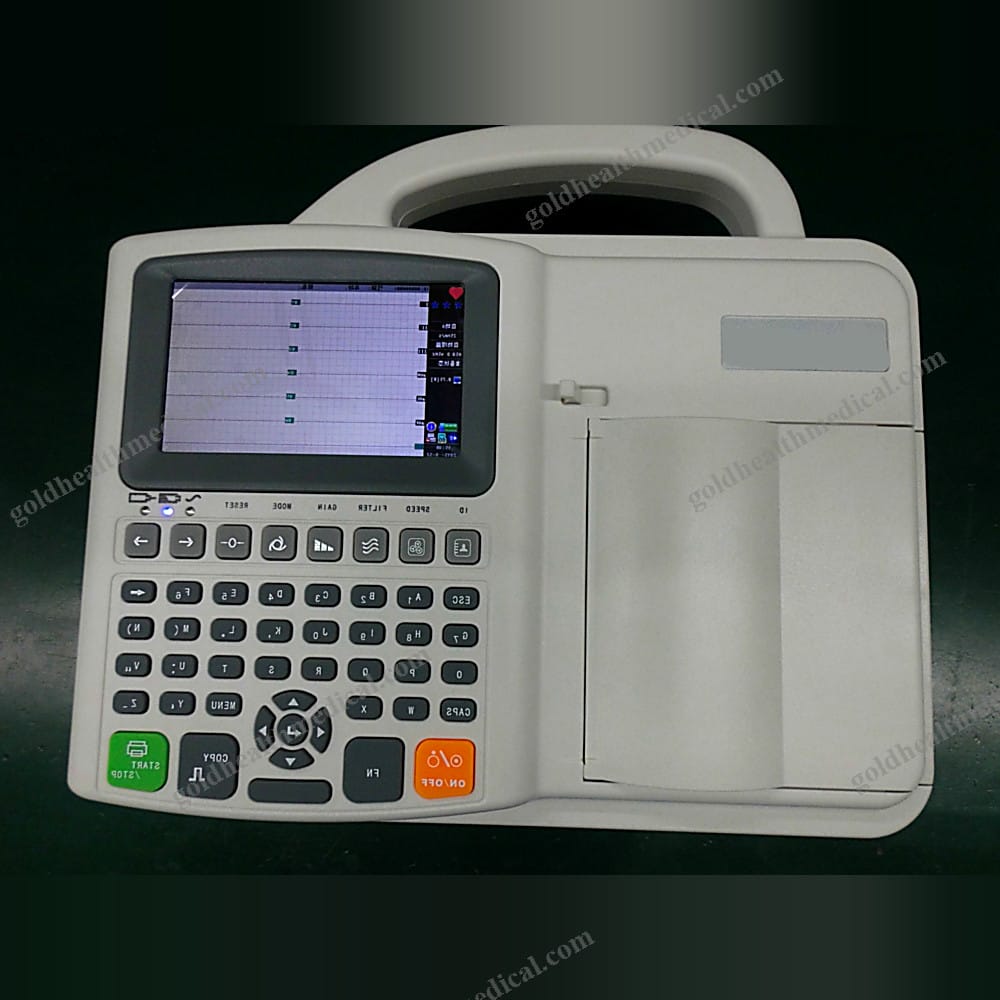

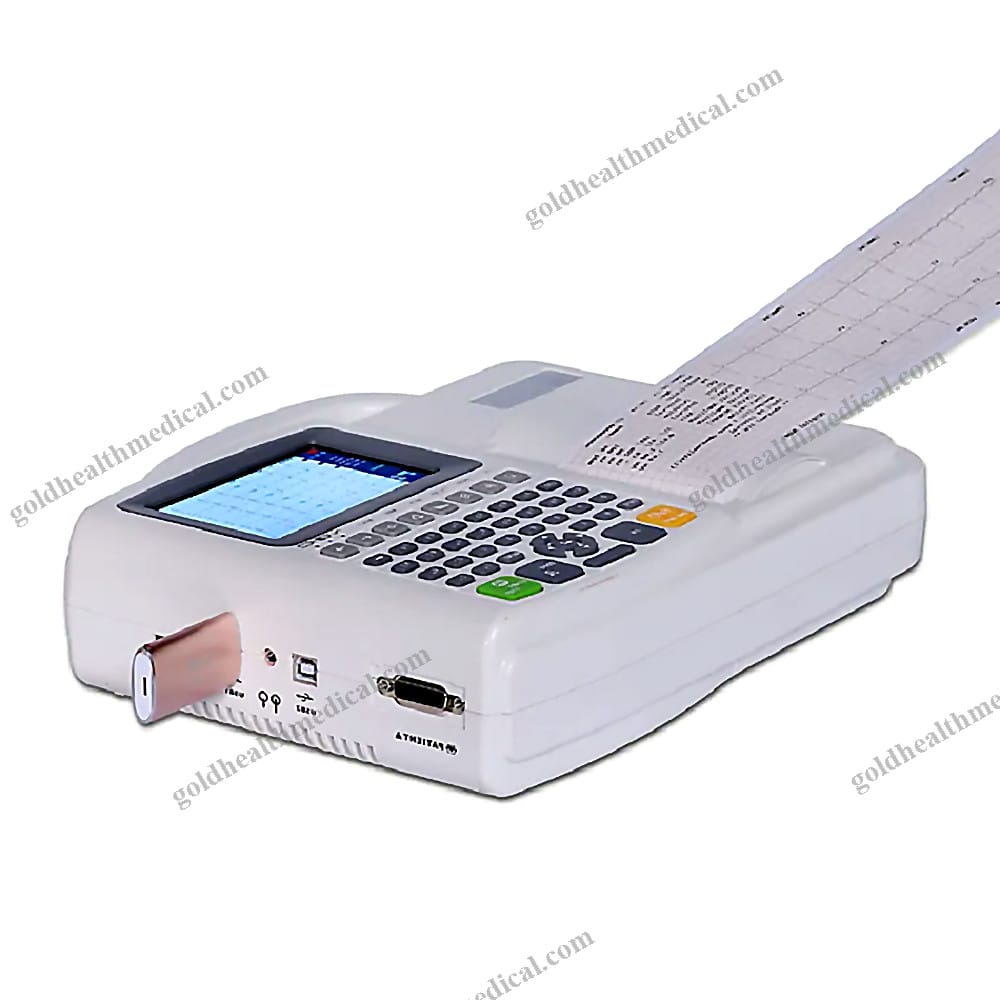

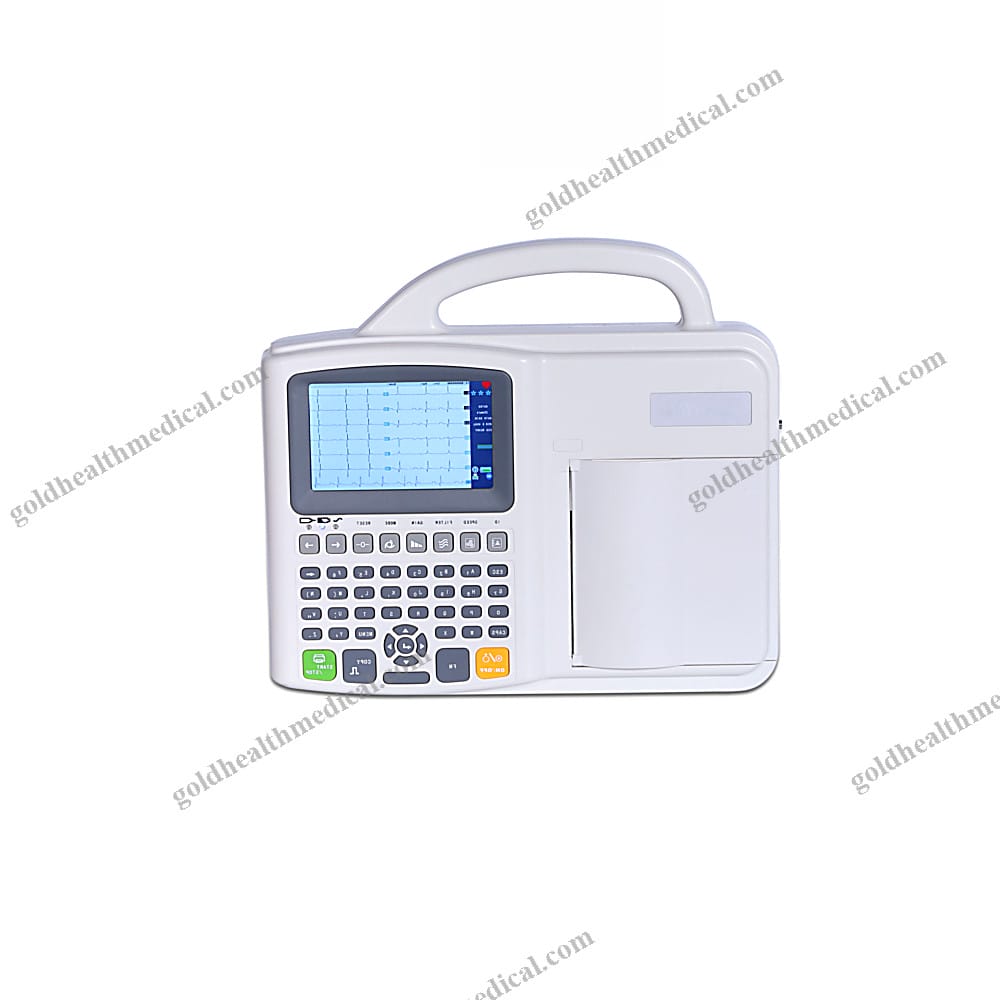

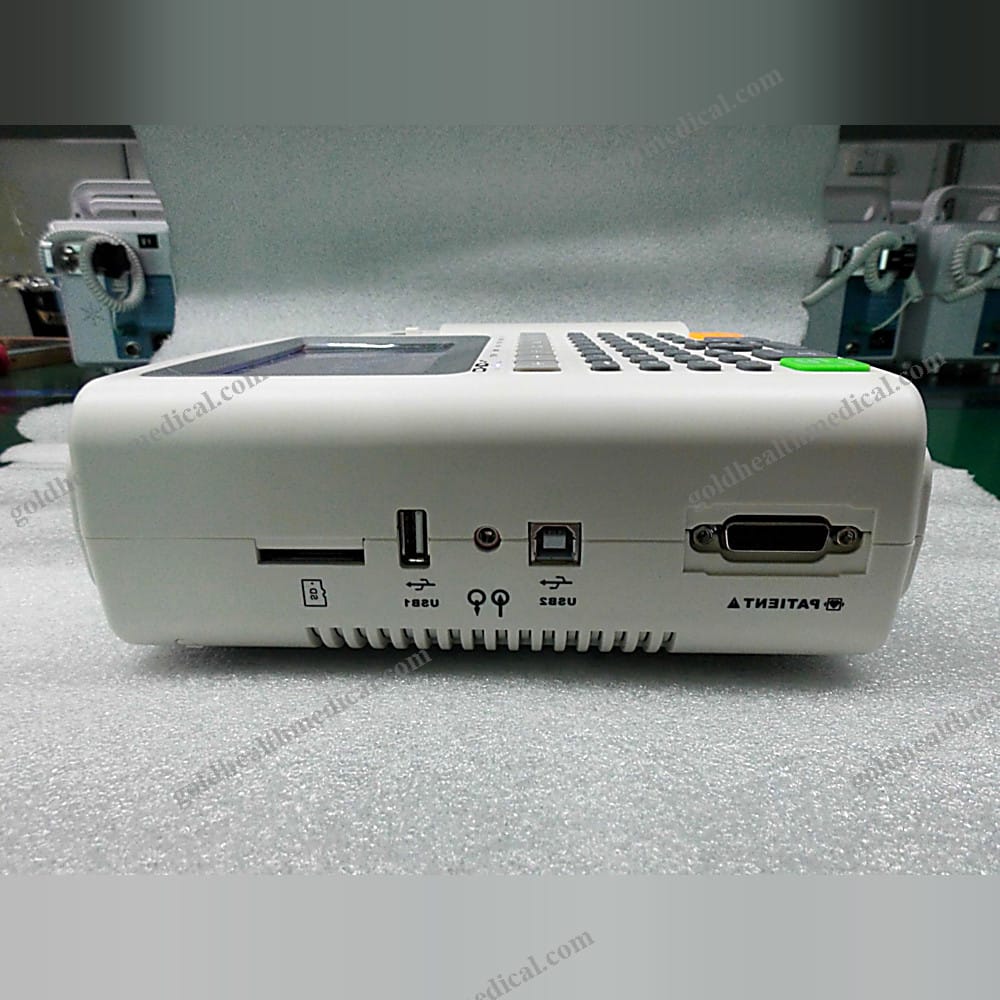

Advanced 12Lead ECG Machine with 5 TFT Display
Reference: 10000019810193Clinical Analytical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical ECG Machine
Product Overview
GoldHealth Medical presents a cutting-edge ECG machine designed for precision and reliability. This device offers advanced features tailored for healthcare professionals who demand the highest standards in cardiac diagnostics.
Key Features
- Advanced Interpretation: A 3-channel ECG machine equipped with interpretation capabilities for accurate diagnostics.
- High-Resolution Display: Features a 5.0” Color TFT LCD display for clear visualization of ECG readings.
- Comprehensive Recording: Simultaneous acquisition of 12 leads with options for 1, 1+1, and 3-channel recording, supported by a high-resolution thermal printer.
- Flexible Modes: Operates in both manual and auto modes to suit various clinical needs.
- Digital Excellence: Utilizes digital isolation technology and advanced digital signal processing for superior performance.
- Stable Baseline: Ensures consistent readings with baseline stabilization inspection.

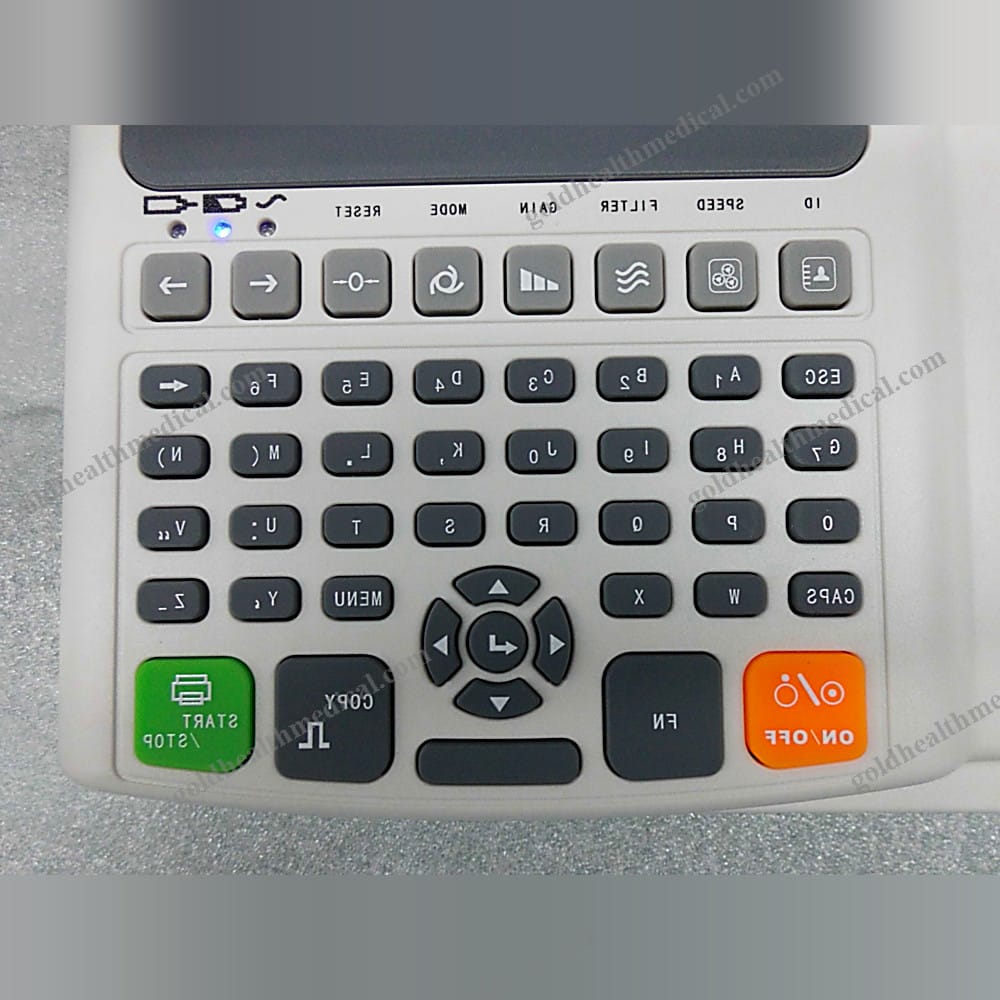

- User-Friendly Interface: Equipped with a full alphanumeric silicon keyboard for ease of use.
Technical Specifications
- Input Impedance: ≥50MΩ
- Lead Configuration: Standard 12 leads
- A/D Converter: 14-bit
- Sampling Rate: 1000Hz
- Working Modes: Manual/Auto
- Interference Filters: AC Filter and EMG Filter
- CMMR: ≥100dB (with AC filter)
- Input Circuit: Floating with protection against defibrillator effects
- Input Circuit Current: ≤0.1μA
- Patient Current Leakage: <10μA
- Skin Voltage Tolerance: ≥±500mV
- Frequency Response: 0.05 Hz~250Hz
- Sensitivity Threshold: ≤20μV
- Printer: High-resolution thermal printer
- Page Speed: 6.25, 12.5, 25, 50mm/s (±3%)
- CPU: 32 bits
- Power Supply:
- AC 220V (±10%), 50Hz±1Hz, Power≤60VA
- AC 85～265V, 50/60Hz
- DC14.8V (2200mAh), rechargeable Li-ion battery
- Time Constant: ≥3.2s
Unique Selling Points
- Precision and Reliability: Advanced digital signal processing ensures accurate and reliable ECG readings.
- Versatile Functionality: Offers both manual and auto modes, catering to diverse diagnostic requirements.
- Enhanced Safety: Digital isolation and defibrillator protection circuits ensure patient and operator safety.
- User-Centric Design: Intuitive interface with a full alphanumeric silicon keyboard for seamless operation.
GoldHealth Medical's ECG machine is engineered to meet the rigorous demands of modern healthcare environments, providing unparalleled accuracy and ease of use for medical professionals.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Instrument Classification: Class II
Type: Clinical Examination Aids
Product Overview
GoldHealth Medical presents a cutting-edge clinical examination solution designed to deliver precision, reliability, and ease of use. Engineered for healthcare professionals and institutions, this device combines advanced technology with user-centric features to ensure accurate diagnostics and seamless operation.
Key Features
- High-Resolution ADC: Equipped with a 14-bit Analog-to-Digital Converter for exceptional signal clarity and precision.
- Rapid Sampling Rate: Achieves a sampling rate of 1000Hz, capturing even the most subtle physiological signals.
- Standard 12-Lead Configuration: Provides comprehensive data for detailed clinical analysis.
- Advanced CMRR: Boasts a Common Mode Rejection Ratio (CMRR) of 100dB, ensuring minimal interference and maximum accuracy.
- Impressive Input Impedance: Features an input impedance of 50MΩ for stable and reliable signal acquisition.
- Safe Patient Current: Limits patient current to just 10µA, prioritizing patient safety during examinations.
- Thermal Printer Integration: Delivers instant, high-quality printouts for immediate reference and record-keeping.
Technical Specifications
- Working Modes: Supports both Manual and Auto modes for versatile operation.
- Input Current: As low as 0.1µA for enhanced precision.
- Voltage Sensitivity: Calibrated at 1mV for consistent and reliable readings.
- Patient Safety: Designed with a low patient current of 10µA to meet stringent safety standards.
After-Sale Support
- Warranty: Backed by a 1-year warranty for peace of mind.
- Technical Assistance: Access to online technical support ensures uninterrupted performance and quick resolution of queries.
GoldHealth Medical is committed to empowering healthcare providers with tools that redefine accuracy, efficiency, and patient care. This clinical examination aid is the ideal choice for hospitals, clinics, research labs, and rehabilitation centers seeking excellence in diagnostic technology.
