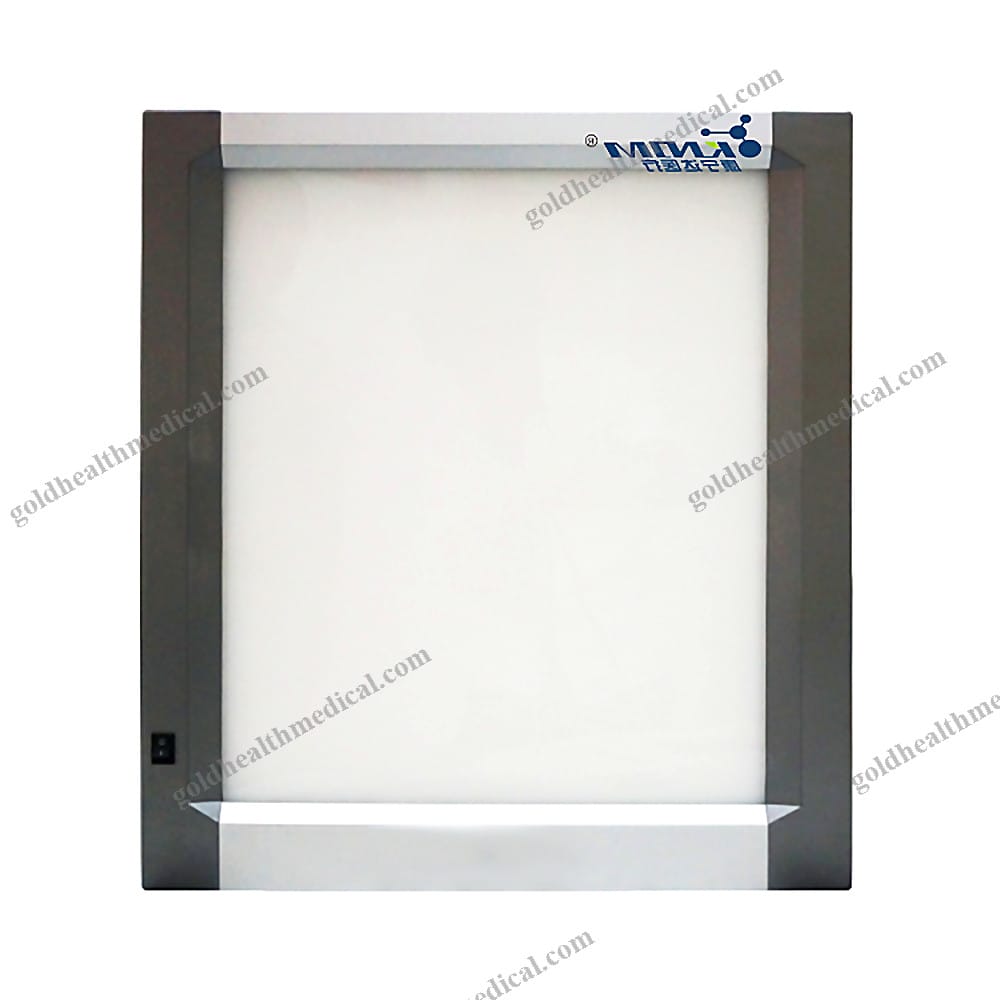

Adjustable Medical LED XRay Film Viewer Panel
Reference: 1601238215673Medical X-ray Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical presents a revolutionary viewing light designed to redefine precision and reliability in medical imaging.
This state-of-the-art viewing light leverages advanced LED side-entry backlight technology, delivering an observation screen that ensures exceptional brightness, uniformity, and stability. With no dark areas, flicker-free performance, and reduced color temperature decay, this product is engineered for consistent accuracy. Mercury-free and energy-efficient, it offers an extended lifespan while maintaining optimal performance.
Key Features and Specifications:
- Observation Screen Performance
- High brightness with no dark areas or flicker
- Adjustable brightness range: Minimum ≤100 cd/m², Maximum ≥4500 cd/m²
Uniformity coefficient: Average ≥0.8
Light Source Characteristics
- Color temperature: ≤6500K
- Service life: 100,000 hours
Energy-efficient with low power consumption

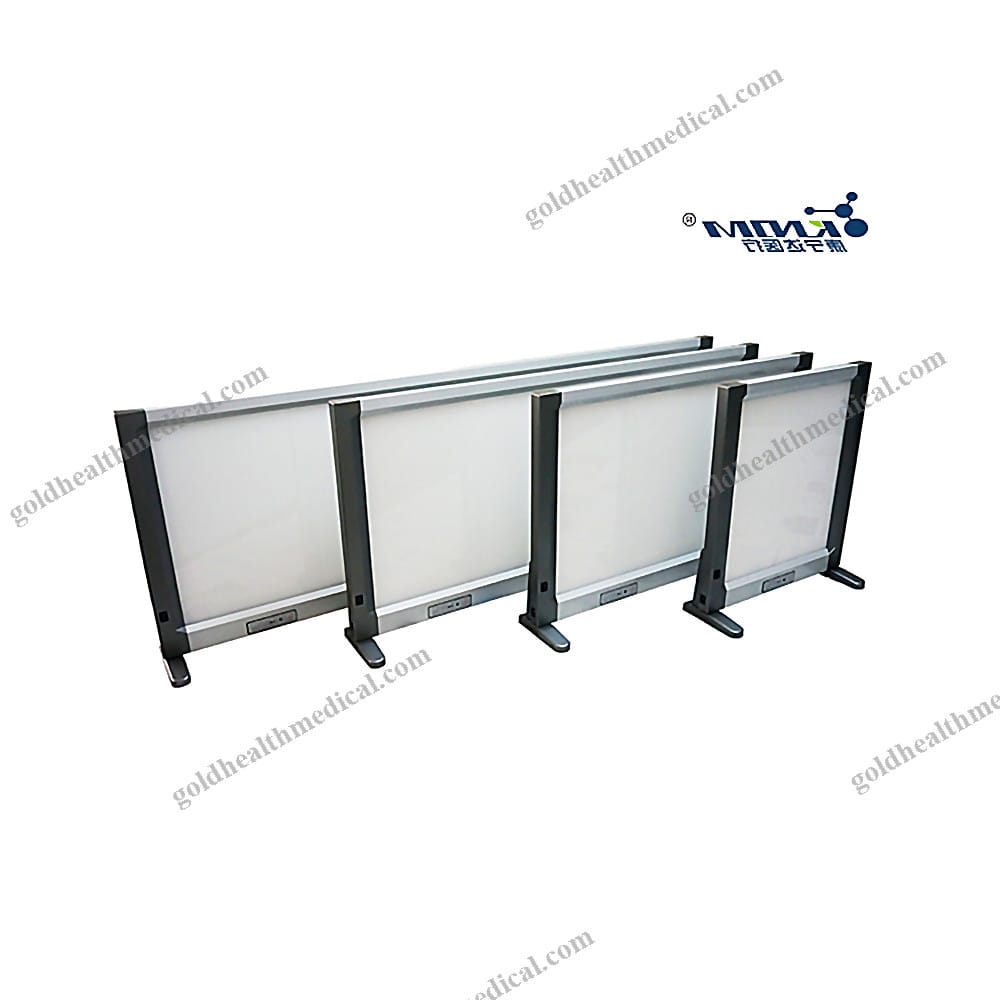

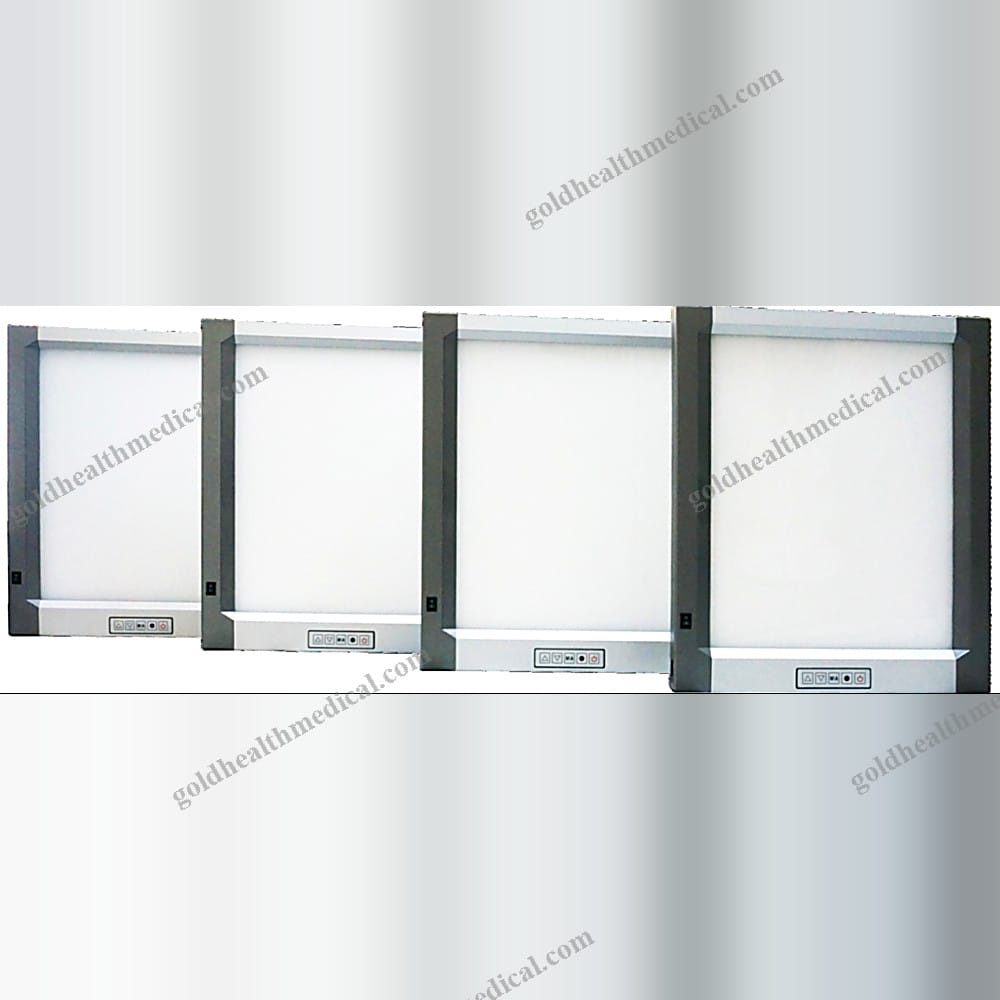

Available Configurations
- Single: 462×517×28.5 mm, Reading Area: 358×422 mm, Power: 25W
- Double: 819×517×28.5 mm, Reading Area: 715×422 mm, Power: 50W
- Triplet: 1181×517×28.5 mm, Reading Area: 1077×422 mm, Power: 70W
Quadruplex: 1545×517×28.5 mm, Reading Area: 1441×422 mm, Power: 100W
Power Supply
- Global voltage compatibility: AC85V-AC250V
Frequency: 50/60Hz
Installation Flexibility
- Wall-mounted or stand-mounted options
Equipped with a cylindrical tilt-roll compact clamping device for secure positioning
Film Compatibility
Suitable for plain analog films, mammography films, and digital hardcopy films
Environmental Adaptability
- Operating temperature: 5°C–35°C
- Relative humidity: ≤75%
- Atmospheric pressure: 75kPa–106kPa
- Recommended ambient illuminance: ≤100Lx
Why Choose GoldHealth Medical?
Our viewing light combines cutting-edge technology with user-centric design, ensuring unparalleled performance in diagnostic environments. Whether for hospitals, clinics, research labs, or home healthcare, this product is built to meet the highest standards of precision, durability, and energy efficiency.
Experience the future of medical imaging with GoldHealth Medical.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical presents an advanced medical-grade negatoscope, meticulously engineered to deliver unparalleled performance and reliability in diagnostic imaging. Designed for precision and durability, this device is an essential tool for healthcare professionals seeking superior image clarity and consistent operation.
Key Features
- Material: Crafted from high-quality acrylic, ensuring exceptional light diffusion and long-lasting durability.
- Instrument Classification: Class I medical device, guaranteeing safety and compliance with stringent healthcare standards.
- Safety Standard: Compliant with GB15979-2002, ensuring the highest benchmarks in hygiene and operational safety.
- Power Source: Electric-powered for consistent and reliable performance.
Technical Specifications
- Place of Origin: Proudly manufactured in Hunan, China, reflecting GoldHealth Medical's commitment to quality and innovation.
- Shelf Life: 1 year, ensuring optimal functionality and performance.
- Quality Certification: CE-certified, underscoring its adherence to international quality and safety standards.
Support and Assurance
- Warranty: Backed by a comprehensive 2-year warranty, offering peace of mind and long-term reliability.
- After-Sale Service: Access to online technical support, ensuring prompt assistance and minimal downtime.
Unique Selling Points
- Engineered for precision, the negatoscope delivers exceptional image clarity, making it indispensable for accurate diagnostics.
- Its robust construction and compliance with global safety standards make it ideal for hospitals, clinics, research labs, and home healthcare settings.
- GoldHealth Medical’s dedication to innovation ensures a product that combines cutting-edge technology with user-centric design.
Applications
Perfectly suited for radiology departments, diagnostic centers, research institutions, and rehabilitation facilities, this negatoscope is a versatile solution for all imaging needs.
Choose GoldHealth Medical for a product that redefines excellence in medical diagnostics.
