GoldHealth Medical Sleep Apnea Monitoring Device

Experience the future of sleep diagnostics with GoldHealth Medical’s advanced sleep apnea monitoring solution. Designed for both clinical and home use, this device redefines comfort and precision in sleep studies.

Key Features

• Unmatched Comfort: Lightweight design ensures a natural sleep experience with minimal intrusion.
• Real-Time Data Visualization: High-resolution 2.8-inch TFT display presents clear waveform data for immediate analysis.
• Innovative Signal Acquisition: Proprietary chest and abdomen signal technology for accurate respiratory monitoring.
• Eco-Friendly Power Solution: Rechargeable lithium battery with 30-hour continuous recording capability.
• Advanced Storage Capacity: 16GB memory supporting over 16,000 hours of data storage.

Technical Specifications

• Monitoring Parameters:
• Airflow
• Snoring
• SpO2 (70%-100%)
• Chest/Abdomen Movement
• Pulse (30-240 bpm)
• Pulse Waveform
• Body Movement
• Body Position

• CPAP Pressure

• Performance Metrics:

• Data Resolution: 12 Bit
• Sampling Rate: 50-200Hz
• Battery Capacity: 2500 mAh

• Screen Resolution: 320 x 240

• Physical Characteristics:

• Device Weight: 176g (with battery)
• Dimensions: 125mmL x 80mmW x 24mmH
• Materials: Premium combination of Acrylic, Metal, Plastic, and Resin

Operational Advantages

GoldHealth Medical’s sleep monitor utilizes advanced finger-type photoelectric sensors that measure hemoglobin concentration and blood oxygen saturation through safe red and near-infrared light technology. This non-invasive method provides continuous, reliable monitoring while ensuring patient comfort.

The device meets all American Academy of Sleep Medicine (AASM) requirements, delivering comprehensive recordings and detailed reports that enable precise treatment recommendations and therapy pressure adjustments.

Usage Benefits

• Home Testing Capability: Patients can undergo sleep studies in their natural sleeping environment
• Reduced Anxiety: Minimal sensor setup promotes relaxed, natural sleep patterns
• Enhanced Compliance: Comfortable design increases patient acceptance of testing protocols

Setup Procedure

1. Verify device readiness and cable integrity
2. Secure the adjustable fixing belt around the waist
3. Connect chest strap to device terminals
4. Power on using the upper button
5. Attach lead wires following proper configuration
6. Position waist belt comfortably around abdomen

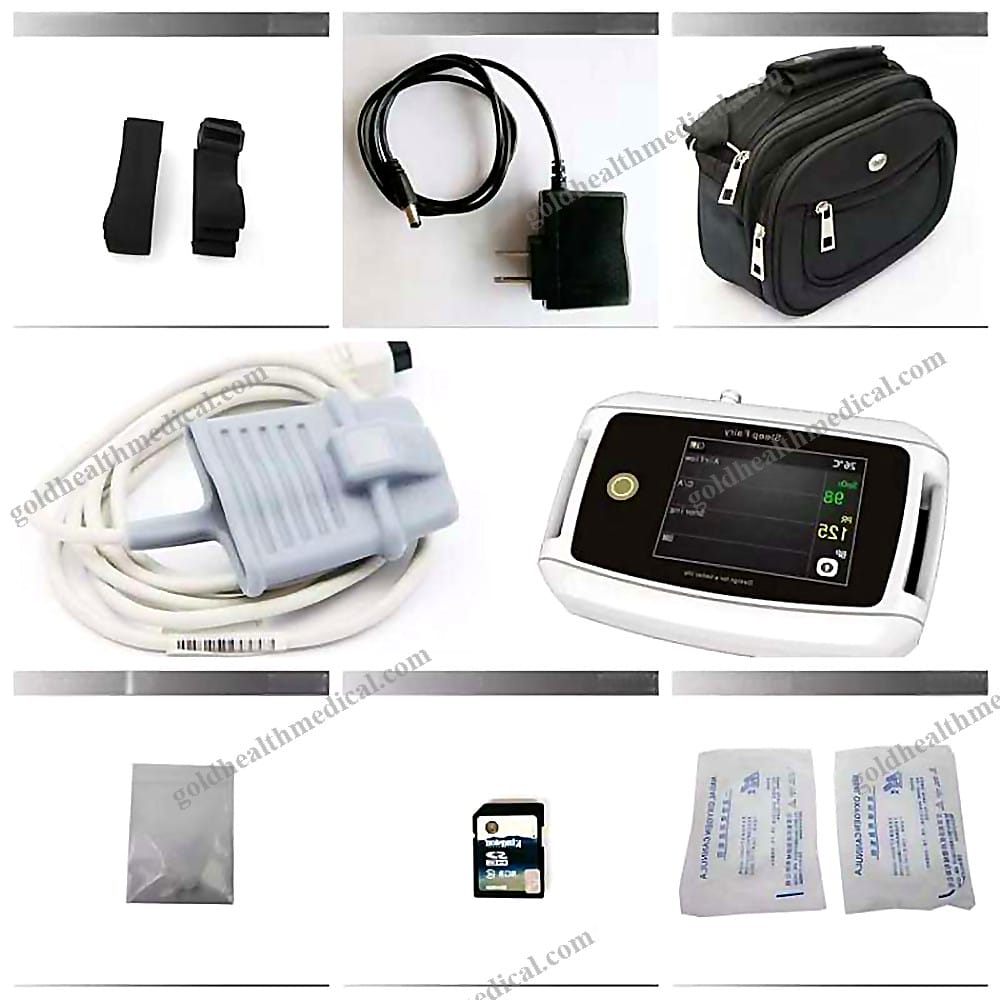

7. Complete setup with finger cot and nasal catheter placement
8. Ensure proper shutdown after use

GoldHealth Medical’s sleep monitoring solution represents the perfect balance between advanced medical technology and user-friendly design, making professional-grade sleep diagnostics accessible for various healthcare settings and home environments.
