64Slice CT Scanner for Veterinary Hospitals
Reference: 1601216481925Medical MRI Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

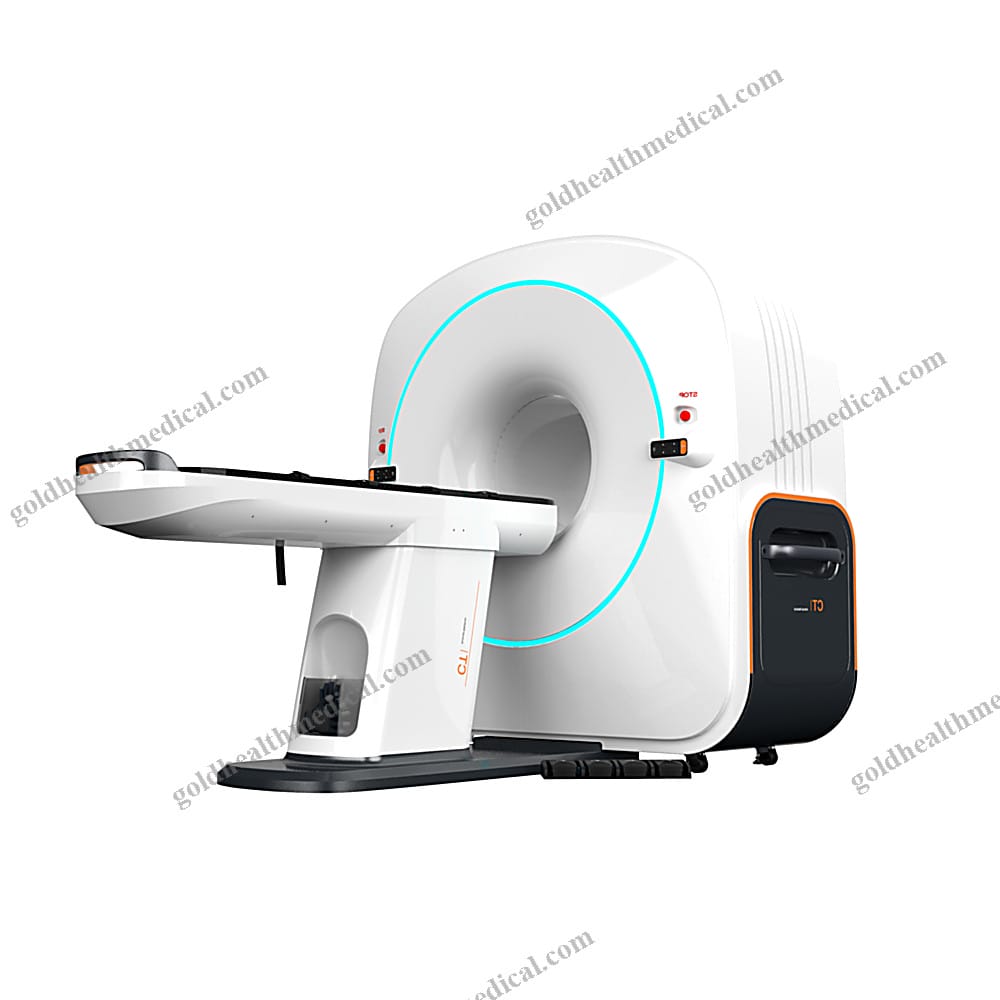

GoldHealth Medical - 64-Slice CT Scanner
Experience the future of diagnostic imaging with GoldHealth Medical's advanced 64-slice CT scanner, designed to deliver unparalleled precision and versatility for medical professionals.
Product Highlights
- Flexible Configurations: Choose between two distinct hardware setups, allowing seamless adaptation to diverse budgetary requirements without compromising performance.
- Optimized Workflow: A robust hardware platform ensures maximum patient throughput, significantly enhancing operational efficiency in demanding clinical environments.
- Intuitive Operation: A user-guided interface combined with automated positioning presets simplifies procedures ranging from routine head, chest, and abdomen scans to intricate cardiac imaging.
- Superior Image Quality: Achieve exceptional clarity with high-resolution imaging (22lp/cm@0%MTF, 1024x1024), empowering clinicians with greater diagnostic confidence.
- Expanded Clinical Applications: The 76cm gantry design facilitates tumor biopsy and simulation, broadening the scope of potential clinical applications.
Product Specifications
Power Requirements
- Input Voltage: Single phase AC220V
- Supply Frequency: 50Hz
- Power Capacity: Not less than 3.5 kVA
Mechanical Specifications
- Bed Dimensions: 1850mm × 550mm × 730mm (±5% deviation)
- Scanning Frame Dimensions: 1670mm × 810mm × 1600mm (±5% deviation)
- Bed Translation Range: 0–800mm (±5% deviation)
- Bed Lifting Range: 0–150mm (±5% deviation)
- Weight Capacity: 50kg
Electrical Performance
- Maximum Pulse Fluoroscopic Output: 1.875kW (15mA, 125kV, 10s)
- Maximum Continuous Fluoroscopic Output: 1.5kW (12mA, 125kV, 20s)
- Standard Pulse Fluoroscopy Output: 1.6kW (16mA, 100kV, 10s)
- Tube Voltage Range: 50kV–125kV (adjustable in 1kV increments, ≤±10% deviation)
- Tube Current Range: 1mA–16mA (adjustable in 1mA increments, accuracy ±1mA)
Imaging Performance
- Imaging Size: 307.2mm × 245.7mm
- Spatial Resolution: ≥1.7lp/mm
- Imaging Time: ≤40 seconds
Environmental Requirements
- Operating Temperature: 10°C–40°C
- Relative Humidity: 30%–75%
- Atmospheric Pressure: 70kPa–106kPa
Transportation and Storage
- Temperature Range: -20°C–55°C
- Relative Humidity: 30%–93%
- Atmospheric Pressure: 70kPa–106kPa
Advanced Clinical Applications
- Coronary CTA: Achieve precise imaging even with challenging cases such as heart rates of 70bpm with premature beats. Example parameters: 120kVp, 620mAs, 0.39s rotation speed, 125mm scan range, 11s scan time, 0.625mm slice thickness.
- Skeletal Reconstruction: Deliver 3D visualizations of bone structures, offering critical insights for orthopedic and plastic surgery planning.
- Curved Planar Reformation (CPR): Generate panoramic 2D images from 3D volumetric data, ideal for dental evaluations and visualizing curved anatomical structures.
GoldHealth Medical is committed to delivering cutting-edge solutions that redefine diagnostic excellence. Our products are trusted by hospitals, clinics, and research institutions worldwide. Explore the possibilities with our advanced 64-slice CT scanner today.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the Hospital 64-Slice CT Scanner, a cutting-edge diagnostic tool designed to deliver unparalleled precision and efficiency. Engineered for modern healthcare environments, this CT scanner combines advanced imaging technology with a sleek, contemporary design to meet the demands of hospitals, clinics, research institutions, and more.
Key Features and Specifications
- Imaging Excellence: Achieve exceptional clarity with a slice thickness of just 0.625mm, enabling highly detailed and accurate diagnostic results.
- Powerful Performance: Equipped with an 80kW generator and an 8.0MHU tube, this scanner ensures consistent, high-quality imaging even during extended use.
- Speed and Precision: A rotation speed of 0.39 seconds and a scan time of 11 seconds allow for rapid, precise imaging, minimizing patient discomfort and maximizing workflow efficiency.
- Wide Scan Range: Cover a scan range of 125mm, making it suitable for a variety of clinical applications.
- Durable Construction: Built with premium metal materials, this scanner is designed to withstand the rigors of daily use in demanding medical environments.
Technical Details
- Instrument Classification: Class I
- Power Source: Electric
- Shelf Life: 3 years
- Quality Certification: CE
After-Sale Support
GoldHealth Medical is committed to your success. Benefit from:
- 1-Year Warranty for peace of mind.
- Online Technical Support to ensure uninterrupted operation and address any concerns promptly.
Logistics and Packaging
- Package Dimensions: 800 x 700 x 900 cm
- Gross Weight: 600 kg
- Minimum Order Quantity (MOQ): 1 unit
Why Choose GoldHealth Medical?
Our Hospital 64-Slice CT Scanner is more than just a diagnostic tool—it’s a testament to innovation, reliability, and patient care. Designed and manufactured in Anhui, China, this scanner reflects our dedication to delivering world-class medical technology. Whether you’re outfitting a hospital, clinic, or research lab, GoldHealth Medical provides the tools you need to elevate your practice.
Experience the future of medical imaging with GoldHealth Medical.
