5KW Portable Mobile DR Xray Machine
Reference: 1600583779311Radiology Equipment & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

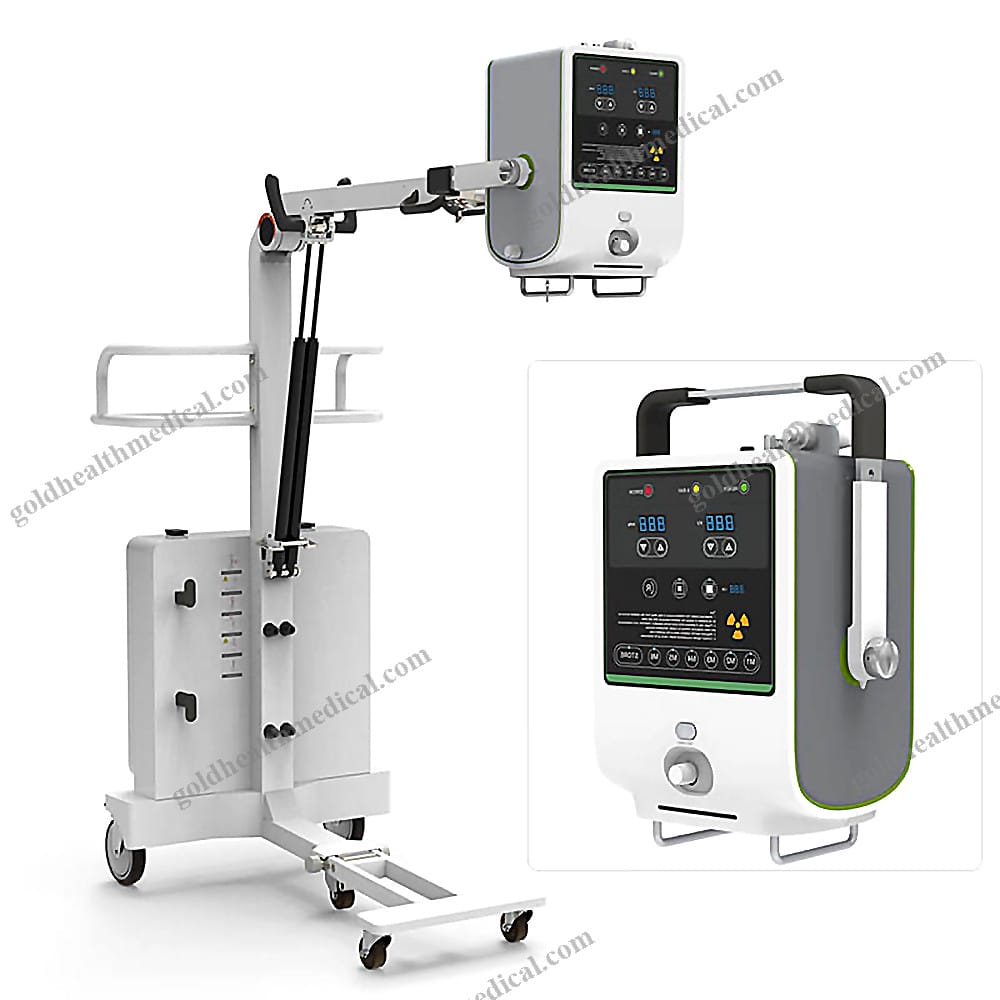

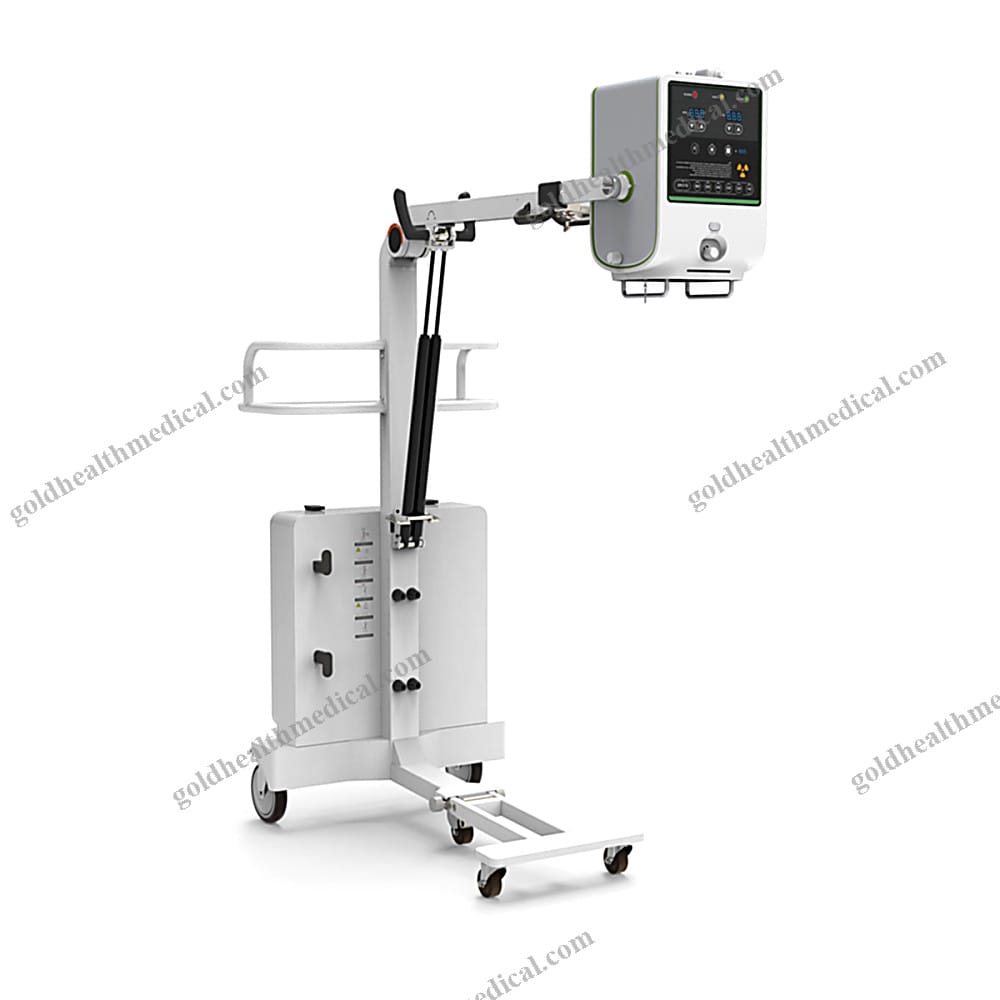

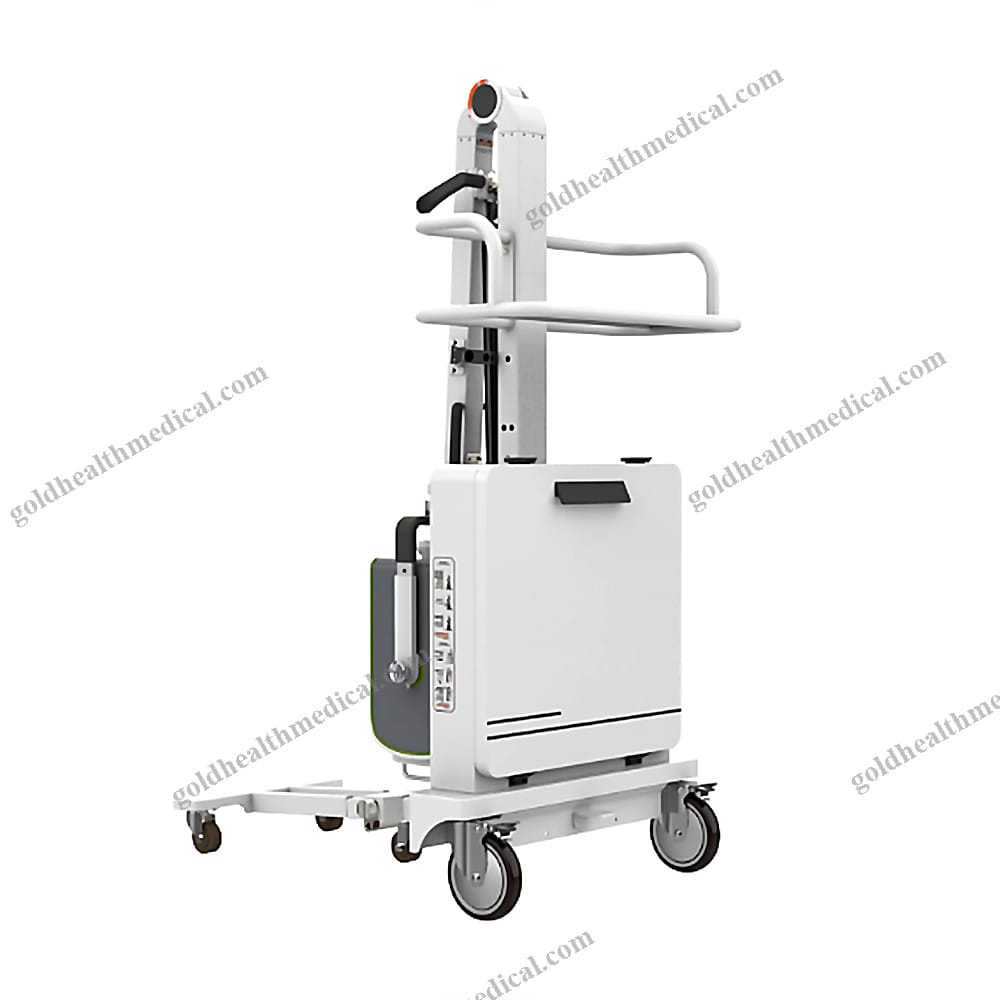

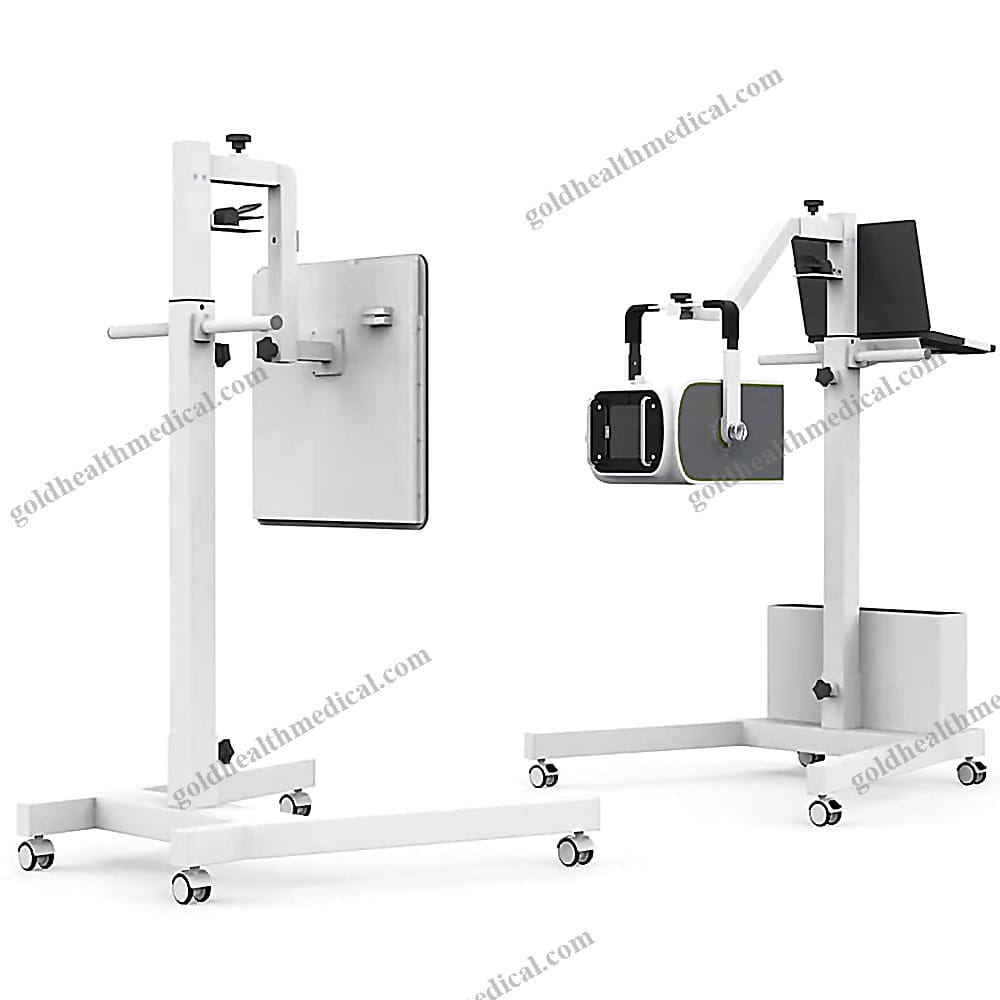

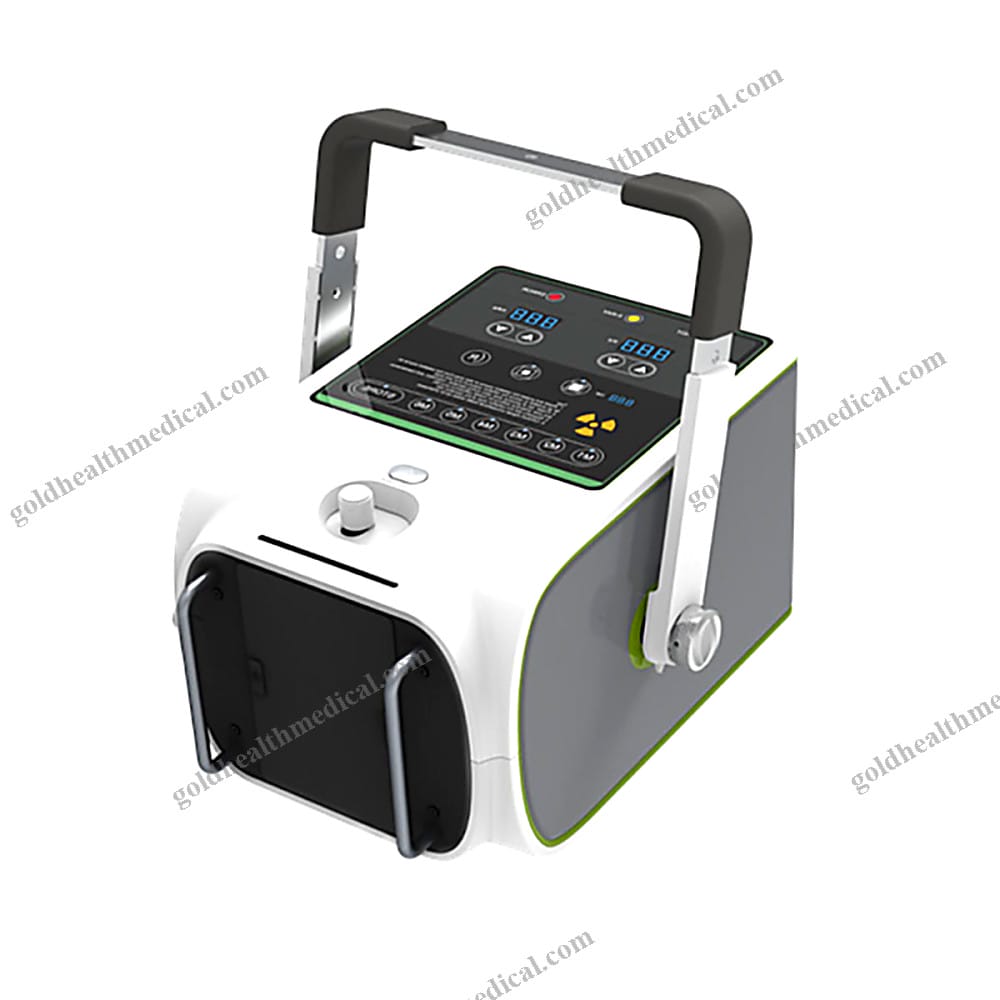

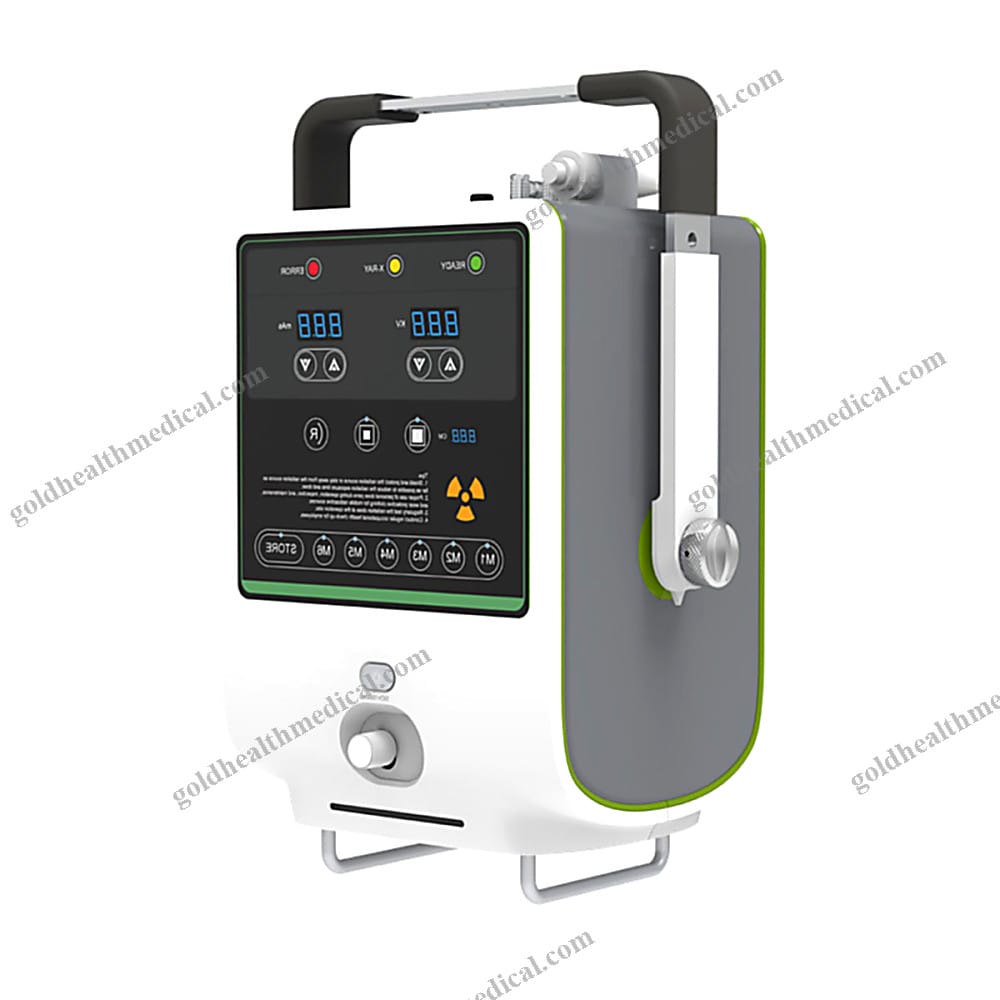

GoldHealth Medical Portable High-Frequency X-Ray Machine
Product Overview
GoldHealth Medical introduces a cutting-edge portable high-frequency X-ray machine designed for versatility and precision in medical imaging. Engineered for both human and veterinary applications, this state-of-the-art device combines portability with advanced imaging capabilities, making it ideal for hospitals, clinics, research labs, and home healthcare settings.
Key Features
- Compact and Lightweight Design: Weighing only 16 kg with dimensions of 370 x 350 x 230 mm³, this portable X-ray machine is easy to transport and store.
- High-Frequency Performance: Delivers consistent and reliable imaging with a power output of 5 kW.
- Advanced Imaging Parameters:
- Voltage range (kVp): 40-125
- Current range (mA): 10-100
- Exposure time (mAs): 0.1-100
- Dual focal spots: 0.6 mm and 1.8 mm for precise imaging
- Anode angle: 15° for optimal beam alignment
- Flexible Operation Modes: Supports both wired and wireless exposure modes, ensuring seamless integration into any workflow.
- Ultrasonic Ranging Technology: Provides accurate positioning and enhances diagnostic precision.
- Touch Screen Interface: Equipped with a 9.7-inch touch screen for intuitive operation and real-time image review.
Unique Selling Points
- Unmatched Portability: Designed for mobility without compromising performance, enabling use in remote or space-constrained environments.
- Versatile Applications: Suitable for a wide range of medical and veterinary imaging needs, from routine diagnostics to specialized procedures.
- Superior Image Quality: High-frequency technology ensures sharp, detailed images, reducing the need for retakes and improving diagnostic accuracy.
- User-Centric Design: Ergonomic controls and wireless functionality enhance ease of use, saving time and effort for medical professionals.
Technical Specifications
- Power Supply: AC210-230V or AC100-120V
- Power Output: 5 kW
- Voltage Range: 40-125 kVp
- Current Range: 10-100 mA
- Exposure Time Range: 0.1-100 mAs
- Focal Spots: 0.6 mm / 1.8 mm
- Anode Angle: 15°
- Dimensions: 370 x 350 x 230 mm³
- Weight: 16 kg
Compatible Flat Panel Detectors
GoldHealth Medical offers a range of wireless flat panel detectors to complement the X-ray machine: - 14x17" Wireless Flat Panel Detector: Ideal for both human and veterinary use, delivering high-resolution images. - 17x17" Digital Detector: Perfect for larger imaging requirements, ensuring exceptional clarity and detail. - Portable Wireless Options: Lightweight and easy to handle, these detectors integrate seamlessly with the X-ray system for maximum flexibility.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, reliable, and user-friendly medical imaging solutions. Our portable X-ray machine is designed to meet the evolving needs of modern healthcare, providing unmatched performance and convenience. Whether you're outfitting a hospital, clinic, or mobile unit, our products are engineered to exceed expectations.
Applications
- Hospitals and Clinics
- Diagnostic Laboratories
- Veterinary Practices
- Rehabilitation Centers
- Home Healthcare Settings
- Research Institutions
GoldHealth Medical’s portable X-ray machine is more than just a diagnostic tool—it’s a gateway to better patient care and operational efficiency.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical Portable High Frequency X-Ray Machine
Product Overview:
The GoldHealth Medical Portable High Frequency X-Ray Machine is a cutting-edge solution designed for precision and reliability in medical imaging. Engineered for versatility, this device delivers exceptional performance across a wide range of applications, from hospitals and clinics to research labs and home healthcare settings. Its sleek, portable design ensures seamless integration into any environment, while its advanced technology guarantees accurate diagnostics.Key Features and Specifications:
- Power Source: Operates on dual voltage options (AC210-230V or AC100-120V), ensuring compatibility across global standards.
- Power Output: 5kW for consistent and reliable performance.
- kV Range: Adjustable from 40 to 125 kVp, offering flexibility for diverse imaging needs.
- mAs Range: Precise control with a range of 0.1 to 100 mAs.
- mA Range: Adjustable between 10 and 100 mA for optimal image quality.
- Ranging Mode: Ultrasonic technology for enhanced accuracy.
- Exposure Mode: Supports both wired and wireless operation, providing convenience and adaptability.
- Focal Spots: Dual focal spots of 0.6mm and 1.8mm for sharp, detailed imaging.
- Anode Angle: 15° for superior beam alignment and image clarity.
- Instrument Classification: Class II medical device, ensuring safety and compliance.
Material: Constructed with high-quality acrylic and durable plastic for longevity and portability.
Quality Assurance:
- Backed by a 1-Year Warranty and comprehensive online technical support.
Certified with CE standards, guaranteeing adherence to international safety and quality benchmarks.
Packaging and Delivery:
- Securely packaged in robust wooden crates to ensure safe transit.
Ships from Guangzhou Port, with a supply capacity of up to 2000 sets per month.
Unique Selling Points:
- Unmatched portability and ease of use, making it ideal for both stationary and mobile applications.
- Advanced ultrasonic ranging and dual exposure modes for precision and convenience.
- Designed with healthcare professionals in mind, combining durability, accuracy, and user-friendly features.
GoldHealth Medical is committed to delivering innovative solutions that empower healthcare providers worldwide. This portable X-ray machine exemplifies our dedication to excellence in medical technology.
