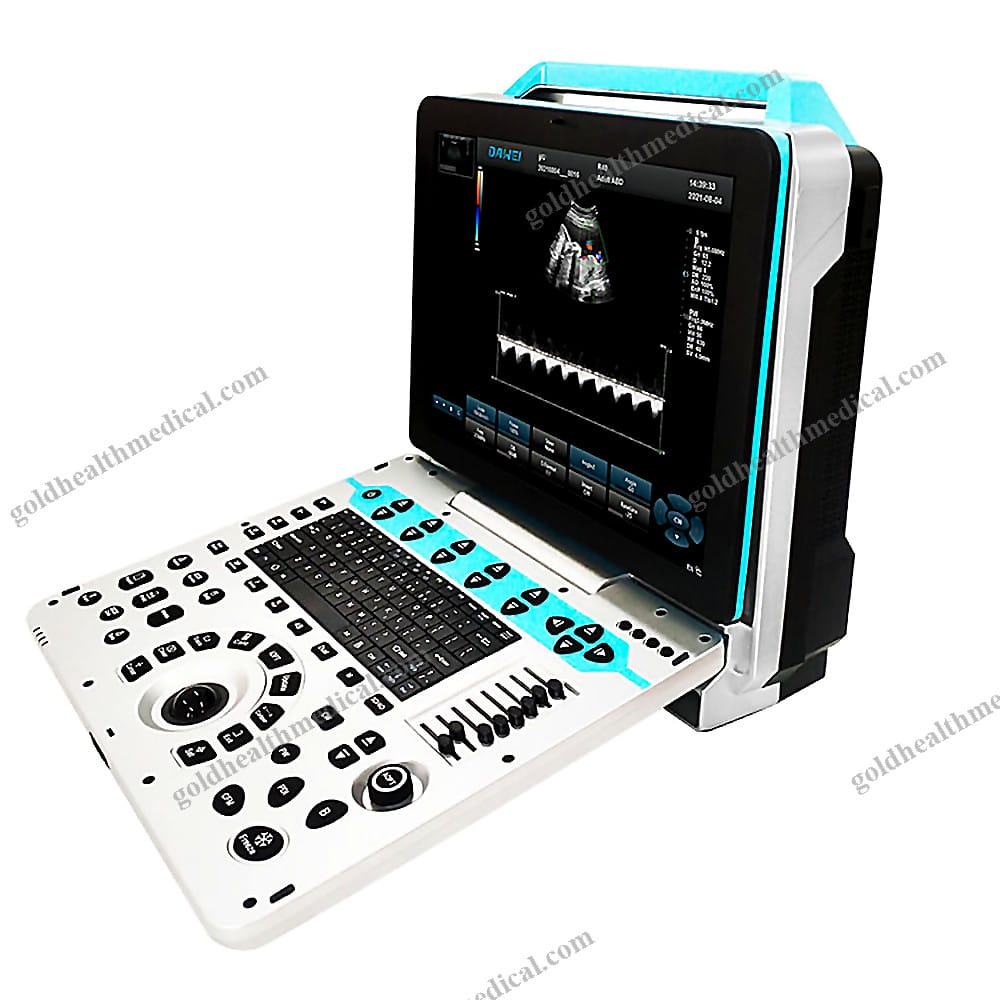

4D5D Portable Color Doppler Ultrasound System
Reference: 1600835178852Medical Ultrasound Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical presents an advanced ultrasound system designed to redefine precision and versatility in medical imaging. Engineered with cutting-edge technology, this system delivers unparalleled clarity and adaptability for a wide range of clinical applications.
Key Features
- Full-Digital Imaging: Achieve exceptional detail with 2D grayscale imaging and Full-Digital Tissue Harmonic Imaging (THI).
- Advanced Doppler Technologies: Includes Color Doppler, Directional Color Energy Doppler, Pulse Wave Doppler (PW), and Continuous Wave Doppler (CW) for comprehensive blood flow analysis.
- Enhanced Imaging Techniques: Space compound imaging and trapezoidal imaging provide superior visualization in challenging anatomical areas.
- Real-Time Synchronization: Triple real-time synchronization ensures seamless integration of multiple imaging modes.
- Adaptive Speckle Suppression: Reduces noise while preserving critical diagnostic details.
- Real-Time 3D Imaging: Delivers dynamic volumetric imaging for more accurate assessments.
- Intelligent Picture-in-Picture (PIP): Offers simultaneous multi-view imaging for enhanced diagnostic flexibility.

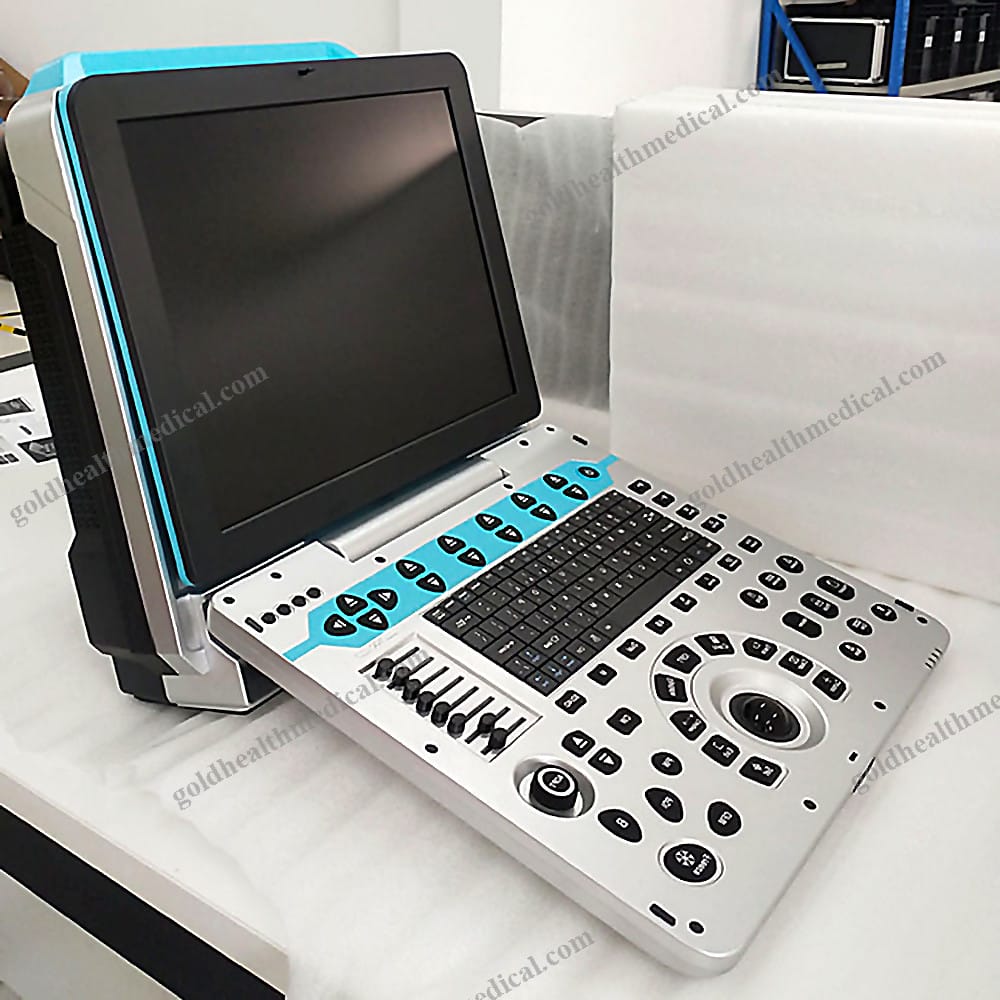

- High-Resolution Monitor: A 15-inch medical-grade LCD monitor with adjustable viewing angles ensures optimal ergonomics and clarity.
Probe Specifications
- Convex Probe:
- Frequency: 2.0-5.0 MHz (multi-frequency, Harmonic frequency ≥5 MHz)
Scanning Angle: 20°–85° (visible and adjustable)
Linear Probe:
- Frequency: 6.0-12.0 MHz (multi-frequency, Harmonic frequency ≥4 MHz)
Features trapezoidal imaging and 2D beam deflection technology
Transvaginal Probe:
- Frequency: 5.0-9.0 MHz (multi-frequency, Harmonic frequency ≥2 MHz)
Scanning Angle: 20°–160° (visible and adjustable)
Real-Time 3D (4D) Volume Probe:
Frequency: 2.0-6.0 MHz (4-segment multi-frequency)
Phased Array Probe:
- Frequency: 2.5-4.0 MHz (3-segment multi-frequency)
2D Imaging Capabilities
- Gray Scale: 256 levels for exceptional contrast resolution
- Gray Map: ≥16 levels (visible and adjustable)
- Dynamic Range: 20–280 dB (visible and adjustable)
- Resolution: Horizontal ≤1 mm; Vertical ≤0.5 mm
- Focus Adjustment: 1–6 focus points with continuous positioning
- STC Gain Control: ≥8 segments
- Line Density: ≥256 (visible and adjustable)
- Preset Options: ≥40 customizable presets tailored for specific organs

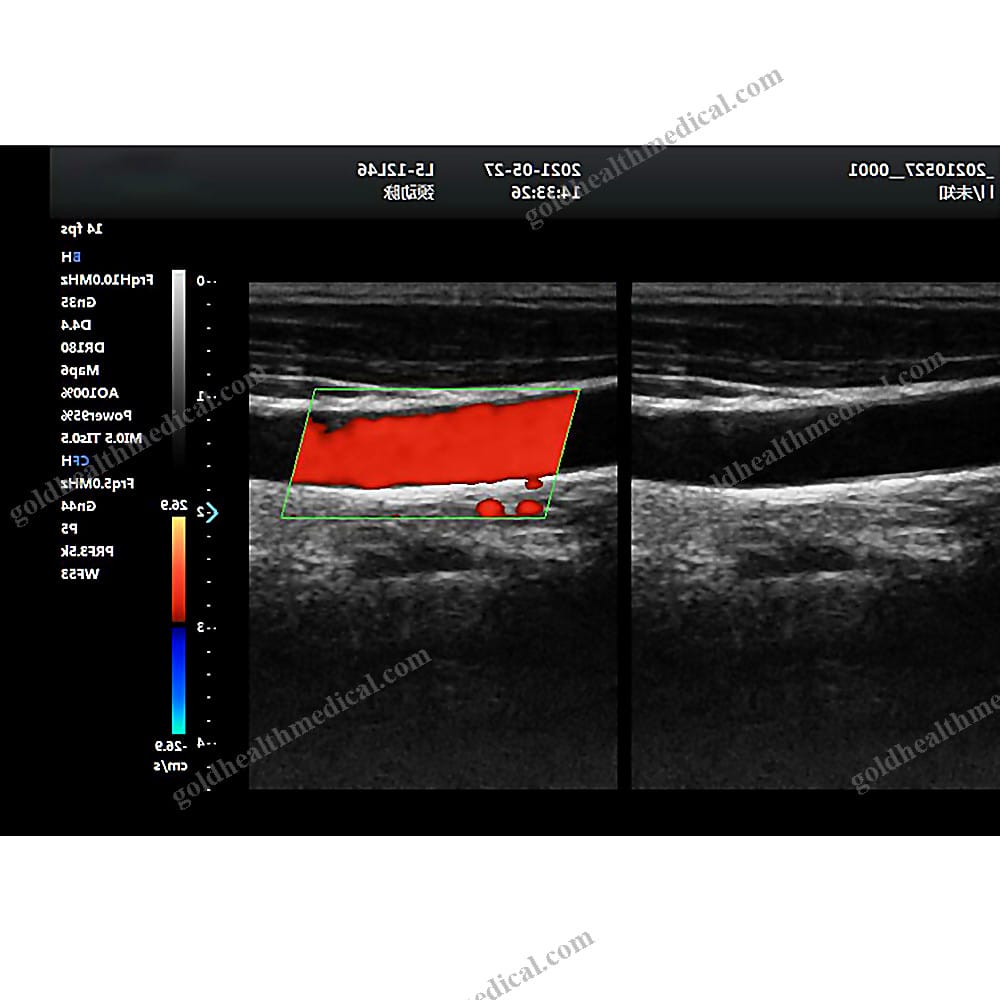

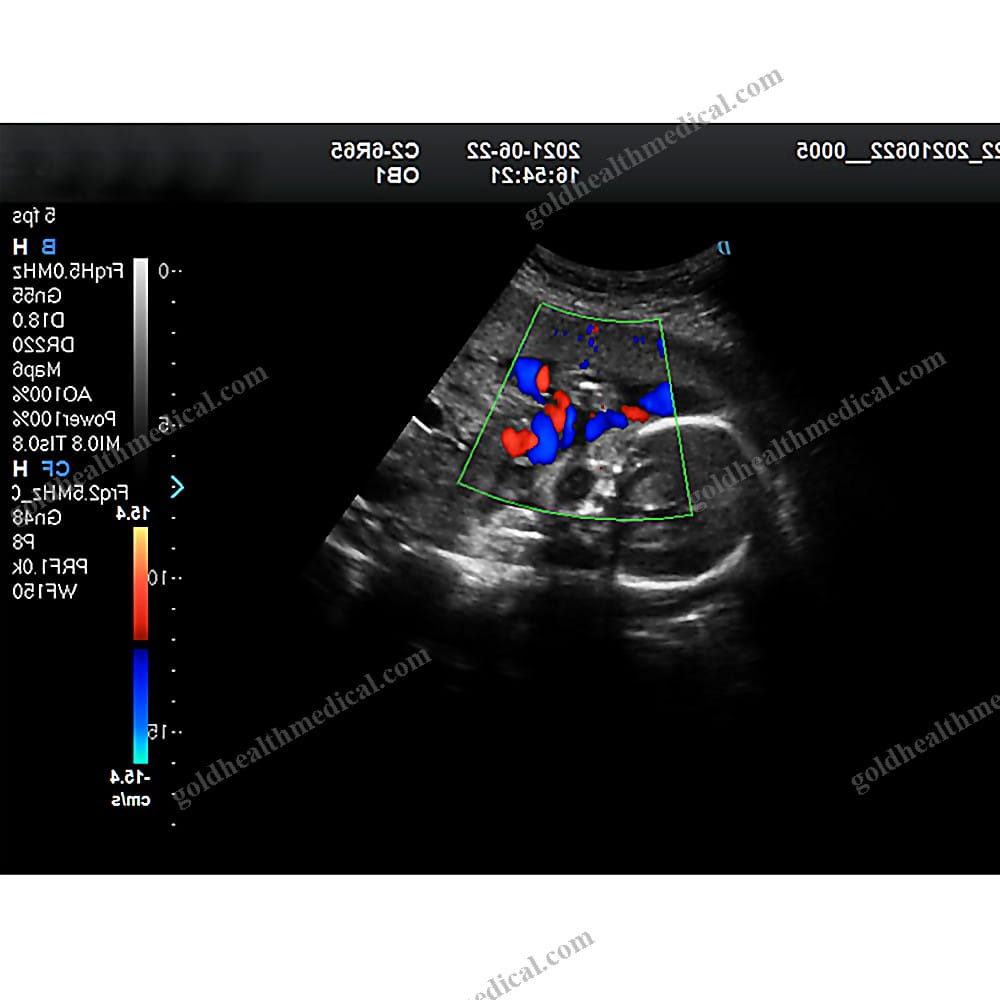

Color Blood Flow Imaging
- Color Gain: Fully adjustable
- Color Frequency: ≥3 levels (visible and adjustable)
- Sampling Frame: Adjustable size and position
- Color Blood Flow Steer: ≥3 adjustable angles
- Color Map: 1–9 levels
- Color Persist: 0–6 levels
- B/C Split Display: Available for dual-mode visualization
Applications
This system is designed for a wide range of medical specialties, including:
- Abdominal
- Urology
- Obstetrics & Gynecology (OB/GYN)
- Pediatrics/Neonatal
- Superficial/Small Organ
- Musculoskeletal
- Cardiology
Why Choose GoldHealth Medical?
- Unmatched Precision: Our system combines state-of-the-art imaging technologies with user-friendly features to deliver consistent, high-quality results.
- Customizable Solutions: Tailor the system to your specific needs with advanced presets and adaptable imaging modes.
- Comprehensive Support: Benefit from a one-year warranty and dedicated after-sales service to ensure long-term reliability.
- Global Expertise: Backed by a team of experienced engineers and medical professionals, we provide unparalleled guidance and technical support.
GoldHealth Medical is committed to empowering healthcare providers with tools that enhance diagnostic accuracy and improve patient outcomes. Experience the future of medical imaging today.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company: GoldHealth Medical
Product Introduction:
Experience the future of diagnostic precision with GoldHealth Medical's Portable Color Doppler Ultrasound. Designed for unparalleled portability and performance, this Class II medical instrument is crafted to meet the needs of modern healthcare environments. Whether in hospitals, clinics, or home care settings, its advanced imaging capabilities and user-friendly design redefine accessibility and reliability in ultrasound technology.
Key Features and Specifications:
- Material: Constructed with high-grade acrylic and durable plastic for long-lasting use and optimal performance.
- Instrument Classification: Class II medical device, ensuring compliance with rigorous industry standards.
- Power Source: Fully electric operation for consistent and reliable performance.
- Shelf Life: 2 years, maintaining accuracy and functionality over time.
- Quality Certification: CE-certified, guaranteeing safety and adherence to international quality benchmarks.
Dimensions and Packaging:
- Single Package Size: 55 x 45 x 35 cm, designed for secure and efficient transport.
- Single Gross Weight: 35.000 kg, balancing robustness with portability.
Support and Warranty:
- Warranty: Comprehensive 1-year warranty for peace of mind and long-term reliability.
- After-Sale Service: Access to online technical support, ensuring seamless operation and quick resolution of any queries.
Unique Selling Points:
- Compact and portable design, enabling use in diverse settings, from advanced medical facilities to remote locations.
- High-resolution color Doppler imaging, delivering clear and accurate diagnostic insights.
- Engineered for both professional and personal use, making it an ideal choice for a wide range of healthcare providers and end-users.
GoldHealth Medical’s Portable Color Doppler Ultrasound is more than a device—it’s a commitment to elevating healthcare standards worldwide.
