22 LCD 3D Polarized Vision Chart Monitor
Reference: 1601233930551Blood Testing Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Eye Chart System
GoldHealth Medical presents an advanced eye chart system designed to measure visual acuity with precision and ease. This system is essential for healthcare professionals, including physicians and ophthalmologists, to screen for vision impairments and monitor the effectiveness of various therapies.
Key Features
- Precision Measurement: The eye chart is placed at a standardized distance, allowing users to identify symbols starting from larger to progressively smaller sizes. The smallest identifiable symbols determine the visual acuity.

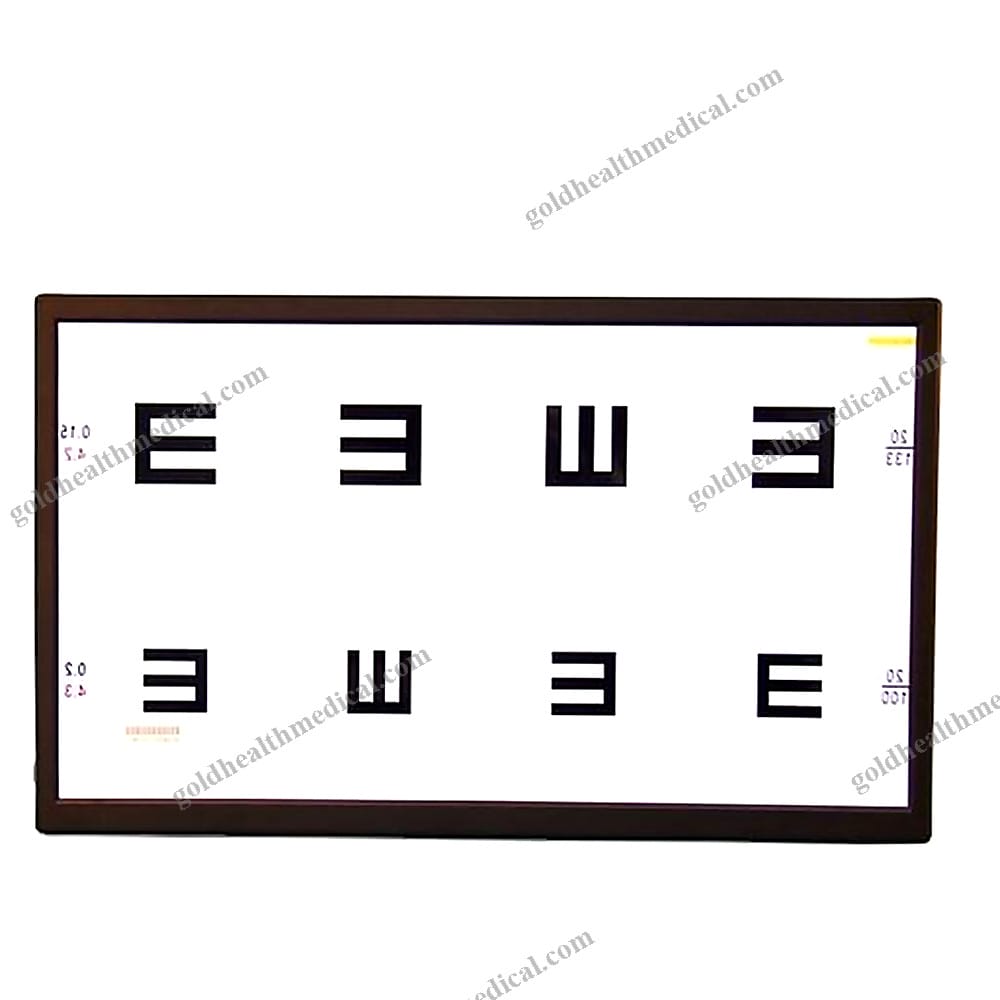

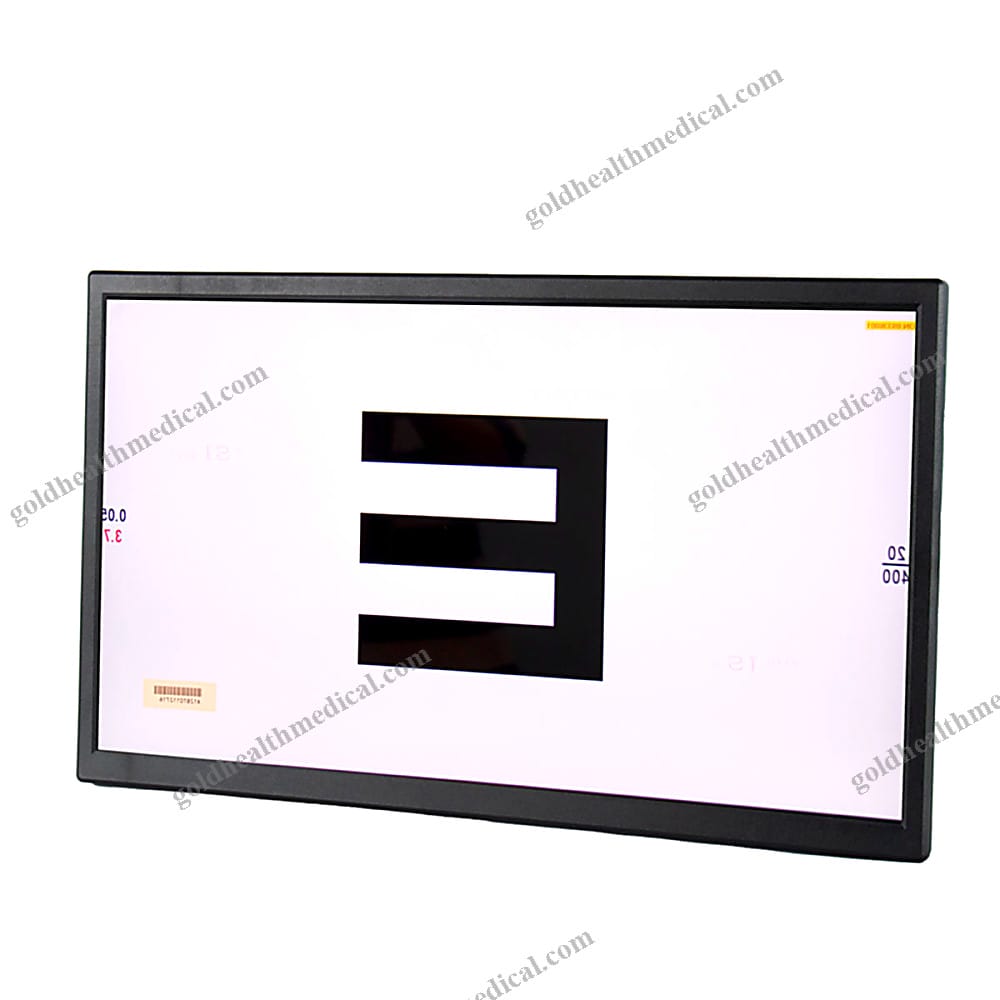

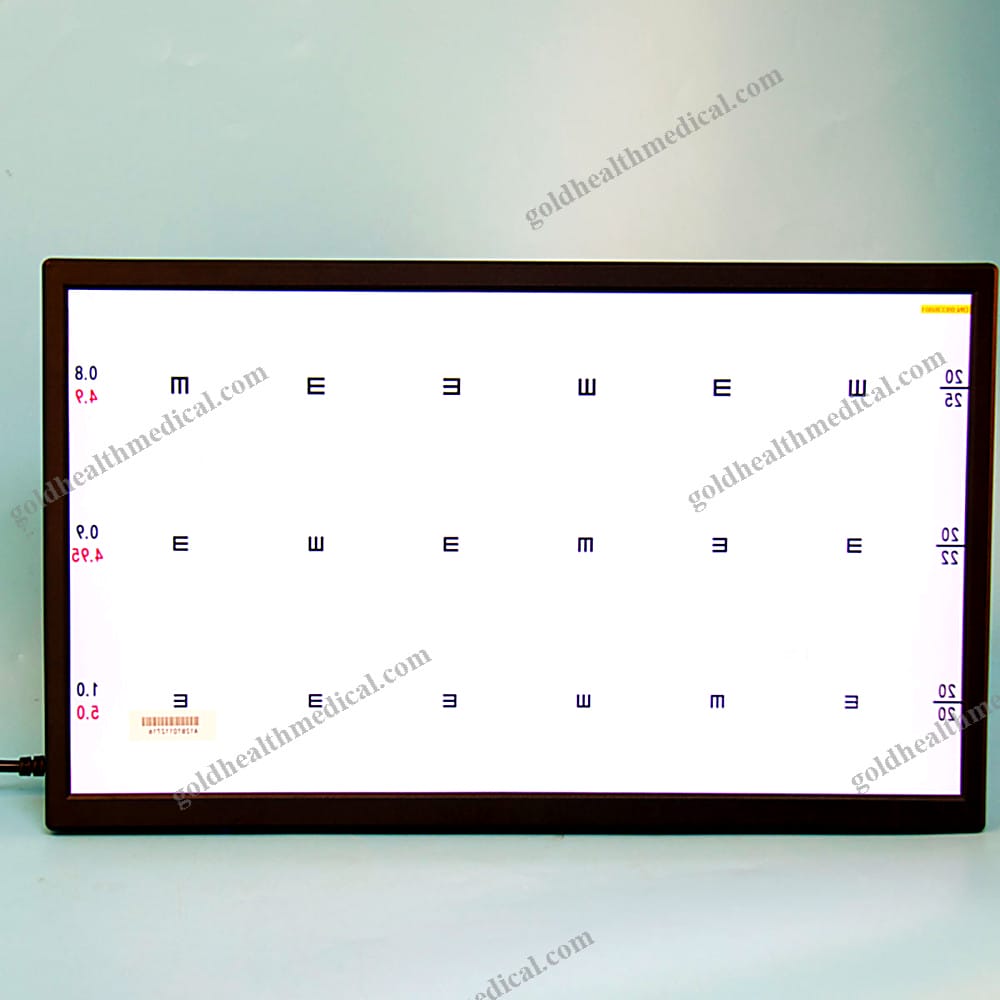

- Versatile Chart Options: Includes widely-used Snellen charts along with alternatives like logMAR, Landolt C, E chart, Lea test, Golovin–Sivtsev table, Rosenbaum chart, and Jaeger chart.
Technical Specifications
- Electrical Source: AC100V~240V/50Hz/60Hz
- Rated Power: 40W, 45W, 60W
- Standby Power: 2W
- Screen Resolution Ratio:
- 1280x1024
- 1440x900
- 1680x1050
- Dot Pitch:
- 0.264mm
- 0.284mm
- 0.282mm
- Screen Ratio: TFT
- Screen Type:
- 4:3
- 16:9
- 16:9
- Screen Size:
- 17"
- 19"
- 22"
- Visible Angle:
- 338mm x 270mm
- 408.24mm x 222.15mm
- 473.76mm x 296.1mm
- Visible Size: 16.7M
- Max. Brightness:
- 500cd/m²
- 300cd/m²
- 300cd/m²
- Max. Contrast Ratio:
- 850:1
- 2000:1
- 2000:1
- Signal Response Time: 5ms
- Size:
- 368x348x180mm
- 460x355x200mm
- 532x411x200mm
- Weight:
- 3.8kg
- 5kg
- 5.5kg
- Effective Distance:
- 2m~5m
- 2m~5m
- 2m~8m
- Vision Test Result Recording: Available
- Max. Remote-Controlling Distance: >8m
- Remote-Controlling Distance: Imperial fraction or decimal
Why Choose GoldHealth Medical?
GoldHealth Medical’s eye chart system stands out due to its precision engineering, versatile chart options, and user-friendly design. Our commitment to quality ensures reliable performance in various medical settings, from hospitals to home use.
Related Products
Explore our range of diagnostic tools and vision care solutions designed to enhance patient care and streamline professional workflows.
GoldHealth Medical: Elevating Vision Care Standards Worldwide.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the Visual Test Chart, a state-of-the-art solution designed for precise and reliable vision examinations. Engineered with cutting-edge technology, this device is ideal for optical shops, vision testing centers, and healthcare facilities. Its sleek design and advanced functionality make it an indispensable tool for eye care professionals.
Key Features and Specifications
- Application: Perfectly suited for optical shops and vision testing environments.
- Functionality: Delivers accurate and comprehensive eye sight examinations with ease.
- Screen Options: Available with 17, 19, or 22-inch high-resolution LCD screens for optimal clarity and precision.
- Color: Stylish and professional black finish to complement any medical setting.
- Weight: Lightweight at just 3.6kg, ensuring portability and easy installation.
- Material: Durable metal construction for long-lasting performance.
- Power Source: Fully electric operation for consistent and reliable performance.
Technical Details
- Instrument Classification: Class II medical device, ensuring safety and precision.
- Safety Standard: Compliant with GB15979-2002 standards for medical equipment.
- Quality Certification: Certified with CCC for assured quality and reliability.
- Shelf Life: Designed for a service life of 1 year under optimal conditions.
Warranty and Support
- Warranty: Backed by a 1-year warranty for peace of mind.
- After-Sale Service: GoldHealth Medical offers return and replacement services to ensure customer satisfaction.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative and reliable medical solutions. The Visual Test Chart stands out with its precision engineering, user-friendly design, and professional-grade performance. Whether for clinical use, research, or home testing, this device is your trusted partner in vision care.
Place of Origin: Proudly crafted in Guangdong, China, ensuring world-class manufacturing standards.
Experience the GoldHealth Medical difference today and elevate your vision testing capabilities with our Visual Test Chart.
