17x17 Tech Flat Panel Xray Detector DR Sensor
Reference: 1600824663112Medical X-ray Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

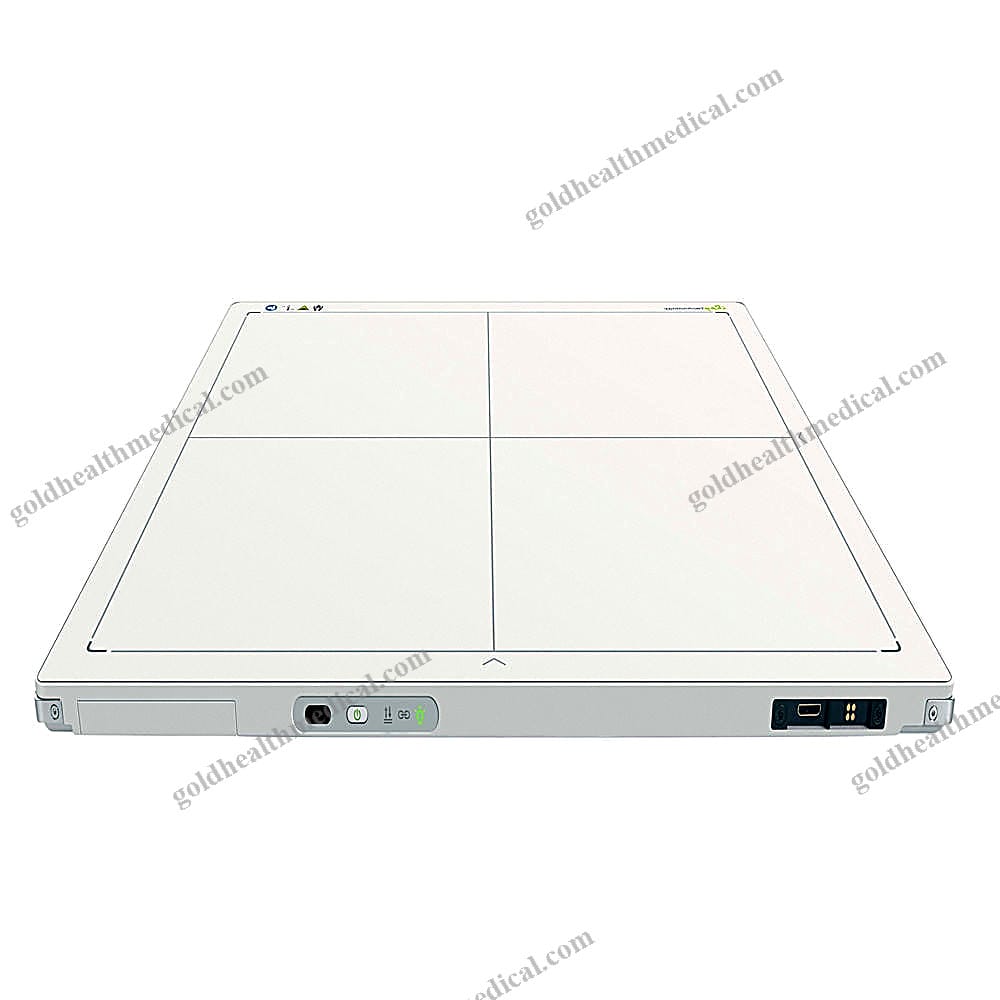

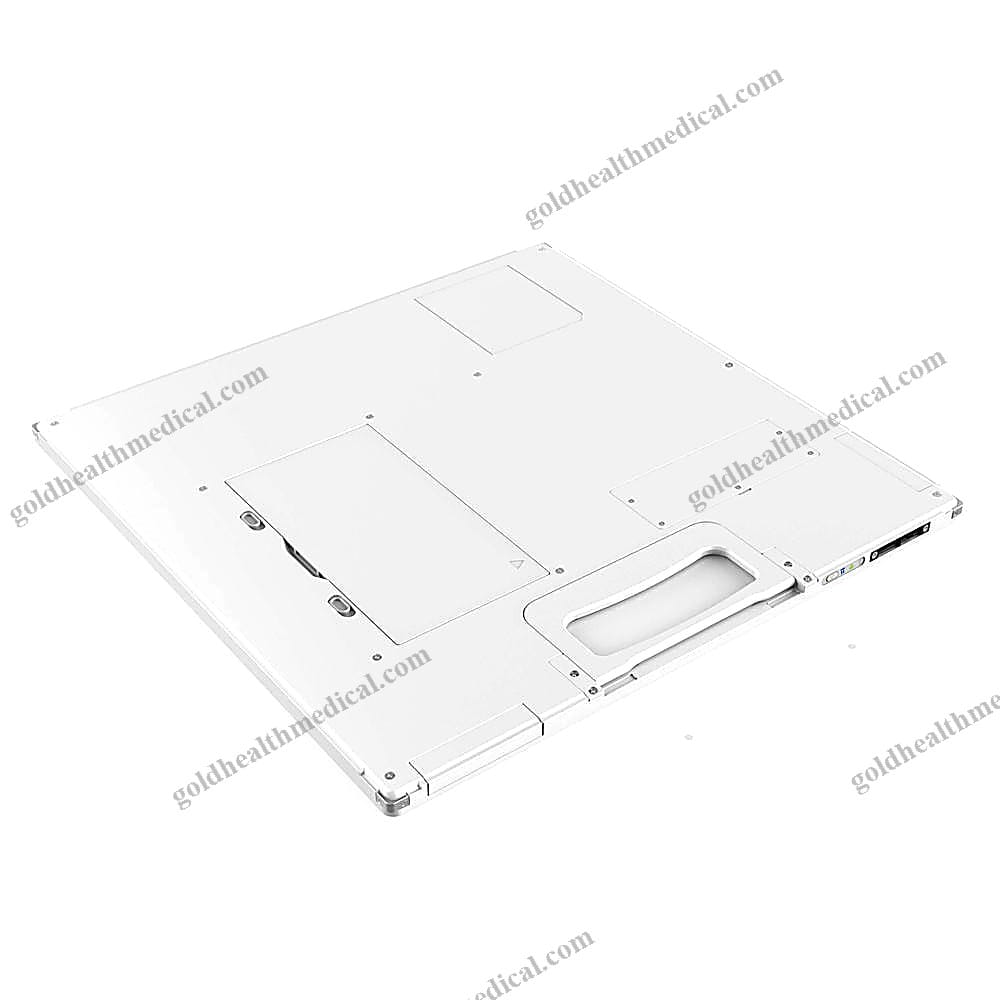

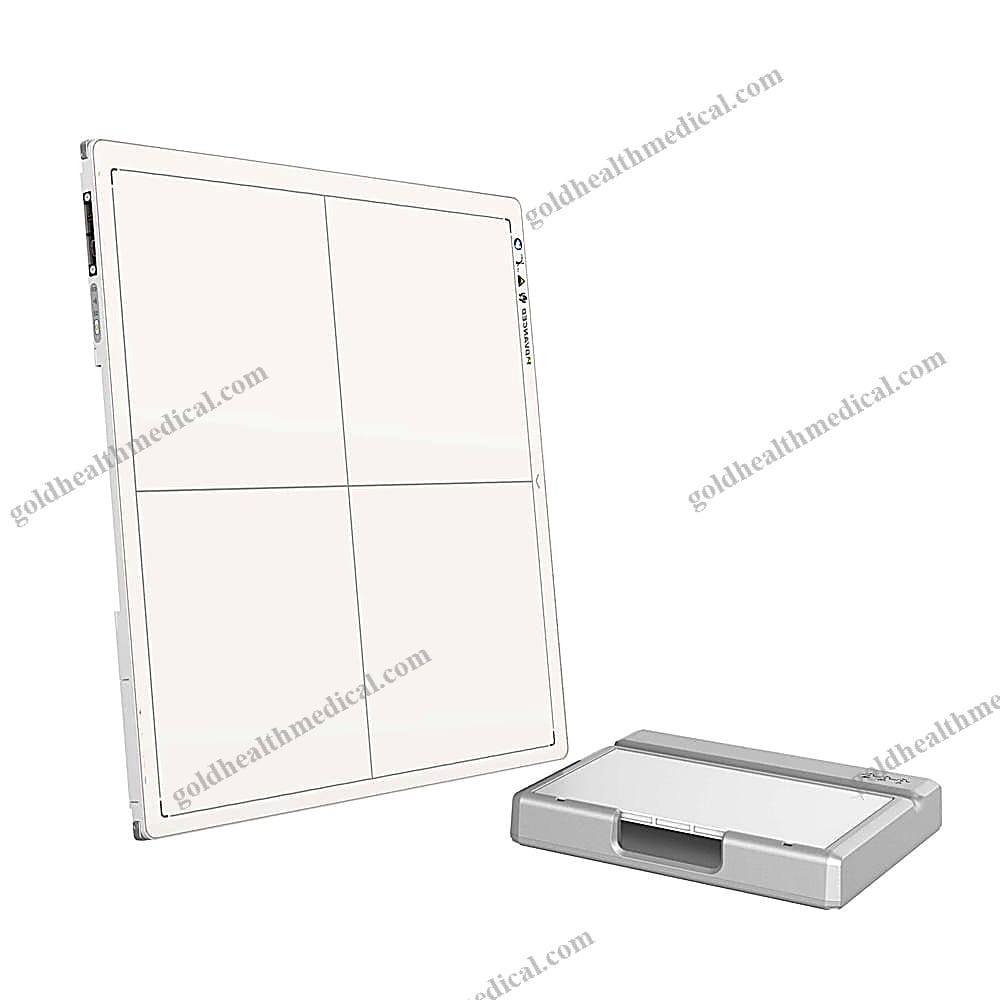

GoldHealth Medical Wireless X-Ray Flat Panel Detector
GoldHealth Medical introduces a groundbreaking wireless X-ray flat panel detector designed for radiographic imaging. Engineered with precision, this cassette-sized detector offers exceptional reliability, advanced wireless performance, and an extended battery life. It is the ultimate solution for both retrofit systems and new digital radiography setups, ensuring a seamless workflow.
Key Features
- Wireless Design: ISO 4090 compliant, fits perfectly into existing bucky systems.
- High-Resolution Imaging: 139 μm pixel pitch combined with 16-bit ADC delivers unparalleled image detail.
- Superior Image Quality: Direct deposition CsI technology ensures better clarity with reduced radiation dose.
- Stable Performance: Equipped with iSync and Automatic Exposure Detection (AED) for consistent results.
- Dual-Band Wireless Connectivity: Supports both 2.4 GHz and 5 GHz for effortless data sharing.
- Long-Lasting Battery: Ensures uninterrupted operation with smart workflow integration.
Technical Specifications
- Detector Technology: Amorphous Silicon
- Scintillator: CsI
- Active Area: 17 × 17 inches
- Pixel Matrix: 3072 × 3072
- Pixel Pitch: 139 μm
- Spatial Resolution: 3.6 lp/mm
- AD Conversion: 16-bit
- Battery Life: Up to 8 hours
- Wi-Fi: Dual-band (2.4G and 5G), IEEE802.11 a/b/g/n/ac
- Trigger Mode: AED (Optional)
- Full Image Time: 5 seconds
- Dimensions: 460 x 460 x 15 mm
- Weight: 4.6 kg
- Static Loading: 150 kg uniformly distributed
- Ingress Protection: IPX1
- Operating Temperature: 5–35°C
- Storage & Transport Temperature: -20 to 55°C
- Operating Humidity: 10–90% RH (Non-Condensing)
- Storage & Transport Humidity: 5–95% RH (Non-Condensing)
Why Choose GoldHealth Medical?
GoldHealth Medical’s wireless X-ray flat panel detector stands out with its innovative design and cutting-edge technology. The combination of high-resolution imaging, reliable wireless connectivity, and robust performance makes it an indispensable tool for modern healthcare facilities. Whether you’re upgrading an existing system or implementing a new digital radiography solution, this detector ensures precision, efficiency, and patient safety.
Applications
- Hospitals and clinics
- Diagnostic imaging centers
- Research institutions and laboratories
- Rehabilitation and long-term care facilities
- Veterinary practices
GoldHealth Medical is committed to delivering advanced medical imaging solutions that empower healthcare professionals to achieve superior diagnostic outcomes. Experience the future of radiography with our state-of-the-art flat panel detector.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical presents an advanced medical imaging solution designed to deliver exceptional precision and reliability. Engineered with cutting-edge technology, this product is tailored for healthcare professionals and institutions seeking superior diagnostic capabilities. Its sleek design and robust performance make it an ideal choice for hospitals, clinics, research labs, and home healthcare environments.
Key Features and Specifications
- Material Composition: Crafted from high-grade acrylic, metal, and resin for enhanced durability and aesthetic appeal.
- Instrument Classification: Class II medical device, ensuring compliance with rigorous safety and performance standards.
- Safety Standards: Meets GB/T18830-2009 requirements, guaranteeing user safety and operational reliability.
- Place of Origin: Proudly manufactured in Jiangsu, China, known for its excellence in medical device production.
- Power Source: Electric-powered for consistent and efficient operation.
- Shelf Life: Designed for a service life of 1 year under optimal conditions.
- Quality Certifications: Backed by CE and ISO certifications, reflecting adherence to global quality benchmarks.
Technical Highlights
- Operating Temperature: Optimized for use within 5-35°C, ensuring reliable performance in diverse environments.
- Static Loading Capacity: Supports up to 150kg uniformly distributed weight, offering stability and safety.
- Full Image Acquisition Time: Achieves full image capture in approximately 5 seconds, enhancing workflow efficiency.
- WIFI Connectivity: Equipped with dual-band 2.5G and 5G IEEE802.11 a/b/g/n/ac for seamless data transmission.
- Pixel Matrix: Delivers ultra-high resolution with a 30723072 pixel matrix, providing crystal-clear imaging.
- Dimensions: Compact design with dimensions of 460460*15mm, ensuring easy integration into any workspace.
Warranty and Support
- Warranty Period: Comprehensive 1-year warranty for peace of mind.
- After-Sale Service: Access to online technical support, ensuring prompt assistance whenever needed.
Packaging and Delivery
- Packaging Details: Securely packaged in durable cartons to protect against transit damage.
- Ports: Ships from major ports including Shanghai and Guangzhou for global accessibility.
- Supply Ability: Capable of delivering up to 1000 units per day, ensuring timely availability for large-scale orders.
GoldHealth Medical is committed to empowering healthcare providers with innovative solutions that redefine precision and efficiency in medical imaging. Choose excellence, choose GoldHealth Medical.
