15T MRI Scanner for Orthopedics
Reference: 1601234129326Medical MRI Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical MRI System
GoldHealth Medical presents an advanced MRI system designed to deliver unparalleled precision and patient comfort. Engineered with cutting-edge technology, this system is ideal for hospitals, clinics, and research institutions seeking exceptional imaging performance.
Key Features and Specifications
Magnet System
- Magnet Type: Permanent Magnet with an automatic constant temperature system for consistent performance.
- Field Strength: 0.3T, ensuring high-quality imaging with excellent clarity.

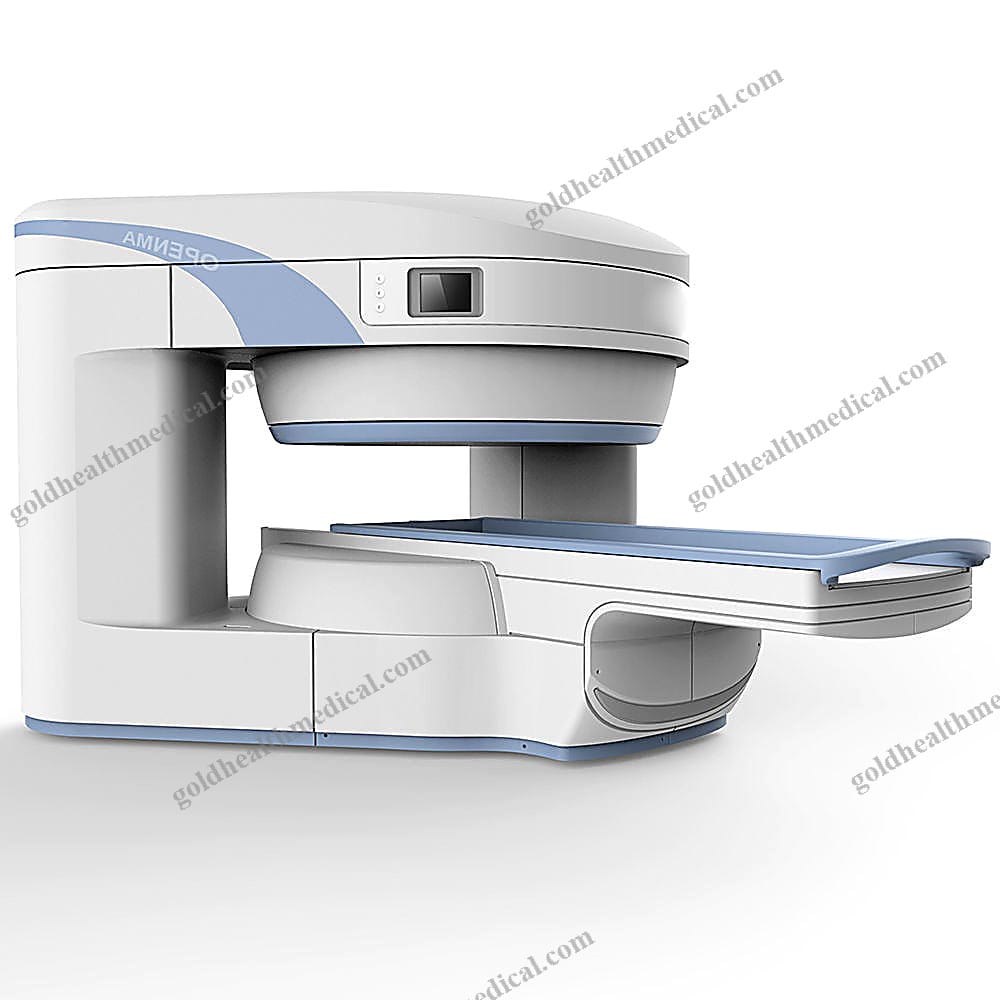

- Magnet Shape: C-shape design for enhanced accessibility and patient comfort.
- Homogeneity (40cm DSV, VRMS): ≤2.0ppm, providing exceptional image uniformity.
- Shim Method: Active/Passive, allowing precise adjustments for optimal imaging.
- Magnet Vertical Gap (Cover): 40cm, offering ample space for various imaging needs.
- Accessibility (Horizontal Opening Angle): 320°, facilitating easy patient positioning.
- 5 Gauss Fringe Field:
- X-axis (horizontal): ≤2.5m
- Y-axis (vertical): ≤2.5m
- Z-axis (horizontal): ≤2.5m

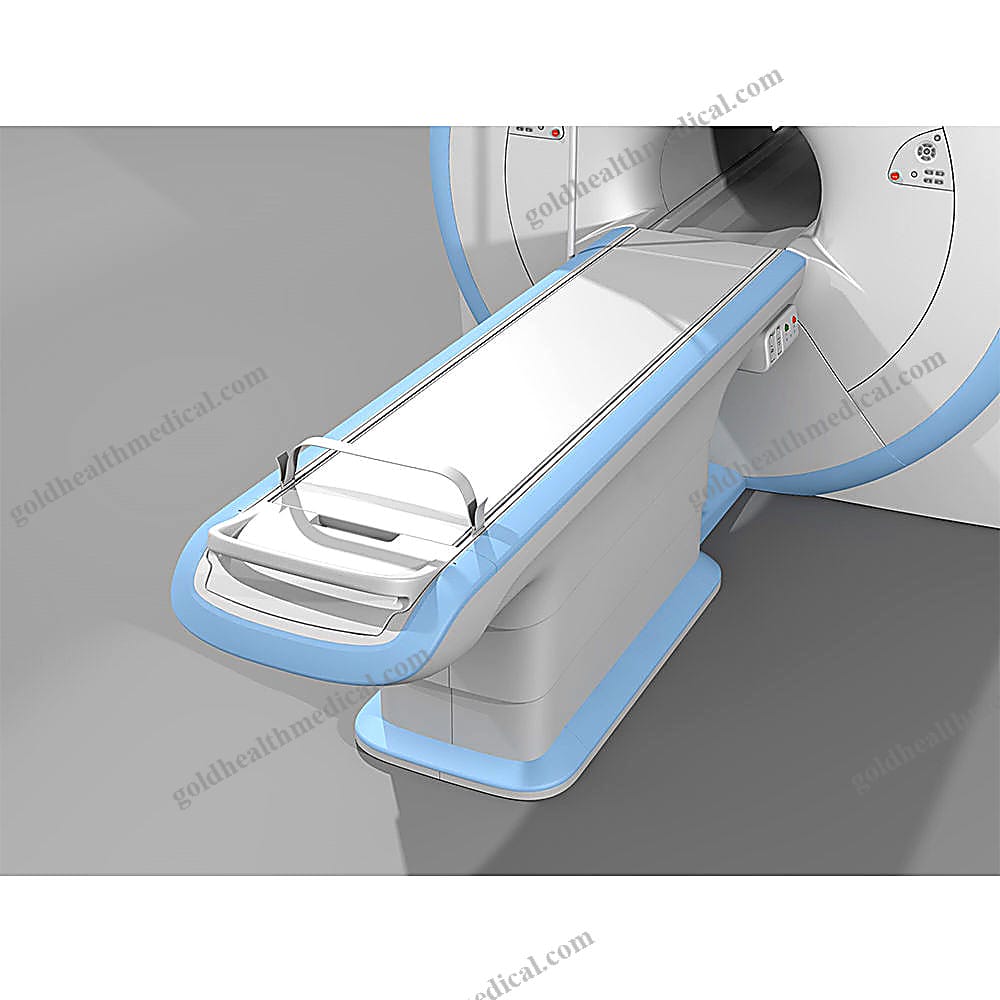

Patient Couch and Communication
- Patient Couch Driven Mode: Motor-driven for smooth and precise movement.
- Max. Patient Weight: Supports up to 200kg (440lbs), accommodating a wide range of patients.
- Patient Positioning Tools: Equipped with a laser light localizer and motor-driven transfer to the center of the imaging volume for accurate positioning.
- Position Accuracy: ±1mm, ensuring exact placement for reliable imaging results.
- Emergency Call Key: Included for immediate assistance.
- Intercom System: Facilitates clear communication between the operator and patient.
Gradient System
- Gradient Field Strength (Single Axis): ≥28mT/m, enabling detailed imaging.
- Gradient Slew Rate (Single Axis): ≥93mT/m/ms, supporting rapid imaging sequences.
- Rise Time: ≤0.3ms, allowing for quick gradient response.
- Gradient Cooling System: Air-cooled gradient coils and power electronics for efficient operation.
RF System
- RF System Type: Digital Transmit and Receive for superior signal processing.
- Number of RF Channels: 4, enhancing imaging capabilities.
- Transmitter Amplifier Peak Power: 6kW, ensuring robust signal transmission.
- RF Bandwidth of Receiver: ≥1MHz, capturing a broad range of frequencies.
- Available Coils:
- Head Coil
- Neck Coil
- Body/Spine Coil (17 inch)
- Body/Spine Coil (20 inch)
- Knee Coil
- Shoulder Coil
Computer System
- Host Computer: High-performance professional MR computer.
- System Software: Windows 7, providing a familiar and reliable operating environment.
- Operation Software: APEX, designed for intuitive and efficient workflow.
- CPU Clock Rate: 3.6GHz, ensuring fast processing speeds.
- Main Memory: 2GB, supporting smooth operation.
- Color LCD Monitor: 19”, offering clear and detailed image display.
- Keyboard and Mouse: Standard, for ease of use.
- Image Reconstruction Speed (256 x 256 Matrix): 1500 FPS, enabling rapid image processing.
- Hard Disk: 500 GB, providing ample storage for extensive imaging data.
- Image Storage Capacity (256 x 256 Matrix): 2,650,000 images, ensuring long-term data retention.
- Media Driver: DVD RW, for convenient data transfer and backup.
GoldHealth Medical's MRI system combines innovative design with advanced technology to deliver exceptional imaging quality and patient care. This system is engineered to meet the diverse needs of medical professionals and institutions, ensuring reliable performance and outstanding results.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: MRI Machine Medical by GoldHealth Medical
Key Features and Benefits:
- Advanced Permanent Magnet Technology: Equipped with a C-shape magnet design and an automatic constant temperature system for consistent performance.
- Exceptional Imaging Precision: Delivers a field strength of 0.3T with homogeneity ≤2.0ppm (40cm DSV, VRMS), ensuring high-quality diagnostic imaging.
- Unmatched Accessibility: Features a 320° horizontal opening angle and a 40cm vertical gap, providing ergonomic access for patients and ease of operation for medical professionals.
- Active/Passive Shim Method: Ensures optimal magnetic field alignment for enhanced image clarity and diagnostic accuracy.
Technical Specifications:
- Magnet Type: Permanent Magnet with Automatic Constant Temperature System
- Magnet Shape: C-shape
- Field Strength: 0.3T
- Homogeneity: ≤2.0ppm (40cm DSV, VRMS)
- Magnet Vertical Gap (Cover): 40cm
- Accessibility (Horizontal Opening Angle): 320°
- Shim Method: Active/Passive
Quality and Safety Standards:
- Compliant with GB/T18830-2009 safety standards
- Certified by CE, ISO, and TUV for reliability and performance
Durability and Support:
- Shelf Life: 3 years
- Warranty: Comprehensive 2-year warranty with an optional 3-year extended coverage
- After-Sale Service: Includes onsite training to ensure seamless integration into your facility
Construction and Design:
- Material: Durable steel construction for long-lasting use
- Instrument Classification: Class II medical device
Applications:
Ideal for hospitals, clinics, research institutions, laboratories, rehabilitation centers, and home healthcare settings. Designed to meet the needs of medical professionals and provide exceptional patient care.
GoldHealth Medical is committed to delivering cutting-edge medical technology that combines precision, reliability, and user-centric design to elevate healthcare standards worldwide.
