15T MRI Scanner for Orthopedics Departments
Reference: 10000020782324Medical MRI Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

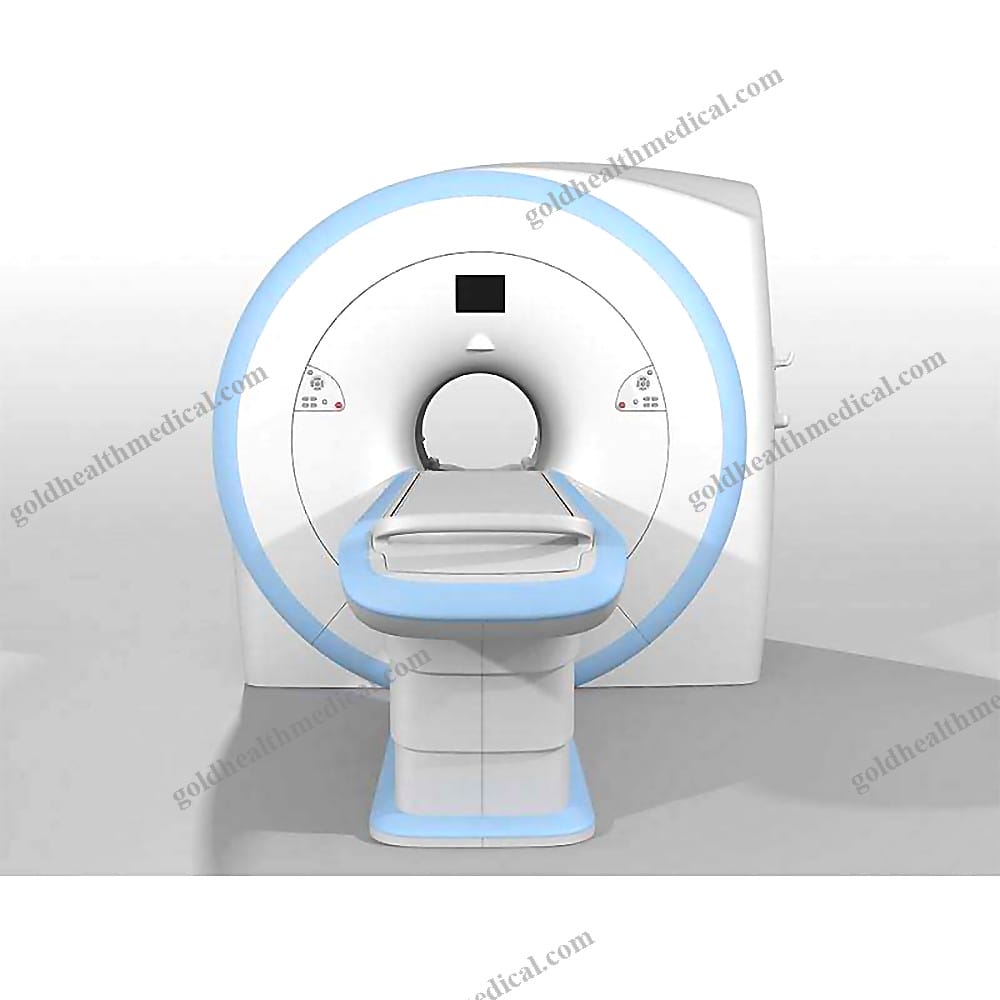

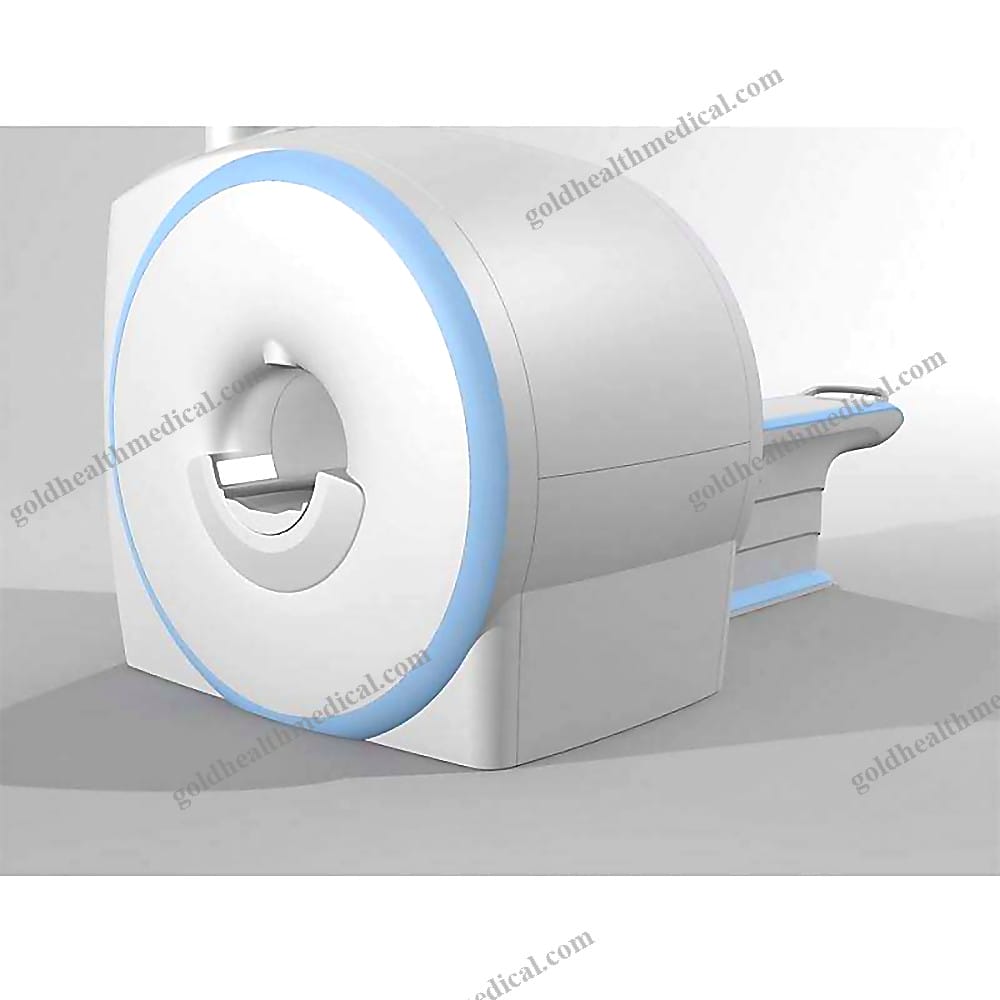

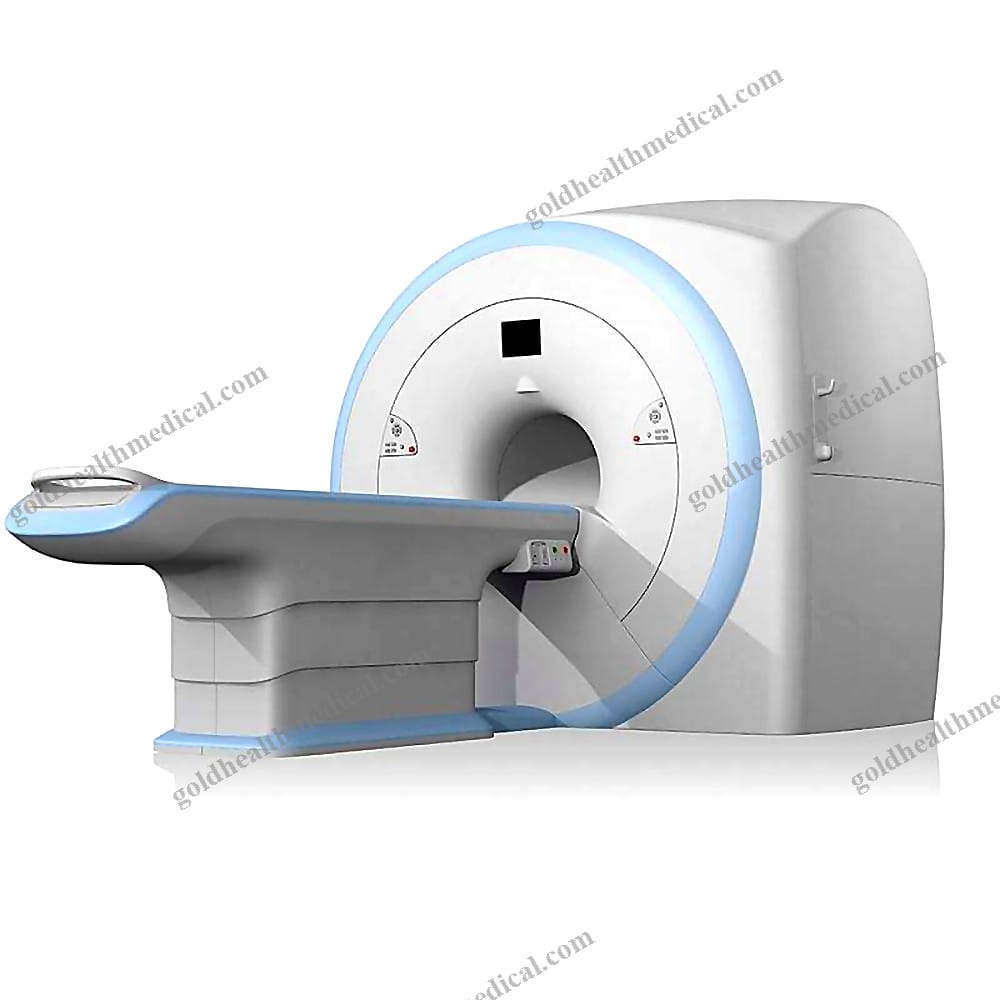

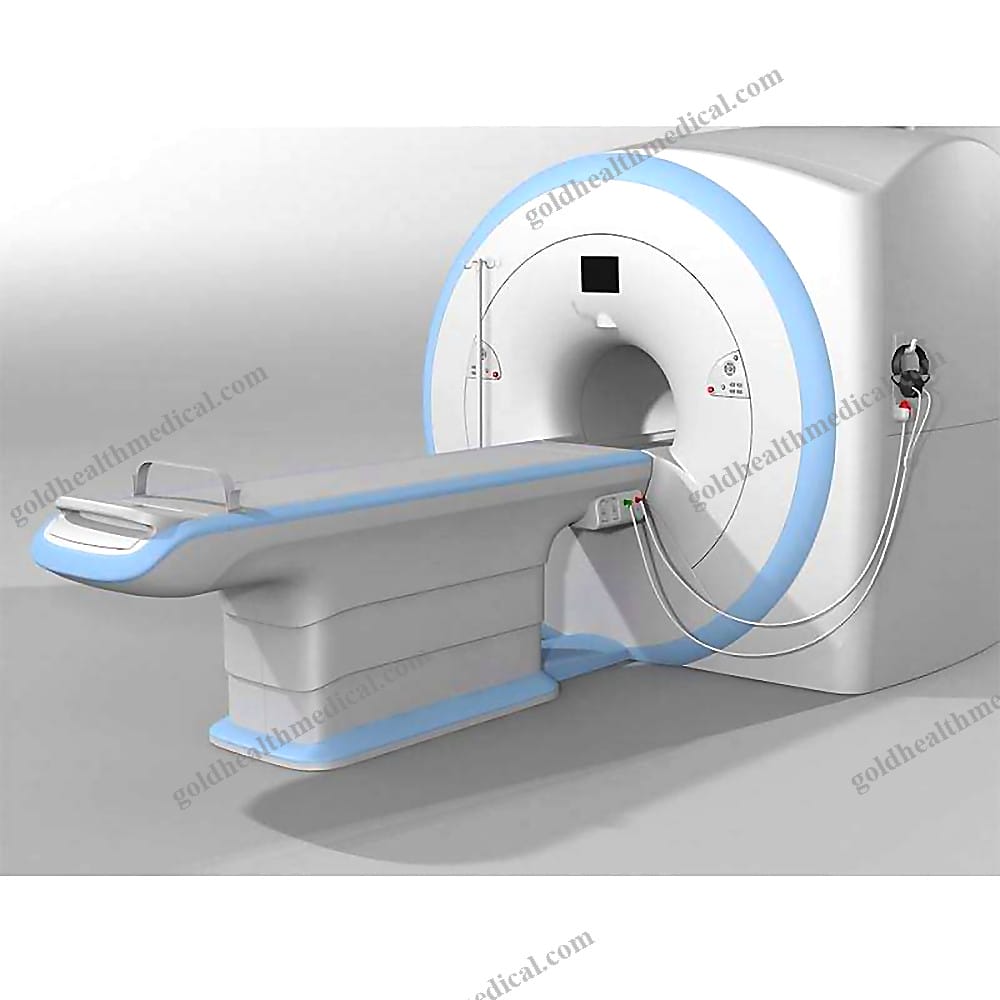

GoldHealth Medical MRI System
Magnet System
- Magnet Type: Permanent Magnet with an automatic constant temperature system for consistent performance.
- Field Strength: 0.3T, ensuring reliable and clear imaging.

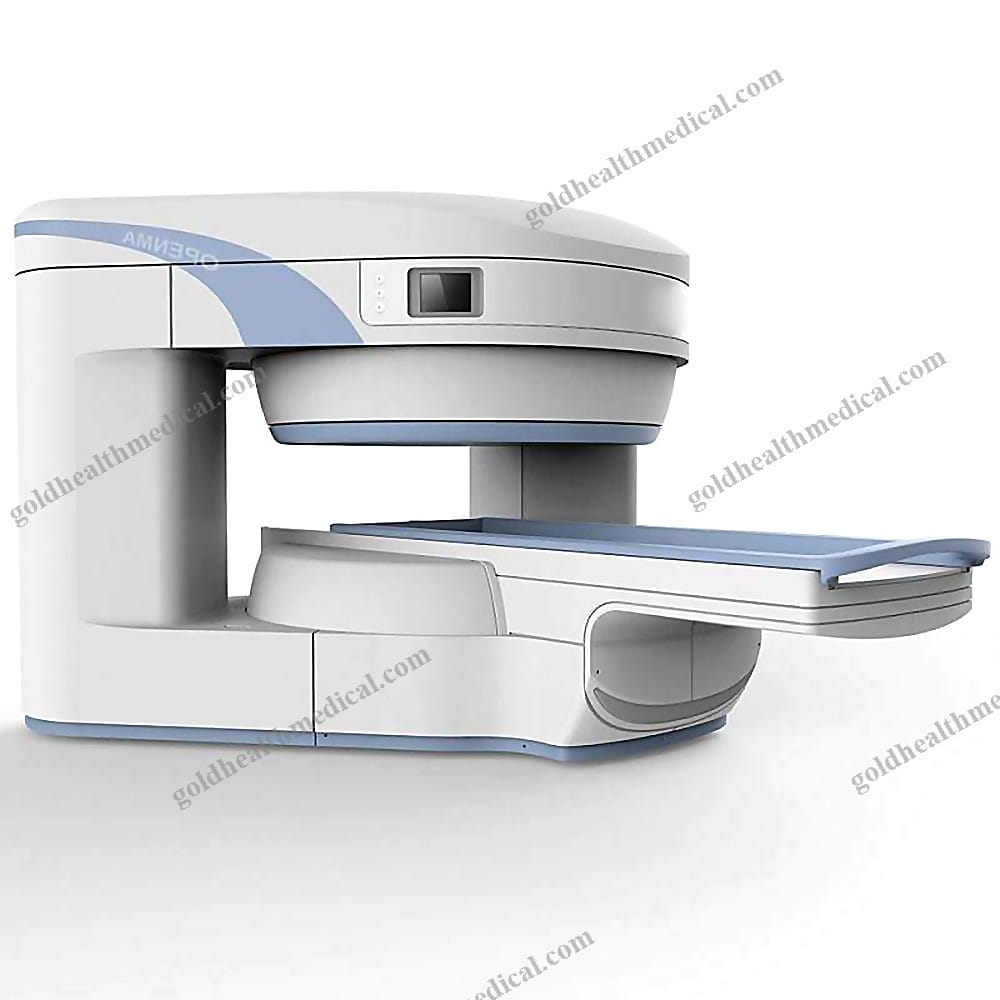

- Magnet Shape: C-shape design for enhanced patient accessibility.
- Homogeneity (40cm DSV, VRMS): ≤2.0ppm, delivering exceptional image clarity.
- Shim Method: Active/Passive, for precise adjustments and optimal image quality.
- Magnet Vertical Gap (Cover): 40cm, providing ample space for patient comfort.
- Accessibility (Horizontal Opening Angle): 320°, offering unparalleled ease of access.
- 5 Gauss Fringe Field:
- X-axis (horizontal): ≤2.5m
- Y-axis (vertical): ≤2.5m
- Z-axis (horizontal): ≤2.5m
Patient Couch and Communication

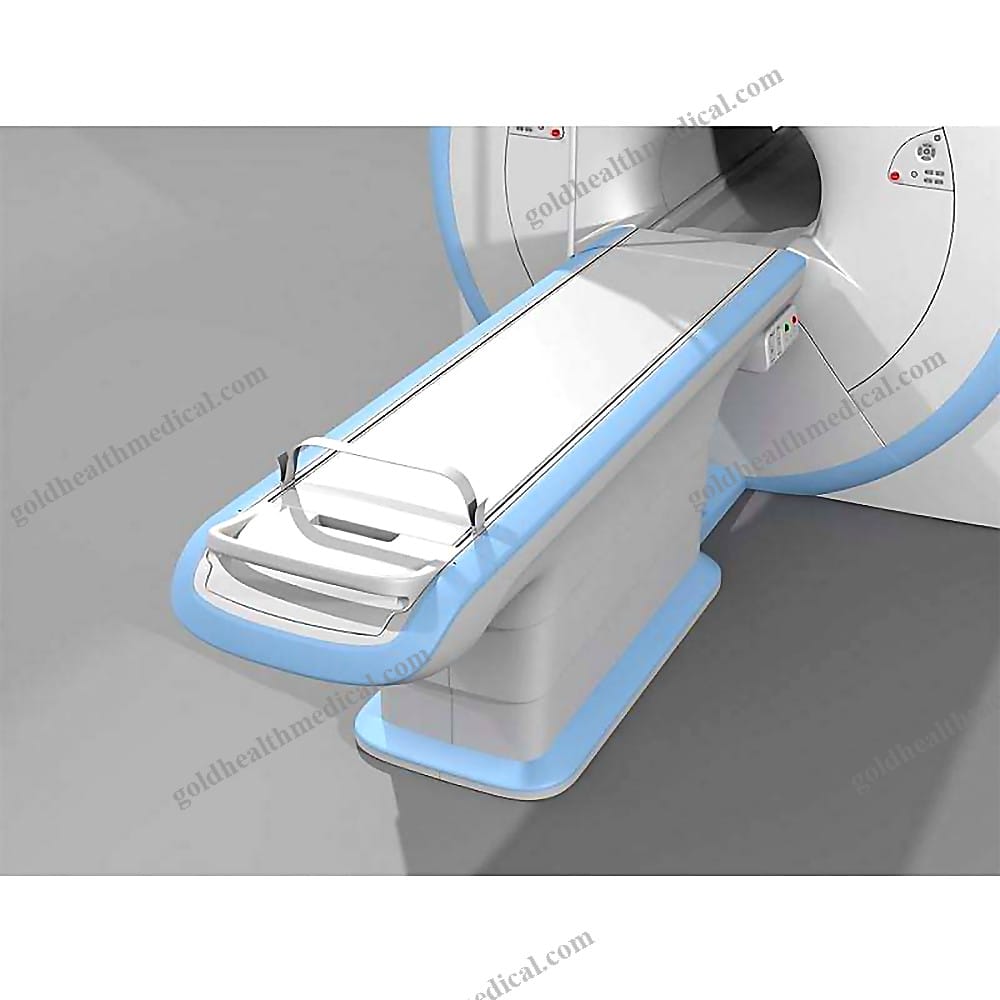

- Patient Couch Driven Mode: Motor-driven for smooth and precise movement.
- Max. Patient Weight: Supports up to ≥200kg (440lbs), accommodating a wide range of patients.
- Patient Positioning Tools: Equipped with a laser light localizer for accurate center slice positioning and motor-driven transfer to the center of the imaging volume.
- Position Accuracy: ±1mm, ensuring exact placement for high-quality imaging.
- Emergency Call Key: Included for immediate assistance.
- Intercom System: Facilitates clear communication between the operator and patient.
Gradient System
- Gradient Field Strength (Single Axis): ≥28mT/m, enabling detailed imaging.
- Gradient Slew Rate (Single Axis): ≥93mT/m/ms, for rapid and precise gradient changes.
- Rise Time: ≤0.3ms, ensuring quick response times.
- Gradient Cooling System (Gradient coils and Power electronics): Air Cooling, maintaining optimal operating temperatures.
RF System
- RF System Type: Digital Transmit and Receive, for advanced signal processing.
- Number of RF Channels: 4, supporting complex imaging protocols.
- Transmitter Amplifier Peak Power: 6kW, delivering robust performance.
- RF Bandwidth of Receiver: ≥1MHz, capturing a wide range of frequencies.
- Available Coils:
- Head Coil
- Neck Coil
- Body/Spine Coil (17 inch)
- Body/Spine Coil (20 inch)
- Knee Coil
- Shoulder Coil
Computer System
- Host Computer: High-performance professional MR system.
- System Software: Windows 7, ensuring compatibility and reliability.
- Operation Software: APEX, designed for intuitive and efficient operation.
- CPU Clock Rate: 3.6GHz, providing fast processing speeds.
- Main Memory: 2GB, supporting smooth operation.
- Color LCD Monitor: 19”, offering clear and detailed visuals.
- Keyboard and Mouse: Standard, for ease of use.
- Image Reconstruction Speed (256 x 256 Matrix): 1500 FPS, enabling rapid image processing.
- Hard Disk: 500 GB, providing ample storage.
- Image Storage Capacity (256 x 256 Matrix): 2,650,000 images, ensuring extensive data retention.
- Media Driver: DVD RW, for convenient data transfer and backup.
GoldHealth Medical's MRI system combines cutting-edge technology with user-centric design, delivering exceptional imaging capabilities and patient comfort. This system is ideal for hospitals, clinics, research institutions, and more, offering precision, reliability, and ease of use.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: MRI Machine Medical by GoldHealth Medical
Key Features and Benefits:
- Advanced Permanent Magnet Technology: Equipped with a C-shape magnet design and automatic constant temperature system for consistent performance.
- Exceptional Accessibility: A 320° horizontal opening angle ensures ease of patient positioning and enhanced comfort during procedures.
- High Field Strength and Precision: Delivers a robust 0.3T magnetic field with homogeneity of ≤2.0ppm (40cm DSV, VRMS), enabling accurate and reliable imaging.
- Active/Passive Shim Method: Ensures optimal magnetic field alignment for superior image quality.
- Durable and Robust Build: Constructed with high-grade steel for long-lasting performance in demanding medical environments.
Technical Specifications:
- Magnet Type: Permanent Magnet with automatic constant temperature system
- Magnet Shape: C-shape
- Magnet Vertical Gap (Cover): 40cm
- Field Strength: 0.3T
- Homogeneity (40cm DSV, VRMS): ≤2.0ppm
- Accessibility (Horizontal Opening Angle): 320°
- Shim Method: Active/Passive
- Power Source: Electric
- Instrument Classification: Class II
Quality and Safety Standards:
- Compliant with GB/T18830-2009 safety standards
- Certified by CE, ISO, and TUV for assured reliability and performance
Warranty and Support:
- Warranty Period: 3 years (extendable to 2 additional years with premium support plans)
- After-Sale Service: Comprehensive onsite training provided to ensure seamless integration into your facility
Packaging Details:
- Selling Units: Single item
- Single Package Size: Customizable based on client requirements
- Single Gross Weight: Optimized for secure and efficient transportation
Applications:
Ideal for hospitals, clinics, research institutions, rehabilitation centers, and home healthcare settings, offering precise diagnostic capabilities with user-friendly operation.
GoldHealth Medical is committed to delivering cutting-edge medical solutions that empower healthcare professionals and enhance patient outcomes. Choose excellence, choose GoldHealth Medical.
