Product summary
GoldHealth Medical MRI System
Magnet System
- Magnet Type: Permanent Magnet with an automatic constant temperature system for consistent performance.
- Field Strength: 0.3 Tesla, delivering reliable imaging quality.

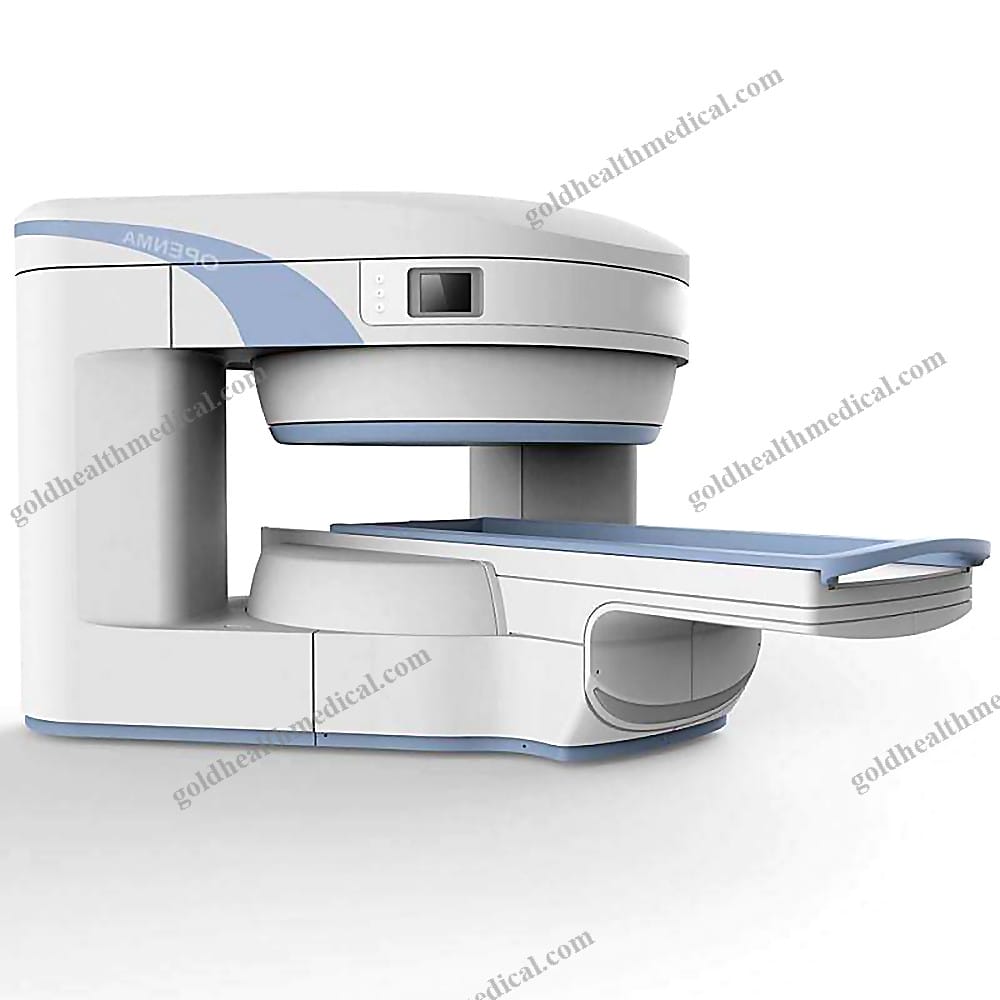

- Magnet Shape: C-shape design for enhanced patient accessibility and comfort.
- Homogeneity (40cm DSV, VRMS): ≤2.0ppm, ensuring exceptional image clarity.
- Shim Method: Active/Passive shimming for precise field adjustments.
- Magnet Vertical Gap (Cover): 40cm, providing ample space for patient positioning.
- Accessibility (Horizontal Opening Angle): 320°, offering unparalleled ease of access.
- 5 Gauss Fringe Field:
- X-axis (horizontal): ≤2.5m
- Y-axis (vertical): ≤2.5m
- Z-axis (horizontal): ≤2.5m
Patient Couch and Communication

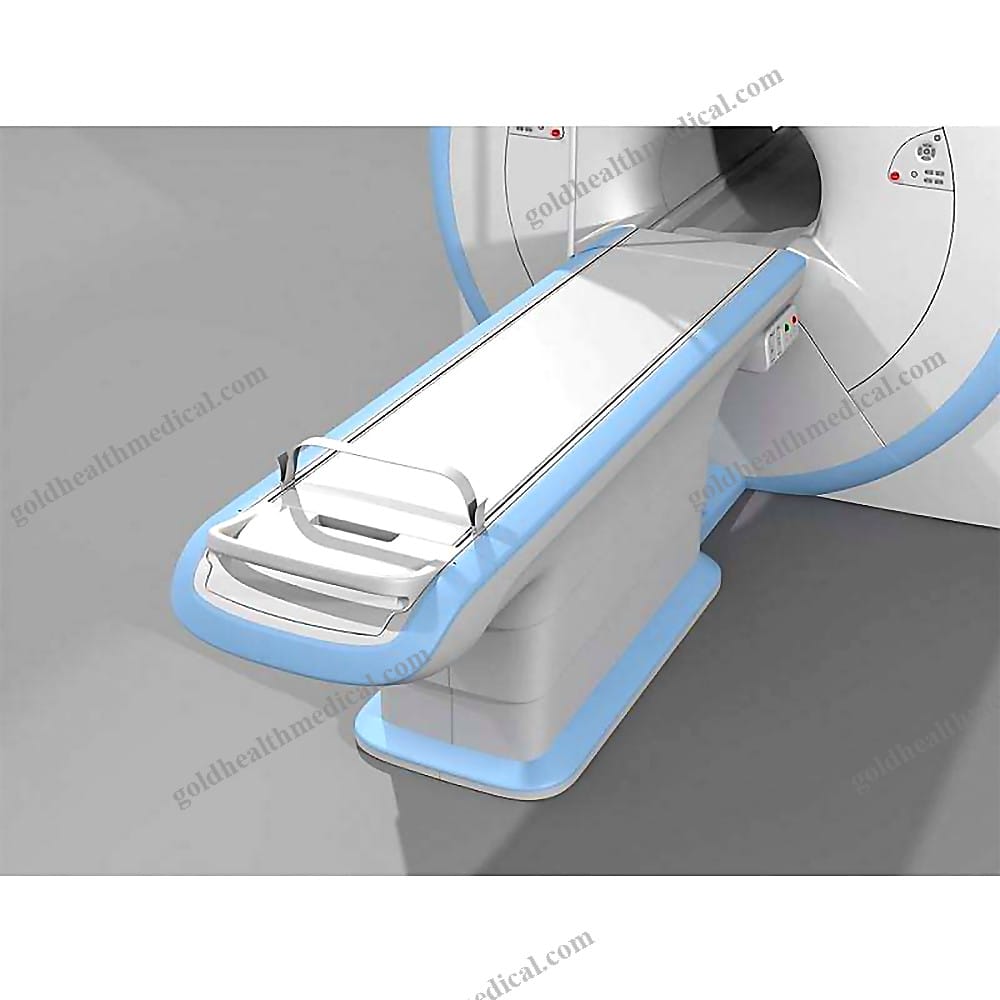

- Patient Couch Driven Mode: Motor-driven for smooth and precise movement.
- Max. Patient Weight: Supports up to 200kg (440lbs), accommodating a wide range of patients.
- Patient Positioning Tools: Equipped with a laser light localizer and motor-driven transfer for accurate alignment to the imaging center.
- Position Accuracy: ±1mm, ensuring precision in every scan.
- Emergency Call Key: Included for immediate assistance during procedures.
- Intercom System: Facilitates clear communication between the operator and patient.
Gradient System
- Gradient Field Strength (Single Axis): ≥28mT/m, enabling high-resolution imaging.
- Gradient Slew Rate (Single Axis): ≥93mT/m/ms, ensuring rapid gradient switching.
- Rise Time: ≤0.3ms, minimizing delays for faster imaging.
- Gradient Cooling System: Air-cooled gradient coils and power electronics for efficient thermal management.
RF System
- RF System Type: Digital Transmit and Receive for superior signal processing.
- Number of RF Channels: 4 channels for advanced imaging capabilities.
- Transmitter Amplifier Peak Power: 6kW, delivering robust performance.
- RF Bandwidth of Receiver: ≥1MHz, supporting detailed image acquisition.
- Coil Compatibility:
- Head Coil
- Neck Coil
- Body/Spine Coil (17 inch)
- Body/Spine Coil (20 inch)
- Knee Coil
- Shoulder Coil
Computer System
- Host Computer: High-performance professional-grade system optimized for MRI applications.
- System Software: Windows 7, ensuring stability and compatibility.
- Operation Software: APEX, designed for intuitive and efficient workflow.
- CPU Clock Rate: 3.6GHz, enabling fast data processing.
- Main Memory: 2GB, supporting seamless operation.
- Color LCD Monitor: 19-inch display for clear visualization.
- Keyboard and Mouse: Standard configuration for ease of use.
- Image Reconstruction Speed (256 x 256 Matrix): 1500 FPS, ensuring rapid results.
- Hard Disk: 500GB storage capacity for extensive data retention.
- Image Storage Capacity (256 x 256 Matrix): Capable of storing up to 2,650,000 images.
- Media Driver: DVD RW for convenient data transfer.
GoldHealth Medical’s MRI system combines cutting-edge technology with user-centric design, delivering precision, reliability, and accessibility for diverse medical environments. Whether in hospitals, clinics, or research facilities, this system sets a new standard for diagnostic excellence.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: MRI Machine Medical by GoldHealth Medical
Key Features and Benefits:
- Advanced Magnet Technology: Equipped with a Permanent Magnet Automatic Constant Temperature System, ensuring consistent performance and reliability.
- Optimized Design: Features a C-shaped magnet with a 40cm vertical gap and a 320° horizontal opening angle, providing exceptional accessibility and patient comfort.
- High Field Strength: Delivers a robust 0.3T magnetic field, ensuring clear and precise imaging for accurate diagnostics.
- Superior Homogeneity: Achieves ≤2.0ppm homogeneity within a 40cm DSV, guaranteeing exceptional image quality and diagnostic confidence.
- Active/Passive Shim Method: Ensures optimal magnetic field alignment for consistent imaging results.
Technical Specifications:
- Magnet Type: Permanent Magnet with Automatic Constant Temperature System
- Magnet Shape: C-shape
- Magnet Vertical Gap (Cover): 40cm
- Accessibility (Horizontal Opening Angle): 320°
- Field Strength: 0.3T
- Homogeneity (40cm DSV, VRMS): ≤2.0ppm
- Shim Method: Active/Passive
Quality and Safety:
- Safety Standard Compliance: Meets GB/T18830-2009 standards
- Certifications: CE, ISO, TUV
- Instrument Classification: Class II
Durability and Support:
- Shelf Life: 3 years
- Warranty: 3 years of comprehensive coverage
- After-Sale Service: Onsite training provided to ensure seamless integration and optimal use
Construction and Materials:
- Material: High-grade steel for durability and stability
Packaging Details:
- Selling Units: Single item
- Single Package Size: XX cm
- Single Gross Weight: XX kg
GoldHealth Medical’s MRI Machine is engineered to deliver unparalleled precision, reliability, and ease of use, making it an ideal choice for hospitals, clinics, research institutions, and rehabilitation centers. With its innovative design and advanced features, this MRI machine sets a new standard in medical imaging technology.
