051T MRI Scanner Machine
Reference: 1601252088280Medical MRI Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

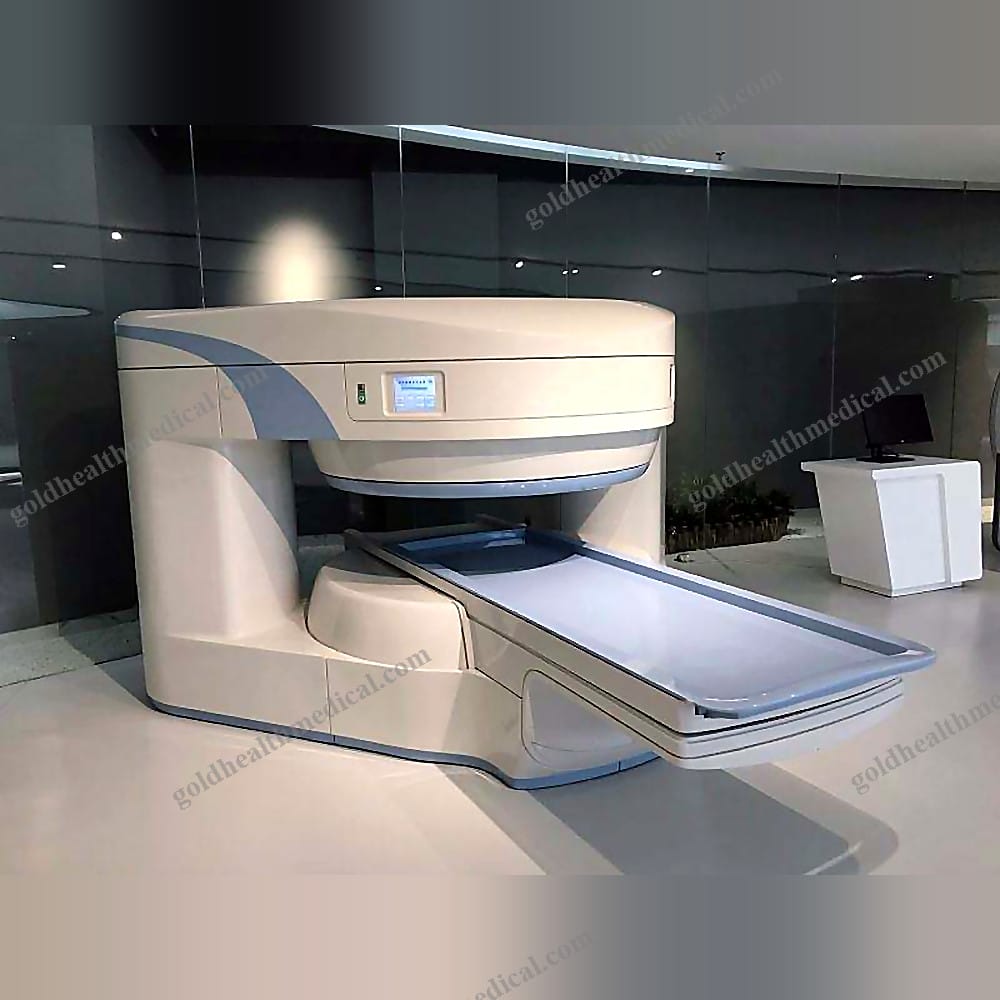

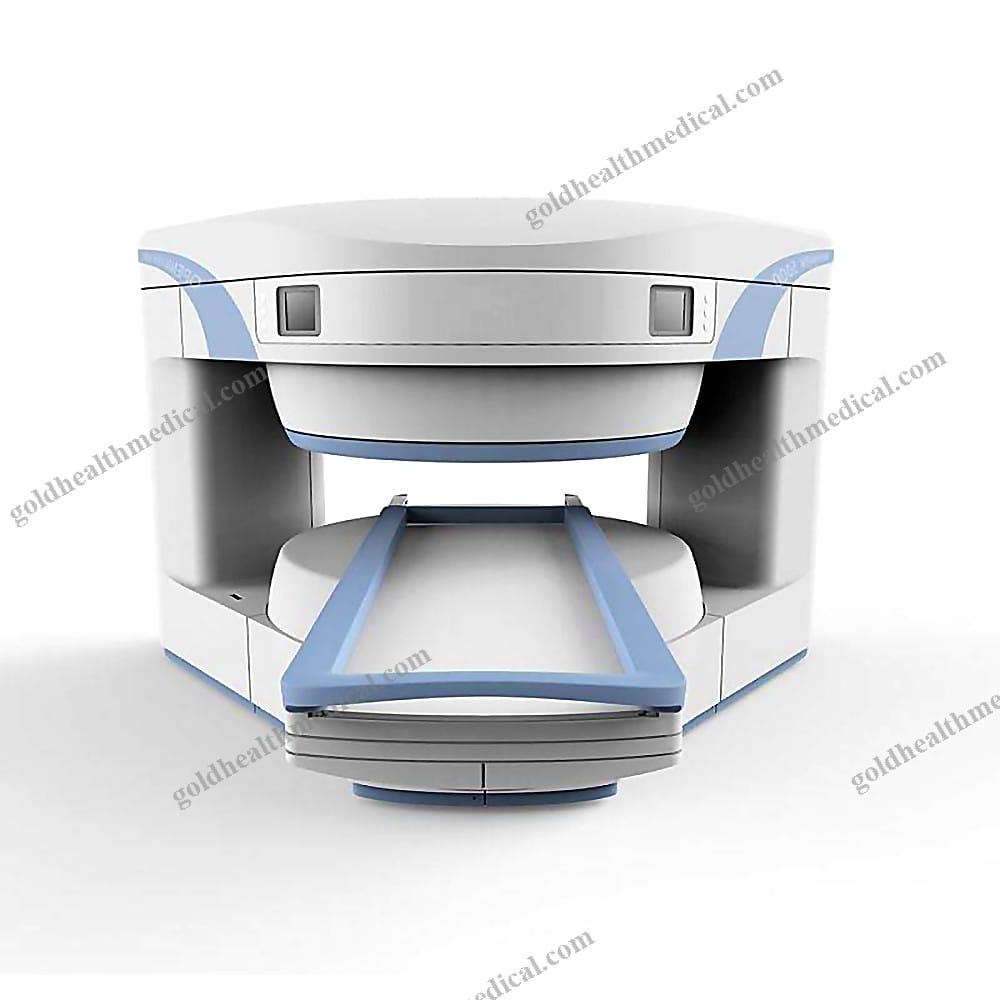

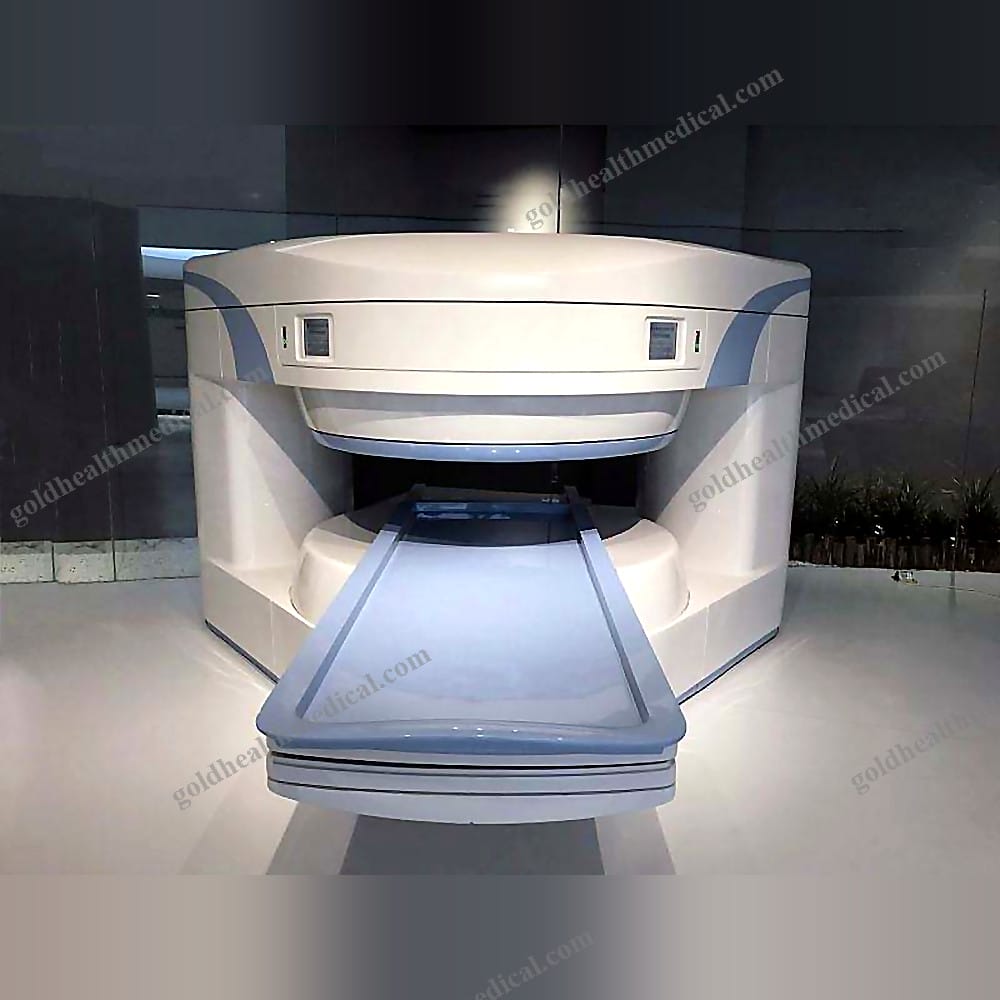

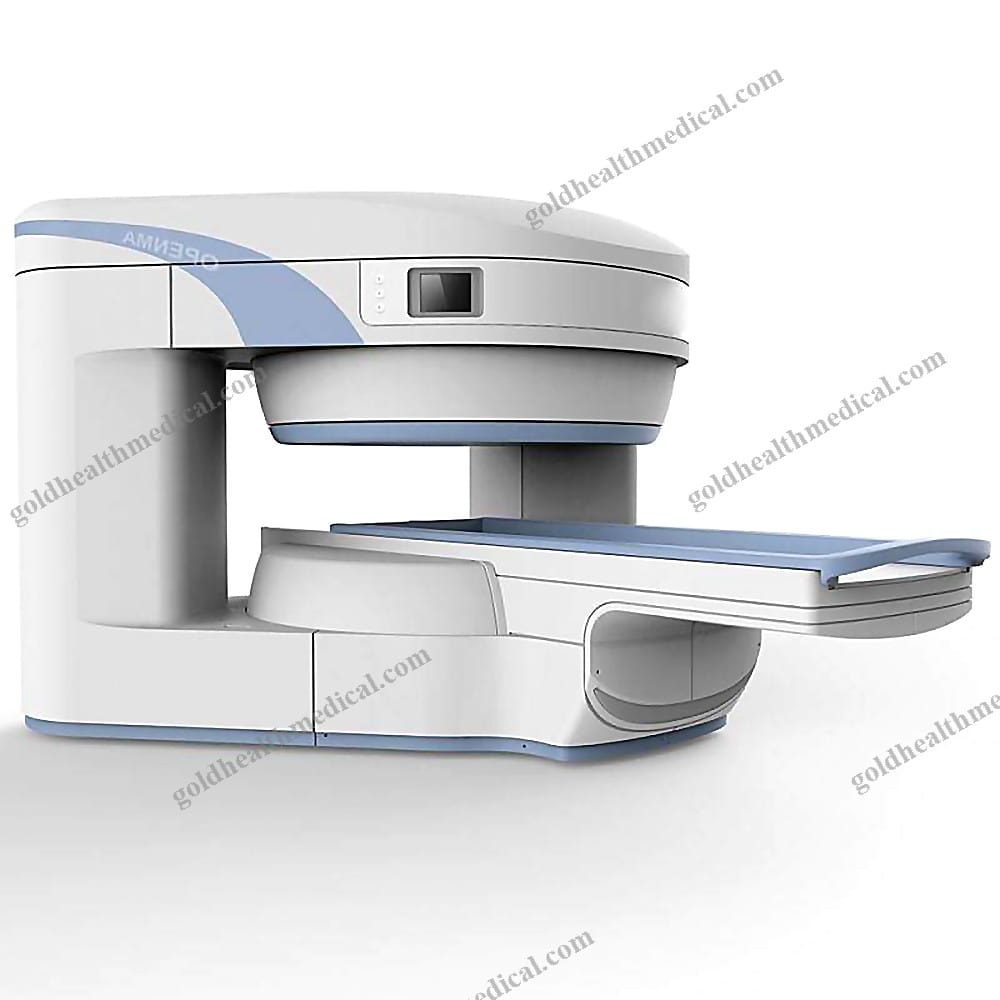

GoldHealth Medical MRI System
Unparalleled Precision and Accessibility
GoldHealth Medical presents an advanced MRI system designed to deliver exceptional imaging quality while prioritizing patient comfort and operational efficiency. This state-of-the-art system is engineered for hospitals, clinics, and research institutions seeking reliable and high-performance diagnostic tools.
Key Features and Technical Specifications
Magnet System- Magnet Type: Permanent Magnet with an automatic constant temperature system for consistent performance.
- Field Strength: 0.3T, ensuring clear and detailed imaging.
- Magnet Shape: C-shape design for enhanced accessibility and reduced patient anxiety.
- Homogeneity (40cm DSV, VRMS): ≤2.0ppm, guaranteeing uniform magnetic fields for accurate results.
- Shim Method: Active/Passive, optimizing field homogeneity.
- Magnet Vertical Gap (Cover): 40cm, providing ample space for patient comfort.
- Accessibility (Horizontal Opening Angle): 320°, offering unparalleled ease of access.
- 5 Gauss Fringe Field:
- X-axis (horizontal): ≤2.5m
- Y-axis (vertical): ≤2.5m
- Z-axis (horizontal): ≤2.5m
- Patient Couch Driven Mode: Motor-driven for smooth and precise positioning.
- Max. Patient Weight: Supports up to 200kg (440lbs), accommodating a wide range of patients.
- Patient Positioning Tools: Equipped with a laser light localizer and motor-driven transfer to ensure accurate alignment within the imaging volume.
- Position Accuracy: ±1mm, ensuring pinpoint precision during scans.
- Emergency Call Key: Integrated for immediate assistance.
- Intercom System: Facilitates clear communication between the operator and patient.
- Gradient Field Strength (Single Axis): ≥28mT/m, enabling high-resolution imaging.
- Gradient Slew Rate (Single Axis): ≥93mT/m/ms, ensuring rapid gradient switching.
- Rise Time: ≤0.3ms, minimizing delays for faster imaging.
- Gradient Cooling System: Air-cooled gradient coils and power electronics for reliable performance.
- RF System Type: Digital Transmit and Receive for superior signal clarity.
- Number of RF Channels: 4, supporting advanced imaging techniques.
- Transmitter Amplifier Peak Power: 6kW, delivering robust signal transmission.
- RF Bandwidth of Receiver: ≥1MHz, capturing a wide range of frequencies.
- RF Coils:
- Head Coil
- Neck Coil
- Body/Spine Coil (17 inch)
- Body/Spine Coil (20 inch)
- Knee Coil
- Shoulder Coil
- Host Computer: High-performance professional-grade system.
- System Software: Optimized for seamless operation.
- Operation Software: APEX, designed for intuitive control and efficient workflows.
- CPU Clock Rate: 3.6GHz, ensuring rapid processing.
- Main Memory: 2GB, supporting multitasking and data-intensive operations.
- Color LCD Monitor: 19”, providing a clear and detailed display.
- Keyboard and Mouse: Standard, for ease of use.
- Image Reconstruction Speed (256 x 256 Matrix): 1500 FPS, enabling real-time image processing.
- Hard Disk: 500GB, offering ample storage for extensive imaging data.
- Image Storage Capacity (256 x 256 Matrix): 2,650,000 images, ensuring long-term data retention.
- Media Driver: DVD RW, for convenient data transfer and backup.
Why Choose GoldHealth Medical?
GoldHealth Medical’s MRI system combines cutting-edge technology with user-centric design. Its permanent magnet system, advanced gradient capabilities, and comprehensive RF coil options make it a versatile solution for diverse medical imaging needs. With a focus on precision, accessibility, and patient comfort, this system sets a new standard in diagnostic imaging.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: MRI Machine Medical by GoldHealth Medical
Key Features and Benefits:
- Advanced Permanent Magnet Technology: Equipped with a C-shaped magnet design and automatic constant temperature system for consistent performance.
- Superior Accessibility: Offers a horizontal opening angle of 320°, ensuring ease of patient positioning and enhanced comfort during procedures.
- High Field Strength: Delivers a magnetic field strength of 0.3T, providing clear and precise imaging for accurate diagnostics.
- Exceptional Homogeneity: Achieves ≤2.0ppm homogeneity within a 40cm DSV (Diameter Spherical Volume), ensuring reliable and high-quality imaging results.
- Active/Passive Shim Method: Optimizes magnetic field precision for consistent imaging quality.
- Magnet Vertical Gap: A generous 40cm gap allows for flexible patient handling and improved workflow efficiency.
Technical Specifications:
- Instrument Classification: Class II medical device
- Safety Standard Compliance: GB/T18830-2009
- Power Source: Electric
- Material: Durable steel construction for long-lasting reliability
- Shelf Life: 3 years
Certifications and Quality Assurance:
- Global Certifications: CE, ISO, TUV
- Warranty: Comprehensive 3-year warranty for peace of mind
- After-Sales Service: Onsite training provided to ensure seamless integration and optimal use
Packaging Details:
- Selling Unit: Single item
- Package Size: XX cm
- Gross Weight: XX kg
Applications:
Ideal for hospitals, clinics, research institutions, laboratories, rehabilitation centers, and home healthcare settings. Designed to meet the needs of medical professionals and patients alike, this MRI machine combines cutting-edge technology with user-friendly features to deliver exceptional diagnostic capabilities.
GoldHealth Medical is committed to advancing healthcare through innovative, reliable, and high-performance medical equipment.
