051T MRI Scanner Machine
Reference: 1601297454432Medical MRI Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

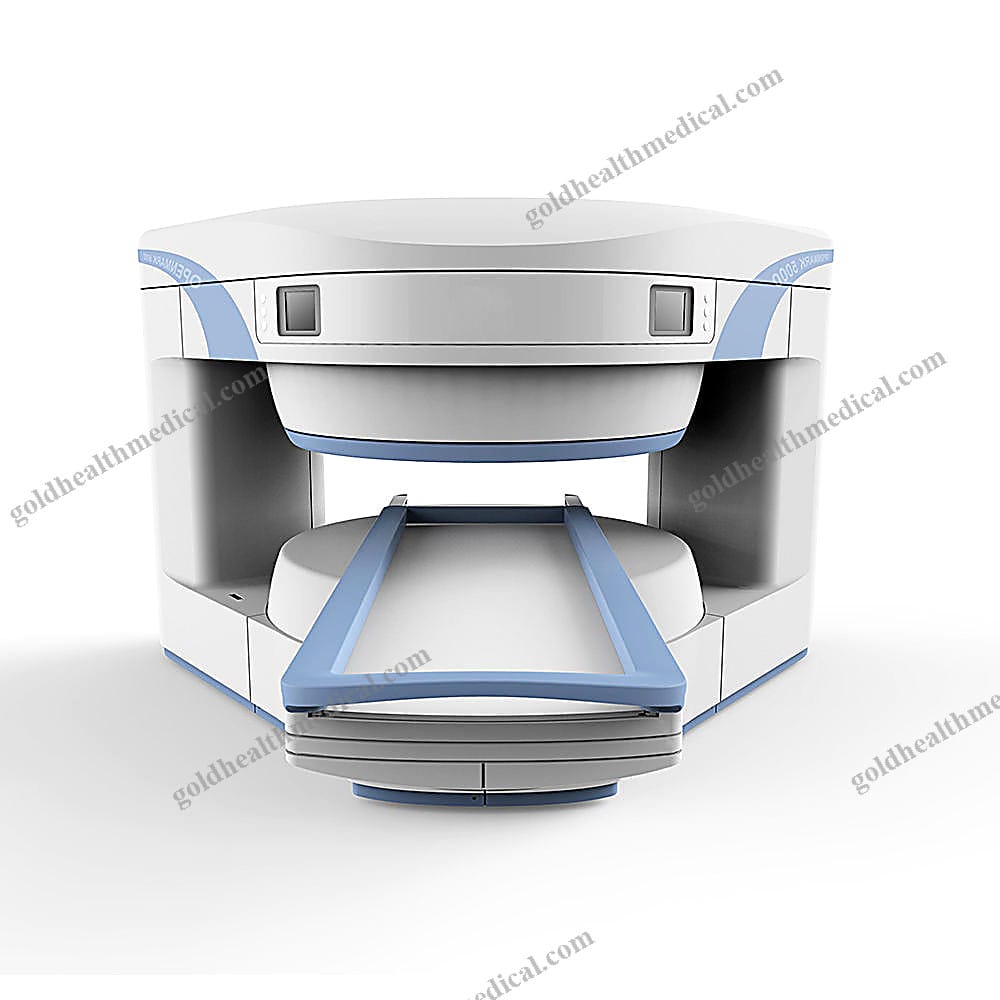

GoldHealth Medical MRI System
Magnet System
- Magnet Type: Permanent Magnet with an automatic constant temperature system for consistent performance.
- Field Strength: 0.3T, delivering reliable imaging for a wide range of clinical applications.
- Magnet Shape: C-shape design, ensuring open accessibility and patient comfort.
- Homogeneity (40cm DSV, VRMS): ≤2.0ppm, providing exceptional image clarity and diagnostic precision.
- Shim Method: Active/Passive, ensuring optimal field uniformity.
- Magnet Vertical Gap (Cover): 40cm, offering ample space for patient positioning.
- Accessibility (Horizontal Opening Angle): 320°, enabling easy access and reducing patient anxiety.
- 5 Gauss Fringe Field:
- X-axis (horizontal): ≤2.5m
- Y-axis (vertical): ≤2.5m
- Z-axis (horizontal): ≤2.5m, minimizing interference with surrounding equipment.
Patient Couch and Communication
- Patient Couch Driven Mode: Motor-driven for smooth and precise movement.
- Max. Patient Weight: Supports up to 200kg (440lbs), accommodating a diverse patient population.
- Patient Positioning Tools: Equipped with a laser light localizer and motor-driven transfer to ensure accurate alignment with the imaging volume.
- Position Accuracy: ±1mm, guaranteeing precise and repeatable results.
- Emergency Call Key: Included for enhanced patient safety.
- Intercom System: Integrated for seamless communication between the operator and patient.
Gradient System
- Gradient Field Strength (Single Axis): ≥28mT/m, enabling high-resolution imaging.
- Gradient Slew Rate (Single Axis): ≥93mT/m/ms, ensuring rapid imaging sequences.
- Rise Time: ≤0.3ms, reducing delays and improving workflow efficiency.
- Gradient Cooling System: Air-cooled design for reliable performance and minimal maintenance.
RF System
- RF System Type: Digital Transmit and Receive, delivering superior signal quality.
- Number of RF Channels: 4, supporting advanced imaging techniques.
- Transmitter Amplifier Peak Power: 6kW, ensuring robust signal transmission.
- RF Bandwidth of Receiver: ≥1MHz, capturing detailed imaging data.
- Phased Array Coils:
- Head Coil
- Neck Coil
- Body/Spine Coil (17 inch)
- Body/Spine Coil (20 inch)
- Knee Coil
- Shoulder Coil, providing versatile imaging options for various anatomical regions.
Computer System
- Host Computer: High-performance professional-grade system optimized for MRI applications.
- System Software: Windows 7, ensuring compatibility and ease of use.
- Operation Software: APEX, designed for intuitive operation and advanced functionality.
- CPU Clock Rate: 3.6GHz, enabling fast processing speeds.
- Main Memory: 2GB, supporting efficient data handling.
- Color LCD Monitor: 19”, offering clear visualization of imaging data.
- Keyboard and Mouse: Standard, for user-friendly operation.
- Image Reconstruction Speed (256 x 256 Matrix): 1500 FPS, ensuring rapid image processing.
- Hard Disk: 500GB, providing ample storage for extensive imaging datasets.
- Image Storage Capacity (256 x 256 Matrix): 2,650,000 images, allowing for long-term archiving.
- Media Driver: DVD RW, facilitating data transfer and backup.
GoldHealth Medical’s MRI system combines cutting-edge technology with user-centric design, offering unparalleled precision, versatility, and reliability for medical imaging professionals. Whether in hospitals, clinics, or research facilities, this system is engineered to meet the highest standards of diagnostic excellence.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents a cutting-edge MRI machine designed to deliver unparalleled imaging precision and operational efficiency. Engineered for versatility and reliability, this advanced medical device is ideal for hospitals, clinics, research institutions, and rehabilitation centers. With its innovative design and robust performance, it ensures exceptional diagnostic accuracy while prioritizing user convenience and patient comfort.
Key Features and Specifications
- Magnet Type: Permanent Magnet with an automatic constant temperature system for consistent performance
- Magnet Shape: C-shape design, offering enhanced accessibility and ease of use
- Field Strength: 0.3T, providing high-quality imaging for a wide range of clinical applications
- Homogeneity (40cm DSV, VRMS): ≤2.0ppm, ensuring sharp and precise imaging results
- Magnet Vertical Gap (Cover): 40cm, accommodating diverse patient needs and procedural requirements
- Accessibility (Horizontal Opening Angle): 320°, enabling flexible positioning and improved patient access
- Shim Method: Active/Passive, delivering optimal magnetic field stability
Technical Details
- Instrument Classification: Class II medical device
- Power Source: Electric, ensuring reliable and energy-efficient operation
- Shelf Life: 3 years, maintaining long-term usability and performance
- Place of Origin: Guangdong, China, reflecting GoldHealth Medical’s commitment to quality manufacturing
Certifications and Compliance
- Quality Certifications: TUV, CE, ISO, guaranteeing adherence to global safety and performance standards
Warranty and Support
- Warranty Period: 3 years for the system, 2 years for specific components
- After-Sale Service: Comprehensive onsite training provided to ensure seamless integration and optimal usage
Packaging Information
- Selling Units: Single item
- Single Package Size: XX cm (customizable based on requirements)
- Single Gross Weight: XX kg, designed for secure and efficient transportation
GoldHealth Medical’s MRI machine redefines diagnostic excellence with its innovative features, precision engineering, and user-centric design. Elevate your facility’s capabilities with a device that combines advanced technology with unmatched reliability.
